China Industrial Material Handling 1500kg Hydraulic Electric Stacker with CE

Product Description

High Quality Hydraulic Electric Battery Operated Pallet Stacker

The Electric Pallet Stacker is a powered drive, powered lift stacker used for bulk material handling, especially moving and lifting the regular pallets to a certain height in the warehouse.

The ergonomic handle features throttle with adjustable forward and reverse speeds, lift & lower controls, and a safety belly switch. It is ideal for light use in narrow warehouse environments and occasional stacking and order picking. Electric Pallet Stacker is available in different capacities and specifications as per client's requirements.

Data Sheet:

Model No.	SL10-25	SL10-31	SL15-25	SL15-31
Drive Unit	Electric
Operation Type	Pedestrian
Rated Load Capacity (KG)	1000		1500
Load center MM	600
Overall Length (MM)	1924
Overall Width (MM)	840
Overall Height (MM)	1825	2125	1825	2125
Lifting Height (MM)	2500	3100	2500	3100
Height (MM)-Fork Face	90
Fork Size (MM)	115016056
Max Fork Width (mm)	540/680
Min. Turning Radius(mm)	1475
90°Stacking Aisle(MM) (1000*1200 Pallet)--Ast	2350
Driving Motor (KW)	0.75
Lifting Motor (KW)	2.0
Battery(Ah/V)	100/24
Service Weight (w/o battery)KG	560	593	560	593
Battery Weight(kg)	45

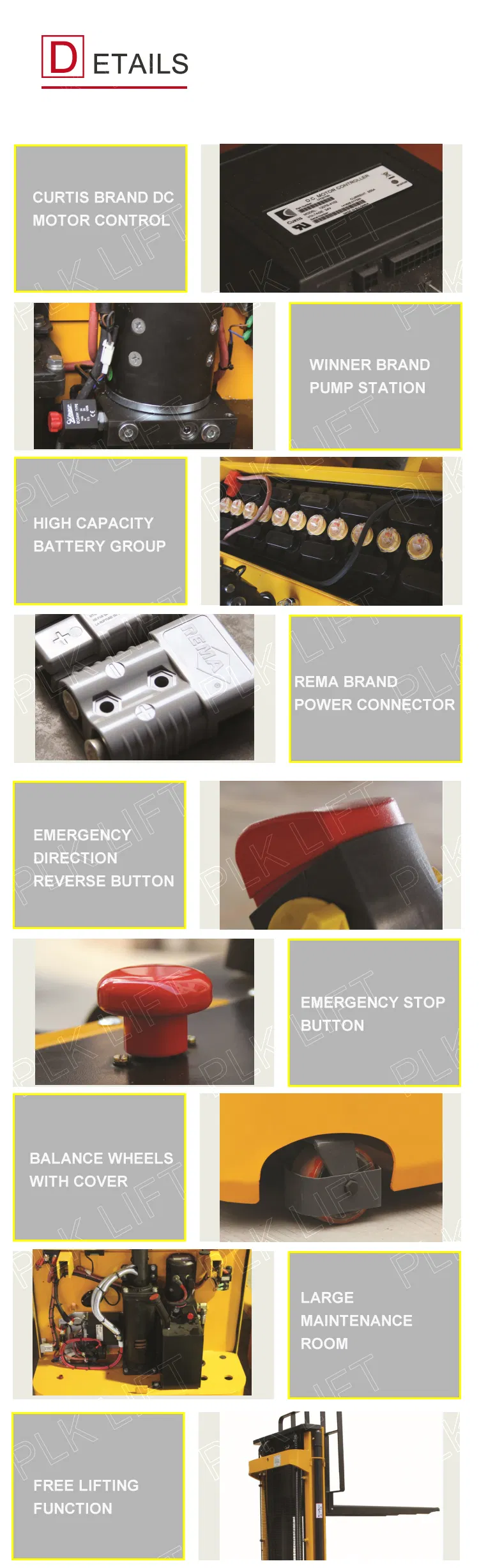

High Quality Configurations:
1. CURTIS controller from America
2. WINNER pump station from Taiwan
3. 240Ah large capacity battery
4. REMA plug from Germany
5. Reverse button, press this button, the truck will travel in reverse
6. Press the red button in an emergency, cut down all the power, stop the truck
7. Balance wheel with cover, protect the operator
8. Large maintenance room
9. With free lifting height, when forks raising, mast is still

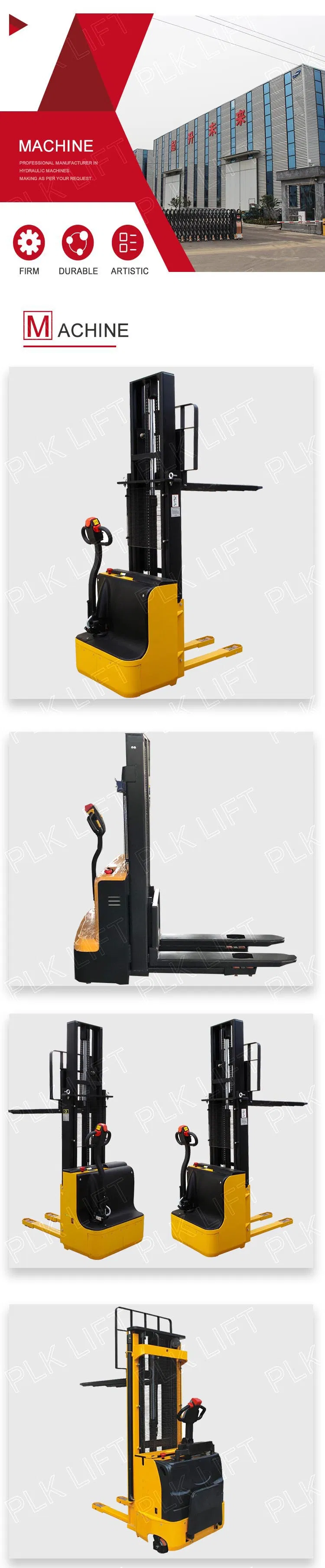

Photos Display:
Industrial Material Handling 1500kg Hydraulic Electric Stacker with CE
