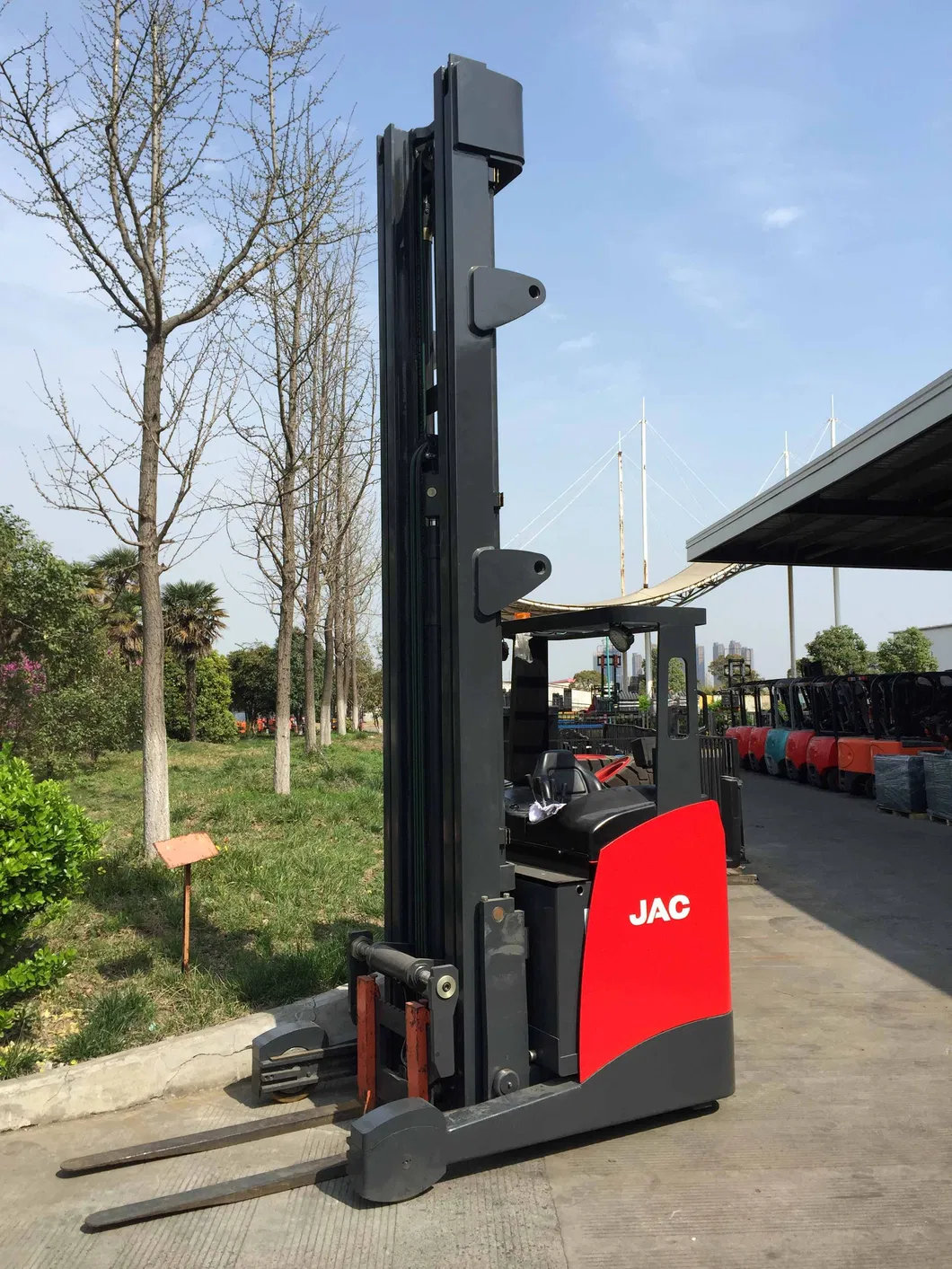

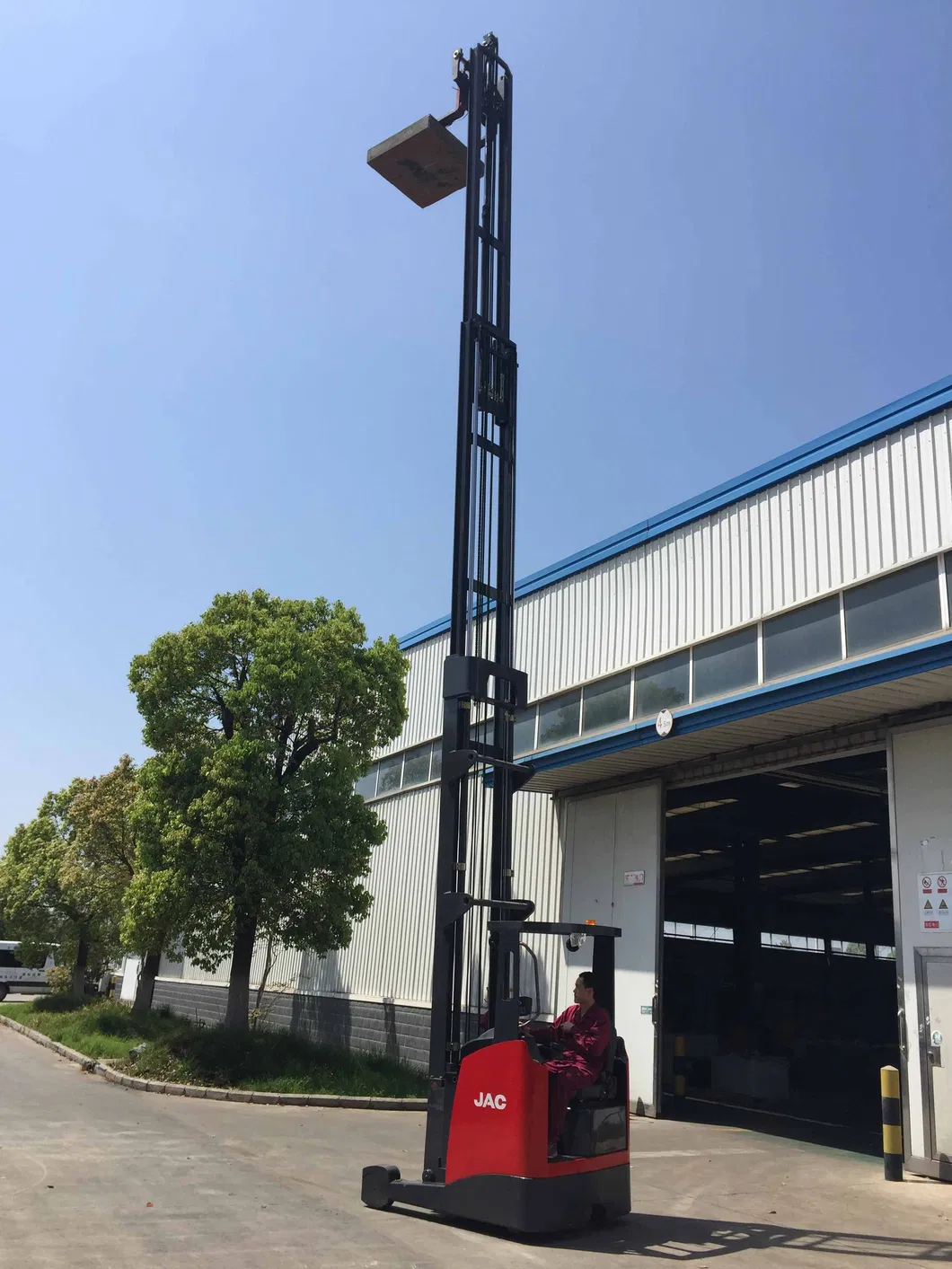

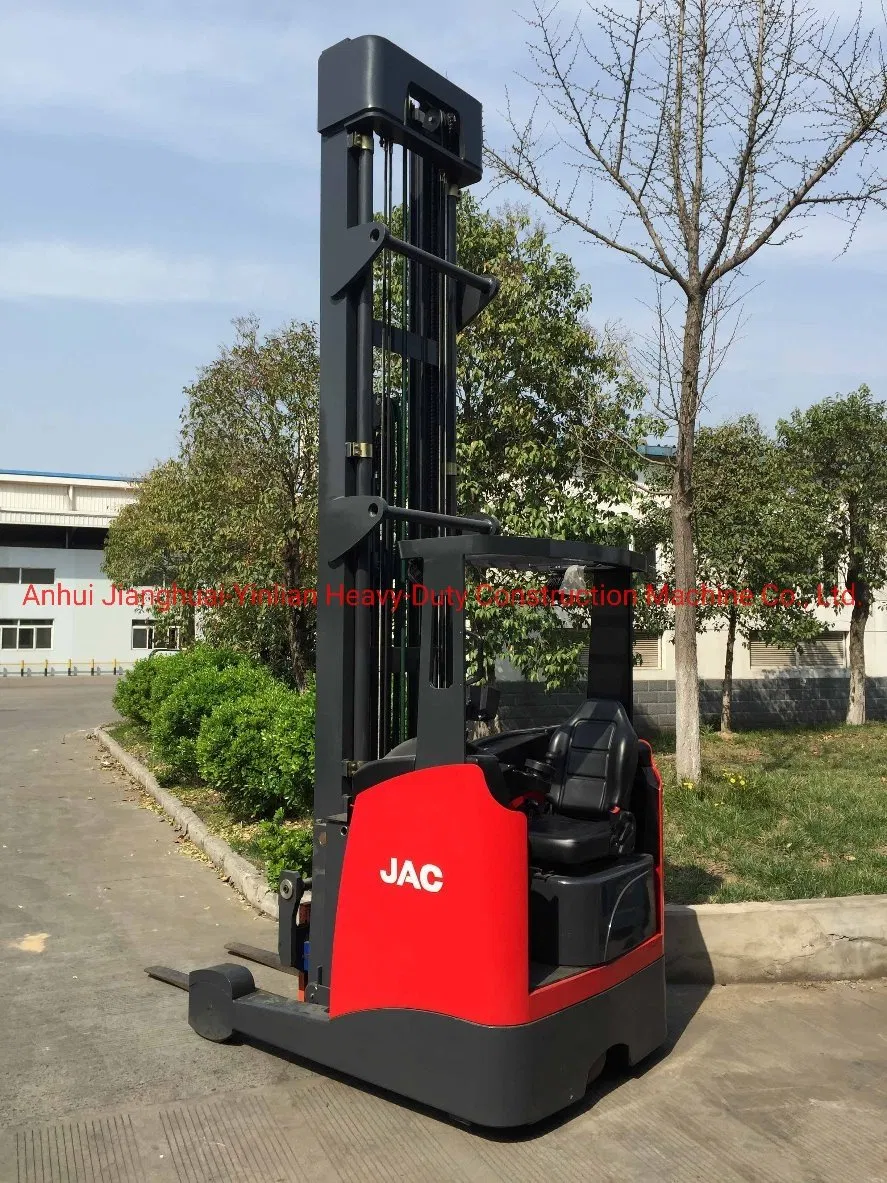

JAC 1.6ton Reach Forklift/ Cqd16 /Electric Reach Truck/Stacker/Forward-Type Electric Forklift/Seat Type
CQD161.6ton electric reach truckAC motorElectric forklift with Inmotion/Curtis control3-10.7m triplex full free mastseat type(OPS function)1070MMForksbattery 48V/500Ah with chargerside shift and cabin for optionTechnical Parameters: Model CQD161 Features Powe type Battery2 Drive type Stand3 Load ......
Send Inquiry
Product Description
CQD16
1.6ton electric reach truck
AC motor
Electric forklift with Inmotion/Curtis control
3-10.7m triplex full free mast
seat type(OPS function)
1070MMForks
battery 48V/500Ah with charger
side shift and cabin for option
Technical Parameters:
The company reserves the right to change the parameters without notice.
1.6ton electric reach truck
AC motor
Electric forklift with Inmotion/Curtis control
3-10.7m triplex full free mast
seat type(OPS function)
1070MMForks
battery 48V/500Ah with charger
side shift and cabin for option
Technical Parameters:
| Model | CQD16 | ||||
| 1 | Features | Powe type | Battery | ||
| 2 | Drive type | Stand | |||
| 3 | Load capacity | kg | 1600 | ||
| 4 | Weight | ()Weight (with battery) | kg | 3400 | |
| 5 | Tires | Tyre | ×, Tyre quantity | 1×+2 | |
| 6 | :() Front tyre(PU) | mm | Φ285x100 | ||
| 7 | :() Rear tyre(PU) | mm | Φ343x114 | ||
| 8 | Tread | Front Tread | mm | 1141 | |
| 9 | Rear Tread | mm | |||
| 10 | Inner width of fork-arms | mm | 938 | ||
| 11 | length | mm | 2580 | ||
| 12 | width | mm | 1270 | ||
| 13 | height | mm | 2140 | ||
| 14 | Max.capacity on the top | kg | 500 | ||
| 15 | Reach distance | mm | 535 | ||
| 16 | Minimum ground clearance | mm | 95 | ||
| 17 | Wheelbase center ground clearance | mm | 80 | ||
| 18 | ,1100×1100(200) Minimum Aisle Width(Pallet 1100*1100) | mm | 2911 | ||
| 19 | Load center distance | mm | 500 | ||
| 20 | Overhang(FR) | mm | 245 | ||
| 21 | Wheelbase | mm | 1440 | ||
| 22 | Minimum turning radius | mm | 1690 | ||
| 23 | :/ Maximum travel speed (full load/no load) | km/h | 11/12 | ||
| 24 | :/ Maximum lift speed(full load/no load) | mm/s | 350/480 | ||
| 25 | :/Maximum lowering speed(full load/no load) | mm/s | 520/500 | ||
| 26 | :/ Reach speed(full load/no load) | mm/s | 160/200 | ||
| 27 | :/ Maximum gradeability(full load/no load) | mm/s | 12/15 | ||
| 28 | Service brake | Electronic | |||
| 29 | Steering type | electric powering steering | |||
| 30 | Driving motor power | Kw | 4.5 | ||
| 31 | Lifting motor power | Kw | 12.5 | ||
| 32 | / Battery volatage/capacity | V/Ah | 48/500 | ||
| 33 | Batter weight | Kg | 920 | ||
| 34 | (××)Battery size(L x W x H) | mm | 1213×424×700 | ||
| 35 | (/)Way of control | / AC/AC | |||
The company reserves the right to change the parameters without notice.
