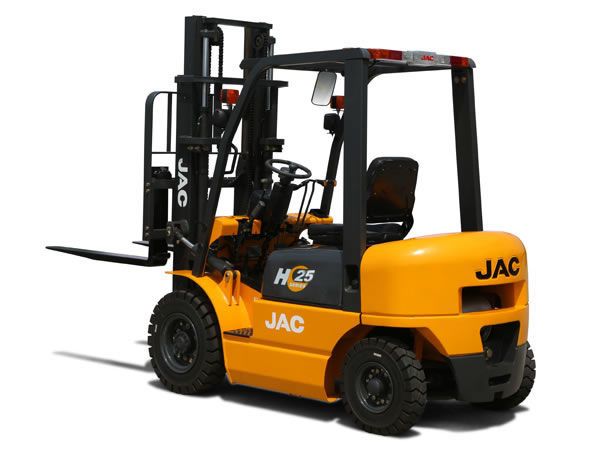

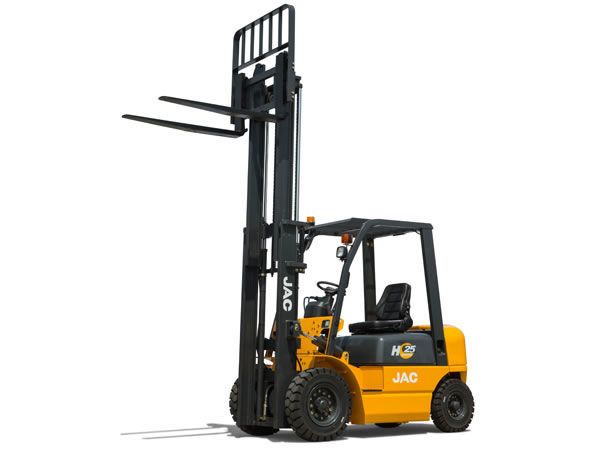

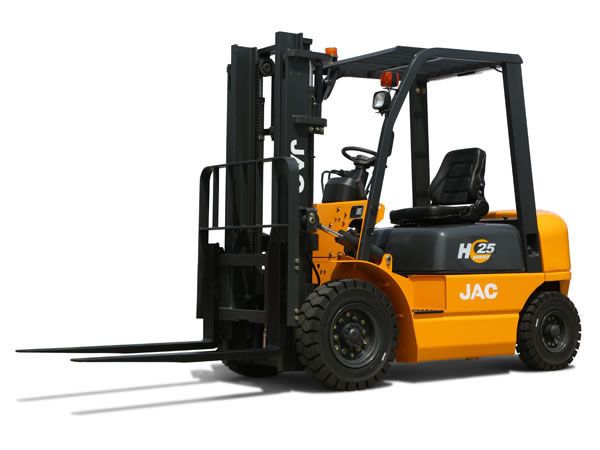

China JAC 2.5ton Internal Combustion Counterbalanced Forklift Truck (CPCD25)

Product Description

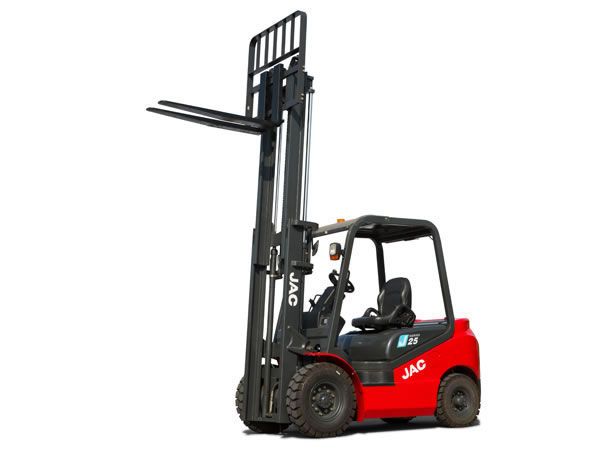

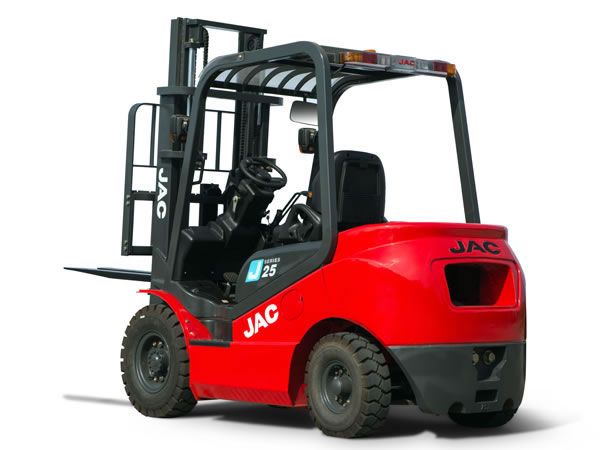

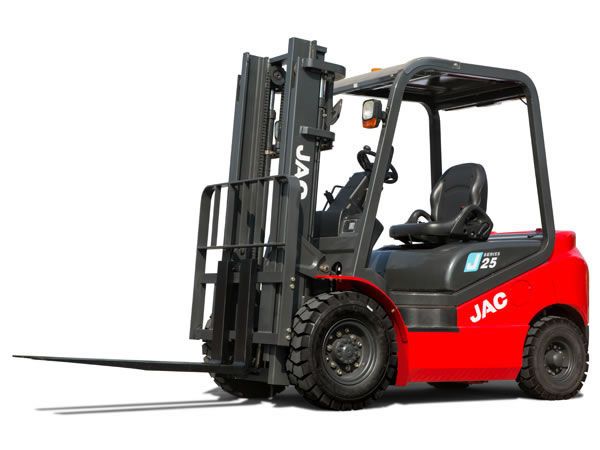

JAC 2.5ton Internal Combustion Counterbalanced Forklift Truck (CPCD25)

1. Stream-line design: Exclusive streamline design, fashionable and spirituality.

2. Powerful Engine: Equip with high performance and quality engine

3. High performance shell hydraulic oil: Protect key spare parts and prolong working life.

4. Safety belt seat: Safe, comfortable and equip with warning system without fasten seat belt.

5. High exhaust fans: Provide better working environment for operator.

6. Integrated overhead guard: Well protect the operator

7. Hydraulic shift and key-switch type flame-out device: Operation and flame-out more easier.

8. Up market meter and car parking type brake: Totally enclosed car type meter desk, car parking type brake save effort for operation.

9. Side shifter: Standard equip with side shifter, operation more easier and improve work efficiency.

Model	Unit	CPCD25J
Power type		Diesel
Rated load	kg	2500
Load center distance	mm	500
Lift height	mm	3000
Free lift height	mm	140
Fork size L×W×T	mm	1070×122×40
Minimum turning radius	mm	2300
Maximum travel speed/Full load	km/h	19
Maximum travel speed/Without load	km/h	19.5
Fork height at maximum lift (with backrest)	mm	4015
Standard Mast height	mm	1995
Front wheel		7.00-12-12PR
Rear wheel		6.00-9-10PR
Wheelbase	mm	1600
Front wheel/rear wheel	mm	970/970
Self weight/Without load	Kg	3800
Battery Voltage/capacity	V/Ah	12/80
Model		AK-C240PKJ-30
Engine/ Rated output	kw/r.p.m	34.3~36.5/2500
Engine/Rated torque	Nm/r.p.m	137.7/1800
Tire type (FR/RR)		Pneumatic
Number of wheels (FR/RR)		2/2
