China Lonking 2.5 Ton Diesel Forklift Truck Fd25t with Sideshift

Product Description

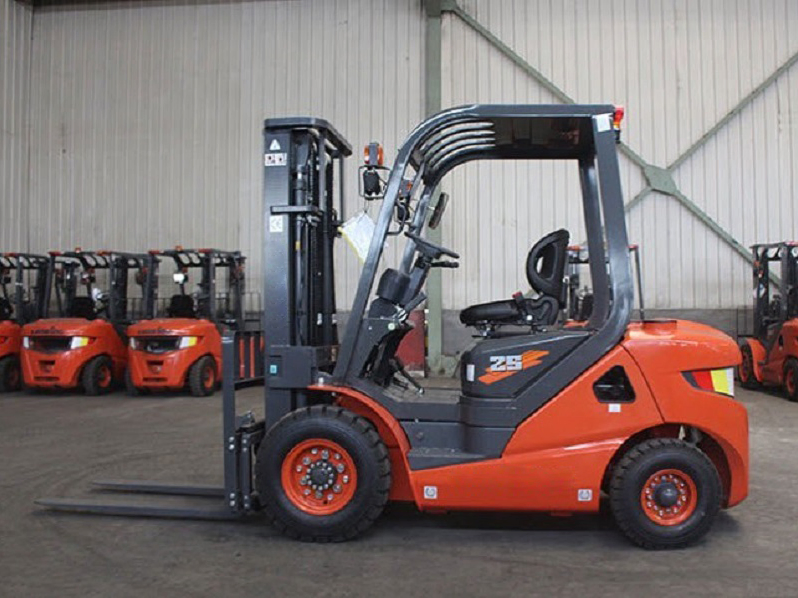

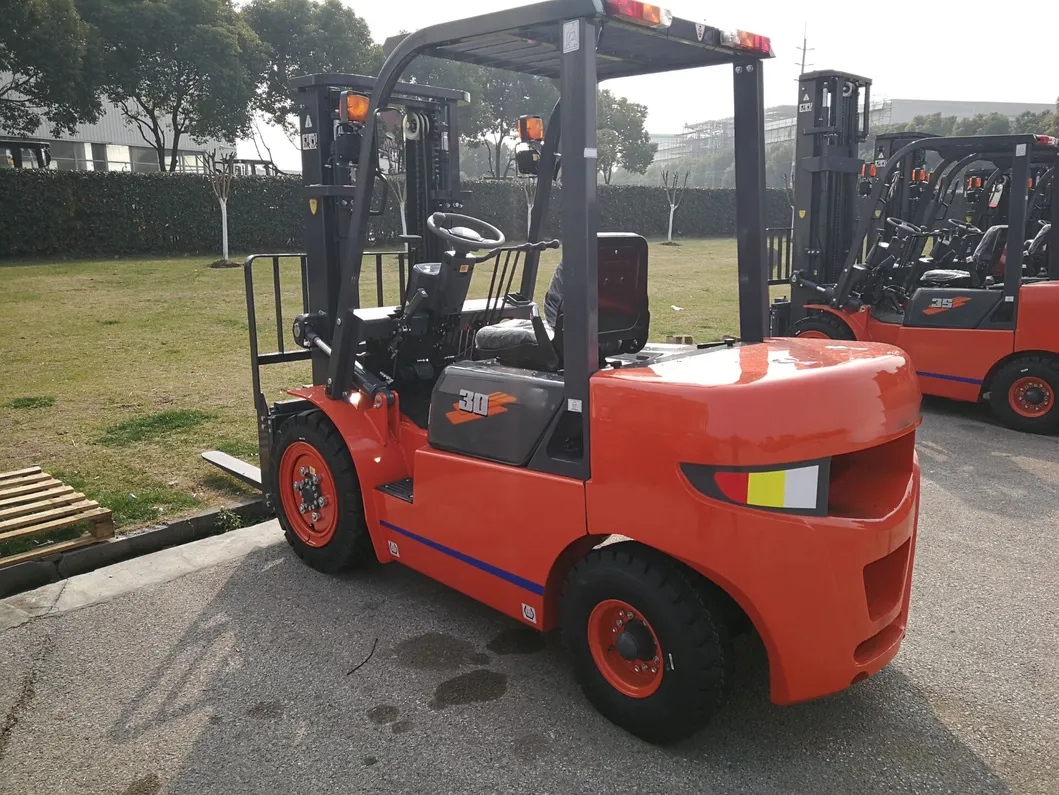

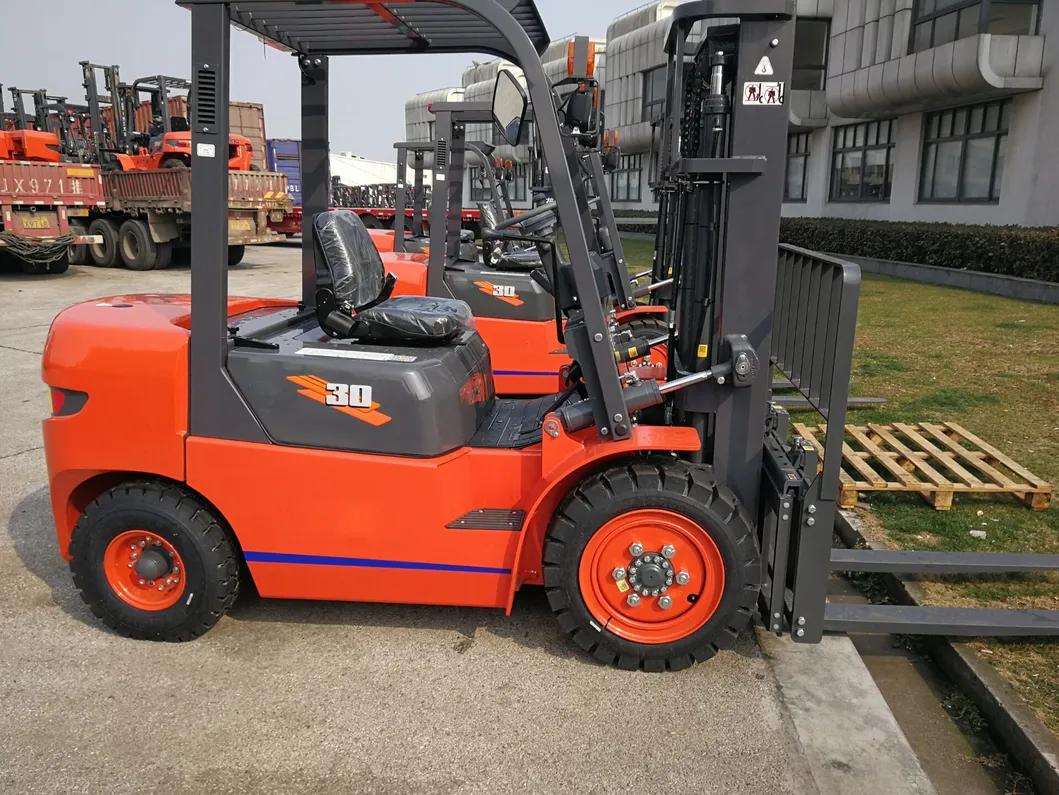

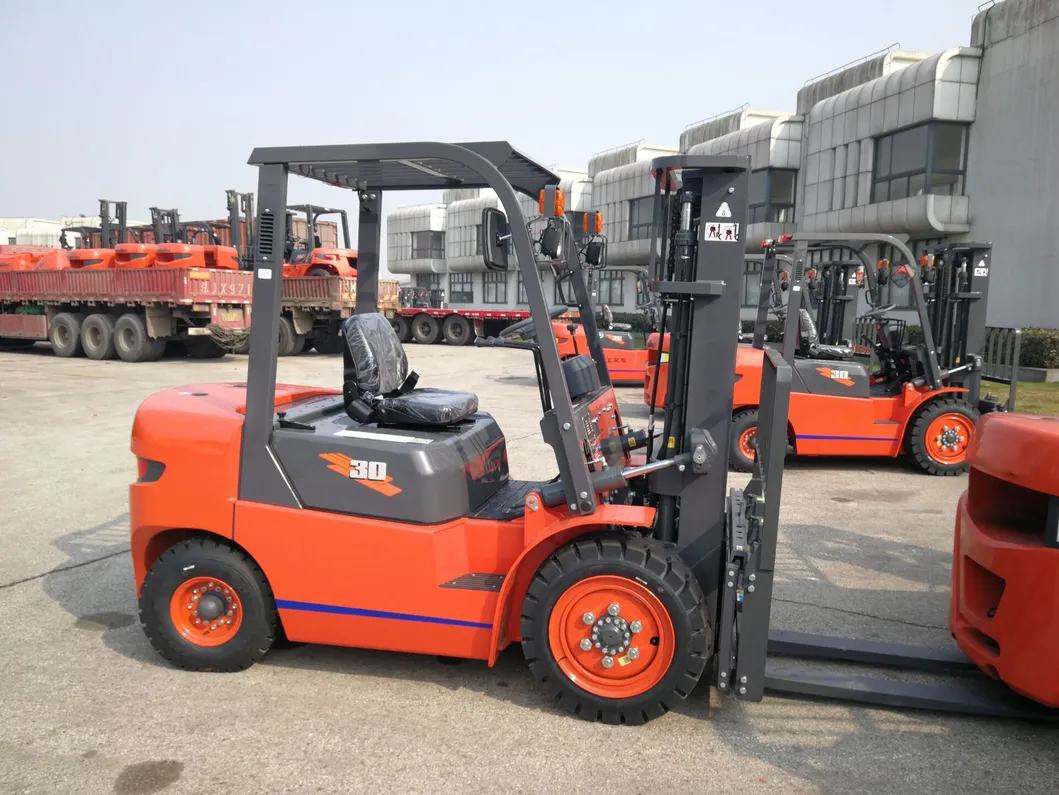

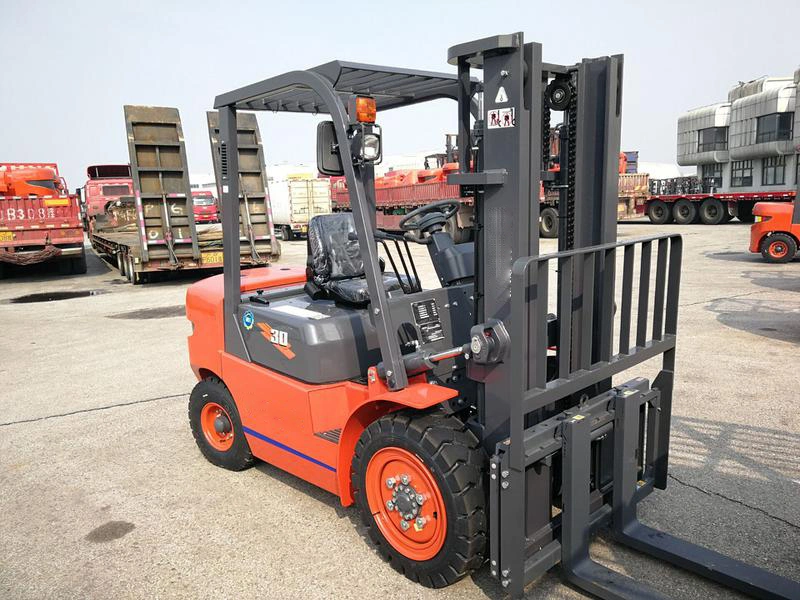

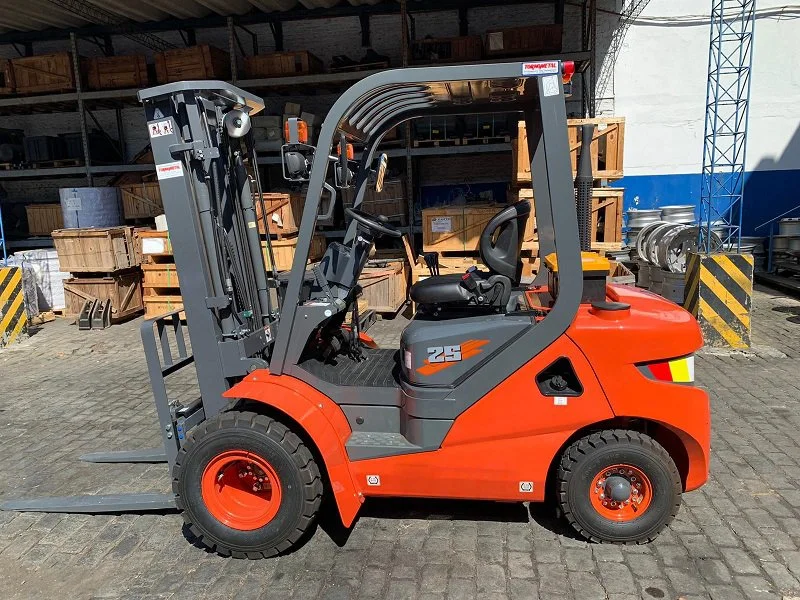

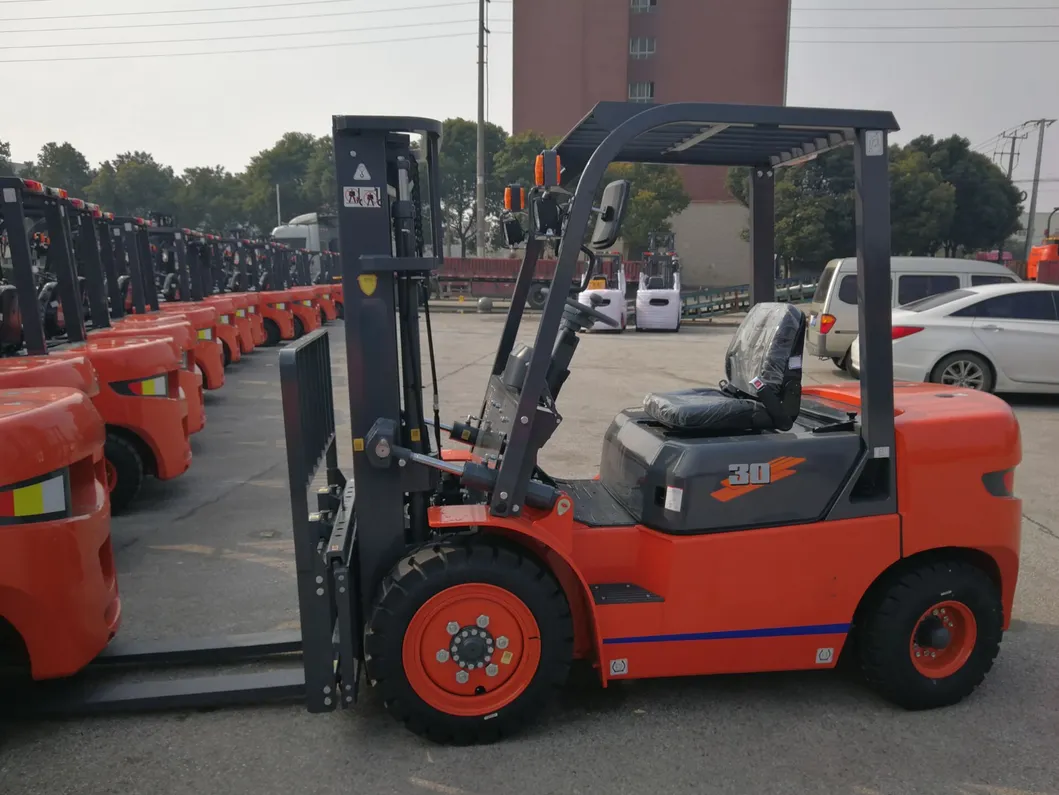

Lonking 2.5 Ton diesel forklift truck FD25T/LG25DT with sideshift

^Engine	^{Equipped with xinchaic490 engine which has which have a power energy and energy Conservation,}
	^{It has fast and reliable ignition,low fuel consumption and powerful motivity, sing direct injection technique.2}
	^{It has good reliability and long work life-time.}
	^{low noise and emission meeting the requirements of European E-Mark IIIA Regulations.}
^Pipeline:	^{high pressure oil line use the first brand oil tube .it has excellent resistance which can ensure its long service life}
^{Hydraulic system:}	^{double pump confluence, small system flow,low pwer consumption, reliable performance excellent operating performance}
^Cabin	^{wirth air conditioner and heating and heating and repture embrace explosion proof wide view and comfortable seats and flexible control}
	^{Mast box_type internal extent mast special all -round bearing in creasing the lifting performance}
^{Fork :}	^{use the cascade fork with hydraulic fork positoner easy operation and reduce drivers' labor intensity}
^{Steering axle:}	^{Adopt transverse oil cylinder type bridge full hydraulic flexible and light reliable transmission}
	^{Torque improved technology reliable performance convenient mainatenance Smooth transmission and convenient operation}

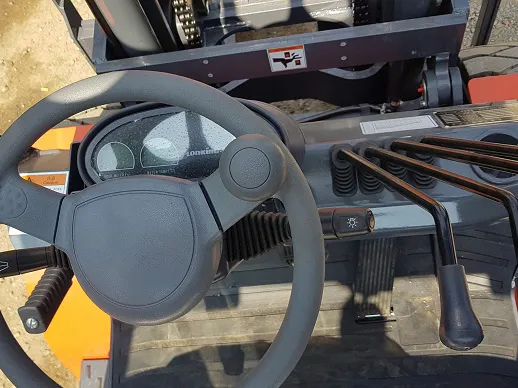

^{Control system}	^{pilot valve control device to make the work efficiently which can reduce the drivers labor intensity}
^Tyre:	^{high class brand pneumatic tyre resistance to wear and sting high strengths tyre it can bear the heavy laoded ,safe and reliable}

The detailed technical parameter

Model		Unit	LG20D(T)	LG25D(T)		LG30D(T)		LG35D(T)
			CPC(D)20	CPC(D)25		CPC(D)30		CPC(D)35
Power type		/	DIESEL
Rated capacity		kg	2000	2500		3000		3500
J Load center		mm	500	500		500		500
H1 STD lifting height		mm	3000	3000		3000		3000
H3 freee lifting height		mm	110	110		125		170
L5×W×T forke size		mm	1070×120×40	1070×120×40		1070×125×45		1070×125×50
Mast tilt angle		deg	Forward 6 backward12	Forward 6 backward12		Forward 6 backward12		Forward 6 backward12
L3 Front overhang		mm	448	448		487		498
L4 Rear overhang		mm	500	500		550		580
Dimension	L1 Overall length(with fork)	mm	3670	3670		3857		3898
	W1 Overall width	mm	1165	1165		1250		1250
	h2 STD mast lower height	mm	2135	2135		2132		2180
	h4 OverHead guard height	mm	2130	2130		2125		2125
the height of Load-backrest		mm	975	975		1280		1280
R1 Min. turning radius		mm	2300	2300		2520		2530
Ra Min intersecting aisle		mm	3950	3950		4200		4225
Max travel speed(load/unload)		Km/h	18.5/20	18.5/20		18.5/20		18.5/20
Max lifting speed(load/unload)		mm/s	580/560	580/560		520/500		420/400
Gradeablity(load/unload)		%	20	20		20		20
Self weight		kg	3260	3500		4200		4615
tyre	front tires	/	7.00-12-12PR	7.00-12-12PR		28×9-15-14PR		28×9-15-14PR
	Rear tires	/	6.00-9-10PR	6.00-9-10PR		6.5-10-10PR		6.5-10-10PR
Tread	S front tires	mm	970	970		1030		1030
	P Rar tires	mm	980	980		980		980
L2 axle distance		mm	1650	1650		1750		1750
Min.ground clearance	m2 Mast	mm	135	135		132		132
	m1 Frame	mm	160	160		165		165
fuel tank capacity		ltr	50	50		60		60
Engine			NATIONAL 3 ENGINE
Model		/	XINCHAI4D27G31-007	QUCANCHAI C02-624			YUNNEIYN4A055-31CR
Rated capacity		kW/r	36.8/2500		36.8/2500
Rated torque		N·m/r	156/1700~1900		157/1800~1900
cylinder number		/	4	4			4
Displacement		L	2.67		2.67
