Ltmg 1t 2t 2.5t 3t 4t LPG Forklift Gasoline Forklift Truck for EPA Emissions

Product Description

LTMG 1t 2t 2.5t 3t 4t LPG Forklift Gasoline Forklift Truck for EPA Emissions

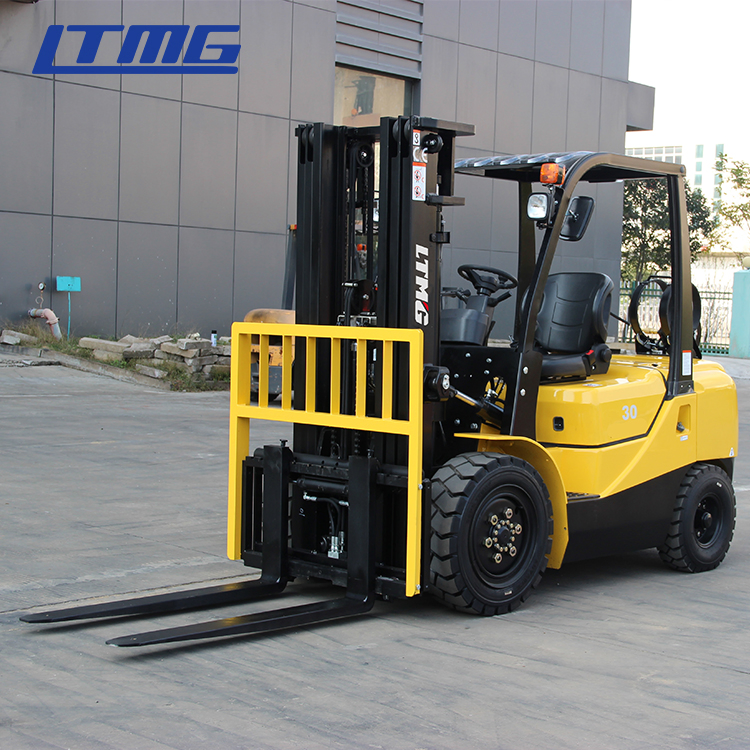

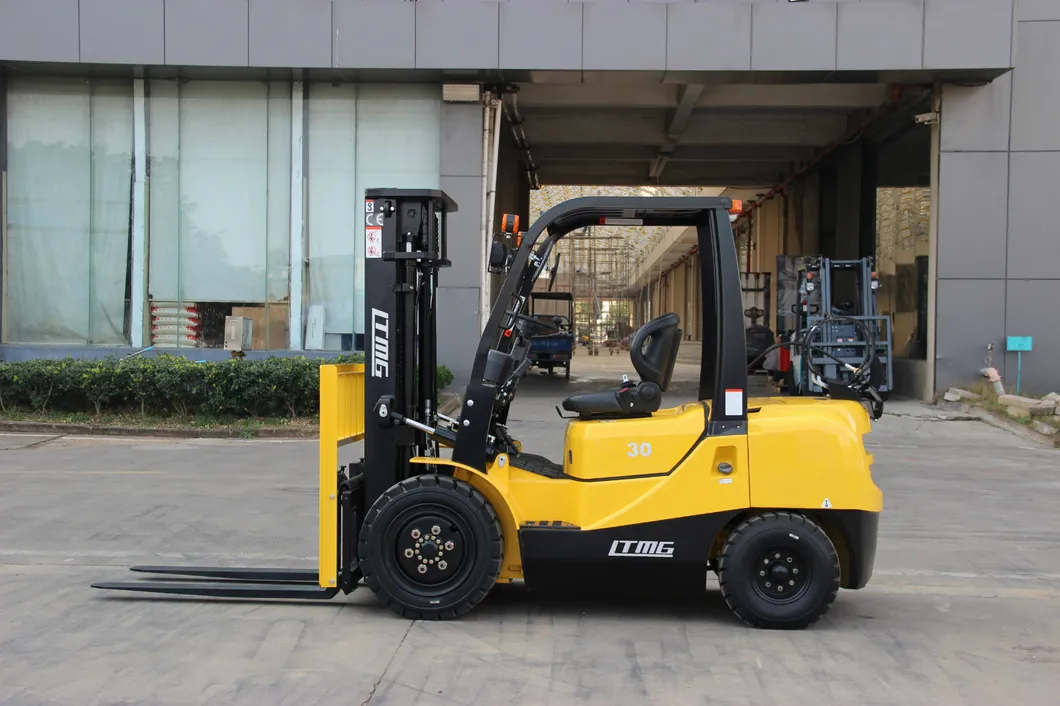

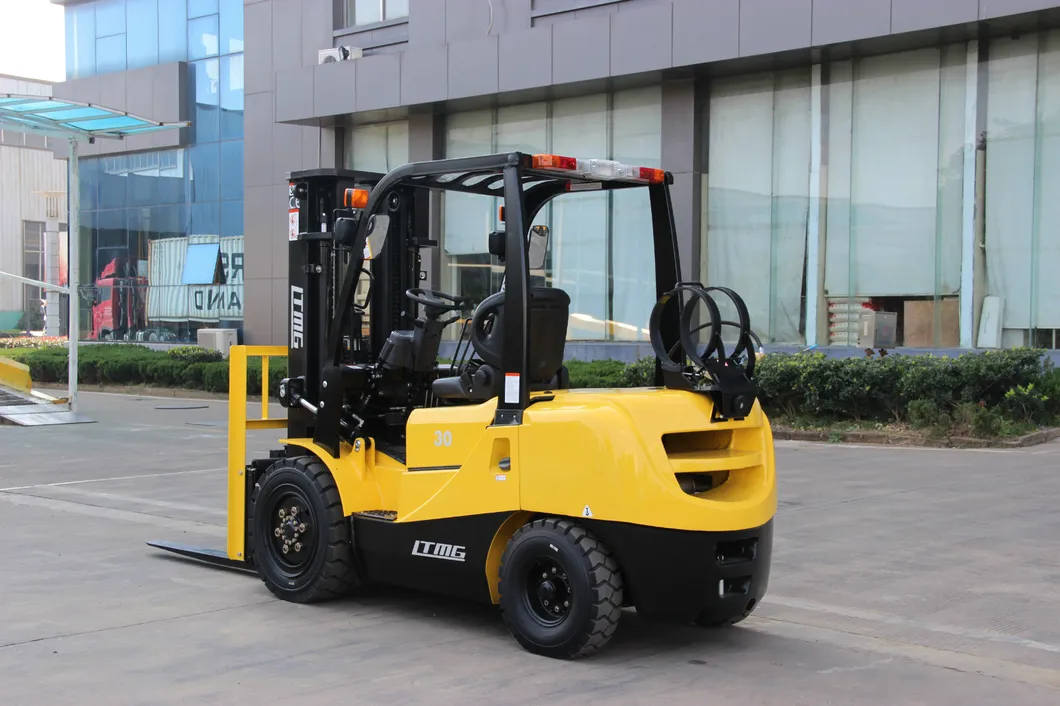

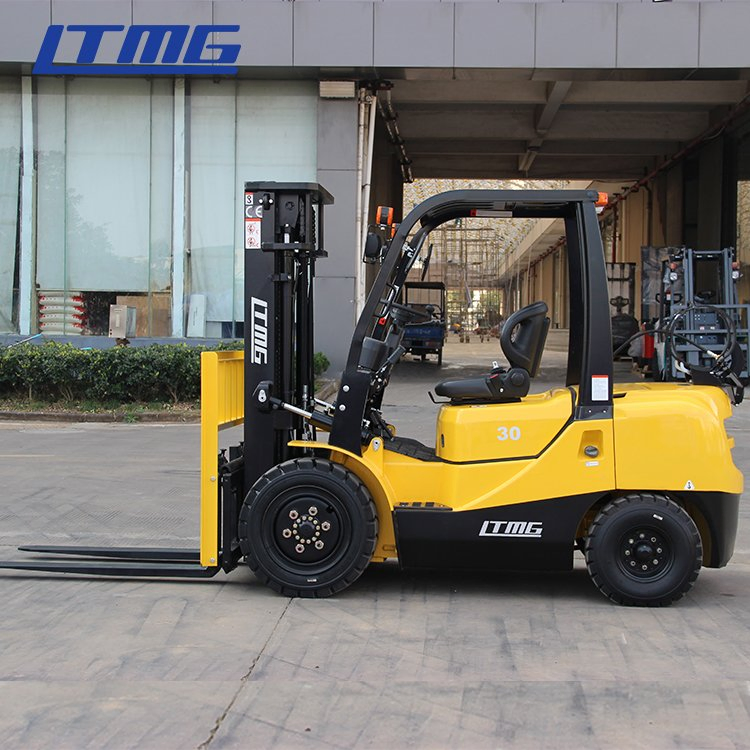

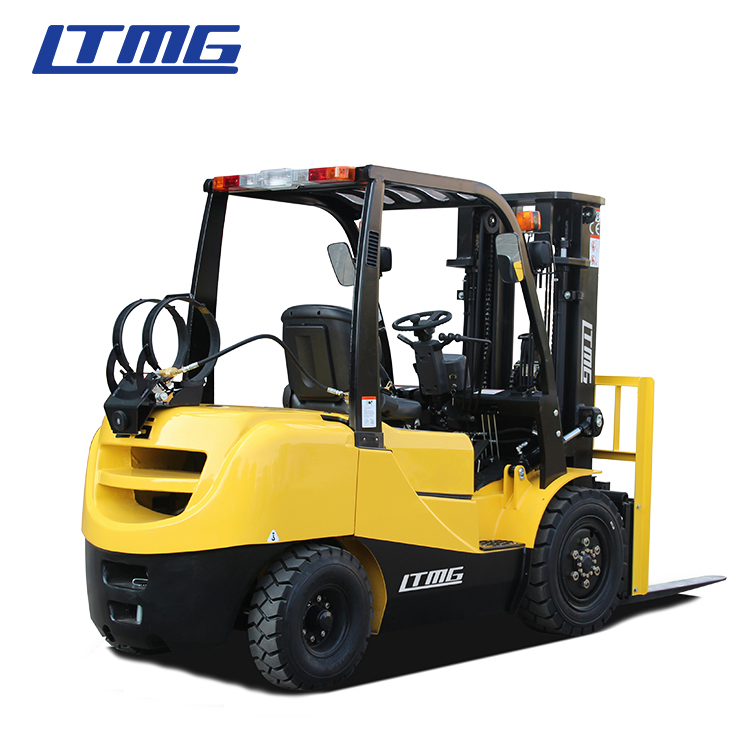

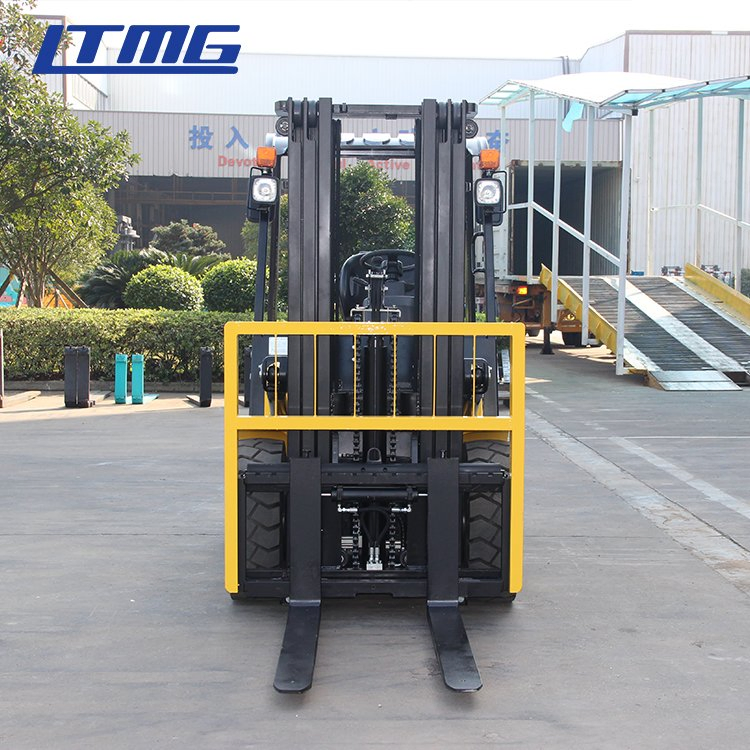

The 3 ton LPG forklift features

The specification of LPG & GASOLINE Forklift

FG20-FG35 LPG & GASOLINE FORKLIFT SPECIFICATION


General	Model				FG20	FG30	FG35
	Power Type				LPG & Gasoline	LPG & Gasoline	LPG & Gasoline
	Rated Capacity			kg	2000	3000	3500
	Load Centre			mm	500	500	500
Characteristic&Dimension	Lift Height			mm	3000	3000	3000
	Fork Size		L×W×T	mm	1070×120×40	1070×125×45	1070×125×50
	Mast Tilt Angle		F/R	Deg	6°/12°	6°/12°	6°/12°
	Front Overhang (Wheel center to fork face)			mm	465	480	485
	Ground Clearance(Bottom of mast)			mm	110	140	140
	Overall Dimension		Length to face of fork(Without fork)	mm	2595	2730	2775
			Overall Width	mm	1150	1225	1225
			Mast Lowered Height	mm	2070	2115	2115
			Mast Extended Height(With backrest)	mm	4070	4150	4150
			Overhead Guard Height	mm	2070	2090	2090
	Turning Radius (outside)			mm	2310	2440	2480
Performance	Speed		Travel (Empty load)	km/h	19	20	20
	Speed		Lifting (Full load)	mm/s	530	510	440
	Max.Gradeability (No load/Full load)			%	20	20	20
Chassis	Tire		Front	mm	7.00-12-12PR	28×9-15-12PR	28×9-15-12PR
	Tire		Rear	mm	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR
	Wheelbase			mm	1600	1700	1700
	Service weight			kg	3590	4300	4500
Power&Transmission	Battery	Voltage/Capacity		V/Ah	12/80	12/80	12/80
	Engine	Model			K25
		Manufacture			GCT (NISSAN)
		Rated output/r.p.m.		kw	35.6/2100
		Rated torque/r.p.m.		N·m	176.5/1600
		No.of Cylinder			4
		Bore×Stroke		mm	89×100
		Displacement		cc	2488
		Fuel Tank Capacity		L	60
	Transmission	Type			Hydraulic
	Transmission	Stage	FWD/RVS		1/1

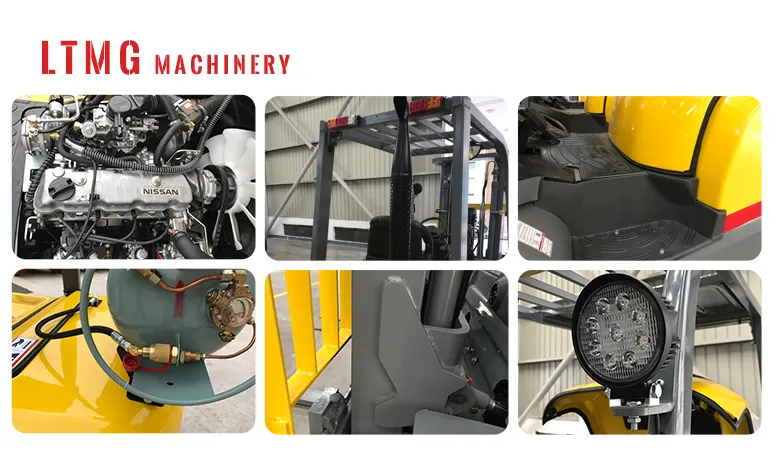

The standard LED lamps and warning lights make it safer, more energy efficient and create better working condition.
Equipped with USA IMPCO gas system which is more reliable.
Thicker reinforcing plate ensures the safety and efficiency.
New designed overhead guard protective device prevent the sudden accidents.
Equipped with the EFI, EPA approved engine Nissan K25 with excellent environmental performance; GM engines and Chinese powerful and reliable engines are optional.

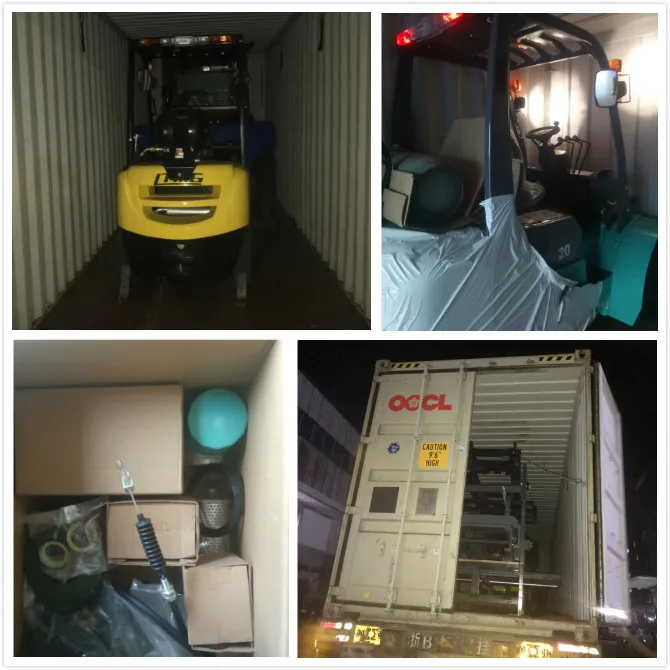

Packing & shipping

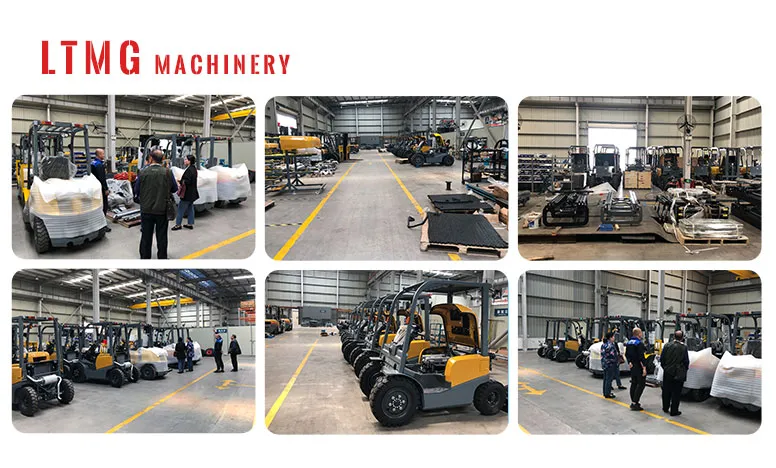

About Us

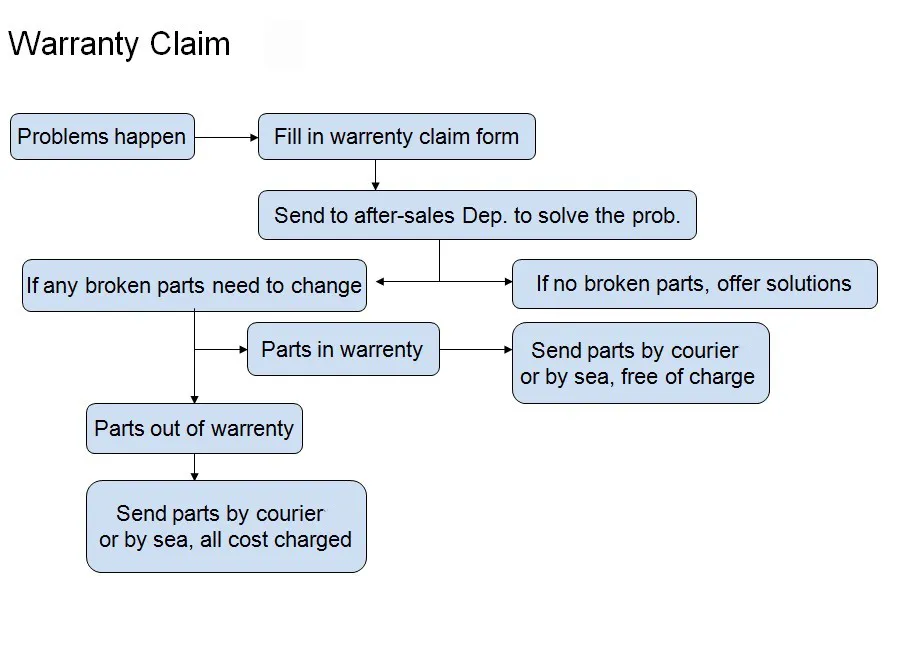

After-sale service
LTMG believes that after-sale service is as important as sale. And now we have more than 50 agents around the world to provide LTMG professional after-sale service.

All the product of LTMG supplied comes with one year or 2000 working hours (which occurs first) period quality warranty.

LTMG can also help clients coordinate with professional trained service engineer to provide you comprehensive knowledge about your machine. With our technical support, your machine service life can be significantly prolonged and sustained with high capacity.

Detail clauses and policies please check our website and product certificate.
