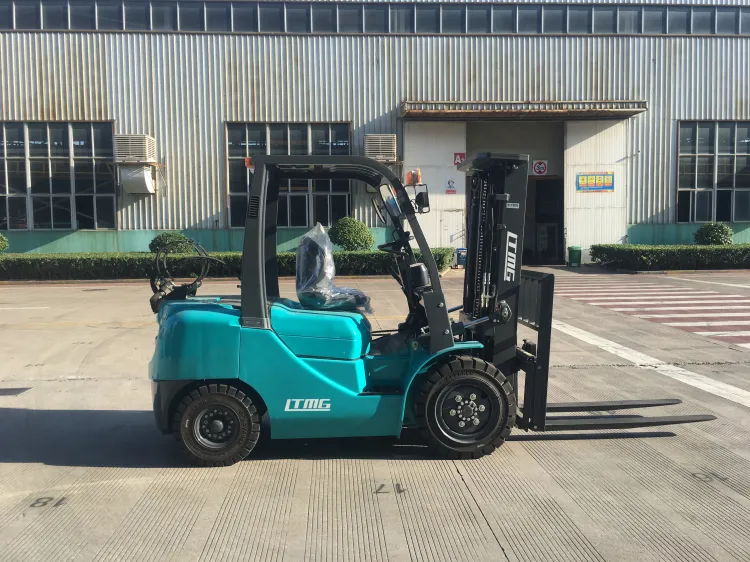

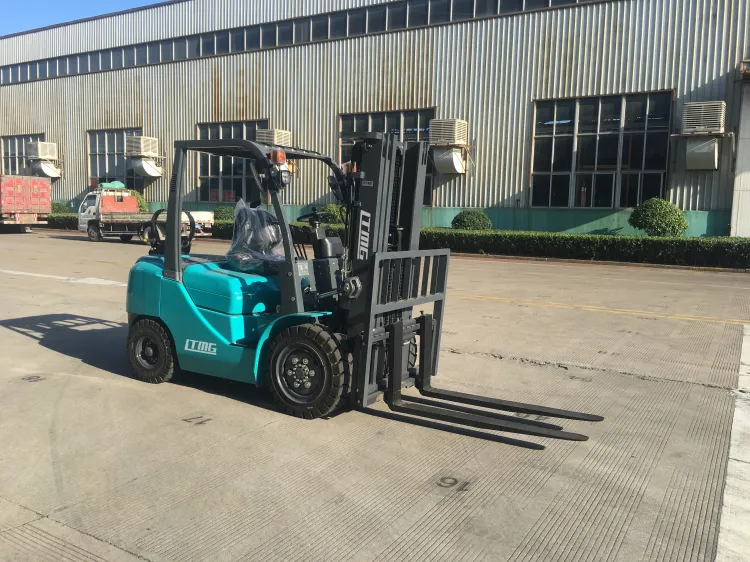

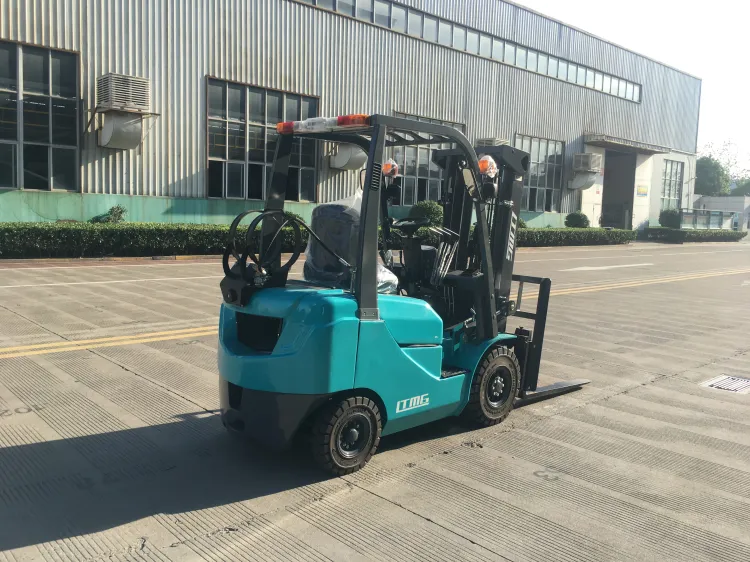

Ltmg 2.5ton 2ton 1.5ton Gasoline LPG Forklift 2.5t 2t 1.5t 2 Ton 1.5 Ton LPG Forklift with Original Japanese Engine
LTMG 2.5ton 2ton 1.5ton gasoline lpg forklift 2.5t 2t 1.5t 2 ton 1.5 ton LPG forklift with Original Japanese engine The specification of 1.5 ton lpg forklift with 3 stage mastManufacturer LTMGModel Power shift T/M FG15Load capacity ......
Send Inquiry
Product Description

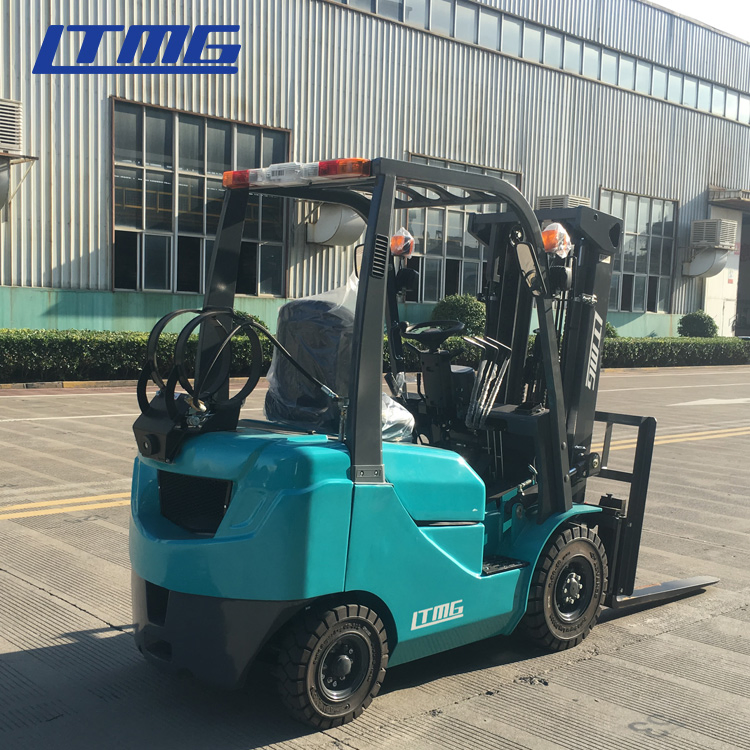

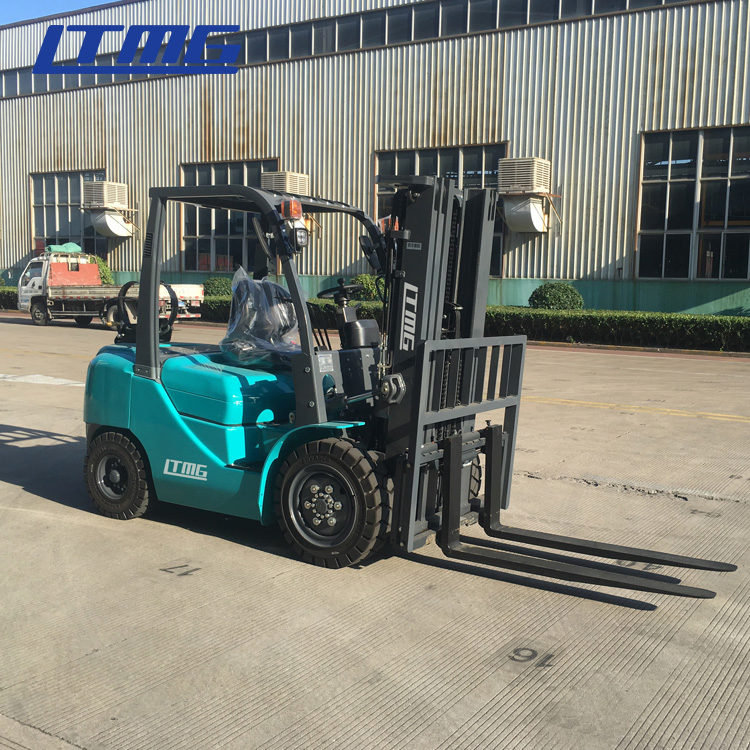

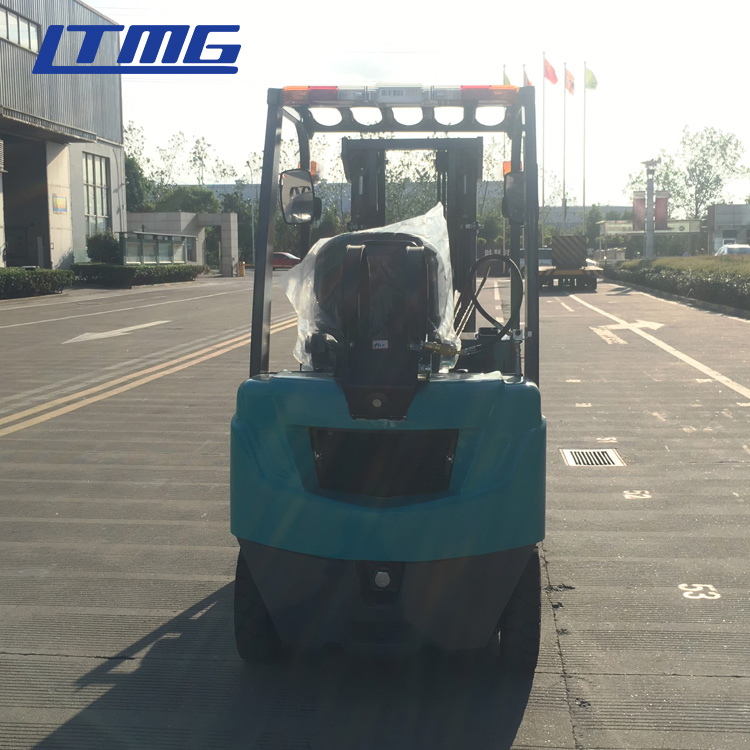

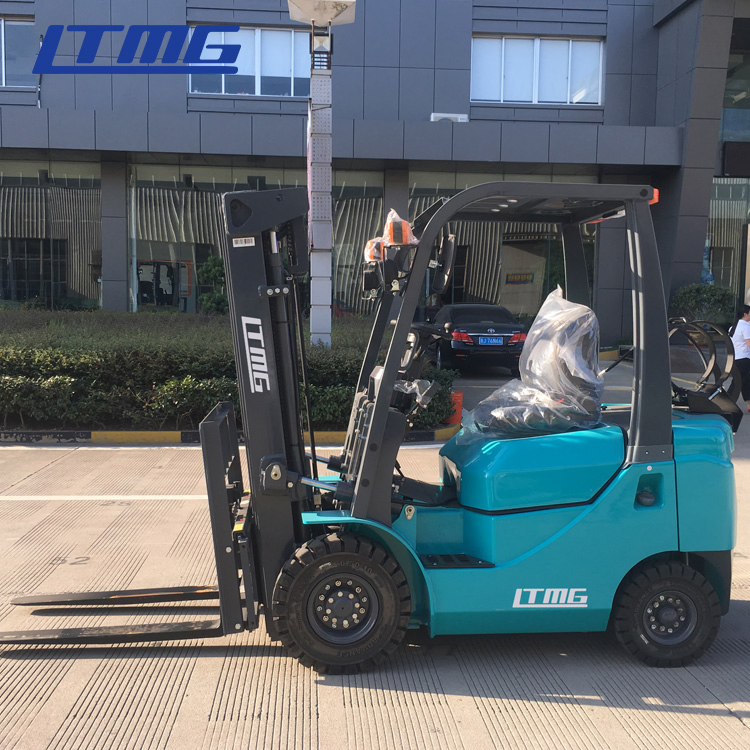

LTMG 2.5ton 2ton 1.5ton gasoline lpg forklift 2.5t 2t 1.5t 2 ton 1.5 ton LPG forklift with Original Japanese engine
The specification of 1.5 ton lpg forklift with 3 stage mast
Product Features
1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:
Middle muffler, more environmental.
6.High technology:
Maintenance free radiators adopt Germany technology.

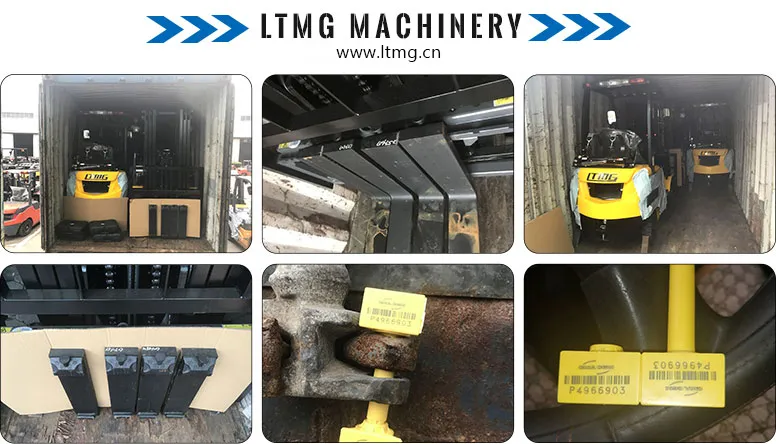

Packing and shipping

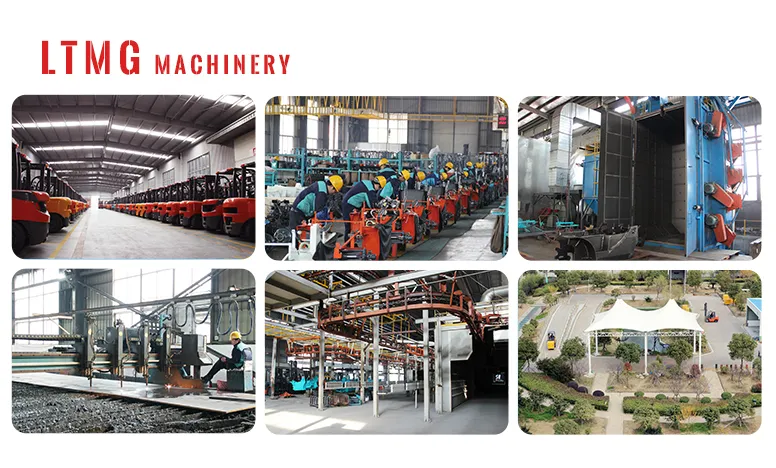

Our Factory
Our customer
After sales service
LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
FAQ
1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is from 15 days to 35 days.
The specification of 1.5 ton lpg forklift with 3 stage mast
| Manufacturer | LTMG | ||
| Model | Power shift T/M | FG15 | |
| Load capacity | kg | 1500 | |
| Load center | mm | 500 | |
| Power unit | Gasoline/LPG | ||
| Operator type | Driver/seat | ||
| Tire type | Front/rear | Pneumatic | |
| Wheel | Front/rear | 2/2 | |
| Max. lifting height | mm | 3000 | |
| Free lift | mm | 155 | |
| Fork size | L*W*T | mm | 920*100*35 |
| Tilt range | Mast forward/backward | deg | 6/12 |
| Overall length(without fork) | mm | 2245 | |
| Total width | mm | 1070 | |
| Mast height (fork lowering) | mm | 1995 | |
| Overall height fork raised | With backrest | mm | 4030 |
| Height to head guard | mm | 2060 | |
| Turning radius(outside) | mm | 2040 | |
| Front face of fork to front axle | mm | 395 | |
| Min. right angle stacking aisle | without load length&clearance | mm | 2435 |
| Speed | Max Travelling full/no load | km/h | 14/14.5 |
| Lifting full/no load | mm/s | 440/500 | |
| Lowering full/no load | mm/s | 370/530 | |
| Max.drawbar pull | Power shift T/M full/no load | kg | 1130/690 |
| Gradeability at 1.6km/h | Power shift T/M full/no load | % | 21/18 |
| Truck weight | kg | 2550 | |
| Weight distribution | Full load front/rear | kg | 3580/470 |
| No load front/rear | kg | 1110/1440 | |
| Tires | Number | front/rear | 2/2 |
| Model | front axle | 6.50-10-10PR | |
| rear axle | 5.00-8-10PR | ||
| Wheelbase | mm | 1425 | |
| Tread | Front/rear | mm | 890/900 |
| Ground clearance | At lowest point(mast) | mm | 115 |
| Frame | mm | 105 | |
| Brake | Service brake | Hydraulic-foot pedal | |
| Parking brake | Mechanical-hand lever | ||
| Battery | Voltage/capacity | V/AH | 12/80 |
| Engine | Model | Nissan K21 | |
| Rated power | PS(kw/rpm) | 47/2250(34.6/2250) | |
| Rated torque | kg-m max.(N.m) | 15.7/1600(153/1600) | |
| Number of cylinders | 4 | ||
| Placement | L | 2.065 | |
| Fuel tank capacity | L | 50 | |
| Transmission | Speed forward/backward | Power shift T/M | 1-1 power shift T/M |
| Operating pressure | Hydraulic system pressure | kg/cm² | 180 |
Product Features
1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:
Middle muffler, more environmental.
6.High technology:
Maintenance free radiators adopt Germany technology.
Packing and shipping
Our Factory
Our customer
After sales service
LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
FAQ
1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is from 15 days to 35 days.
