Product Description

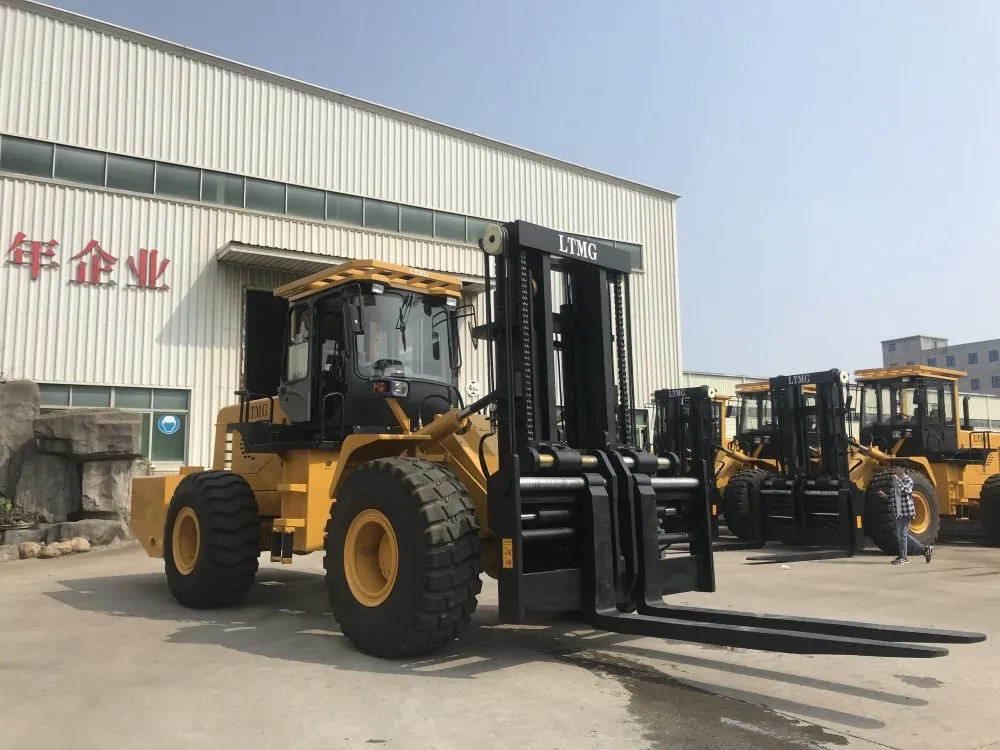

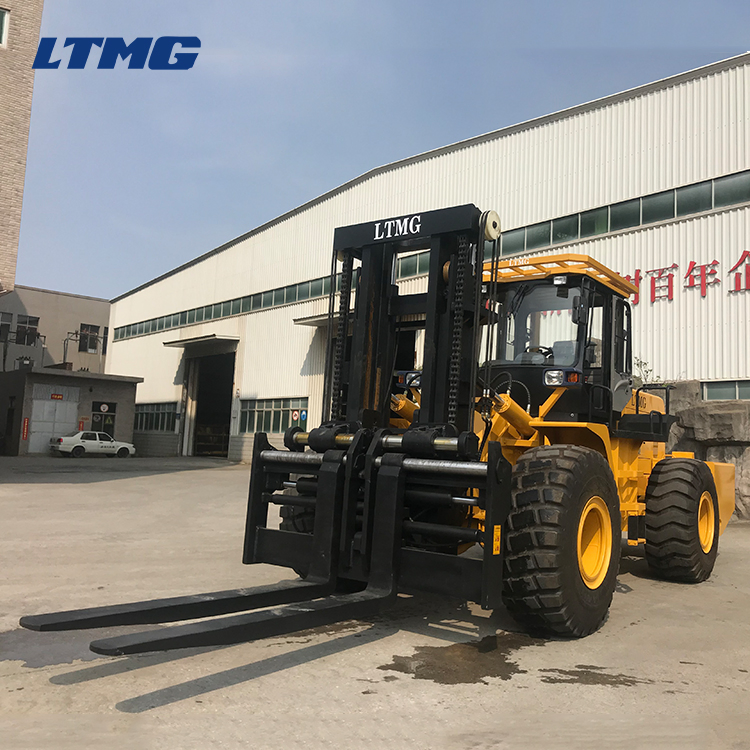

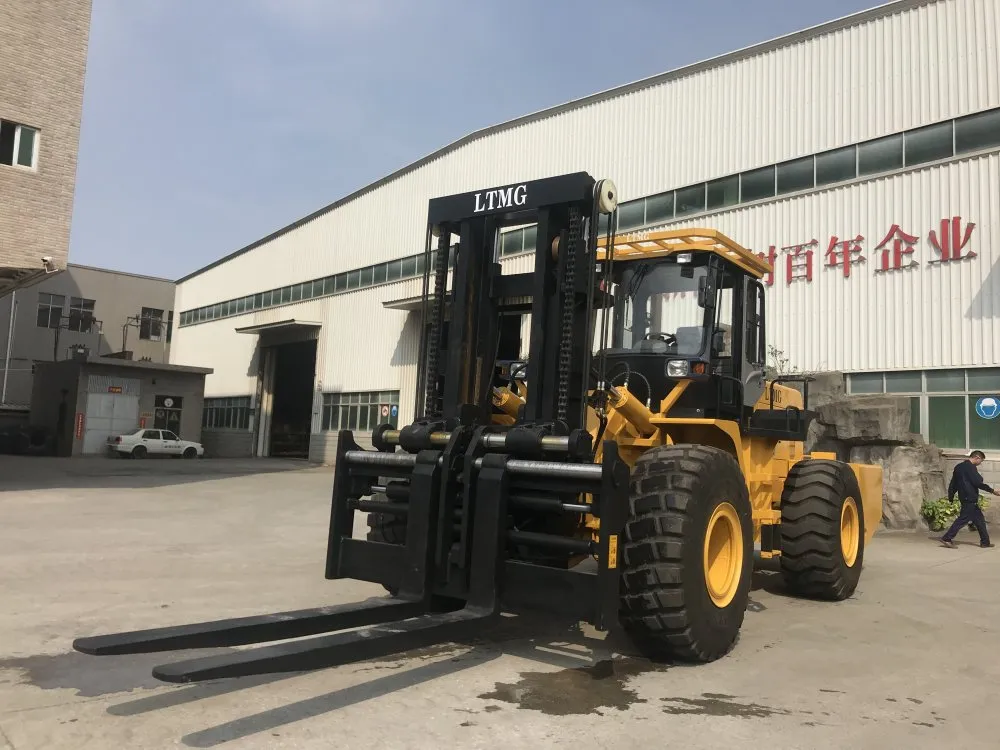

Ltmg 20 Ton Diesel all Terrain Forklift with Customized Attachment

Ltmg 20 Ton Flat Rack Package Diesel All Terrain Forklift Truck

Forklift specification

specification
General	Manufacture					LTMG
	Fuel type					diesel oil
	Rated capacity				kg	20000
	Load center				mm	800
Dimensions	Lift height				mm	3000
	Free lift height				mm	100
	Fork size				mm	2400×200×100
	Shelf Side Shift Distance		Left / Right		mm	205/205
	Fork spacing adjustment		Min./Max.		mm	280/2320
	Mast tilt angle		Before / After		deg	8/10
	Front overhang				mm	1380
	Overall dismensions	Length to face of fork			mm	9700
		Overall width			mm	3040
		Mast lowered height			mm	3350
		Mast extended height			mm	4850
		Safety rack height			mm	3700
	Turning radius				mm	7800
	Min.right angle aisle width				mm	8500
Performance	no load/full load	Travel speed			Km/h	30/28
		Lifting speed			mm/sec	320/270
	Max.grade ability				º	≥21
	Max.Pull force(full load)				KN	180
	Self weight				kg	26000
Chassis	Tyres	Front				2×23.5-25-32PR
		Rear				2×23.5-25-24PR
	Tread	Front			mm	2380
		Rear			mm	2380
	Wheelbase				mm	3710
	Min.Ground clearance (no load/full load)			Mast	mm	450/400
				Frame	mm	500/450
Power Unit and Control	Battery				V/AH	24/100×2
	Engine	Model				6CTA8.3-C240
		Manufacture				Cummins
		Rated output			Kw/rpm	179/2200
		Rated torque			N.m/rpm	1028/1500
		Fuel tank capacity			L	220
	Transmissions	Type				Hydraulic
		Shift		Front/rear		2/1

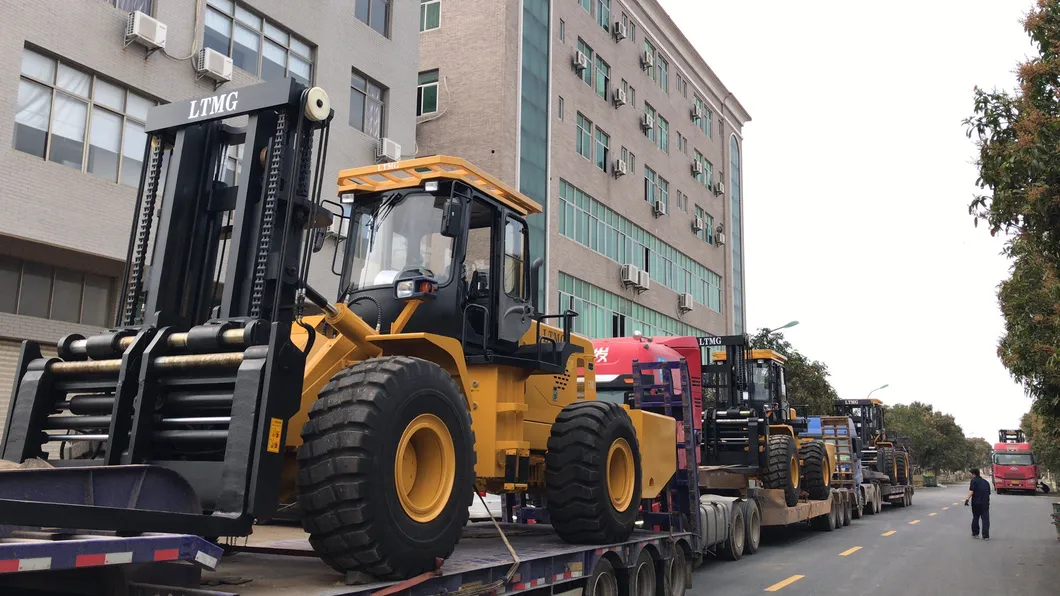

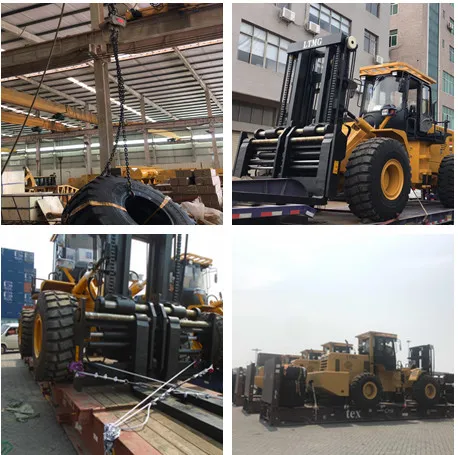

Packling and Shipping

Ltmg 20 Ton Flat Rack Package Diesel All Terrain Forklift Truck

Our Customer

Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.

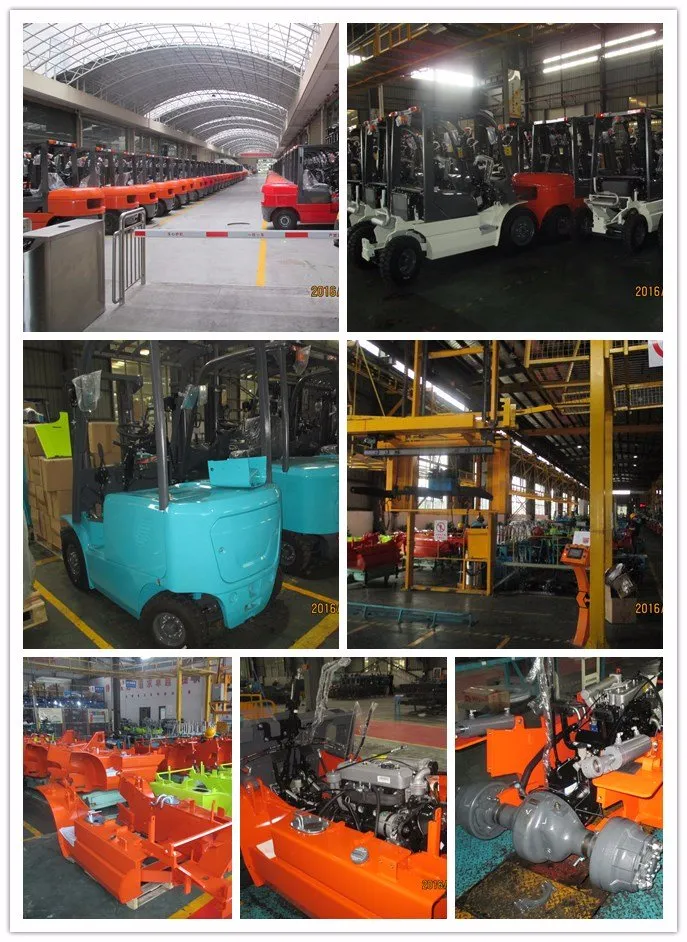

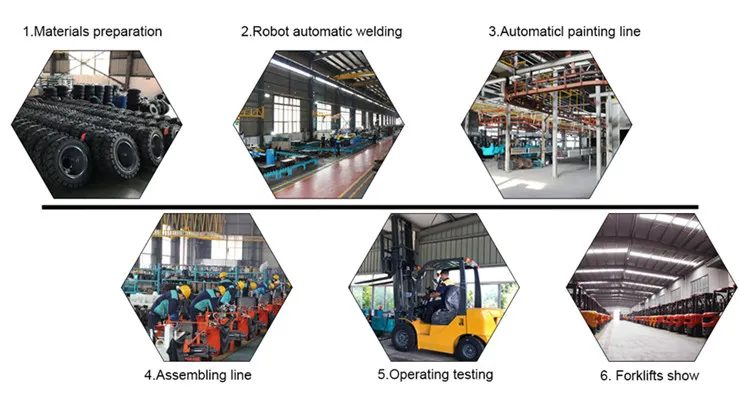

Our Factory

LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors.If you are interested in our product,you could visit our website.
Website:
Ltmg.group
http://ltmamachine.en.made-in-china.com(Group)
http://ltmamachine.en.made-in-china.com(Forklift)
http://ltmamachine.en.made-in-china.com(Loader)
http://ltmamachine.en.made-in-china.com(Airport GSE)

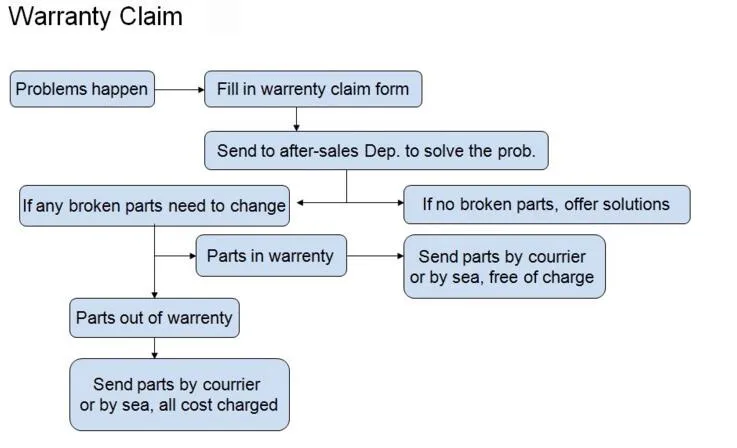

After sales service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

Ltmg 20 Ton Flat Rack Package Diesel All Terrain Forklift Truck

FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
