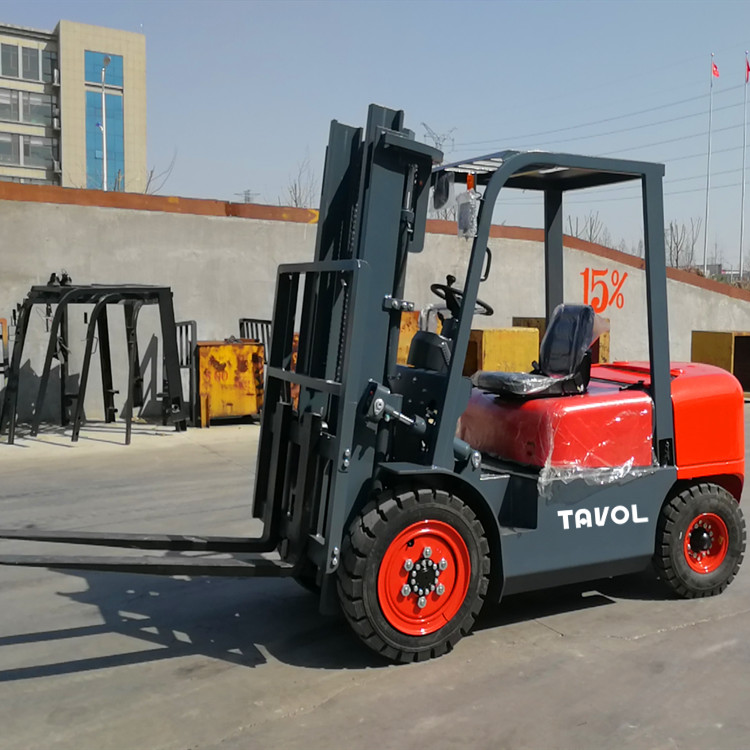

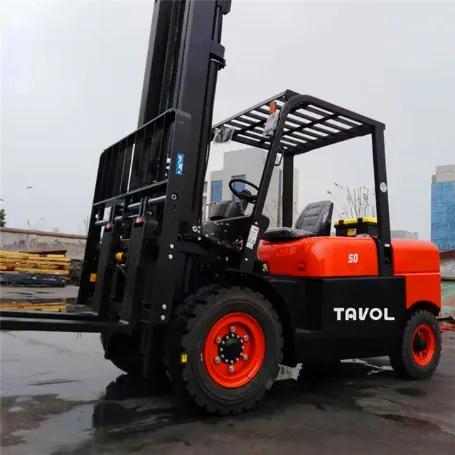

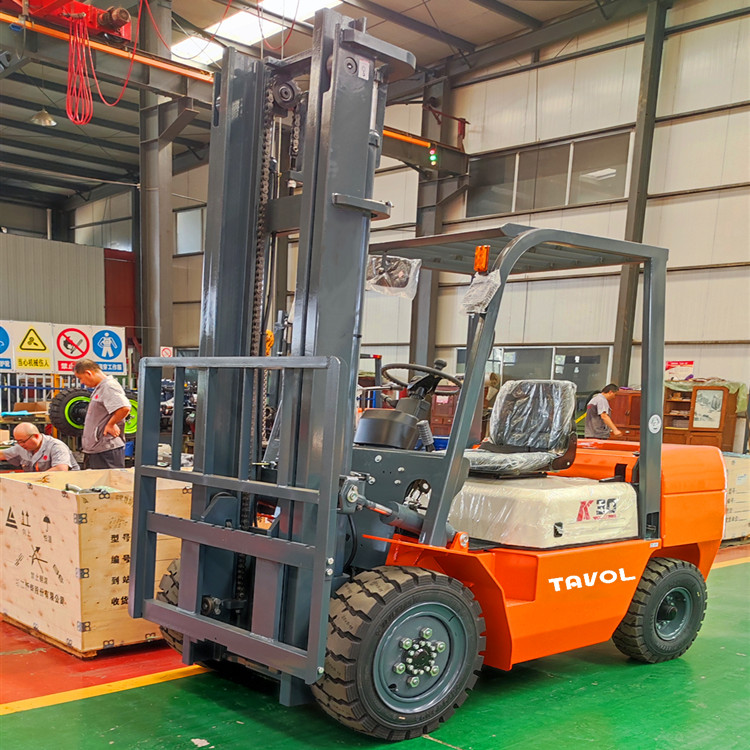

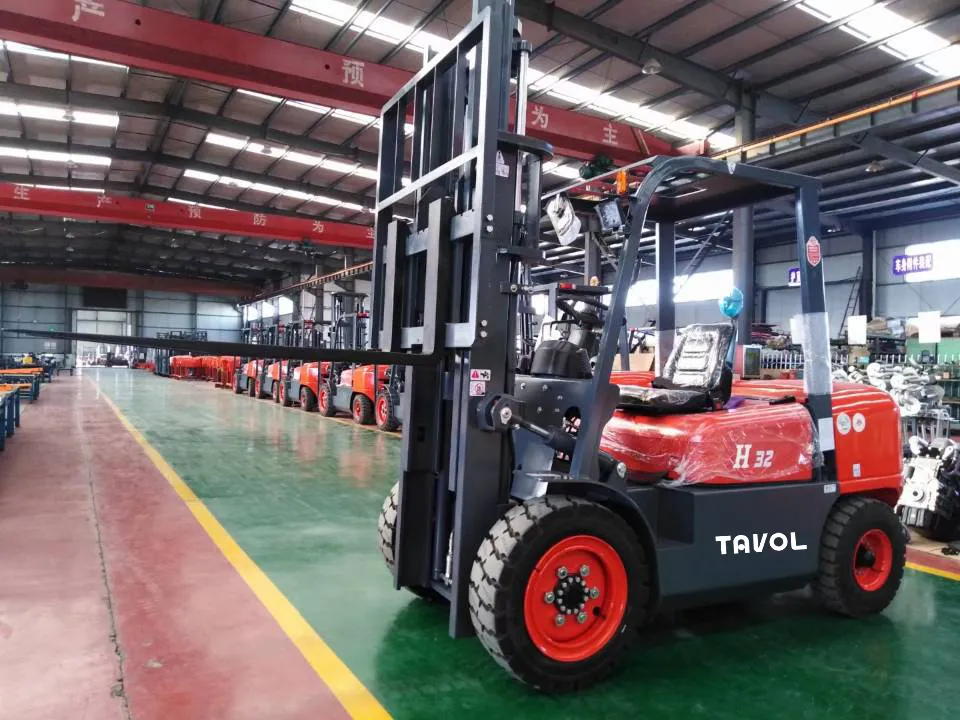

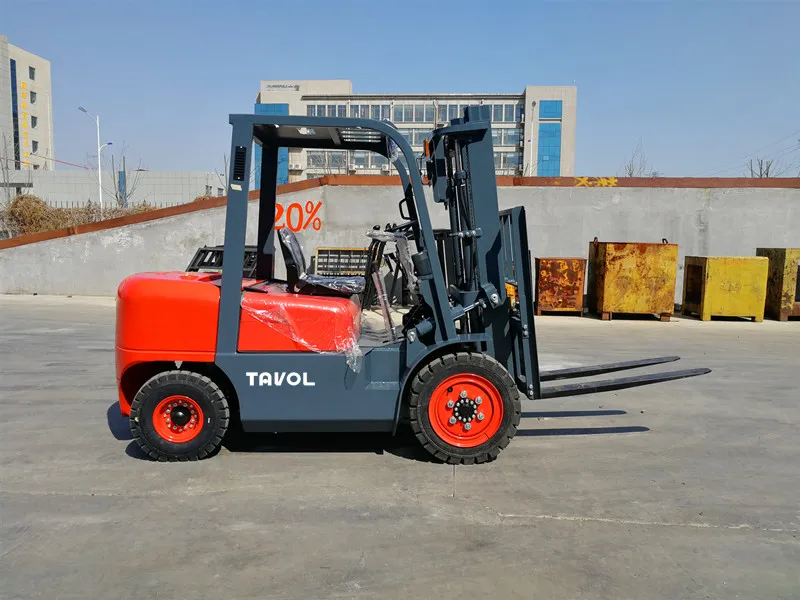

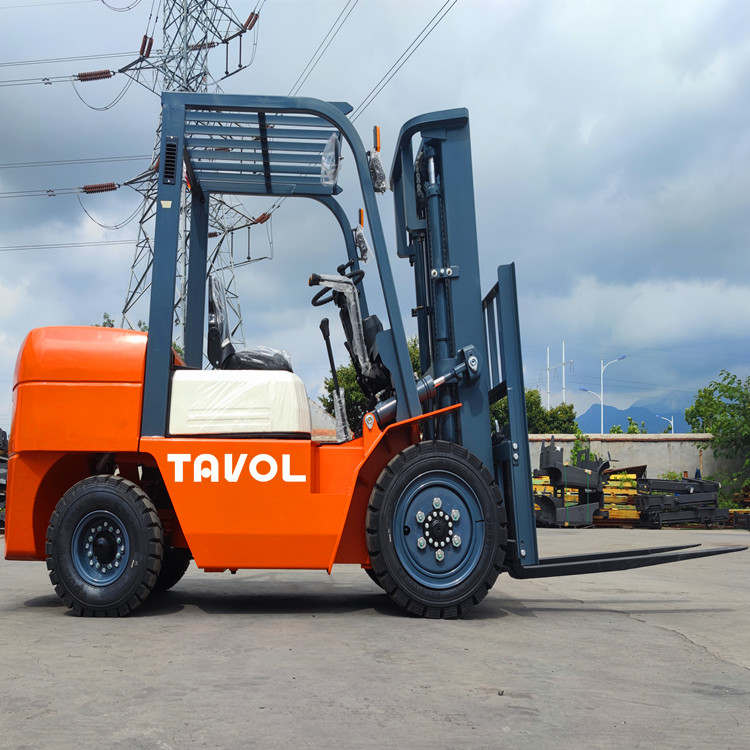

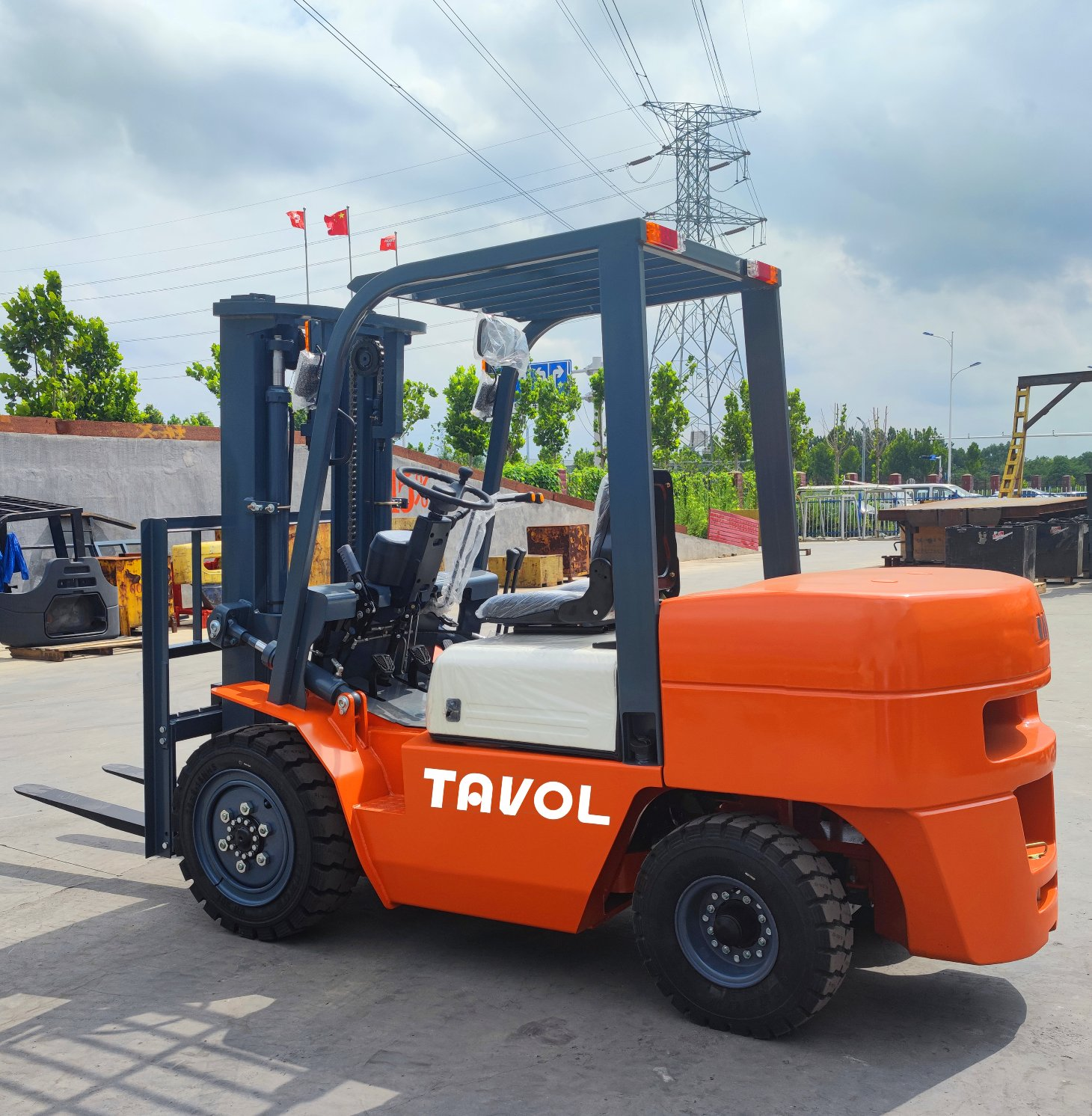

Made in China New Condition 2/2.5/3/4/5/7/10 Ton Diesel Forklift
Product DescriptionTavol forklift driving cab has excellent all round visibility, adjustable full suspension seat ,ergonomically laid out levers and pedals, which can bring you more convenient and comfortable operation experience, improve the comfort of your work.Model CPCD30Load capacity: 3000kg St......
Send Inquiry
Product Description
Model CPCD30
Load capacity: 3000kg
Standard mast: 2-stage
Max. lifting height: 3m
Engine: Xinchai (ISUZU engine for option)
Certificate: ISO,CE
Model | CPC30/CPCD30 | |
Rated Loading Capacity(kg) | 3000 | |
Load center(mm) | 500 | |
Drive Form | Diesel | |
Max Lifting Speed(Full load)(mm/s) | 475 | |
Max Driving Speed(Full/Empty load)(km/h) | 18/20 | |
Fork Lifting Height(mm) | 3000 | |
Mast Tilt Angle(Forward and Backward) | 6/12 | |
Min. Turning Radius(mm) | 2530 | |
Min. Ground Clearance(mm) | 135 | |
Overall dimensions | Length (Including Fork)(mm) | 3970 |
| Width(mm) | 1230 | |
| Height (Door Frame Indented)(mm) | 2110 | |
| Max working Height (Door Frame Out Completely)(mm) | 4270 | |
| Height from ground to overhead guard(mm) | 2105 | |
| Front Overhang(mm) | 465 | |
| Wheel Base(mm) | 1775 | |
| Wheel distance | Front (mm) | 1000 |
Back(mm) | 970 | |
Tire | Front tire | 28*9-15 |
Rear tire | 6.50-10 | |
Self weight(kg) | 4300 | |
Fork Width(mm) | 122 | |
Fork Thickness(mm) | 45 | |
Block Shelf Height | 1225 | |
Standard Fork Length(mm) | 1220 | |
Engine | Rated Power(kw) | 36.8 |
Speed At Rated Power(rmp) | 2500 | |
Maximum Torque(Nm) | 156 | |
Speed At Maximum Torque(rpm) | 1700-1900 | |
Transmission | Mechanical/Hydrualic | |

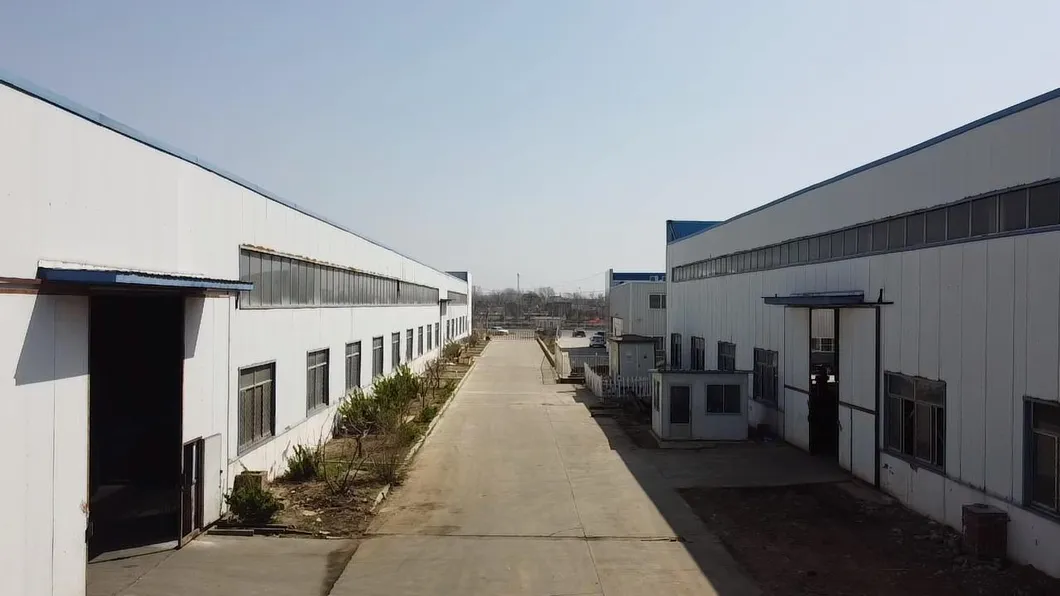

Shandong Tavol Machinery Co., Ltd. is a Subsidiary of Tavol Group, Which has Machining, Riveting, Stamping, Forging, Electrical Processing, Heat Treatment, Painting, Precision Mold Manufacturing and Other Processing Capabilities.
Mainly Design, Develop and Manufacture Forklift Products (2 ton-10 ton Diesel Forklift, 1.5 ton-3.5 ton Electric Forklift, Dual Fuel Forklift and Off-road Forklift etc.) , Aerial Lifting Equipment.
With the Values of Tolerance, Openness and Win-Win, Adopt Strict Production Technology and Inspection Standards, Select the Best Quality Brand Parts. To ensure a 100% Quality Standard, We will Independent Development and Production the Core Forklift Parts, Continue to Increase Investment in New Models and Technologies.
2.Q:How about your delivery time?
A: Lead time 10-15 days for in stock, If need customized, it will take about 20 working days.
3.Q:What is the MOQ?
A: 1 set is okay. More quantity with nice discount.
4.Q:How long is your product warranty?
A:The product warranty period is 12 months.
5.Q:What should we do if there have quality problems?
A:During warranty period we will provide free spare parts for free.
