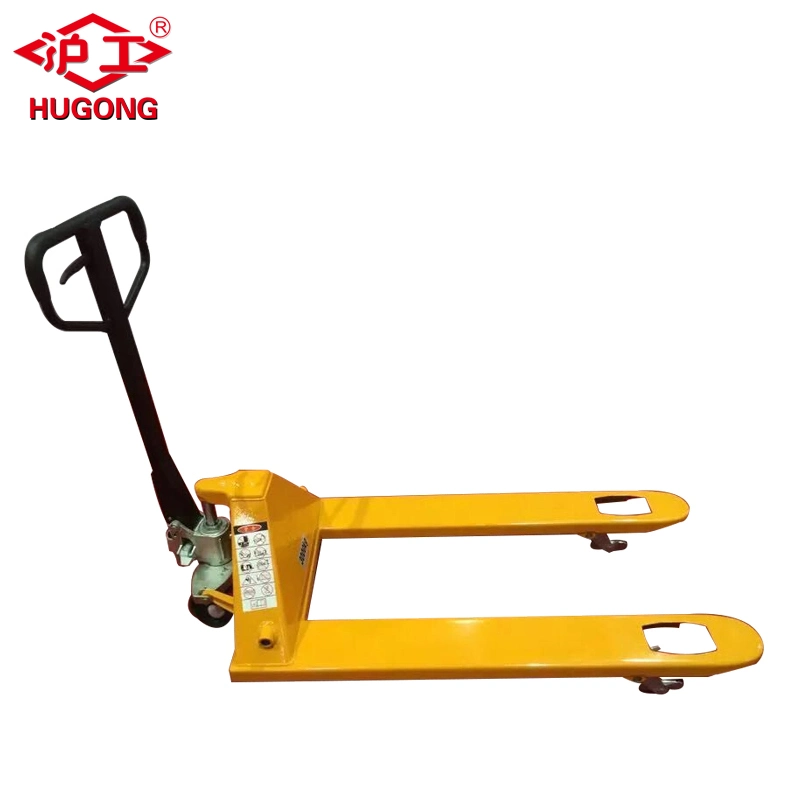

Manual Foklift Hand Pallet Truck with Hydraulic Pump
Lifter-Hand Pallet Truck with Hydraulic Pump FeaturesParameters and Size details ModelHG-25HG-30HG-35Load capacity2500kg3000kg3500kgLoad centre distance500mm500mm500mmTyre size, frontΦ180*50mmΦ180*50mmΦ180*50Tyre size, rearΦ80*70/Φ74*70Φ80*70/Φ......
Send Inquiry
Product Description

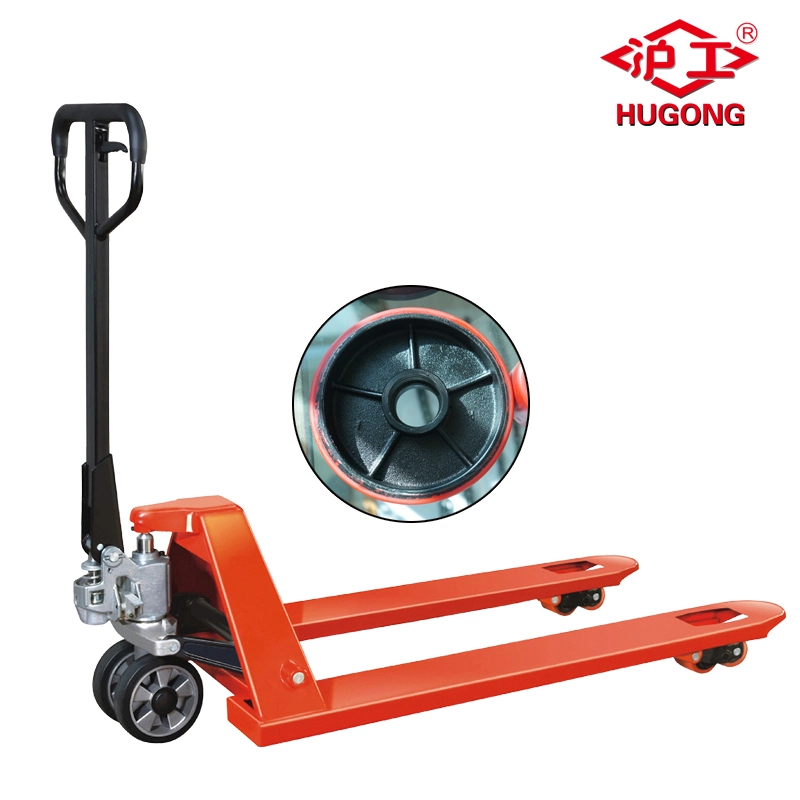

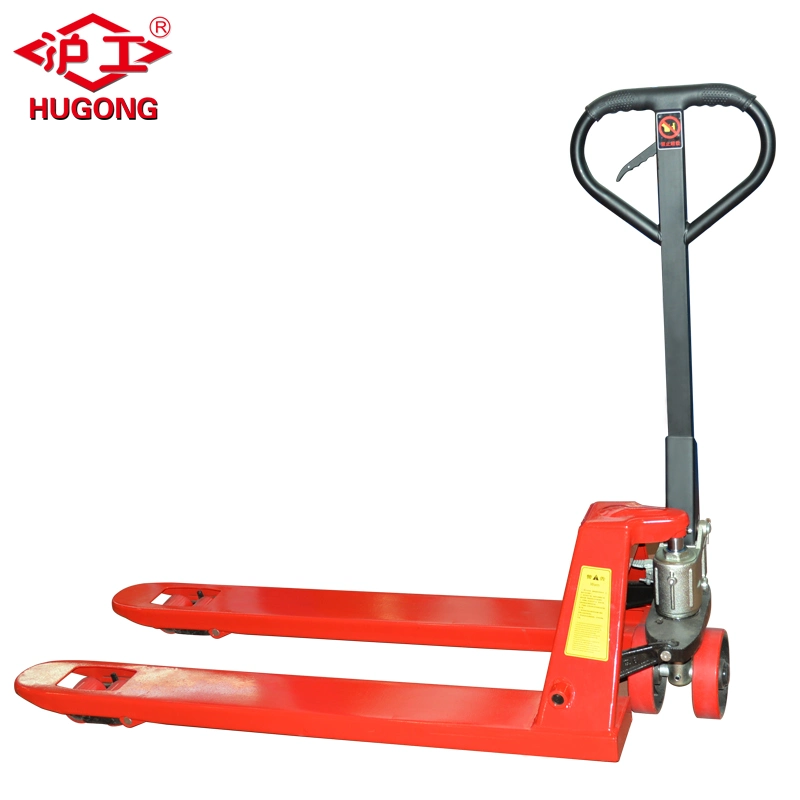

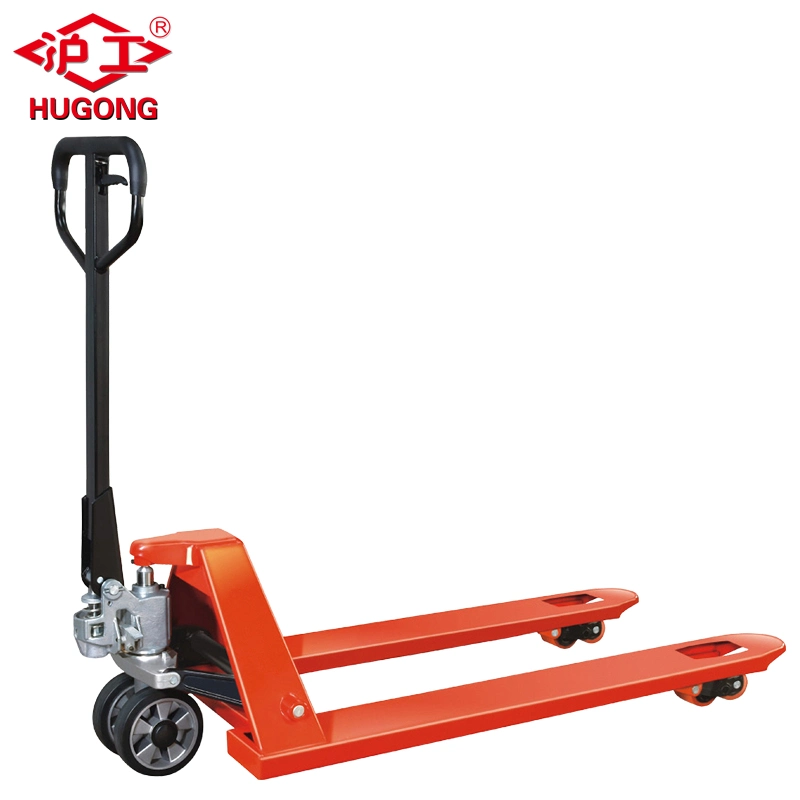

Lifter-Hand Pallet Truck with Hydraulic Pump

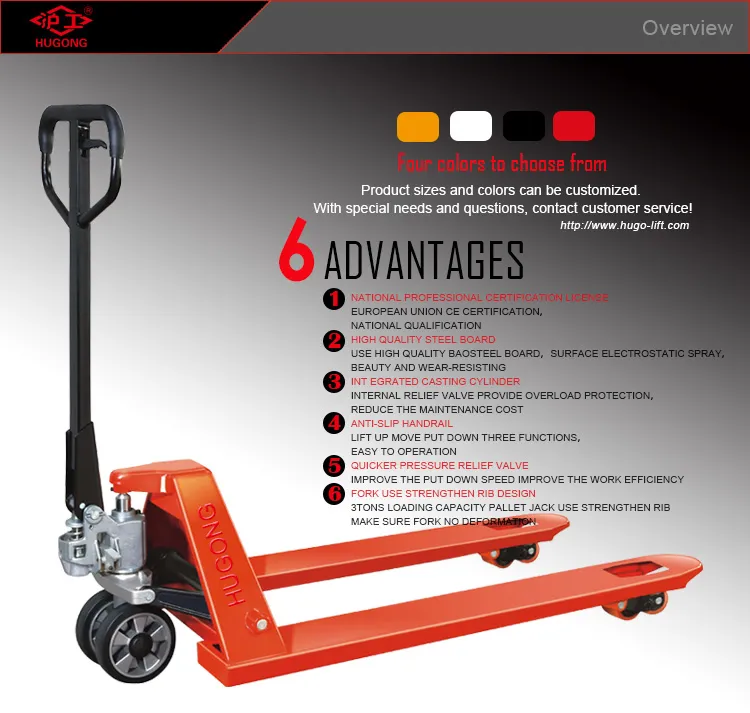

Features
Parameters and Size details
Our advantage
Company Information
Features

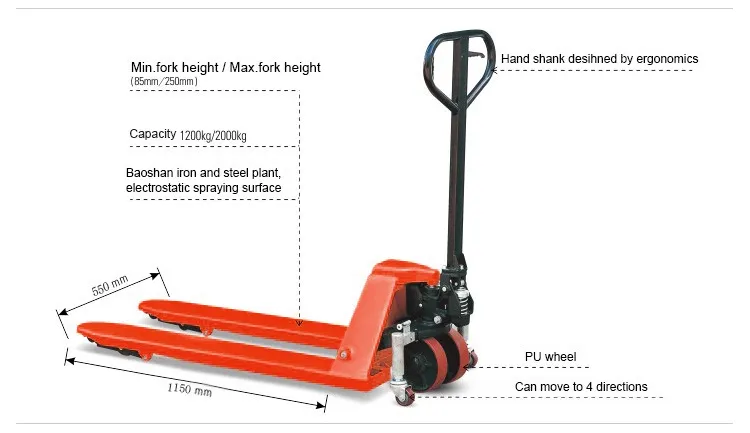

Parameters and Size details
| Model | HG-25 | HG-30 | HG-35 |
|---|---|---|---|
| Load capacity | 2500kg | 3000kg | 3500kg |
| Load centre distance | 500mm | 500mm | 500mm |
| Tyre size, front | Φ180*50mm | Φ180*50mm | Φ180*50 |
| Tyre size, rear | Φ80*70/Φ74*70 | Φ80*70/Φ74*70 | Φ80*70/Φ74*70 |
| Lift height | 200/190mm | 200/190mm | 200/190mm |
| Lowered height | 85/75mm | 85/75mm | 85/75mm |
| Overall length | 1534/1604mm | 1534/1604mm | 1534/1604mm |
| Fork dimensions | 54*160*1150 | 54*160*1150 | 54*160*1150 |
| Distance between fork arms | 520/550/685mm | 520/550/685mm | 520/550/685mm |
| Turning radius | 1249/1319 | 1249/1319 | 1249/1319 |

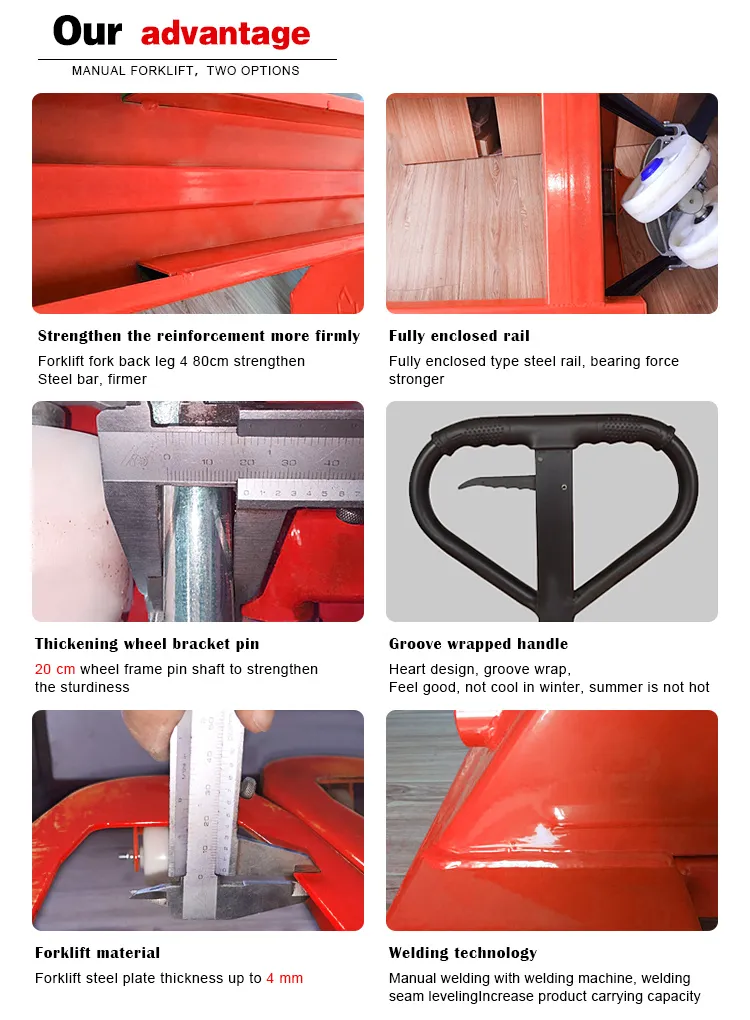

Our advantage

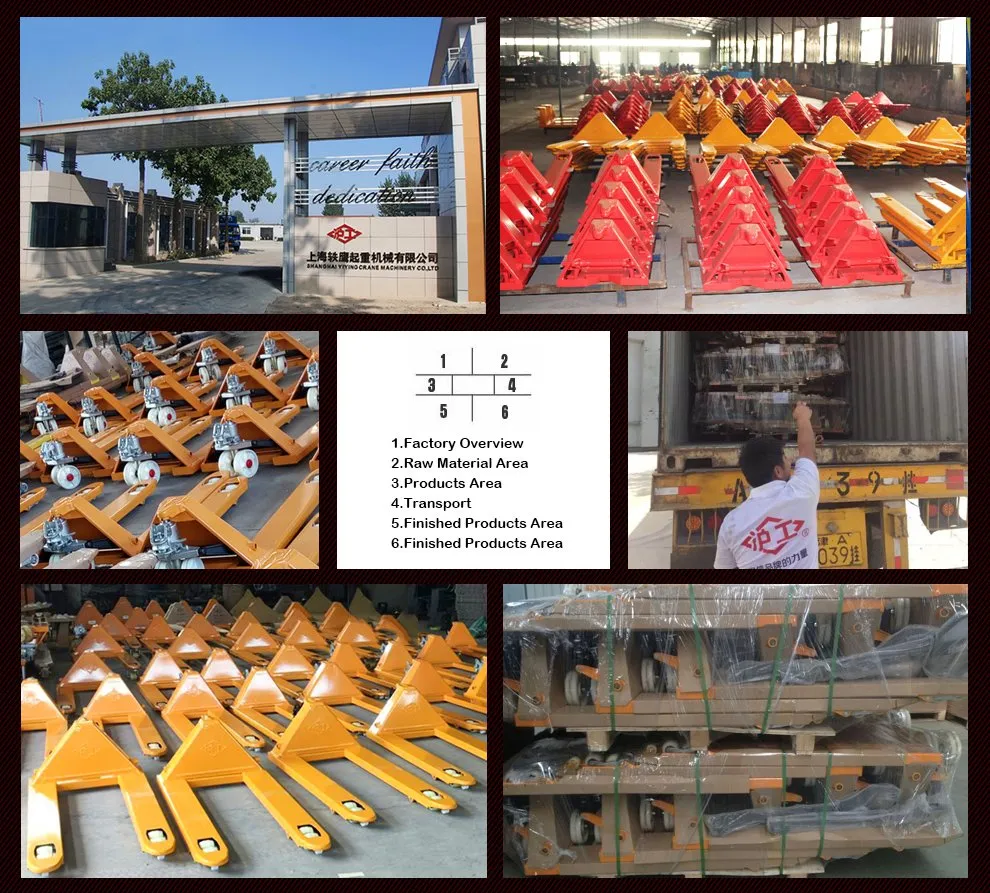

Company Information
