China Marshell Brand Forklift Truck 1.6t Electric Pallet Stacker (CDD16)

Product Description

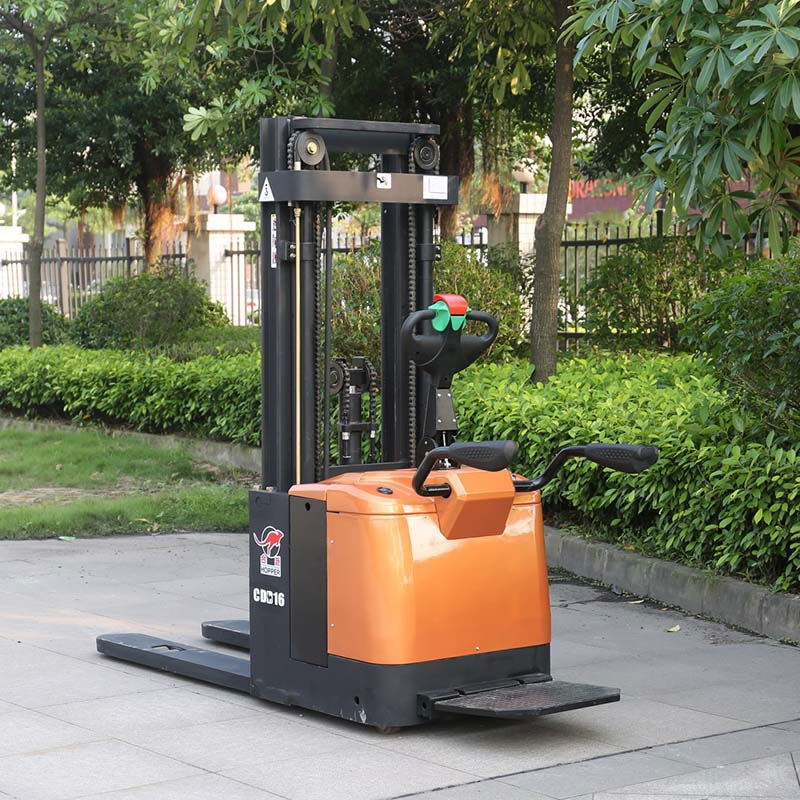

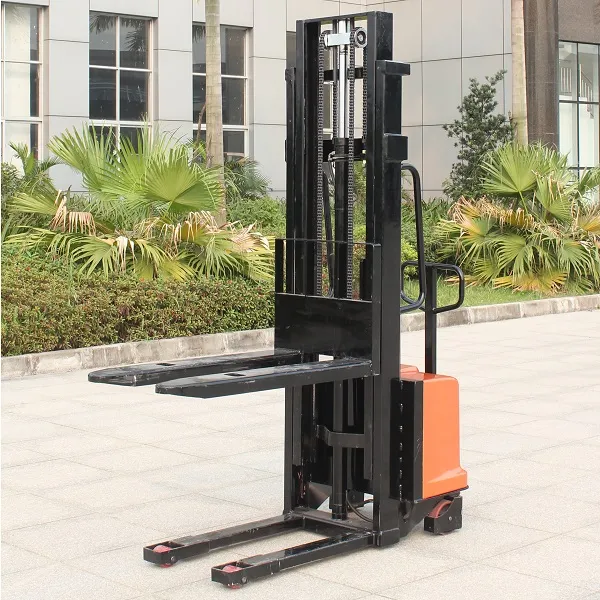

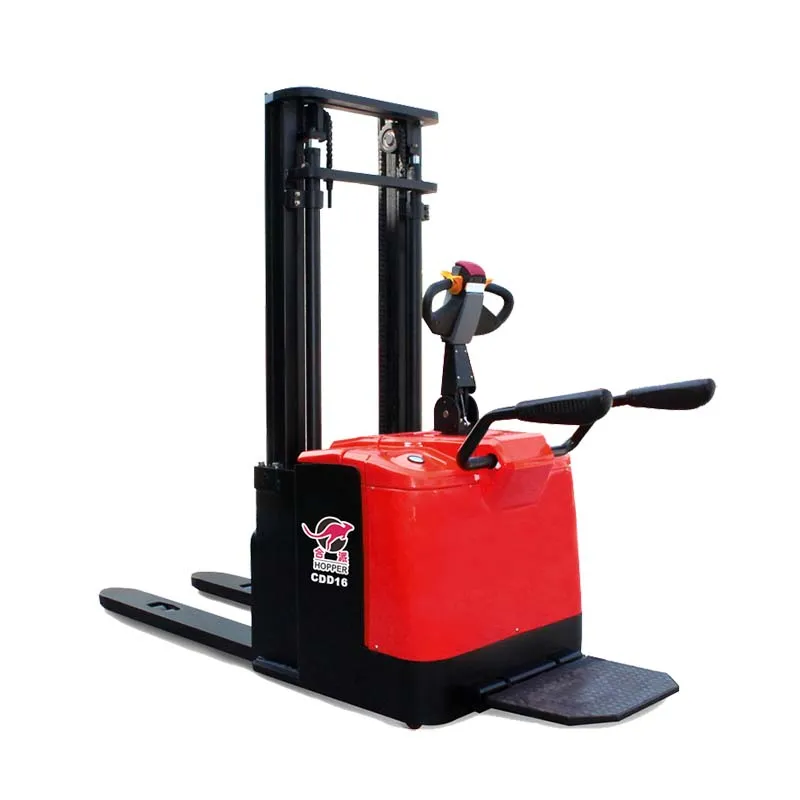

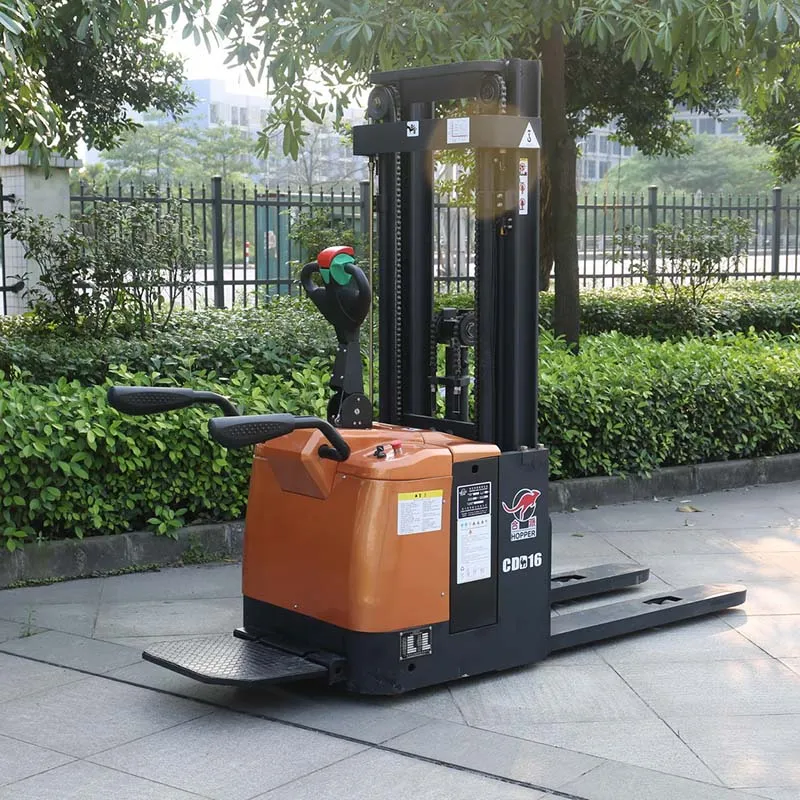

Marshell Brand forklift truck 1.6t Electric Pallet Stacker (CDD16)

Marshell Brand forklift truck 1.6t Electric Pallet Stacker main configuration:

1, the dc permanent magnet motor;
2, 24 v / 75 ah and maintenance-free lead-acid batteries;
3, Curtis controller/meter;
4, built-in full voltage charger;
5, high strength and an integrated ChaJiao;
6 power, electromagnetic brake, safe and reliable;

Marshell Brand forklift truck 1.6t Electric Pallet Stacker specifications:

Item		dimention	unit
Rated Loading		1600	kg
Loading center distance		600	mm
Overall Length		2550	mm
Overall Width		790	mm
Overall Height		2070	mm
The minimum height of fork		85	mm
Fork maximum lifting distance		3000	mm
Ground Clearance		20	mm
front wheel tread		500	mm
Wheelbase		1420	mm
Fork outside spacing		685	mm
Fork inside spacing		315	mm
Maximum lifting speed	without loading	160	mm/s
Maximum lifting speed	full loading	120	mm/s
Maximum running speed	without loading	6	km/h
Maximum running speed	full loading	6	km/h
Minimum outside turning radius		1600	mm
Full-load maximum gradeability		5	%
No-load maximum gradability		8	%
Weight(without loading)		1530	kg
Battery		24/270	V/Ah

Hopper is the subsidiary brand for Material Handling Equipments of Marshell electric vehicle company, with four factories located in Zhaoqing, Shanghai, and two in Anhui.

Hopper forklift trucks are sold all over the world, manufactures serial types of materials handling machines include hand pallet truck, electric pallet truck, electric pallet stacker, electric reach stacker, electric tractor, electric counterbalanced forklift truck, etc. Widely used in production factories, warehouses, stations, airports, supermarkets, and other fields.

Each individual vehicle is 100% tested. IQC, Q, and QA procedures are employed to test materials, check products on the assembly lines, and evaluate goods prior to shipping. To control the low cost, we also make many components in our factory, such as batteries, charger, gearbox, chassis, mast, fork, painting, tooling, etc.

Please inquiry me for more details.
