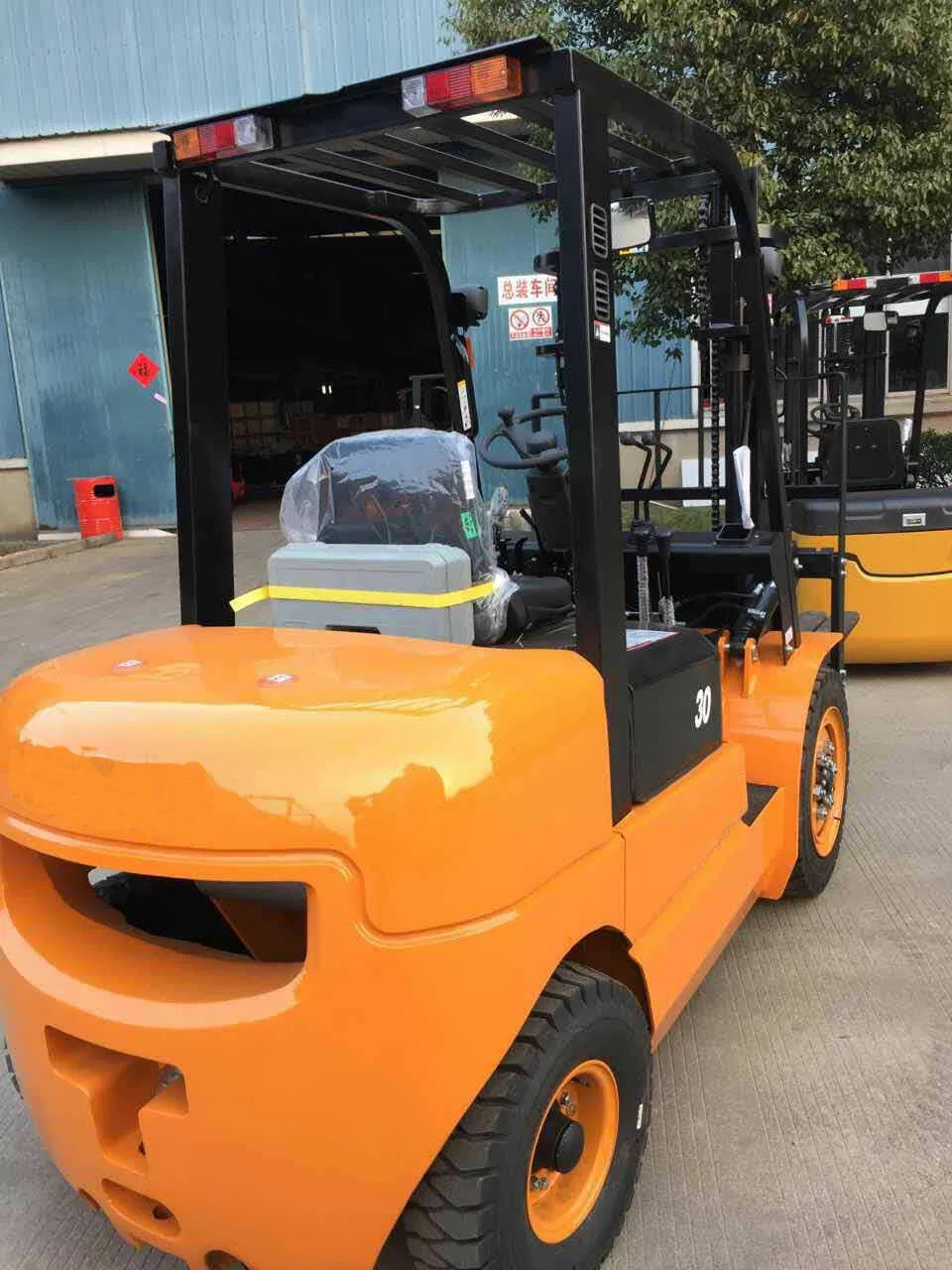

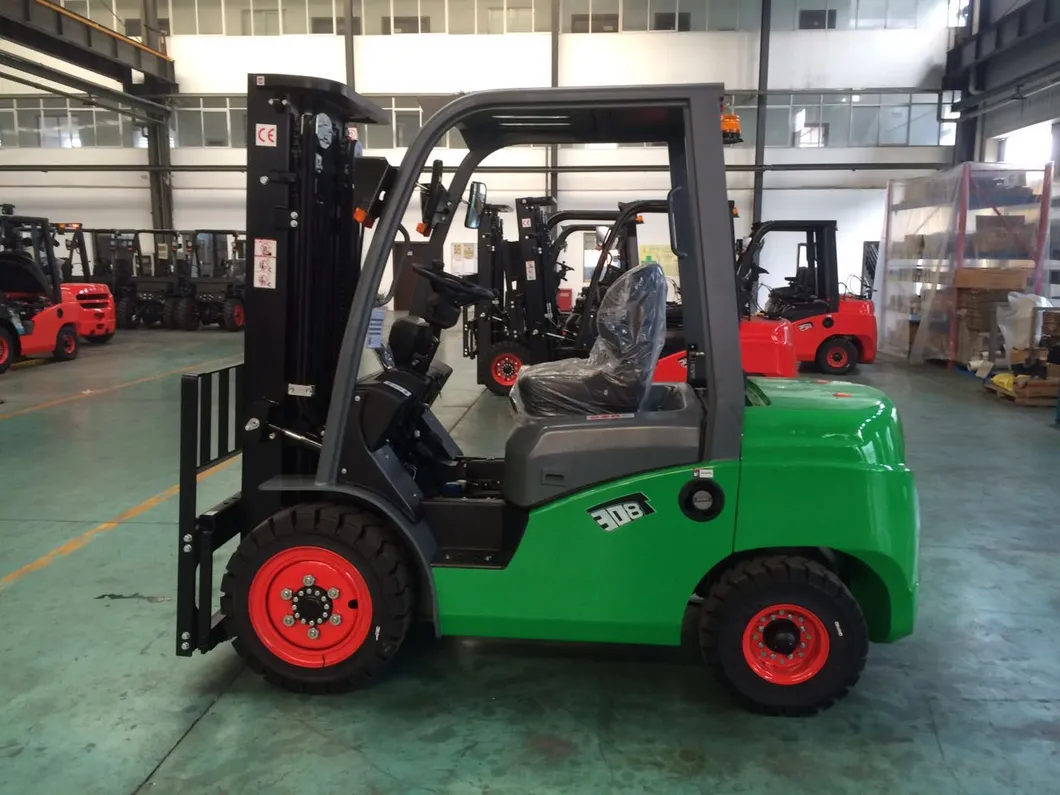

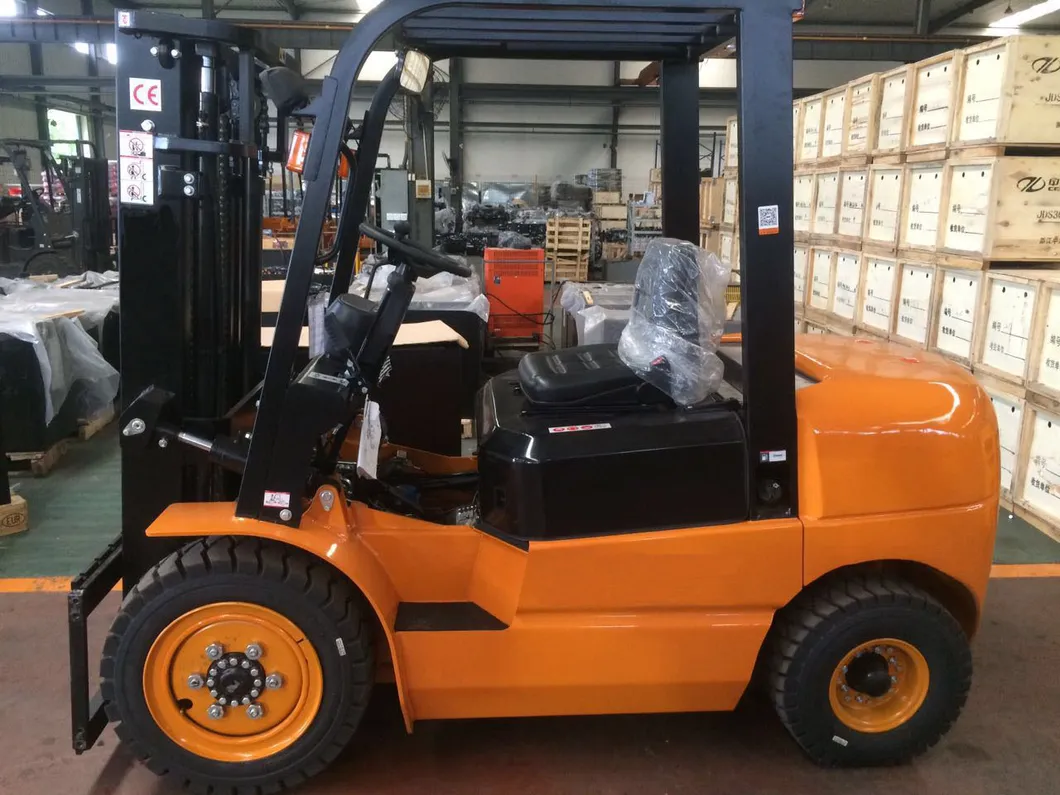

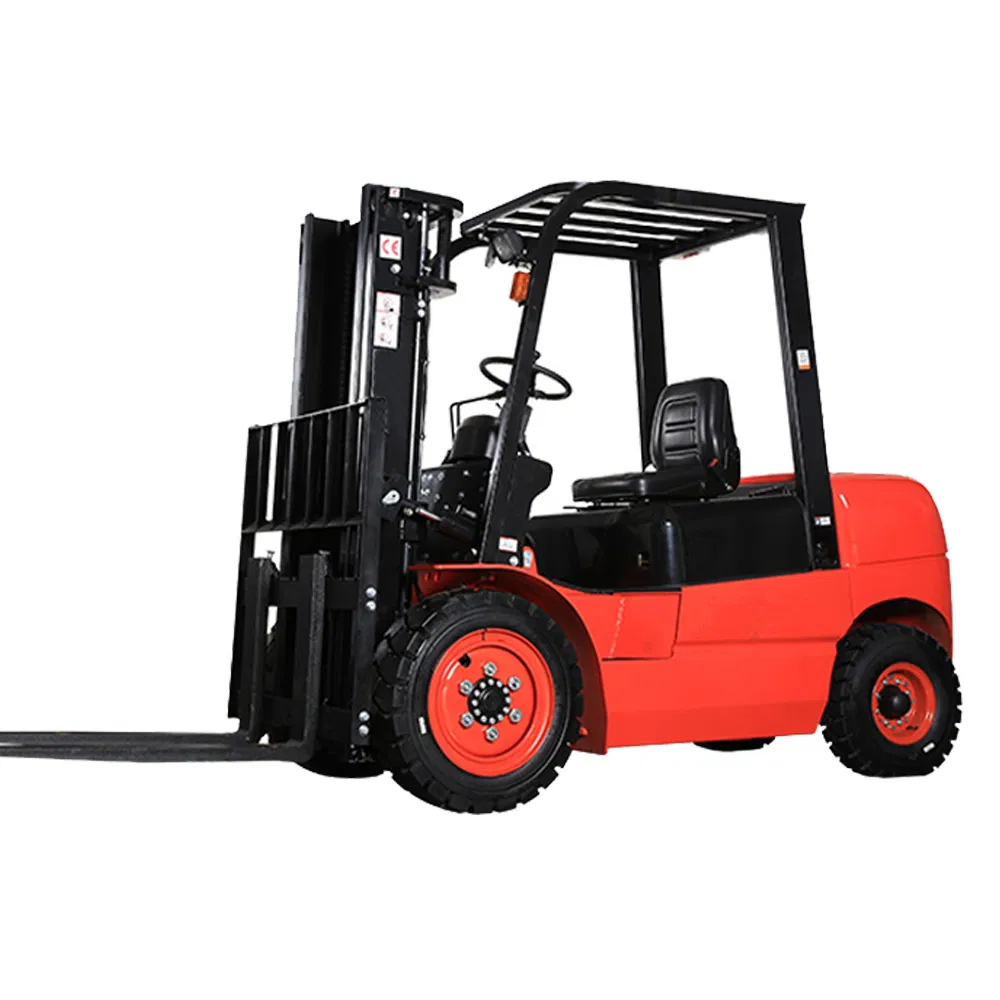

New Condition 3ton Diesel Forklift Truck ( CPCD30 -T3)

Product Description

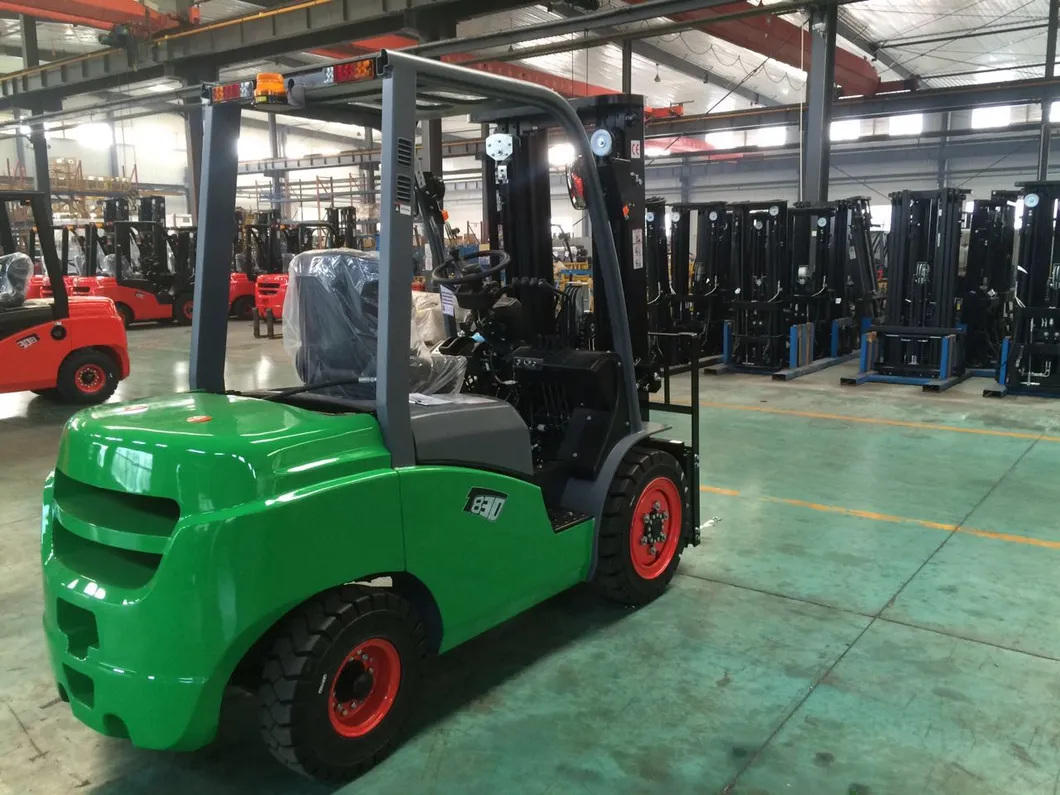

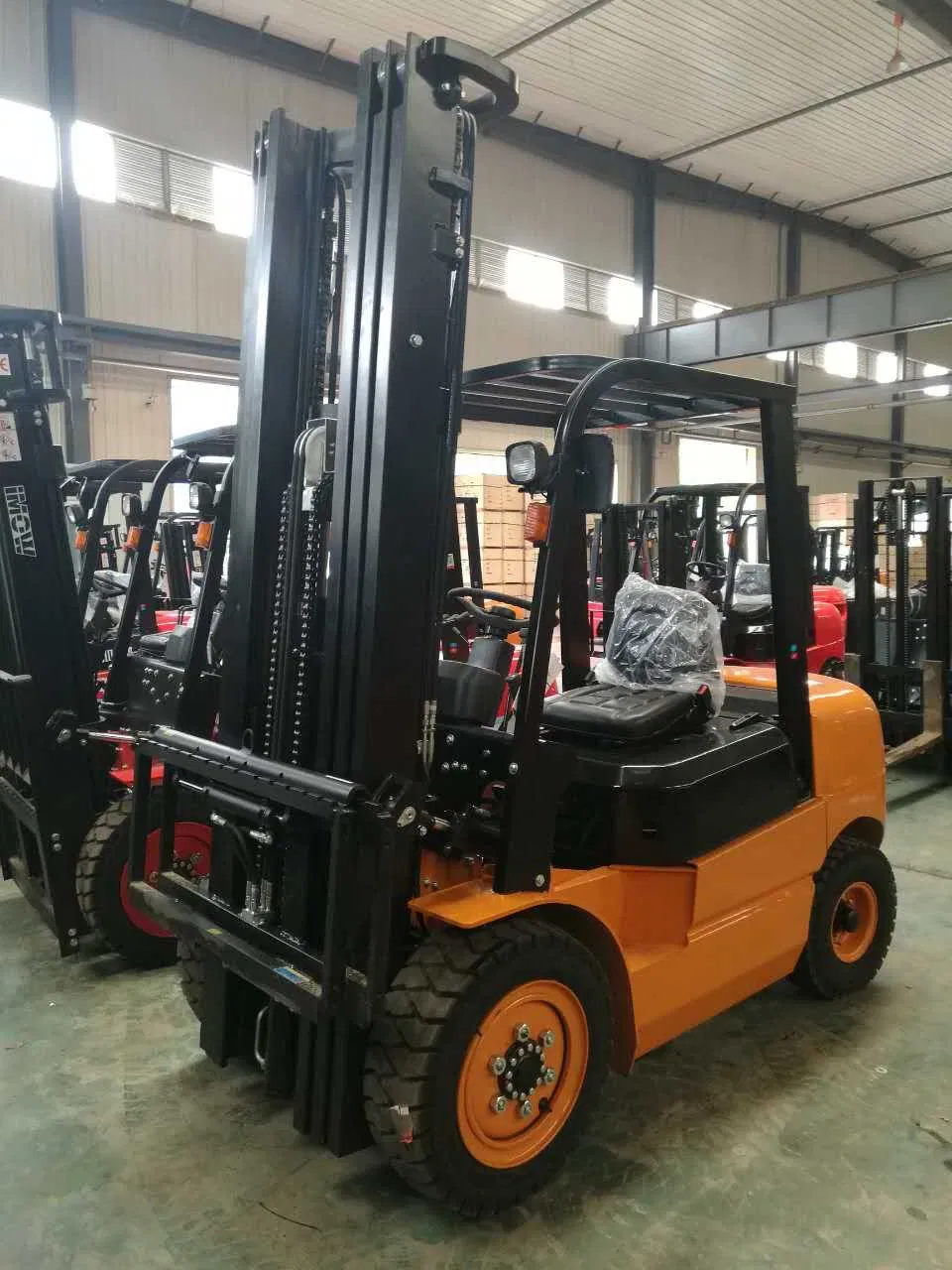

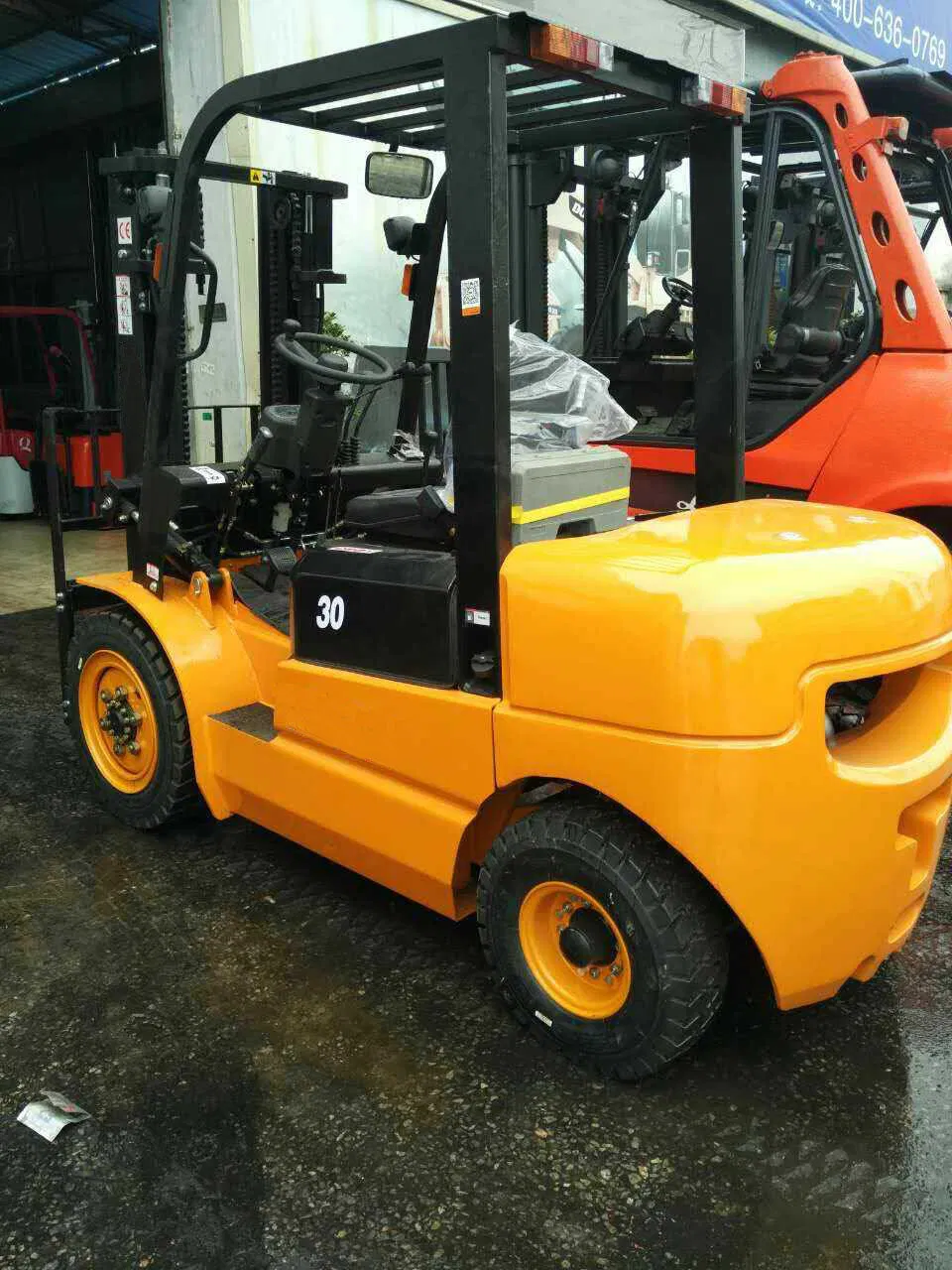

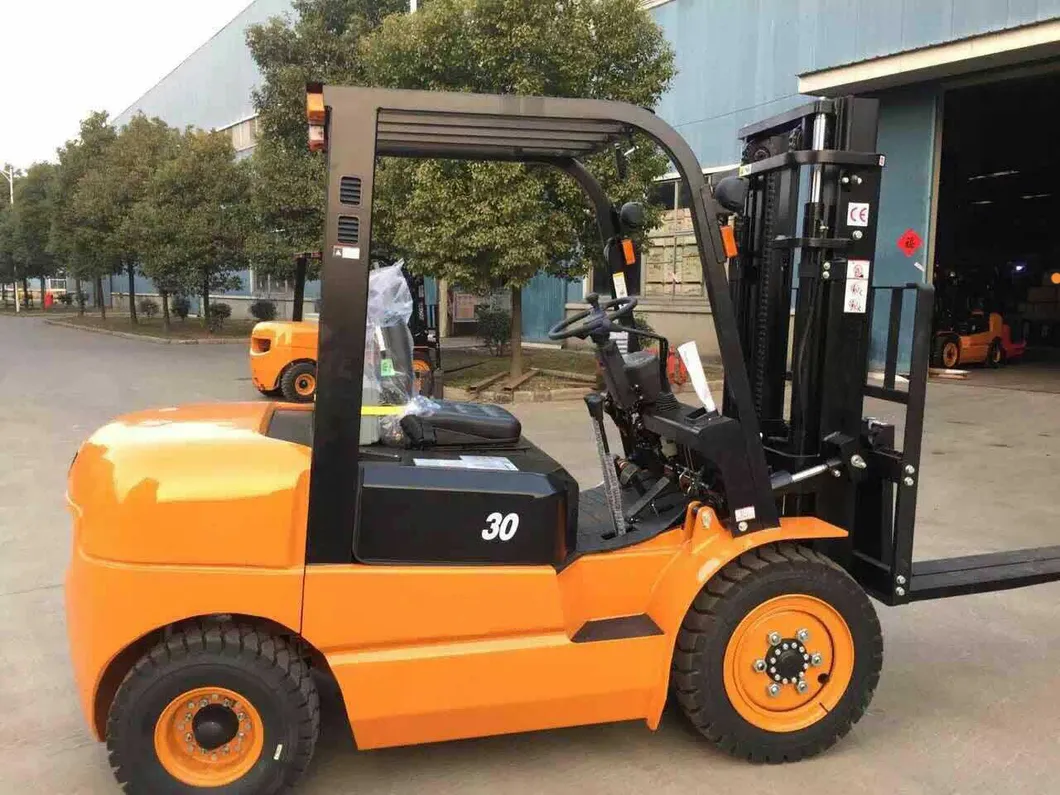

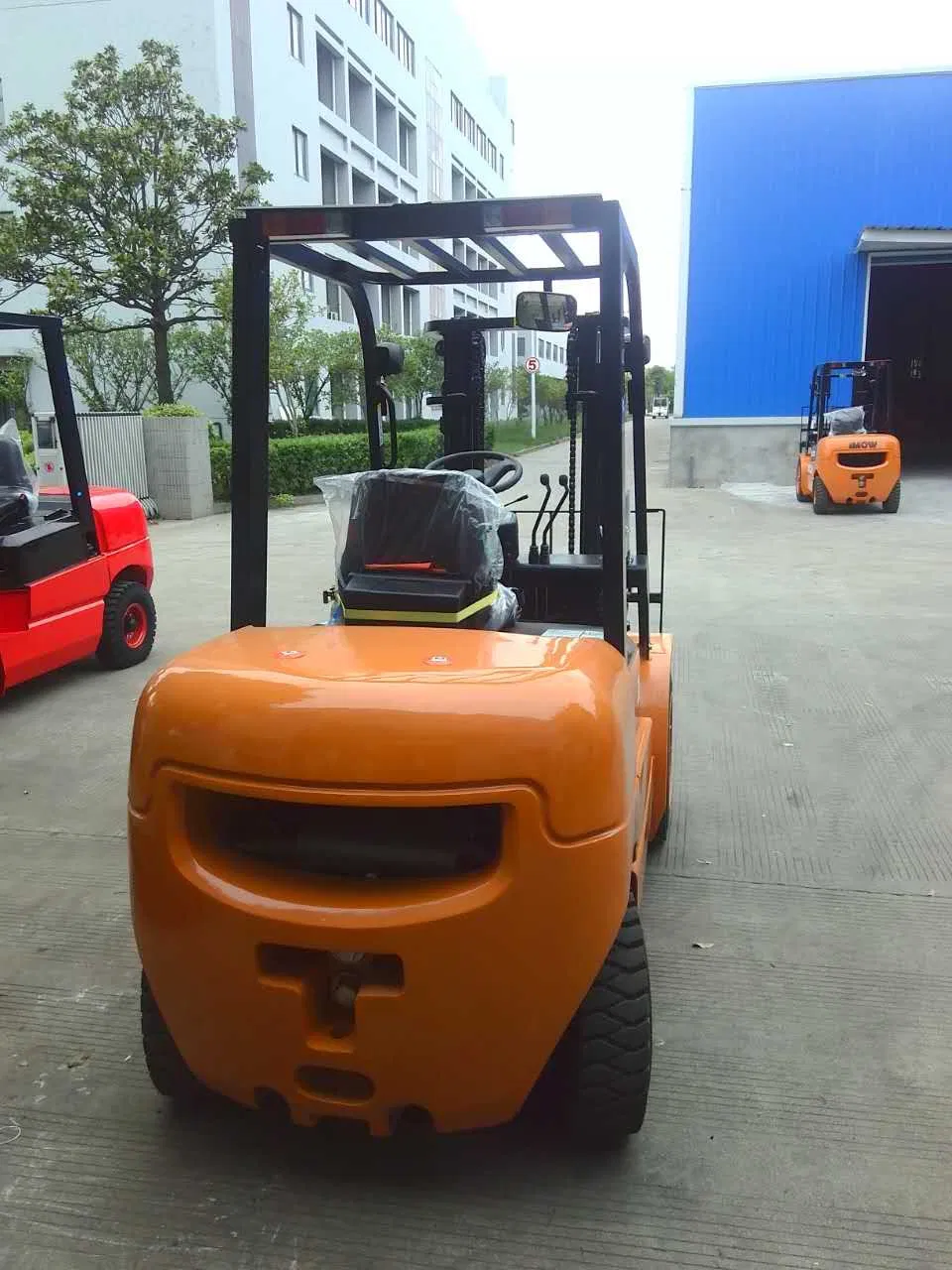

New Condition 3ton Diesel Forklift Truck (CPCD30-T3)

1.Wide View Mast, Hydraulic & Machinery
2.WEICHAI & Mitsubishi
3.Standard Backrest
4.Long-Life Tires,Toyota Seat,Double Front Wheels
5.TCM Technology
6.Good Looking Appearence,Strong Stucture
7.Side shifter,fork positioned,blocks,bale clamps etc.

	Basic Parameter

	Item No: CPCD30-T3
	Load capacity: 3000kg
	Attachment: Block clamps attachment
	Engine: WEICHAI & Mitsubishi
	Transmission: Hydraulic gear box
	Lift Height: 3000mm(Standard)
	Forks Dimension: 107012545mm
	Overall Dimension: 270512252140mm
	Structure Weight: 4380kg
	HS Code: 84272090
	Spare Parts: Some free for you with forklift
	Attention:

	1.ISUZU,NISSAN,Mitsubishi etc is alternative
	2.Hydraulic gear box automatic is available
	2.2 Stage full free mast,3stage full free mast is available
	3.Sideshift,bale,block paper roll clamps etc can be alternative.

	4,All colors are available.
Remarks:
1.Trade terms:FOB,CFR,CIF are available.
2.Delivery time:within 25days received payment.
3.Packing:Nude,by container
4.Warranty:2000 working hours or 12month.

STANDARD SPECIFICATION
General	1	Model				CPC(D)30-T3
	2	Model				CPC(D)30-T3
	3	Power Type			10	Diesel
	4	Rated Capacity			kg	3000
	5	Load Centre			mm	500
Characteristic&Dimension	6	Lift Height			mm	3000
	7	Free Light			mm	120
	8	Fork Size		L×W×T	mm	1070×125×45
	9	Mast Tilt Angle		F/R	Deg	6\12
	10	Front Overhang			mm	481
	11	Rear Overhang			mm	500
	12	Overall Dimension		Length to face of fork (Without fork)	mm	2710
	13			Overall Width	mm	1225
	14			Mast Lowered Height	mm	2005
	15			Mast Extended Height (With backrest)	mm	4210
	16			Overhead Guard Height	mm	2140
	17	Turning Radius (Outside)			mm	2450
	18	Min.Right Angle Asile Width			mm	2450
Performance	19	Speed		Travel (Unladen)	km/h	20
				Travel (Full lade)	km/h	18
	20			Lifting (Full load)	mm/sec	400
	21			Lowering(Full load)	mm/sec	400
	22	Max.Traction			N	21000
	23	Max. Gradeability			%	20
Chassis	24	Tire Specification		Front		28×9-15-14PR
	25	Tire Specification		Rear		6.50-10-10PR
	26	Tire Tread		Front	mm	1010
	27	Tire Tread		Rear	mm	980
	28	Wheelbase			mm	1750
	29	Ground Clearance		Bottom of Mast		150/120
	30	Ground Clearance		Bottom of Frame		170/150
	31	Service Weight			kg	4020
Weight	32	Shaft Load	Full Load	Front		5967
	33		Full Load	Rear		1053
	34		Unloaden	Front		1608
	35		Unloaden	Rear		2412
Power&Transmission	36	Battery	V/AH		V/Ah	12/80
	37	Engine	Model			C490BPG
	38		Manufacture			CHINA XINCHANG
	39		Rated Output		kw/rpm	40/2650
	40		Rated Torque		N·m/rpm	160/1600-1800
	41		No. of Cylinder			4
	42		Bore×Stroke		mm	94×120
	43		Displacement		cc	3331
	44		Fuel Tank Capacity		L	70
	45	Transmission	Place of Origin			China
	46		Type		T means Torque Converter, C means Clutch
	47		Stage	FWD/RVS		1/1
	48	Working Pressure			Mpa	17.5

New Condition 3ton Diesel Forklift Truck (CPCD30-T3)

Why choose SHYTGER?
1. Manufacturing experience: More than 10 years
2 Advantage: Quality control in every detail of product. We supply spare parts to almost all forklift brands in China.
3. What we produce: Every spare part, and the assembly of the forklift.
4. Our commitment to customer: The best quality and most reasonable price, not the lowest price.
5. Special characteristics: SHYTGER diesel forklift can meet the various specific requirements for engines, masts, optional cabin, fork length and attachment etc.

FAQ
1. What Kinds Of Pump Do You Could Supply?
Complete Pump/ Welding Pump

2. How Many Colors Of Forklift You Can Supply?
Sliver, Orange, Yellow Diesel Forklift As Your Request.

3. What Payments Do You Accept?
T/T, L/C
