New Zowell Tractor Price Towing Head Xt40

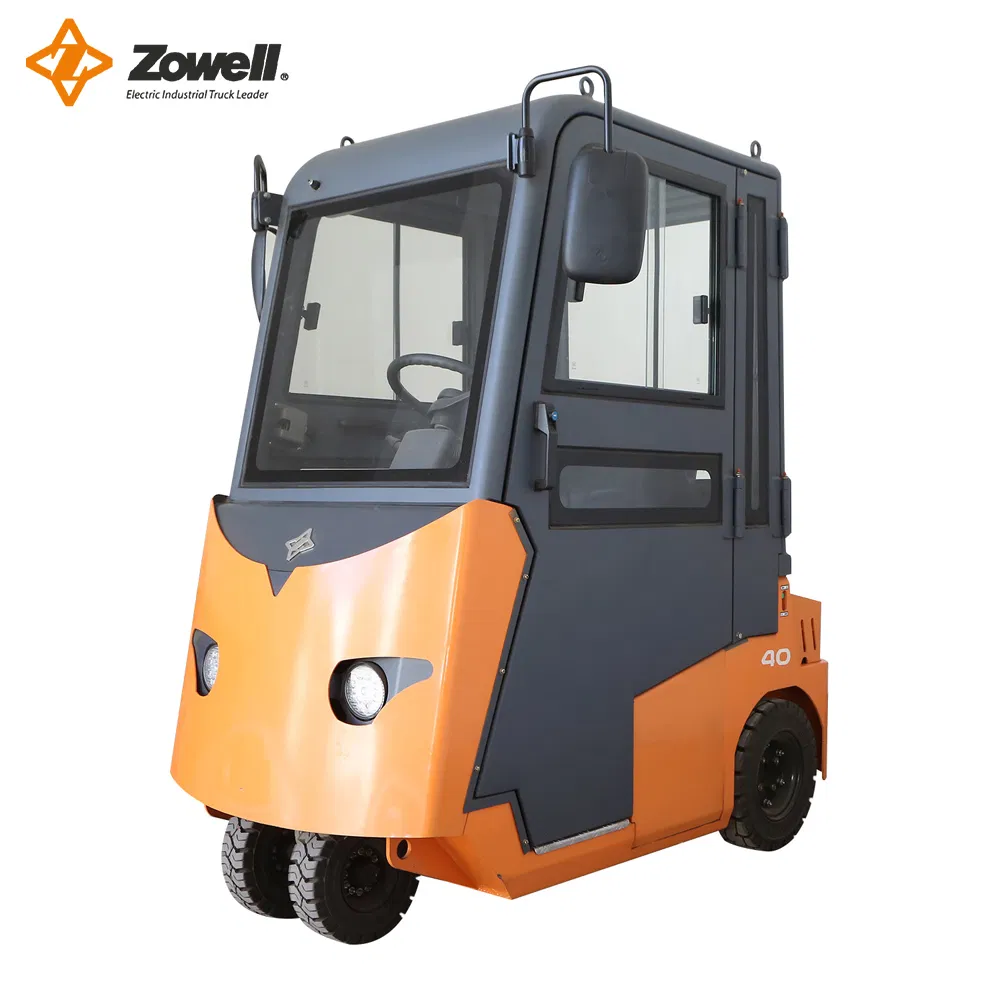

New Zowell Tractor Price Towing Head Xt40 Product DescriptionRated load: 4000 kgOperating mode: sitting type operationHS code: 8709111000Certificate: CE/SGS/ISO9001Zowell XT40 4 ton tow tractor is superbly versatile and manoeuvrable.It is an ideal choice for applications requiring the rapid and effi......
Send Inquiry
Product Description
New Zowell Tractor Price Towing Head Xt40
Rated load: 4000 kg
Operating mode: sitting type operation
HS code: 8709111000
Certificate: CE/SGS/ISO9001
Zowell XT40 4 ton tow tractor is superbly versatile and manoeuvrable.It is an ideal choice for applications requiring the rapid and efficient transfer of multiple trailer loads in various industrial and commercial application well as specialized repair workshops.This electric tow tractor is mainly used for towing and order packing and it is especially suitable for goods that move in the continous flow. 4 ton towing tractor has a loading capacity up to 4,000kgs.This towing tractor advanced integrated drive and control system ensure reliable performance and high efficiency.
Detail features

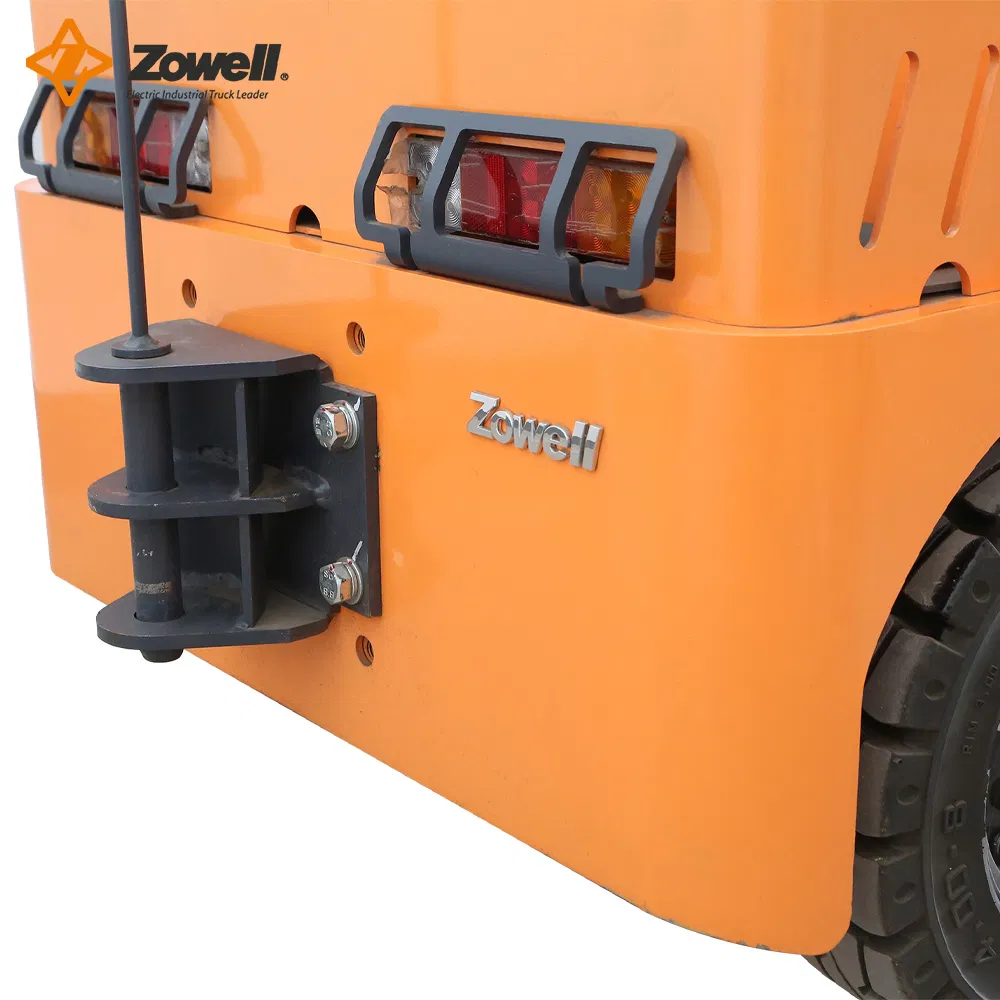

1. Humanized Traction mechanism
The drivers can operate the traction mechanism without getting off the tugger, thus improving working efficiency.
2. Side loading and unloading of storage battery
Side loading and unloading of storage battery can effectively reduce the changing time of batteries so that the maintenance and changing of batteries can be more convenient. This is suitable for working conditions which require high working intensity. There are optional batteries such as FAMM, GS, HOPPECKE, Trojan.
3.Regenerative braking
This tugger adopts regenerative braking which can generate highly efficient and powerful braking force, thus shortening braking length of the tugger. This can be a compensation of poor braking effect caused by brake pad wear of pure mechanical brake.
Technical Data
Rated load: 4000 kg
Operating mode: sitting type operation
HS code: 8709111000
Certificate: CE/SGS/ISO9001
Zowell XT40 4 ton tow tractor is superbly versatile and manoeuvrable.It is an ideal choice for applications requiring the rapid and efficient transfer of multiple trailer loads in various industrial and commercial application well as specialized repair workshops.This electric tow tractor is mainly used for towing and order packing and it is especially suitable for goods that move in the continous flow. 4 ton towing tractor has a loading capacity up to 4,000kgs.This towing tractor advanced integrated drive and control system ensure reliable performance and high efficiency.
Detail features
1. Humanized Traction mechanism
The drivers can operate the traction mechanism without getting off the tugger, thus improving working efficiency.
2. Side loading and unloading of storage battery
Side loading and unloading of storage battery can effectively reduce the changing time of batteries so that the maintenance and changing of batteries can be more convenient. This is suitable for working conditions which require high working intensity. There are optional batteries such as FAMM, GS, HOPPECKE, Trojan.
3.Regenerative braking
This tugger adopts regenerative braking which can generate highly efficient and powerful braking force, thus shortening braking length of the tugger. This can be a compensation of poor braking effect caused by brake pad wear of pure mechanical brake.
Technical Data
| Characteristics | 1.1 | Manufacturer | ZOWELL | ||
| 1.2 | Manufacturer's type designation | XTA40 | |||
| 1.3 | Drive | Battery | |||
| 1.4 | Operator type: hand, pedestrian, stand-on, seat-on, order-picker | Seat-on | |||
| 1.5 | Load capacity/rated load | Q (t) | 4 | ||
| 1.7 | Rated drawbar pull | F (N) | ≥F | 1000 | |
| 1.9 | Wheelbase | y (mm) | ±1% | 1231 | |
| Weight | 2.1 | Dead weight | kg | ±3% | 783 |
| 2.2 | Axle loading, laden front/rear | kg | ±3% | - | |
| 2.3 | Axle loading, unladen front/rear | kg | ±3% | 279/504 | |
| Tyres/chassis | 3.1 | Tyres | P | ||
| 3.2 | Tyre size, front | Ø x w(mm) | 3.50-5-6PR | ||
| 3.3 | Tyre size, rear | Ø x w(mm) | 4.00-8-6PR | ||
| 3.4 | Additional wheels (dimensions) | Ø x w(mm) | - | ||
| 3.5 | Wheels, number front/rear (x = driven wheels) | 1/2x | |||
| 3.6 | Tread , front | b10 (mm) | ±2% | 245 | |
| 3.7 | Tread , rear | b11 (mm) | ±2% | 744 | |
| Dimension | 4.7 | Height of overhead guard(cabin) | h6 (mm) | ±1% | 1232 |
| 4.8 | Seat height relating to SIP/stand height | h7 (mm) | 816/412 | ||
| 4.9 | Height of tiller in drive position min. / max. | h14 (mm) | - | ||
| 4.12 | Coupling height | h10 (mm) | ±2% | 283/333/358/408 | |
| 4.13 | Loading height,unladen | h11 (mm) | - | ||
| 4.17 | Overhang | l5 (mm) | ±3% | - | |
| 4.19 | Overall length | l1 (mm) | ±1% | 1876 | |
| 4.21 | Overall width | b1/b2 (mm) | ±1% | 860 | |
| 4.32 | Ground clearance, centre of wheelbase | m2 (mm) | -5% | 92 | |
| 4.33 | Load dimension b 12 × l 6 crossways | b 12 × l 6 (mm) | 1447 | ||
| 4.34 | Aisle width predetermined load dimensions | Ast (mm) | - | ||
| 4.34.1 | Aisle width for pallets 1000 × 1200 crossways ) | Ast (mm) | - | ||
| 4.34.2 | Aisle width for pallets 800 × 1200 crossways | Ast (mm) | - | ||
| 4.35 | Turning radius | Wa (mm) | ≤Wa | 1590 | |
| 4.36 | Minimum pivoting point distance | b13 (mm) | - | ||
| Performance | 5.1 | Travel speed, laden/unladen | km/h | ± 10 % | 7/13 |
| 5.1.1 | Travel speed, laden/unladen, backwards | km/h | - | ||
| 5.5 | Drawbar pull,laden/unladen | N | 1000 | ||
| 5.6 | Max. drawbar pull, laden/unladen | N | 4000 | ||
| 5.7 | Gradeability, laden/unladen | % | 5.6/14 | ||
| 5.8 | Max. gradeability, laden/unladen | % | - | ||
| 5.9 | Acceleration, laden/unladen | s | - | ||
| 5.10 | Service brake | Hydraulic | |||
| Electric-engine | 6.1 | Drive motor rating | kW | 4 | |
| 6.3 | Battery according to DIN 43531/35/36 A,B,C,no | Special case | |||
| 6.4 | Battery voltage/nominal capacity | V/Ah | 24/280 | ||
| 6.5 | Battery weight | kg | 285 | ||
| 6.6 | Energy consumption | kWh/h | - | ||
| Addition | 8.1 | Type of drive control | AC | ||
| 10.7 | Noise | dB (A) | < 70 |
