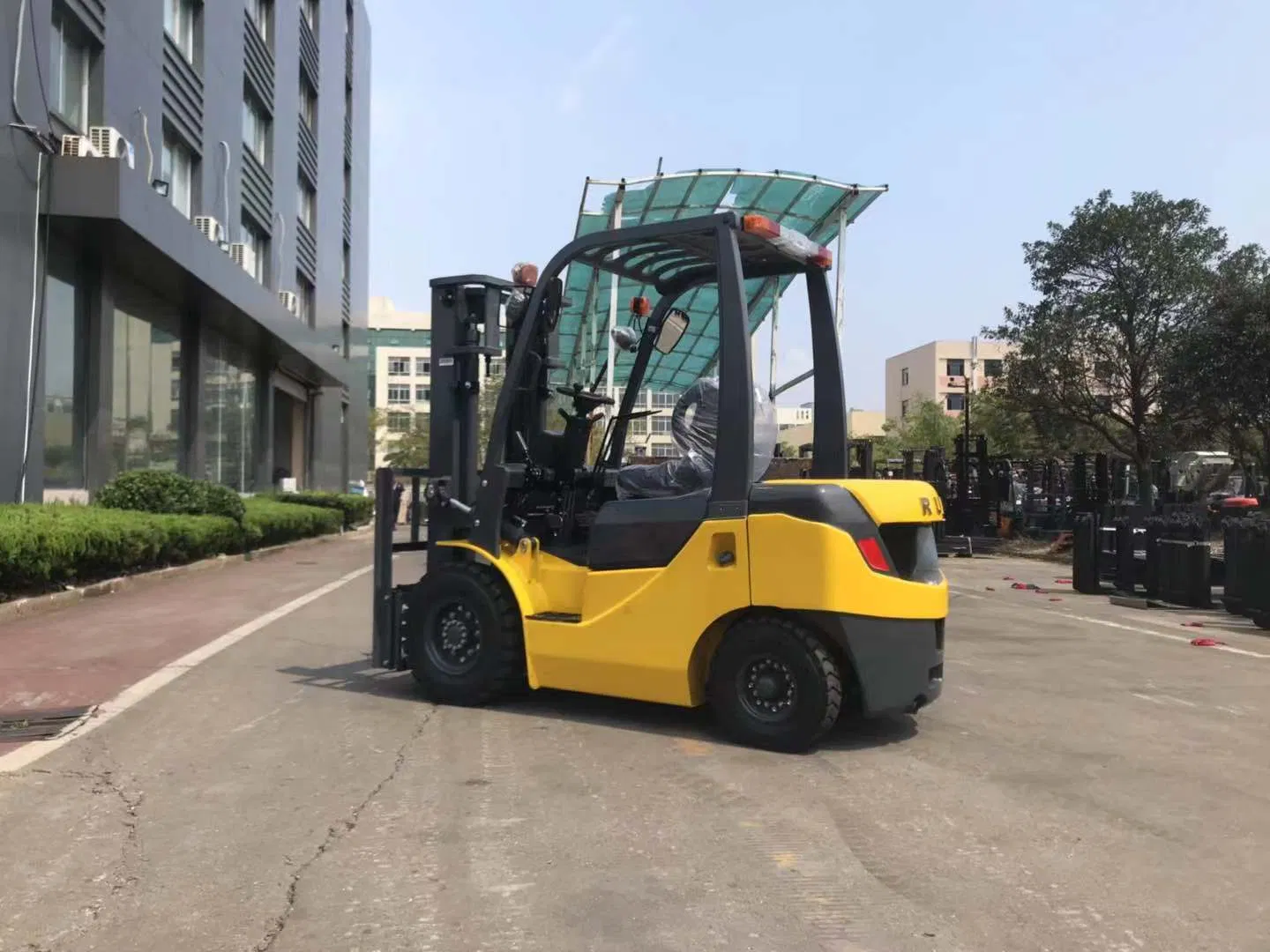

Rum 3000kg/3500kg Diesel Forklift with Triplex Mast and Side Shift CE, ISO9001
Advantage : 1.all engines match the China EURIII, Japan ISUZU , Japan YANMAR and USA CUMMINS engine 2. Germany suspension seat with safety b......
Send Inquiry
Product Description
Advantage :

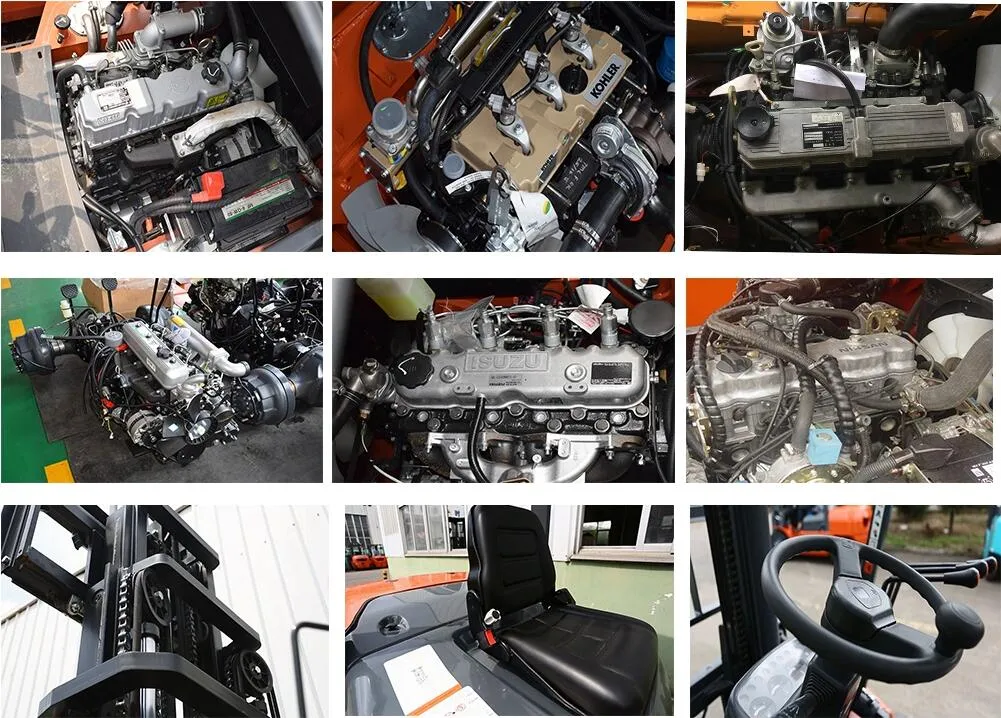

1.all engines match the China EURIII, Japan ISUZU , Japan YANMAR and USA CUMMINS engine
2. Germany suspension seat with safety belt ,TCM brand technology gear box with auto transmission.
3.option : side shift , fork positioner , Solid tyre , forklift attachment like paper roll clamp , push pull . bale clamp and so on .
4.Max lifting height:6m with 3 stage mast
5.load capacity:1ton~15ton
FAQ:
Q1: How long is the Warranty for RUMLIFT product?
A1: RUMLIFT provides 24 months or 2500 hours for the whole machine from on board time.
Q2: How about the delivery time?
A2: Usually RUMLIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: How about the continuous working time for the electric series forklifts & Stackers ? And How long time to charge the battery full ?
A3: RUMLIFT battery continuous working time is around 4-6hours( depend on battery volume and people operation ), when the red light of dashboard flashing ,need to charging ,about 5 hours can be finish ,RUMLIFT'S charge is intelligent,once the battery is full , will stop to charging .
Q4 How about the battery working life ?
A4: our Battery is from DIN standard battery ( Germany technology), can be working 6 years without any problem.
Q5: Can RUMLIFT provide customized products? OEM products or ODM products?
A5: Yes, RUMLIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special request.
Q6: What's the specification of the chargers?
A6: Our chargers voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases,50/60HZ). Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.
Q7: Could we request our own color for the products?
A7: Yes, of course,We have orange red ,red ,white ,green, blue and so on , you just need to offer us the RAL code.
1.all engines match the China EURIII, Japan ISUZU , Japan YANMAR and USA CUMMINS engine
2. Germany suspension seat with safety belt ,TCM brand technology gear box with auto transmission.
3.option : side shift , fork positioner , Solid tyre , forklift attachment like paper roll clamp , push pull . bale clamp and so on .
4.Max lifting height:6m with 3 stage mast
5.load capacity:1ton~15ton
| Manufacturer | Rum | ||||||

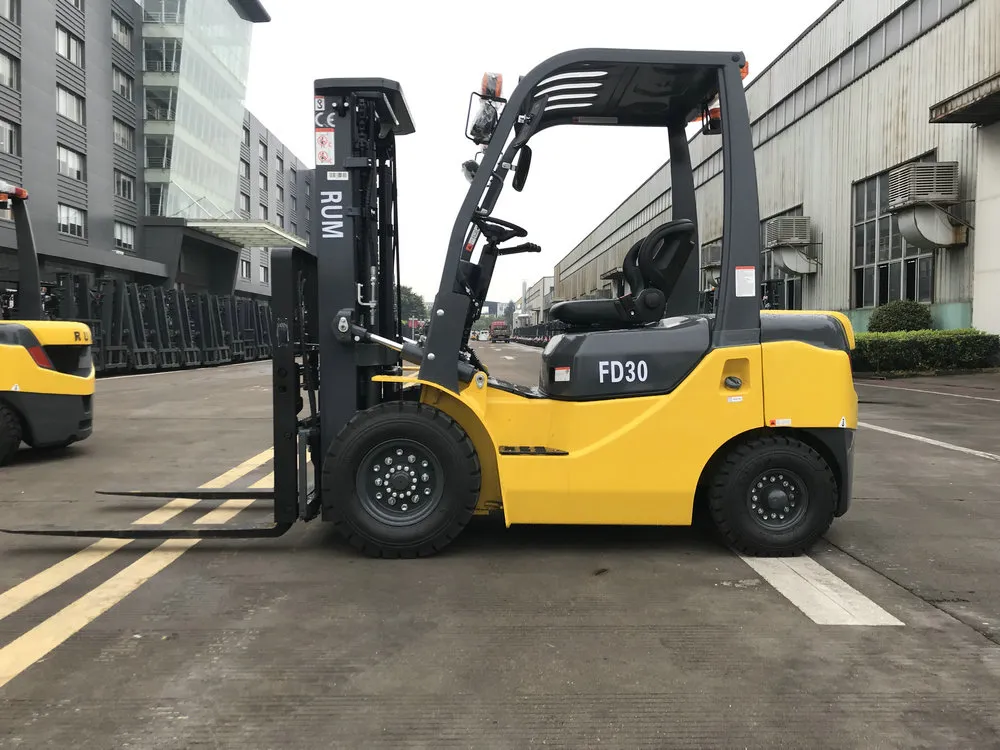

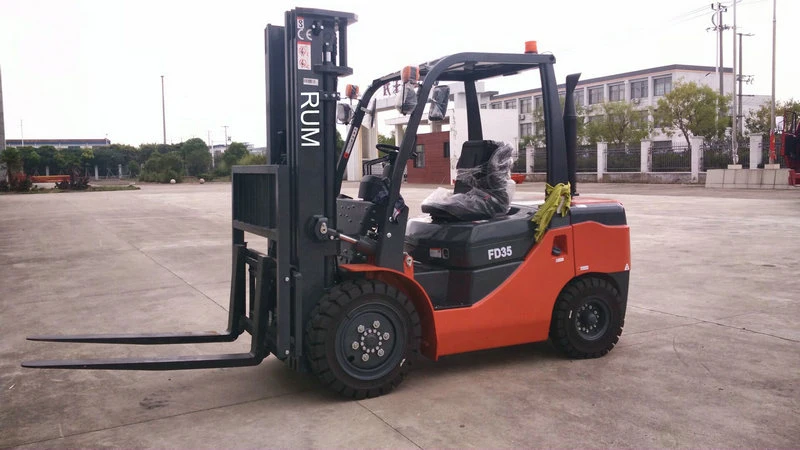

| Model | FD20 | FD25 | FD30 | FD35 | |||
| Rated capacity | kg | 2000 | 2500 | 3000 | 3500 | ||
| Load center | mm | 500 | |||||
| Gearbox change speed type | Hydraulic/ Mechanical | ||||||
| Power type | Diesel | ||||||
| Tire type | Front/ Rear | Pneumatic | |||||
| Wheels | Front Rear | 2/2 | |||||
| Liftheight | mm | 3000 | |||||
| Free lift height | mm | 140 | 145 | ||||
| Fork size | L*W*T | mm | 1070x120x40 | 1070x120x45 | 1070x125x45 | 1070x130x45 | |
| Mast tilt angle | Fwd/Bwd | deg | 6/12 | ||||
| Overall length (without fork) | mm | 2510 | 2580 | 2720 | 2775 | ||
| Overallwidth | mm | 1150 | 1225 | ||||
| Mast height fork lowered | mm | 2050 | 2080 | 2230 | |||
| Overall height fork raised | mm | 4040 | 4272 | ||||
| Overall height (overhead guard) | mm | 2060 | 2090 | ||||
| Turning radius(outside) | mm | 2170 | 2240 | 2460 | 2540 | ||
| Load distance (centerline of front axle to front face of forks) | mm | 484 | 489 | 494 | 500 | ||
| Max.Gradeability | % | 20 | 15 | ||||
| Self weight | kg | 3550 | 3880 | 4380 | 4750 | ||
FAQ:
Q1: How long is the Warranty for RUMLIFT product?
A1: RUMLIFT provides 24 months or 2500 hours for the whole machine from on board time.
Q2: How about the delivery time?
A2: Usually RUMLIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: How about the continuous working time for the electric series forklifts & Stackers ? And How long time to charge the battery full ?
A3: RUMLIFT battery continuous working time is around 4-6hours( depend on battery volume and people operation ), when the red light of dashboard flashing ,need to charging ,about 5 hours can be finish ,RUMLIFT'S charge is intelligent,once the battery is full , will stop to charging .
Q4 How about the battery working life ?
A4: our Battery is from DIN standard battery ( Germany technology), can be working 6 years without any problem.
Q5: Can RUMLIFT provide customized products? OEM products or ODM products?
A5: Yes, RUMLIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special request.
Q6: What's the specification of the chargers?
A6: Our chargers voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases,50/60HZ). Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.
Q7: Could we request our own color for the products?
A7: Yes, of course,We have orange red ,red ,white ,green, blue and so on , you just need to offer us the RAL code.
