Socma 3t Hnt30-4 Mini 4WD Telescopic Forklift

Product Description

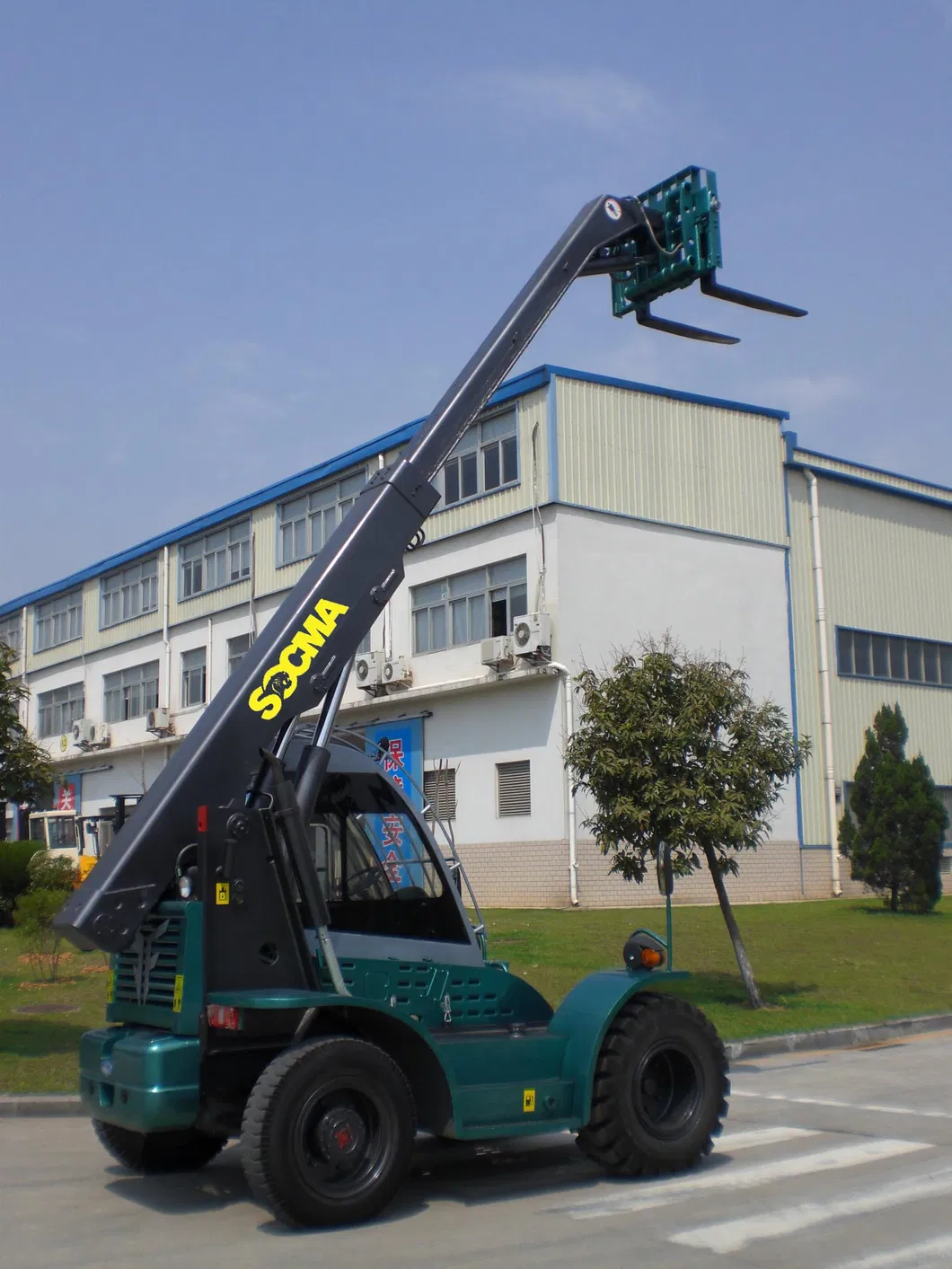

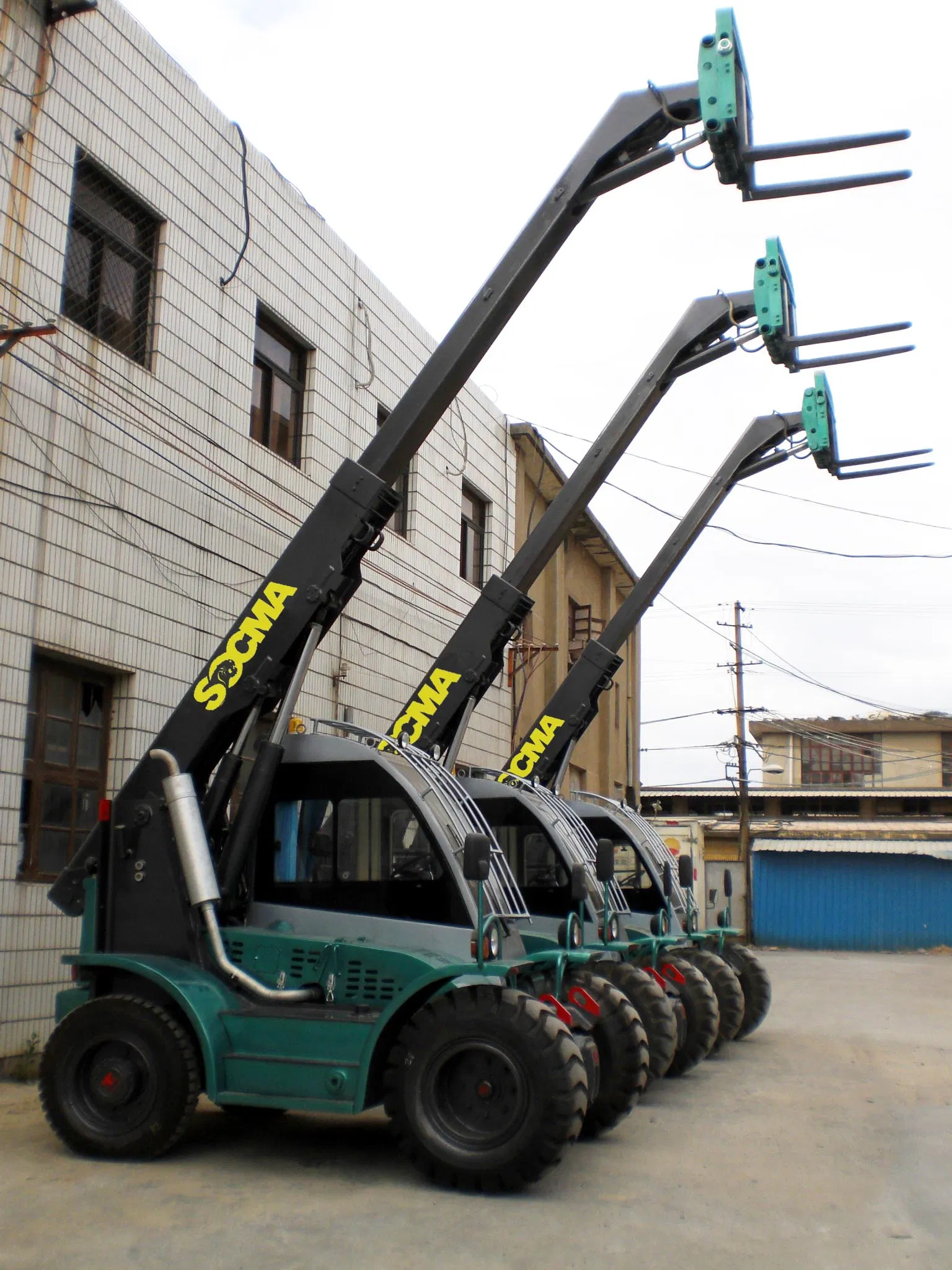

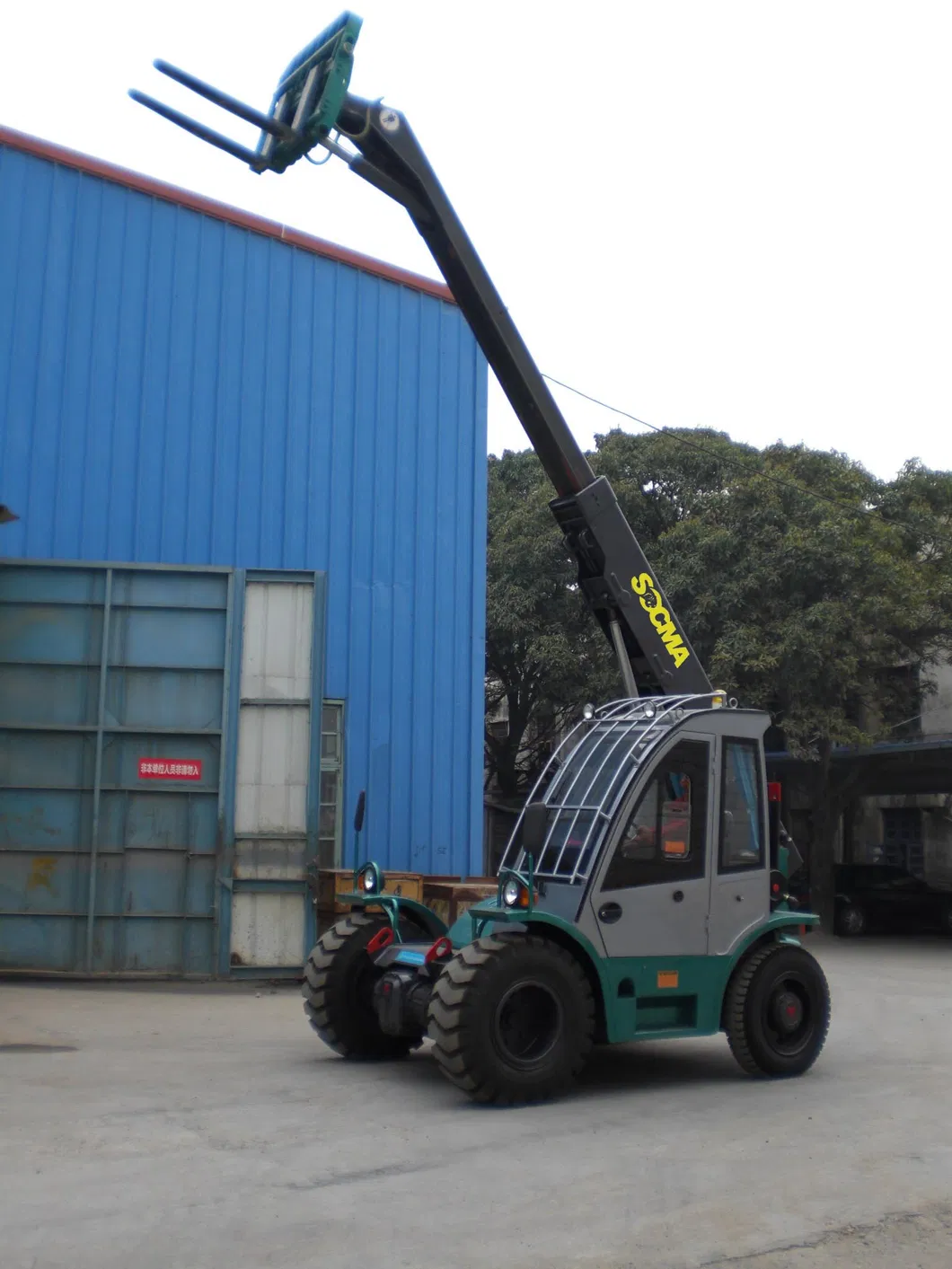

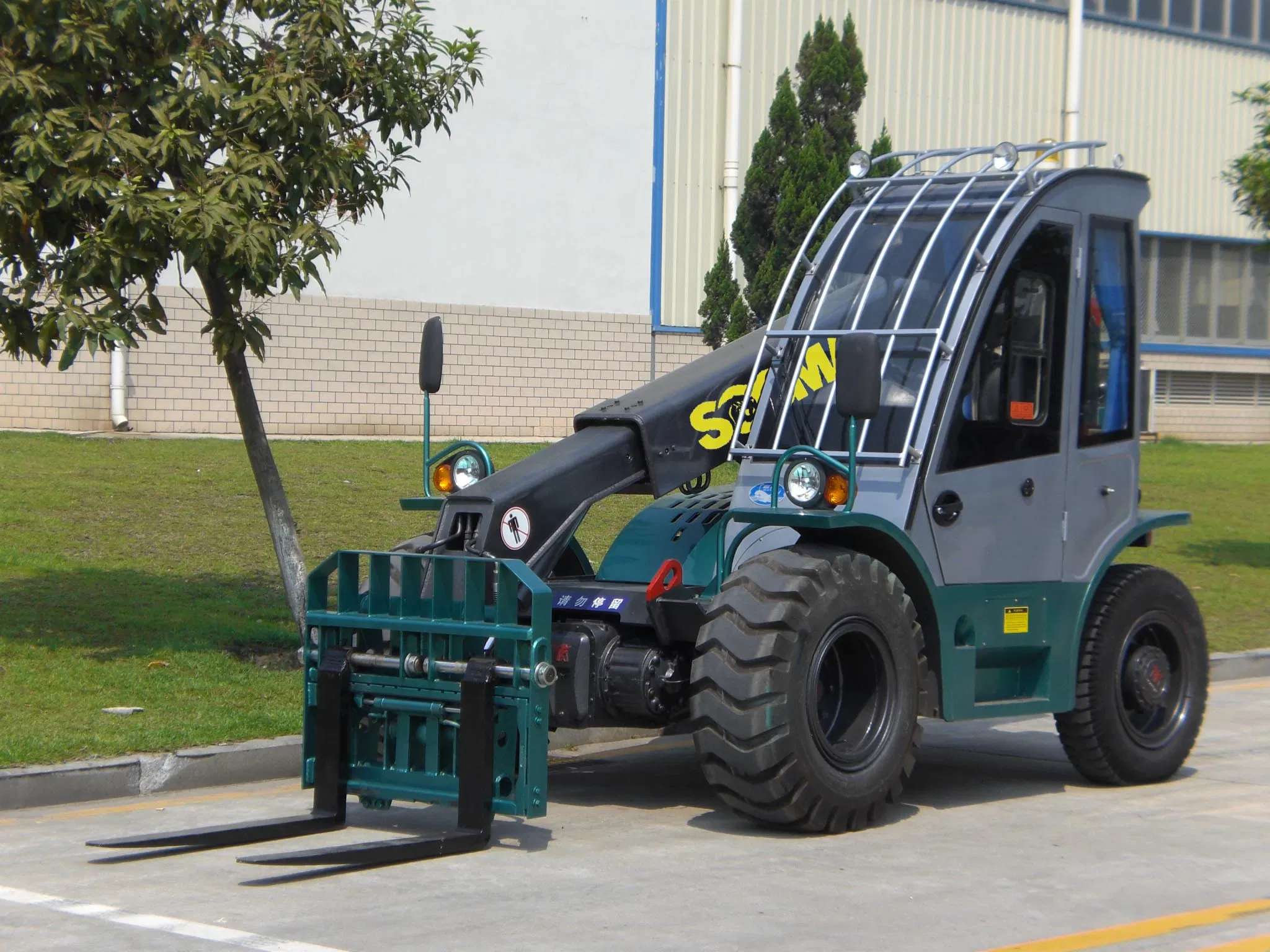

SOCMA 3T HNT30-4 Mini 4WD Telescopic Forklift

Feature:
1, comes with four-wheeldrive and rigid suspension
2, hydraulic mechnical drive, hydraulic power steeringand hydraulic brake, rear-wheel steering
3, the two-stagequadrilateral telescopic boom serves as the working unit. A regular lift truckis equipped with a fork or a boom
4, the lift truckis applicable to the unstuffing and casing of pellatized goods in containers,as well as handling, stacking and short-distance transportation of a variety ofpackaged goods
5, suitable formany different working environments, is ideal equipment for loading andunloading, lifting, and transportation in mining, factory, architecture,building material, dock, municipal engineering industries, and more
6, a range ofoptions including such accessories as the bucket, lifting hook, and boom, etc.are available to customers
7, offers betterperformance than a general fork truck in terms of the handling height andcross-country ability
Parameter:

Item		Data	HNT30-4
Rated load lifting capacity		kg	3000

Load center distance (between the font edge of tyre and the load center)		mm	3000

Max. lifting height of main hook (between the main hook and the ground)		mm	6350

Max. horizontal reach of main hook (between front edge of tyre and the main hook)		mm	2570

Max. travel speed		kw/h	30
Min. ground clearance		mm	350
Min. turning radius		mm	7250
Gradeability		%	30
Tipping angle (upward/downward)		°	15/25
Wheel tread		mm	1900
Wheel base		mm	2520
Dead weight		kg	8960
Overall size	H	mm	2700
	W	mm	2280
	L	mm	5400
	Inner width of the cab	mm	740
	Length of the boom	mm	3250
Engine	Model	DF Cummins	4BT3.9-C80
	Rated power	kw	30
	Rated speed	r/min	2000
	Displacement	L	3.9
Tyre	Front		16/70-24
	Rear		10.00-20
