Socma 3ton Mini Telescopic Forklift Hnt30-4 with 6m Boom

SOCMA 3Ton Telehandler Mini Telescopic Forklift with 6.3m Telescopic Boom Product Overview1.Comes with four-wheeldrive and rigid suspension2.Hydraulic mechnical drive, hydraulic power steeringand hydraulic brake, rear-wheel steering3.The two-stagequadrilateral telescopic boom serves as the working u......

Send Inquiry

Product Description

SOCMA 3Ton Telehandler Mini Telescopic Forklift with 6.3m Telescopic Boom

Product Overview

1.Comes with four-wheeldrive and rigid suspension

2.Hydraulic mechnical drive, hydraulic power steeringand hydraulic brake, rear-wheel steering

3.The two-stagequadrilateral telescopic boom serves as the working unit. A regular lift truckis equipped with a fork or a boom

4.The lift truckis applicable to the unstuffing and casing of pellatized goods in containers,as well as handling, stacking and short-distance transportation of a variety ofpackaged goods

5.Suitable formany different working environments, is ideal equipment for loading andunloading, lifting, and transportation in mining, factory, architecture,building material, dock, municipal engineering industries, and more

6.A range of options including such accessories as the bucket, lifting hook, and boom, etc.are available to customers

7.Offers betterperformance than a general fork truck in terms of the handling height andcross-country ability

Main Configurations

Item Data HNT30-4
Rated load lifting capacitykg3000
Load center distance (between the font edge of tyre and the load center)mm3000
Max. lifting height of main hook (between the main hook and the ground)mm6350
Max. horizontal reach of main hook (between front edge of tyre and the main hook)mm2570
Max. travel speedkw/h30
Min. ground clearancemm350
Min. turning radiusmm7250
Gradeability%30
Tipping angle (upward/downward)°15/25
Wheel treadmm1900
Wheel basemm2520
Dead weightkg8960
Overall sizeHmm2700
Wmm2280
Lmm5400
Inner width of the cabmm740
Length of the boommm3250
Engine Model 4BT3.9-C80
Rated powerkw30
Rated speedr/min2000
Displacement L3.9
TyreFront  16/70-24
Rear  10.00-20

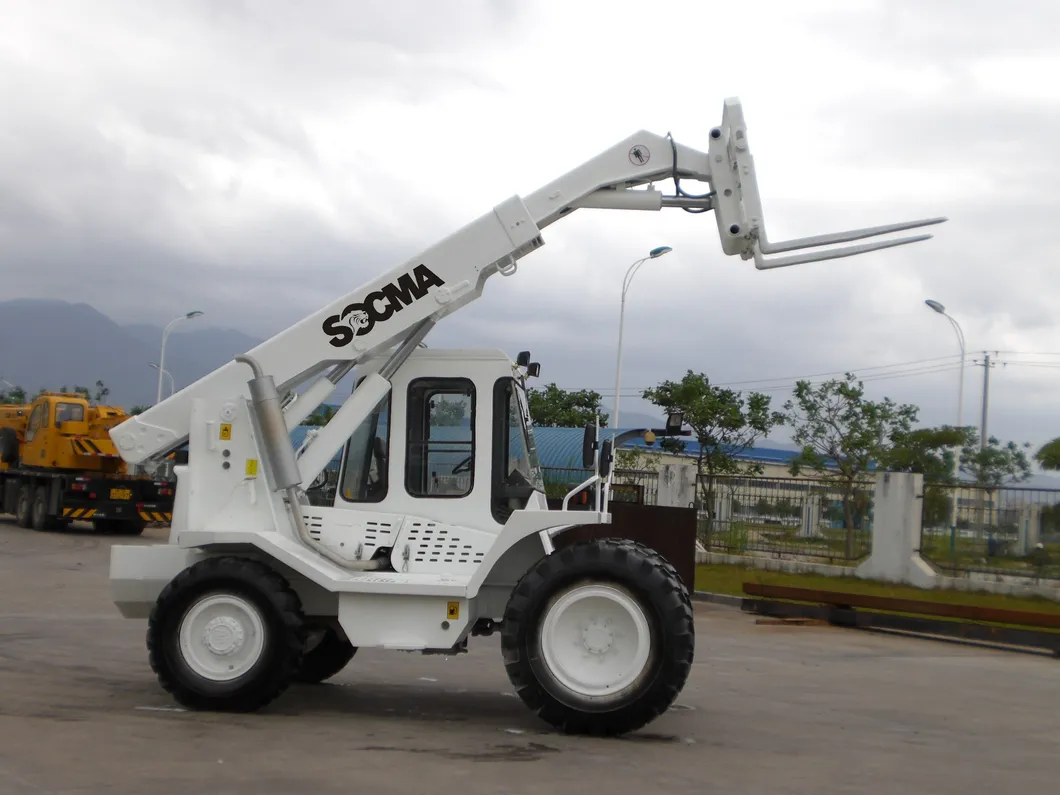

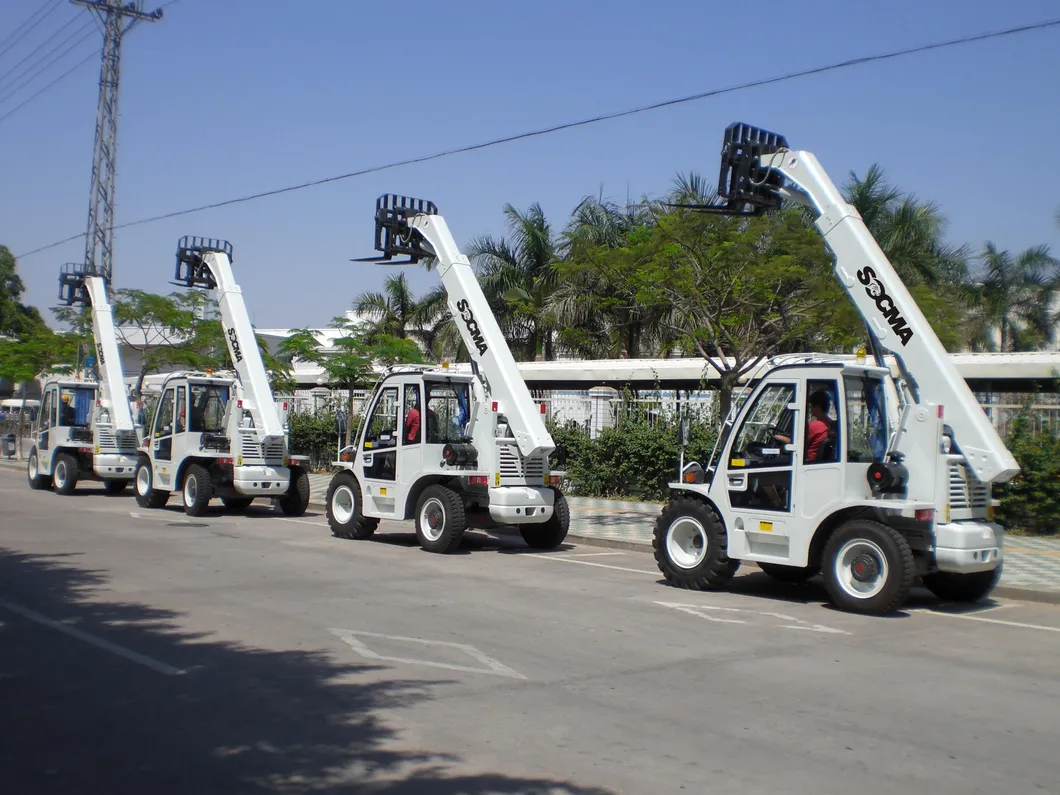

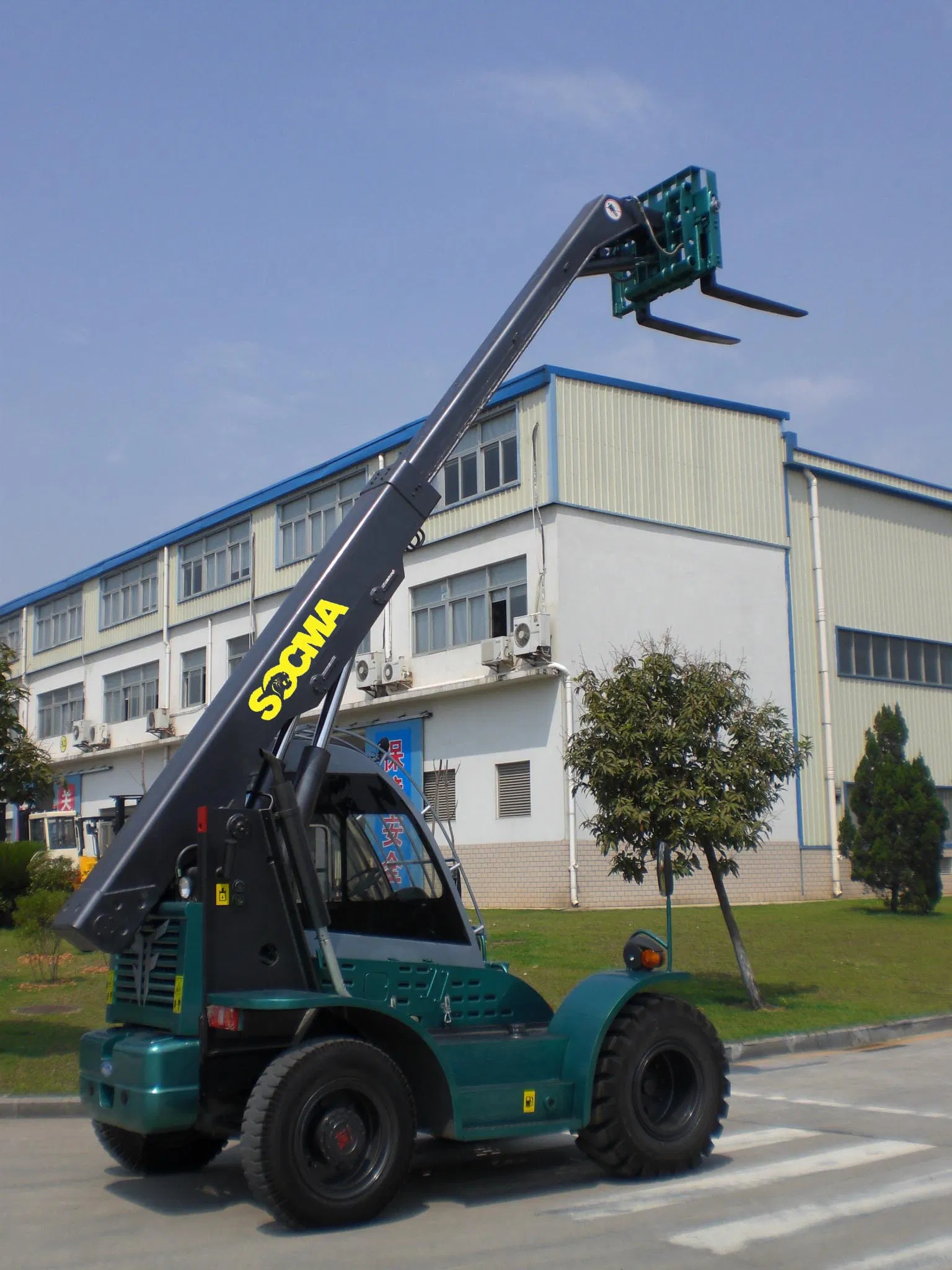

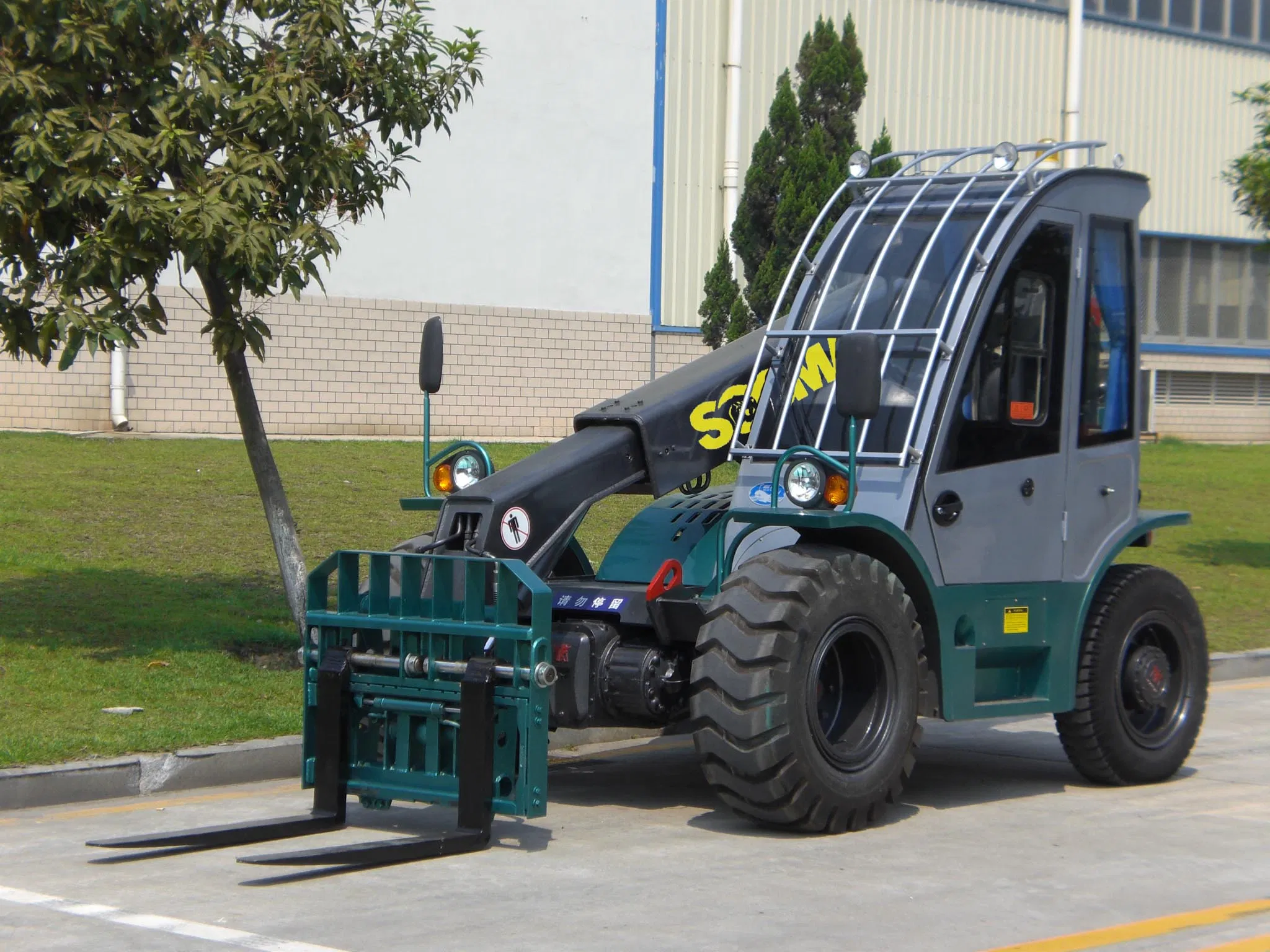

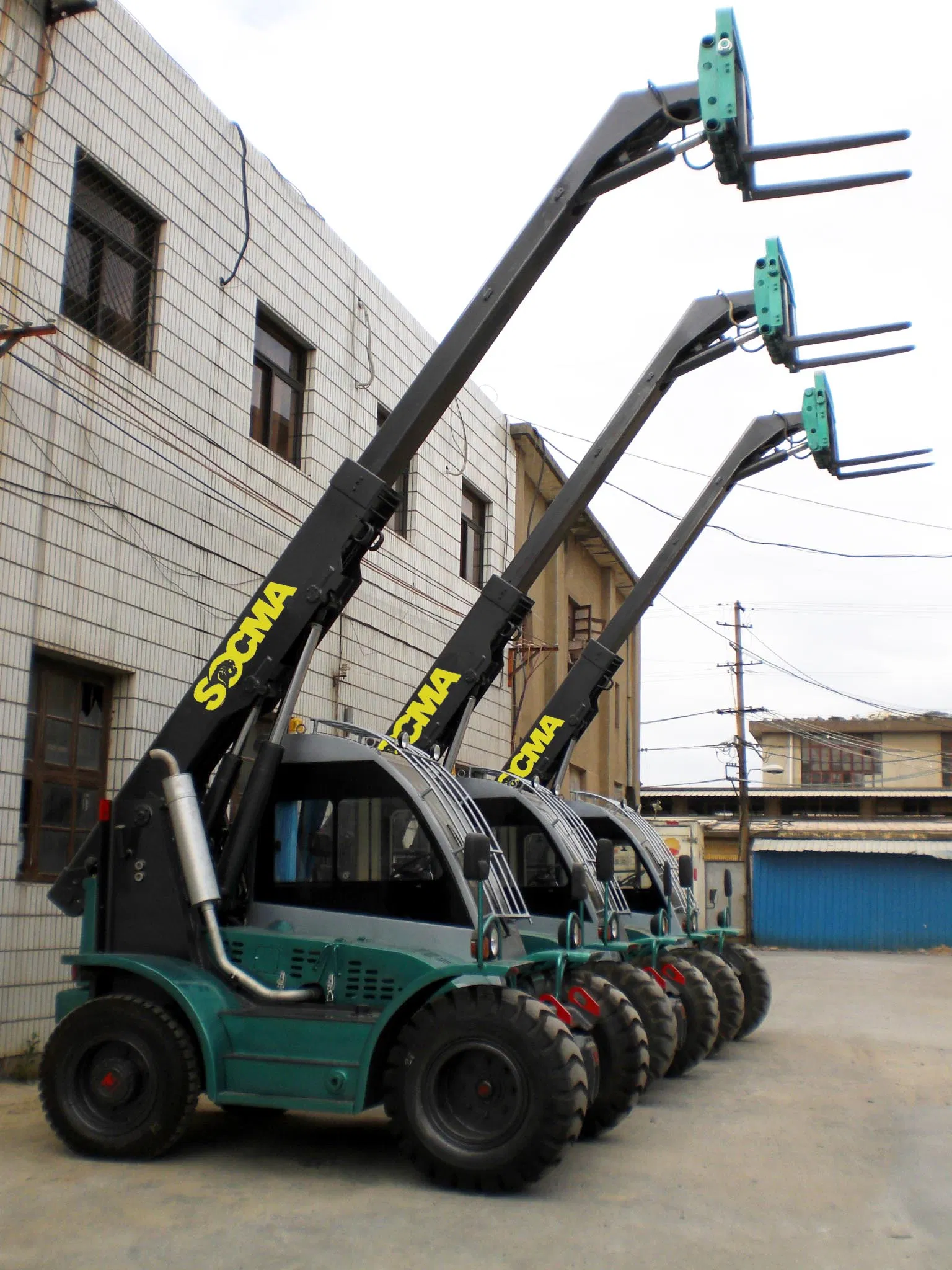

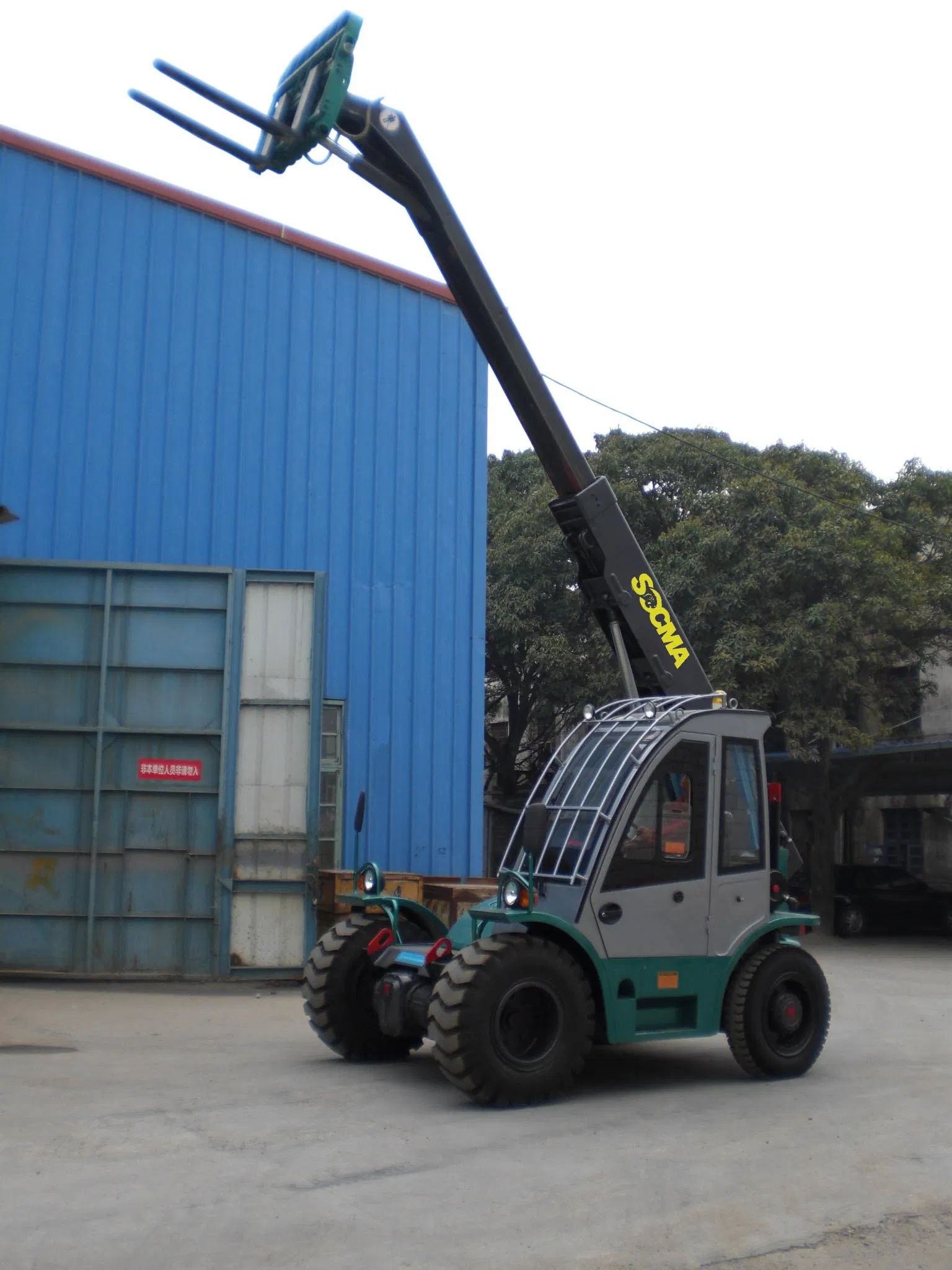

Main Photos
Socma 3ton Mini Telescopic Forklift Hnt30-4 with 6m BoomSocma 3ton Mini Telescopic Forklift Hnt30-4 with 6m BoomSocma 3ton Mini Telescopic Forklift Hnt30-4 with 6m BoomSocma 3ton Mini Telescopic Forklift Hnt30-4 with 6m BoomSocma 3ton Mini Telescopic Forklift Hnt30-4 with 6m BoomSocma 3ton Mini Telescopic Forklift Hnt30-4 with 6m BoomSocma 3ton Mini Telescopic Forklift Hnt30-4 with 6m BoomSocma 3ton Mini Telescopic Forklift Hnt30-4 with 6m BoomSocma 3ton Mini Telescopic Forklift Hnt30-4 with 6m BoomSocma 3ton Mini Telescopic Forklift Hnt30-4 with 6m BoomSocma 3ton Mini Telescopic Forklift Hnt30-4 with 6m BoomWe are a leading construction machinery with rich export experience.
Welcome to contact us freely.
