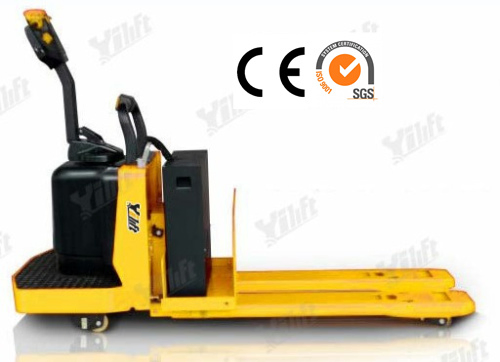

Stand on Type Powered Pallet Truck Ept20 -30rt (S) / Ept20 -35rt (S)
The EPT20-30RT powered pallet truck meet the needs and desires of consumers of market segmentation, this season EP launches new MAXIMIN series electric pallet truck model E-TRUCK with competitive performance, highly quality, and very attractive price.The philosophy of EPT20-30RT powered pallet truck......
Send Inquiry
Product Description
The EPT20-30RT powered pallet truck meet the needs and desires of consumers of market segmentation, this season EP launches new MAXIMIN series electric pallet truck model E-TRUCK with competitive performance, highly quality, and very attractive price.
The philosophy of EPT20-30RT powered pallet truck is using minimal truck to create maximal performance and efficiency, meanwhile save energy, save human force, save material, save your cost.
Yi-Lift high effective business management will provide you competitive price with good quality;Intimate service will provide you best service and worry-free procurement.
If you interested in our products, no hesitate to contact us!
We are warmly welcome you and your partner to visit our factory at any time!

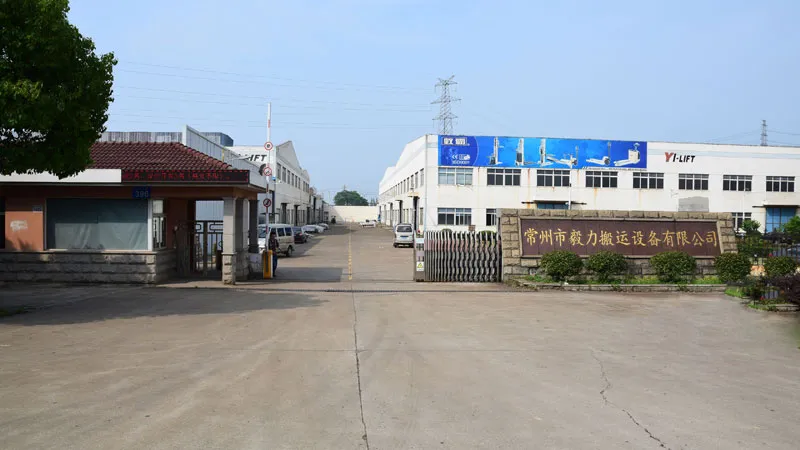

ChangzhouYi-Lift material handling equipment co.,Ltd. is a professional logistic and industrial equipments manufacturer in China for more than 30years. The product range covers manual and electric pallet trucks, stackers, mobile and stationary lift tables, weighing trucks, roller skates and all kinds of trolleys.
Our company owned a complete line of advanced equipments, such as CMM machines, welding Robots, CNC cutting machine, Auto Power coating line, Hydraulic Press and Testing machine etc. We have professional technical team in designing and producing which can meet the different requirements from customers. And we are an ISO9000 quality certified company which ensures all products and service is complied with standard quality system. Most of our products are also granted CE or GS certificates by TüV Rheinland Group.
We cooperated with Hu-lift since year 1992 to export our products all over the world. We acted as the original equipment manufacturer (OEM) for many worldwide enterprises such as Linde, Still, Manitou on pallet trucks, and we are also important supplier to some famous catalogue companies such as Grainger, Manutan, Kaiser+Kraft, Global, Fastenal, Trusco and AJ.
Yi-Lift team are always ready to provide not only quality products but also our prefect customer service, our professional work is worth to be rely on!
The philosophy of EPT20-30RT powered pallet truck is using minimal truck to create maximal performance and efficiency, meanwhile save energy, save human force, save material, save your cost.
Yi-Lift high effective business management will provide you competitive price with good quality;Intimate service will provide you best service and worry-free procurement.
If you interested in our products, no hesitate to contact us!
We are warmly welcome you and your partner to visit our factory at any time!
| Characteristics | ||||
| 1.1 | Manufacturer | YI-LIFT | ||
| 1.2 | Model designation | EPT20-30RT(S) | EPT20-35RT(S) | |
| 1.3 | Model designation | Battery | Battery | |
| 1.4 | Drive unit | Ride | Ride | |
| 1.5 | Load capacity | Q (kg) | 3000 | 3500 |
| 1.6 | Load center | c (mm) | 600 | 600 |
| Weights | ||||
| 2.1 | Service weight (Incl. battery) | kg | 570 | 690 |
| Wheels, Chassis | ||||
| 3.1 | Tyre type, operator side/ load side | PU/PU | PU/PU | |
| 3.5 | Wheels, number operator/load side (x=drive wheels) | 1/2/2 | 1/2/2 | |
| Dimensions | ||||
| 4.4 | Lift height | h3 (mm) | 140 | 140 |
| 4.15 | Fork height, lowered | h13 (mm) | 82.5 | 82.5 |
| 4.19 | Overall length | l1 (mm) | 2325 | 2325 |
| 4.21 | Overall width | b1/ b2 (mm) | 915 | 915 |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 60/230/1190 | 60/230/1190 |
| 4.25 | Fork spread, min/ max | b5 (mm) | 685 | 710 |
| 4.33 | Aisle width, 1000× 1200 pallet crossways | Ast (mm) | 2555 | 3765 |
| 4.35 | Outer turning radius | Wa (mm) | 2064 | 2590 |
| Performance | ||||
| 5.1 | Travel speed, laden/ unladen | km/ h | 10.5/14.5 | 10.5/14.5 |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 30/33 | 30/33 |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 40/38 | 40/38 |
| 5.8 | Maximum gradeability, laden/ unladen S2 5 min. | % | 6/15 | 6/15 |
| 5.10 | Service brake | Electromagnetic | Electromagnetic | |
| Drive | ||||
| 6.1 | Drive motor rating S2 60 min. | kW | 4 | 4 |
| 6.2 | Lift motor rating at S3 15% | kW | 2.2 | 2.2 |
| 6.4 | Battery voltage/ rated capacity (5h) | V/ Ah | 24/360 | 24/360 |
| Others | ||||
| 8.1 | Type of drive control | AC ZAPI | ||
| 8.4 | Sound level at operator' s ear | dB (A) | 70 | |
ChangzhouYi-Lift material handling equipment co.,Ltd. is a professional logistic and industrial equipments manufacturer in China for more than 30years. The product range covers manual and electric pallet trucks, stackers, mobile and stationary lift tables, weighing trucks, roller skates and all kinds of trolleys.
Our company owned a complete line of advanced equipments, such as CMM machines, welding Robots, CNC cutting machine, Auto Power coating line, Hydraulic Press and Testing machine etc. We have professional technical team in designing and producing which can meet the different requirements from customers. And we are an ISO9000 quality certified company which ensures all products and service is complied with standard quality system. Most of our products are also granted CE or GS certificates by TüV Rheinland Group.
We cooperated with Hu-lift since year 1992 to export our products all over the world. We acted as the original equipment manufacturer (OEM) for many worldwide enterprises such as Linde, Still, Manitou on pallet trucks, and we are also important supplier to some famous catalogue companies such as Grainger, Manutan, Kaiser+Kraft, Global, Fastenal, Trusco and AJ.
Yi-Lift team are always ready to provide not only quality products but also our prefect customer service, our professional work is worth to be rely on!
