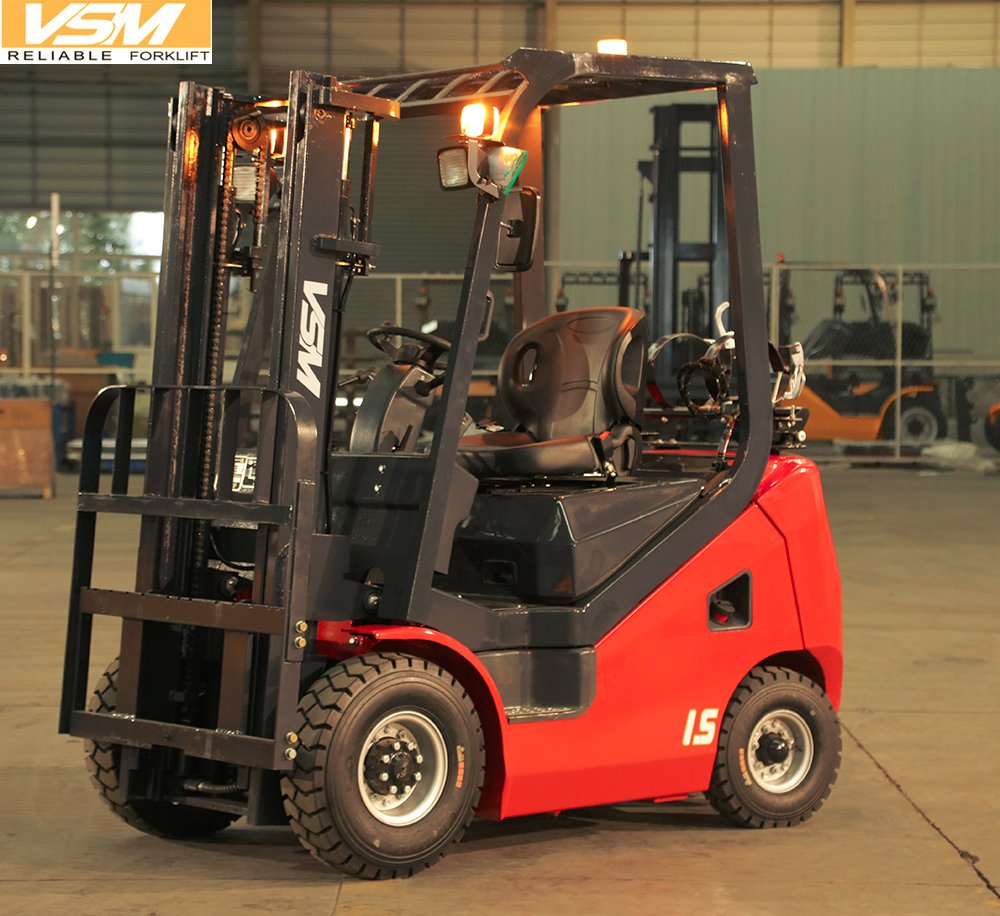

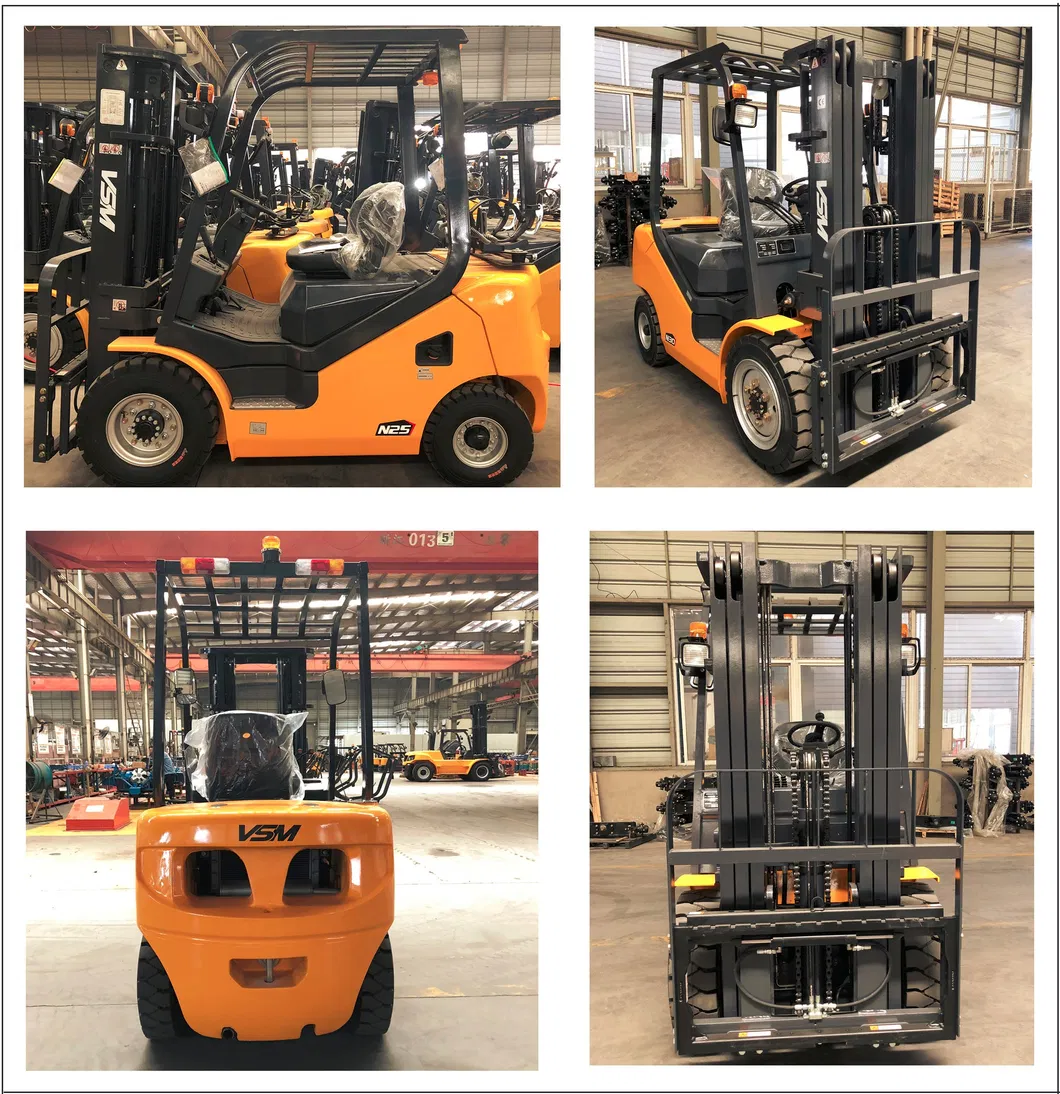

Vsm 1.5ton Gasoline Forklift with Nissan Engine, 1500kgs Gasoline Forklift, Forklift Truck, Cpq15, Gas Forklift Truck, 1500kgs, Petrol Forklift,
* 1.5ton gasoline forklift with Japanese original Nissan engine* Automatic transmission* fork length:1070mm, 1220mm....1820mm...2570mm* Lifting height from 3000-6500mm* Hot selling options:Side shift, solid tyre, triplex 4500mm container mast, fork posationer;cabin, air conditoner General 1Manufactu......
Send Inquiry
Product Description
* 1.5ton gasoline forklift with Japanese original Nissan engine
* Automatic transmission
* fork length:1070mm, 1220mm....1820mm...2570mm
* Lifting height from 3000-6500mm
* Hot selling options:Side shift, solid tyre, triplex 4500mm container mast, fork posationer;cabin, air conditoner
* Automatic transmission
* fork length:1070mm, 1220mm....1820mm...2570mm
* Lifting height from 3000-6500mm
* Hot selling options:Side shift, solid tyre, triplex 4500mm container mast, fork posationer;cabin, air conditoner
| General | 1 | Manufacturer |  | 1 | ||||

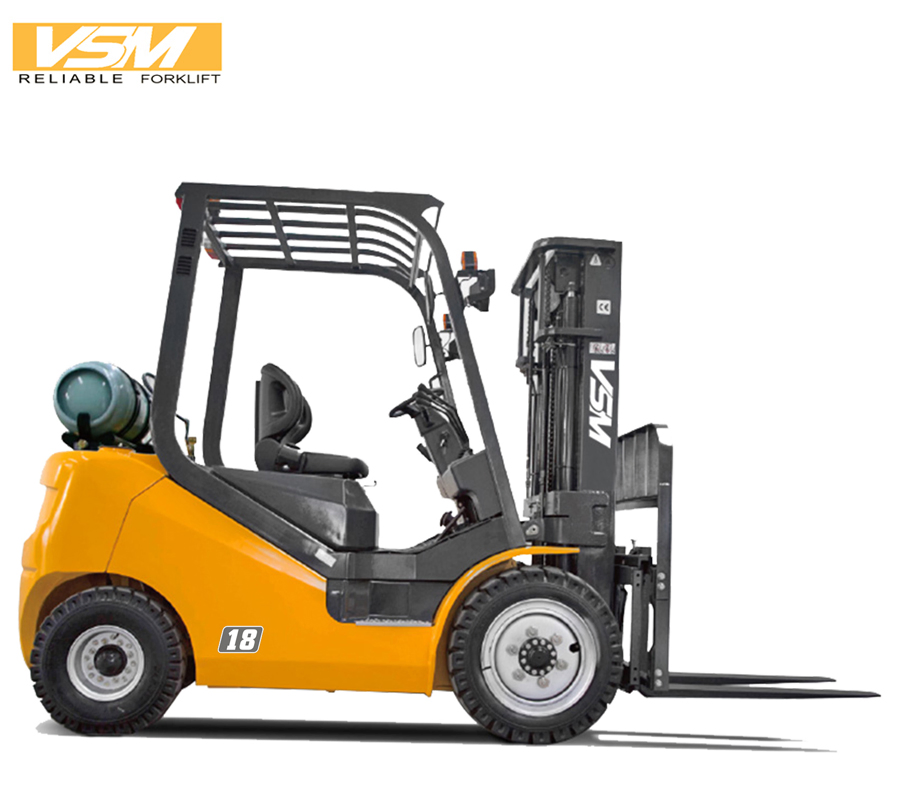

| 2 | Model | FL15T | FG15T | FGL15T | FG18T | 2 | ||
| 3 | Power Type | Gasoline/LPG | 3 | |||||
| 4 | Rated Load Capacity | Q(kg) | 1500 | 1800 | 4 | |||
| 5 | Load Centre | C(mm) | 500 | 5 | ||||
| Characteristic & Dimension | 6 | Rated Lift Height | H3(mm) | 3000 | 6 | |||
| 7 | Free Lift Height | H2(mm) | 100 | 7 | ||||
| 8 | Fork Size (L×W×T) | mm | 920×120×35 | 1070×120×40 | 8 | |||
| 9 | Mast Tilt Angle (F/R, α°/β°) | deg | 6°/12° | 9 | ||||
| 10 | Fork Overhang (Wheel Center to Fork Face) | X1(mm) | 409 | 10 | ||||
| 11 | Rear Overhang | X2(mm) | 470 | 470 | 11 | |||
| 12 | Ground Clearance (Bottom of Mast) | H7(mm) | 110 | 12 | ||||
| 13 | Length to Face of Fork (Without Fork) | L1(mm) | 2285 | 2285 | 13 | |||
| 14 | Overall Width | B1(mm) | 1082 | 14 | ||||
| 15 | Mast Lowered Height | H1(mm) | 2025 | 15 | ||||
| 16 | Mast Extended Height (With Backrest) | H4(mm) | 4055 | 16 | ||||
| 17 | Overhead Guard Height | H5(mm) | 2160 | 17 | ||||
| 18 | Turning Radius (Outside) | Wa(mm) | 2100 | 2100 | 18 | |||
| 19 | Min.Aisle width for pallets | Ast(mm) | 3700 | 3700 | 19 | |||
| Performance | 20 | Travel Speed (No Load) | km/h | 14.5 | 20 | |||
| 21 | Lifting Speed (Full Load) | mm/sec | 560 | 21 | ||||
| 22 | Lowering Speed (Full Load) | mm/sec | 450 | 22 | ||||
| 23 | Max.Drawbar Pull (Full Load/No Load) | KN | 17(14.5) | 20.5(17.5) | 23 | |||
| 24 | Max.Gradeability (Full Load) | % | 20 | 24 | ||||
| Chassis | 25 | Tyre (Front x 2) | mm | 6.50-10-10PR | 25 | |||
| 26 | Tyre (Rear x 2) | mm | 5.00-8-10PR | 26 | ||||
| 27 | Front Tread | B2(mm) | 890 | 27 | ||||
| 28 | Rear Tread | B3(mm) | 920 | 28 | ||||
| 29 | Wheelbase | Y(mm) | 1410 | 29 | ||||
| Weight | 30 | Total Weight | kg | 2860 | 2990 | 30 | ||
| 31 | Front Axle Weight Distribution (Full Load) | kg | 3815 | 4120 | 31 | |||
| 32 | Rear Axle Weight Distribution (Full Load) | kg | 545 | 720 | 32 | |||
| 33 | Front Axle Weight Distribution (No Load) | kg | 1200 | 1170 | 33 | |||
| 34 | Rear Axle Weight Distribution (No Load) | kg | 1660 | 1820 | 34 | |||
| Power & Transmission | 35 | Battery | V/Ah | 12/60 | 35 | |||
| 36 | Engine Model | K21 | 36 | |||||
| 37 | Engine Manufacturer | NISSAN | 37 | |||||
| 38 | Rated Output / r.p.m. | kw | 31.5/2300 | 38 | ||||
| 39 | Rated Torque / r.p.m. | N·m | 144/1600 | 39 | ||||
| 40 | No.of Cylinder | 4 | 40 | |||||
| 41 | Bore x Stroke | mm | 89/83 | 41 | ||||
| 42 | Displacement | cc | 2065 | 42 | ||||
| 43 | Fuel Tank Capacity | L | 50 | 43 | ||||
| 44 | Transmission Type | Powershift ( Manual) | 44 | |||||
| 45 | Transmission Stage (FWD/RVS) | 1/1 (2/2) | 45 | |||||
| 46 | Operating Pressure (For Attachments) | Mpa | 14.5 | 46 | ||||
