Zowell New Equipment Towing Machine Xtb50

Product Description

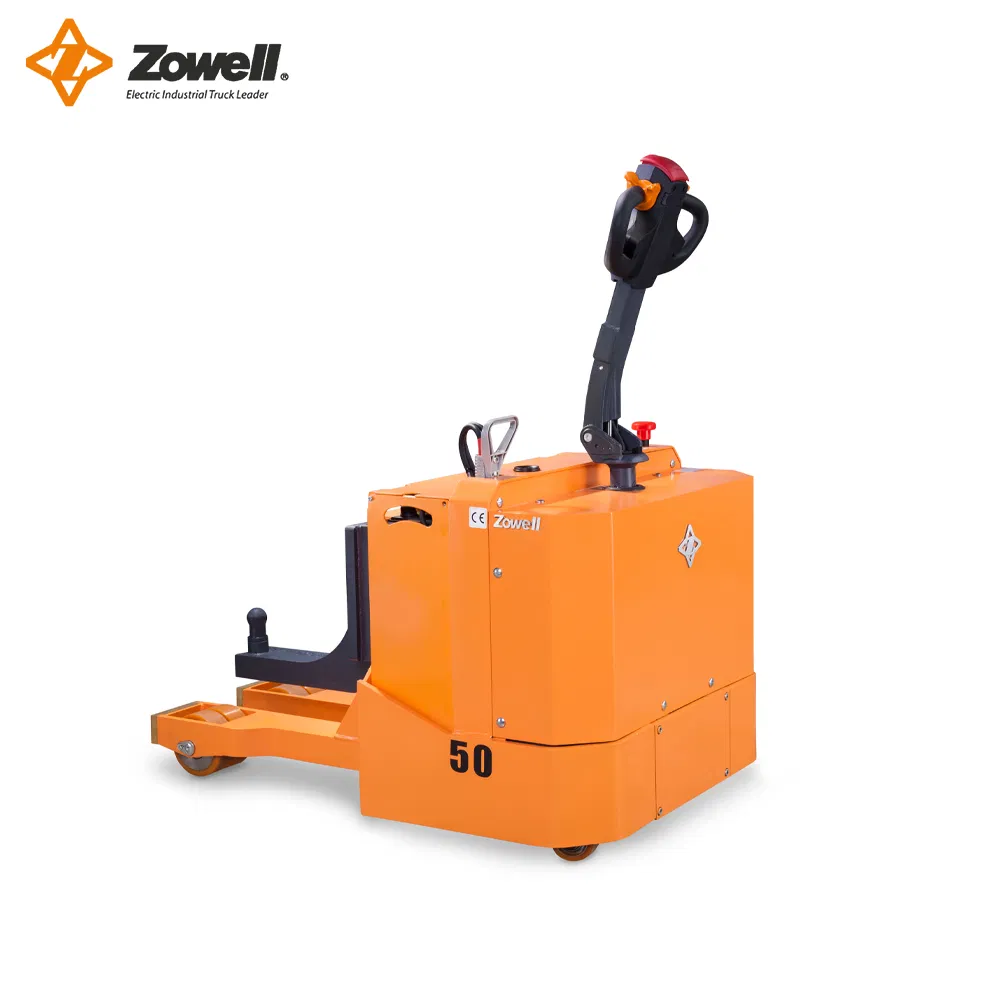

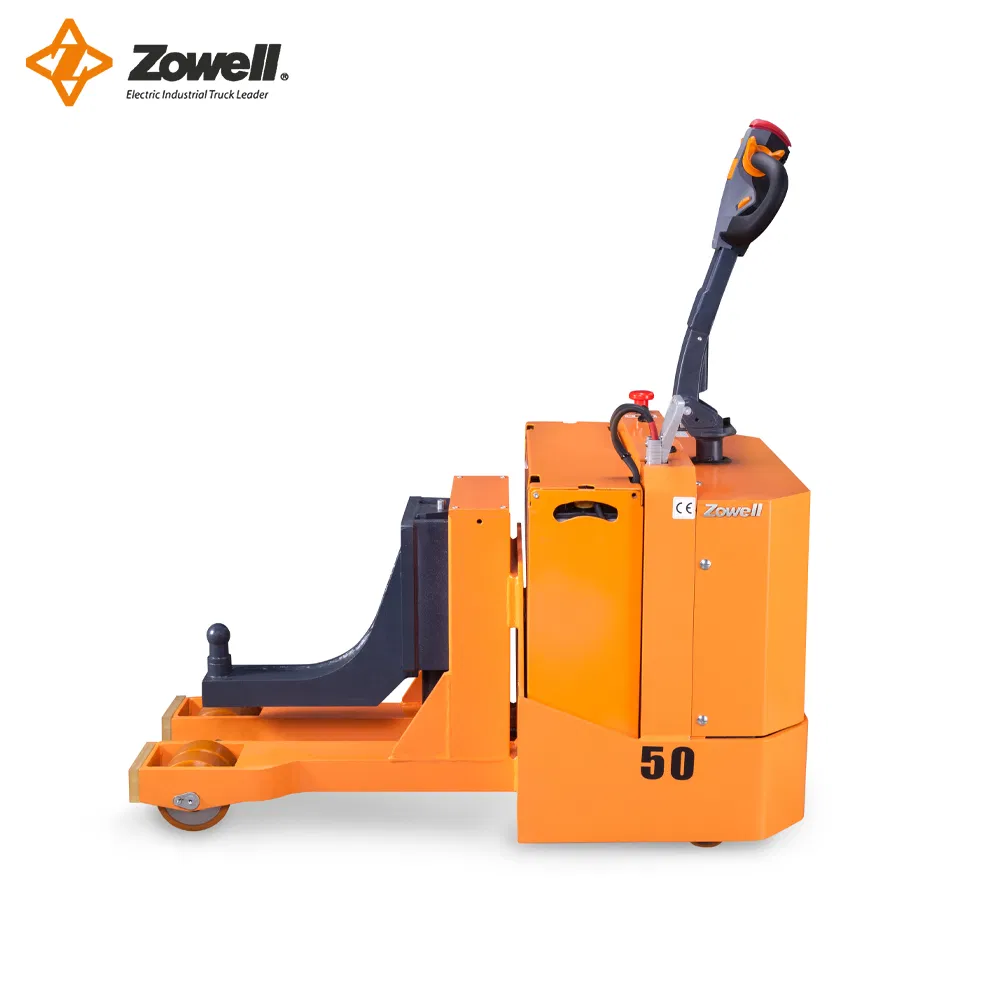

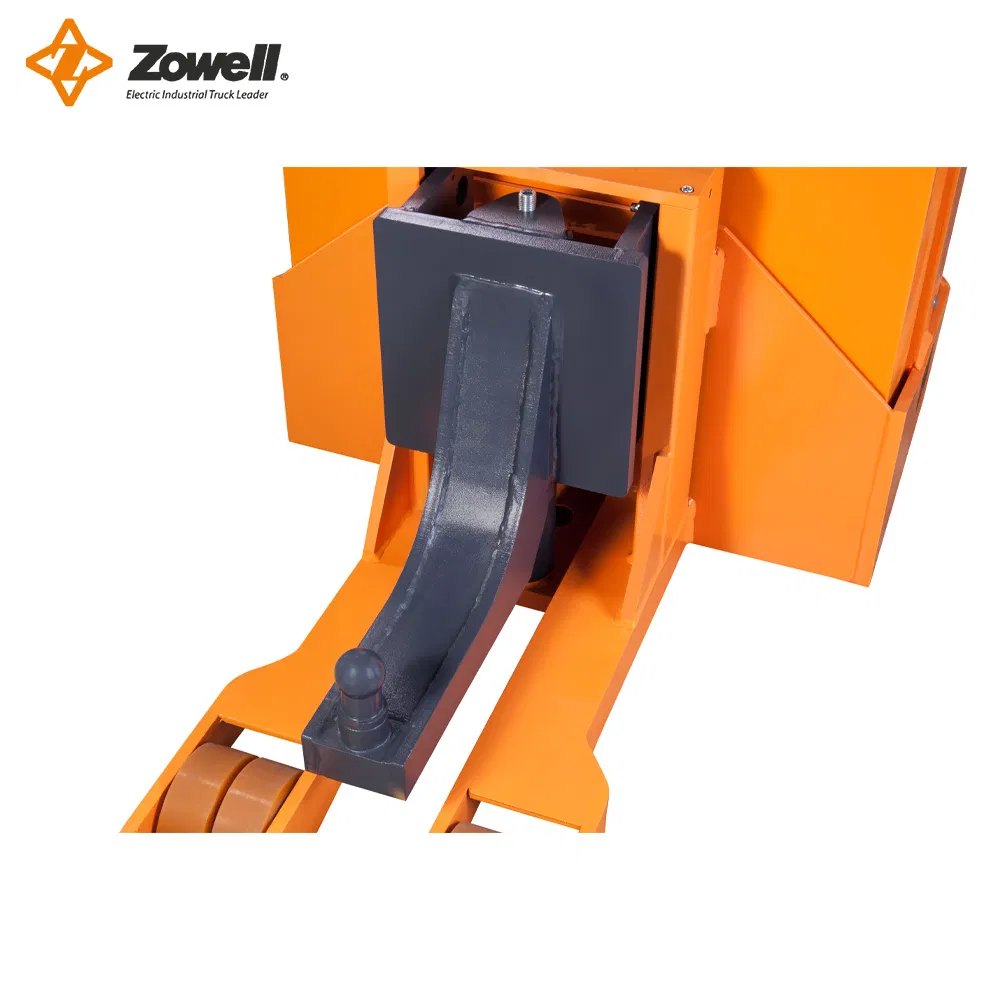

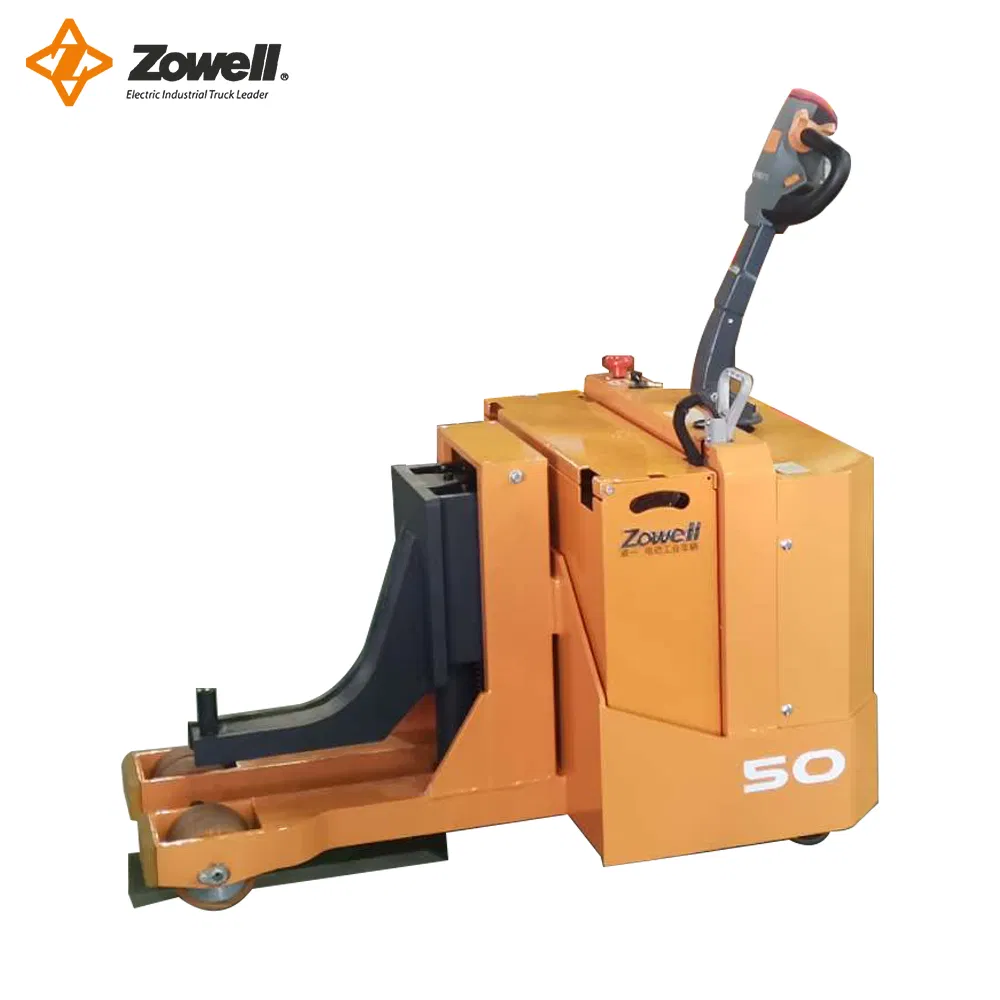

Zowell Customized 5 Ton Hook Coupling Electric Towing Tractor

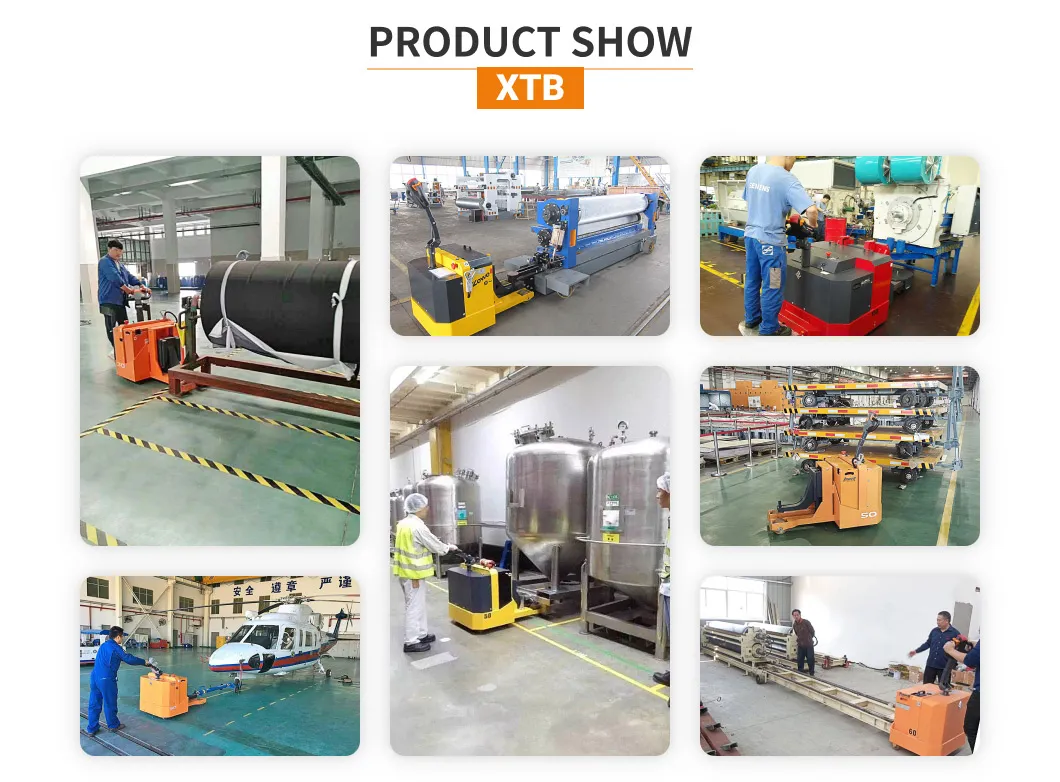

Our tow tractor is suitable to be used in confined places, as well as appropriate for multiple load transfer over medium distance. We have two different models for this kind of tractor: XTA30 and XTA50. And their towing capacity is 3000kg and 5000kg respectively.

Main Features
1. Italian HYDRAPP hydraulic pump.
2. Regenerative braking function
3. AC electronic controller
4. Germany Frei handle
5. Emergency reversing device in the handle provides improved operating safety.
6. Emergency power disconnection switch.
7. Applied with handle upright and horizontal position, braking system increases the safety of the truck.

Technical Data

Identification	Product model		XTB30	XTB50
	Power supply		Electric
	Operating type		Pedestrian
	Lifting capacity	Kg	≤2500kg	≤3500kg
	Towing capacity	Kg	≤3000kg	≤5000kg
	Draw-bar-pull At the hook	Kg	97.6kg	195kg
	Load distance	X mm	112
	Wheelbase	Y mm	999
	Weight (without battery)	Kg	435
Wheel	Tyres		Polyurethane
	Tyre size drive end	mm	Φ230x75
	Type size load end	mm	Φ150x60
	Balancing wheel size	mm	Φ100x50
	Wheels number (x=drive wheel) drive end/load end		1x-2/2
	Tread width drive end	mm	400
	Tread width load end	mm	568
Dimensions	Total height	h1 mm	1400
	Lift height	h3 mm	170
	Height of handle in drive position (Max/Min)	h6 mm	1350/800
	Overall length	L1 mm	1227
	Length to face of forks	L2 mm	565
	Overall width	b1 mm	850
	Minimum ground clearance	m mm	70
	Turning radius	Wa mm	1200
Performance	Travel speed loaded/unloaded	km/h	5.2/6	4.8/5.6
	Lift speed loaded/unloaded	mm/s	40/50
	Lowering speed loaded/unloaded	mm/s	50/40
	Max gradeability loaded/unloaded	%	8/15
	Service brake		Electromagnetic
Electric Motor	Drive motor rating	kW	AC1.5,DC1.1	AC2.0,DC2.2
	Lift motor rating	kW	2.2
	Battery voltage / nominal capacity	V/Ah	24/210
	Battery weight	Kg	195
Others	Type of drive control		MOSFET Control
	Noise level at operator's ear	dB(A)	<70
