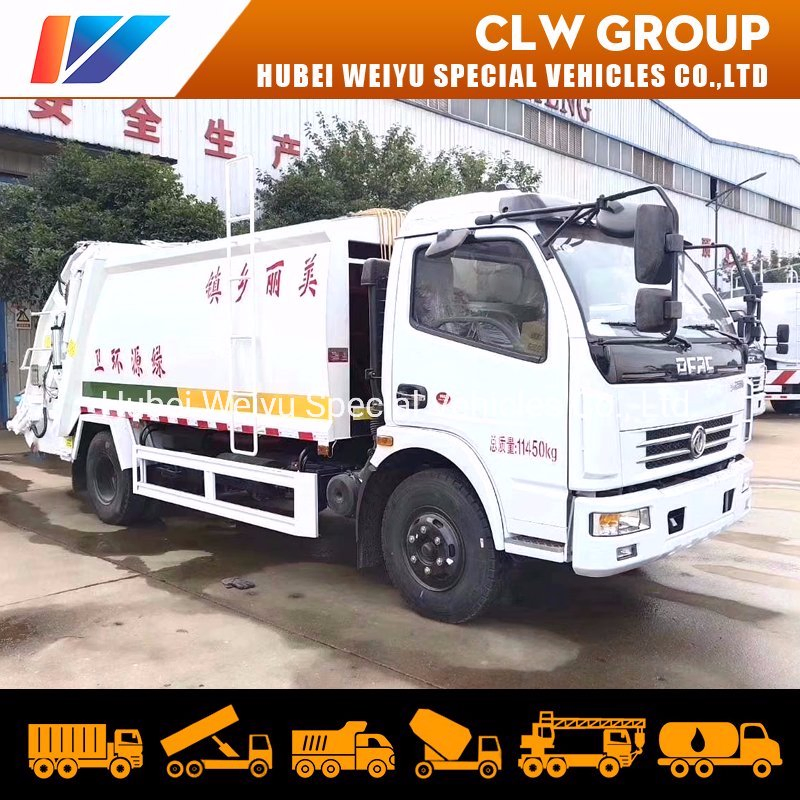

China 4X2 Dongfeng 6 Wheels 4tons 5tons 6tons Compactor Garbage Truck City Waste Treatment Truck
China 4x2 Dongfeng 6 Wheels 4tons 5tons 6tons Compactor Garbage Truck City Waste Treatment TruckProduct Description1. Making garbage collection simple: change the dirty appearance of the city and eliminate the secondary pollution;2. High compression ratio and large loading capacity which is 2 times ......
Send Inquiry
Product Description
China 4x2 Dongfeng 6 Wheels 4tons 5tons 6tons Compactor Garbage Truck City Waste Treatment Truck
Product Description
1. Making garbage collection simple: change the dirty appearance of the city and eliminate the secondary pollution;
2. High compression ratio and large loading capacity which is 2 times larger than usual garbage truck;
3. Easy Full Automatic Operation: electrical control system for loading and unloading operations.
4. One Person Operation: Reducing sanitation work, greatly improves the working efficiency.
5. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.
Specification
| Upperstructure Specification | ||
| Compector Box | Box Volume | 7CBM |
| Box Capacity | 5Ton | |
| Dirty Water Tank Volume | 0.2CBM | |
| Hopper Volume | 0.8CBM | |
| Compression density | 0.8-0.9T/CBM | |
| Compression ratio | 3-4 | |
| Compression cycle time | ≤15 s | |
| Unload garbage time | ≤23 s | |
| Body Thickness | Side | 3mm, Carbon Steel-Q345A |
| Bottom | 4mm, Carbon Steel-Q345A | |
| The Electromagnetic Valve | UZCT-115/24V, 2sets | |
| Hydraulic Pressure | 16Mpa | |
| Controlling Way | Manual and electrical control | |
| Other Configuration |
| |
| Options | Tail feed flip frame or flip bucket, PLC one-button control system, etc. | |
After-sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

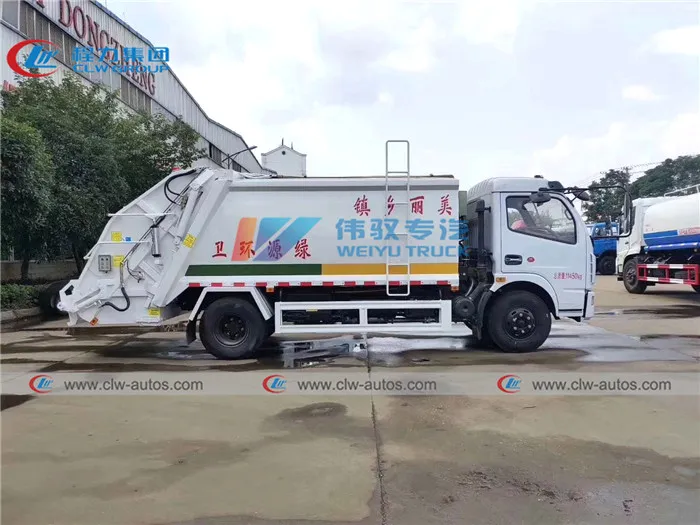

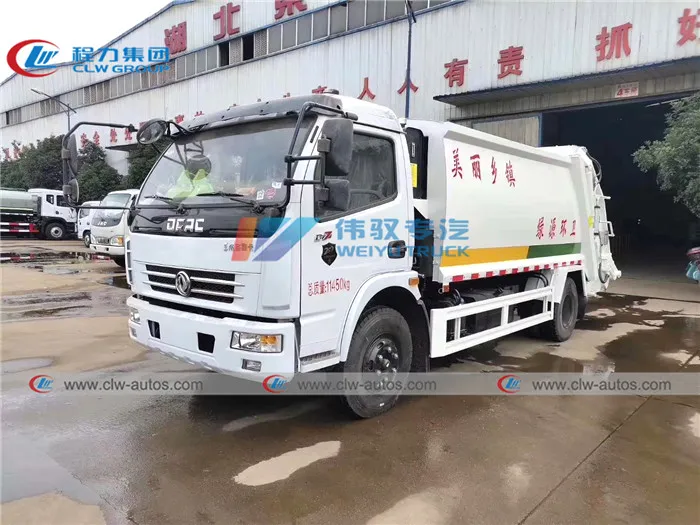

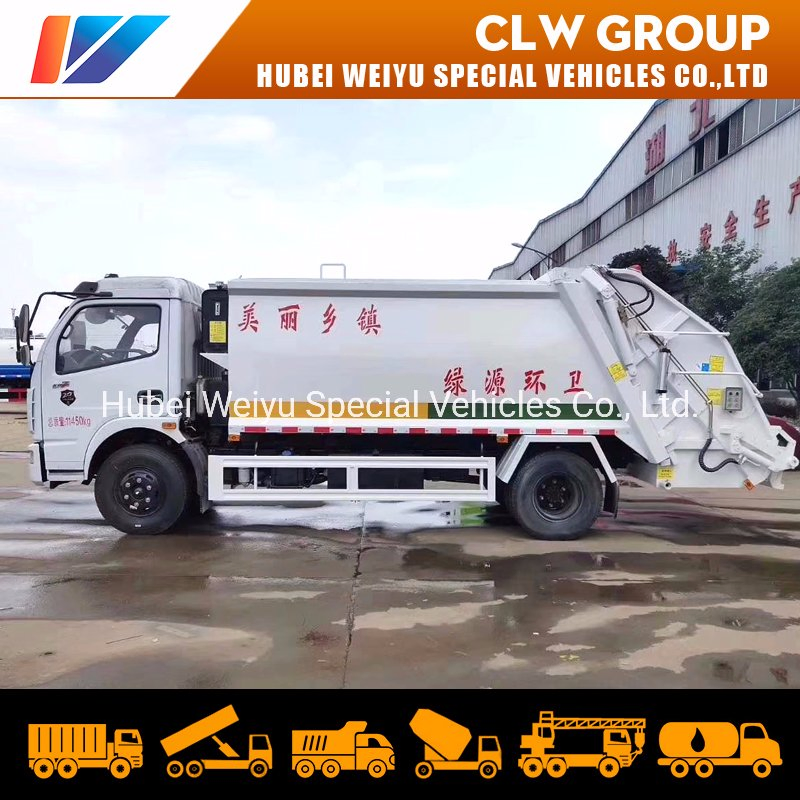

Reference Photos

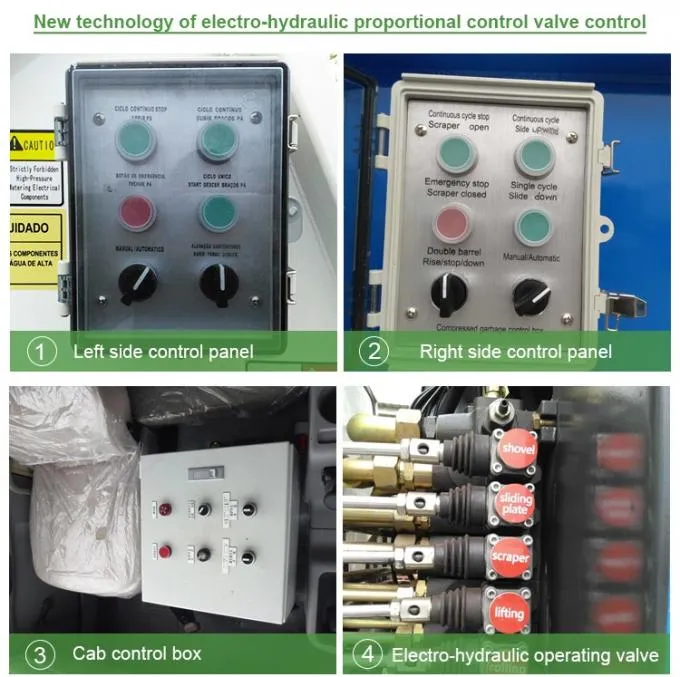

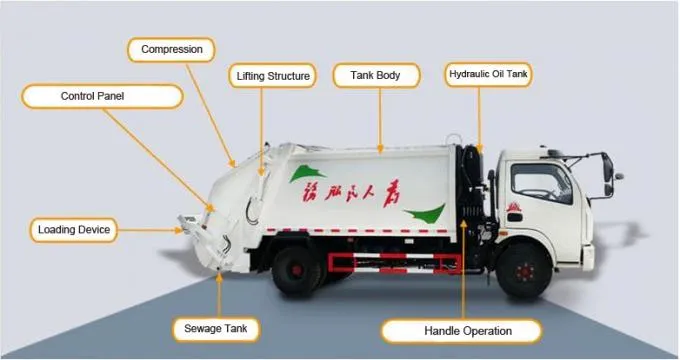

Main Working System

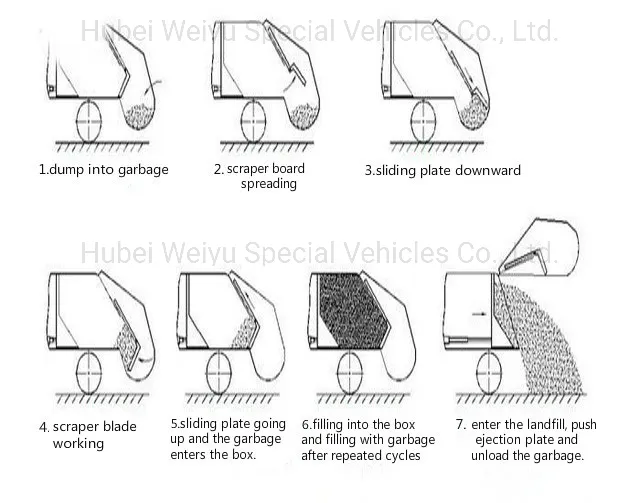

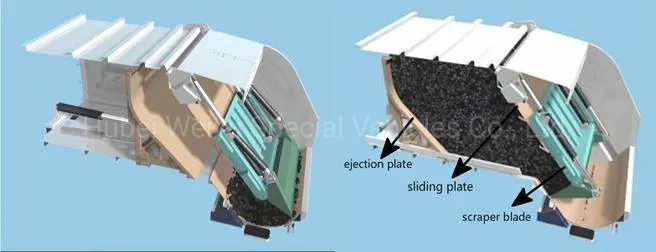

Garbage Loading and Unloading Process

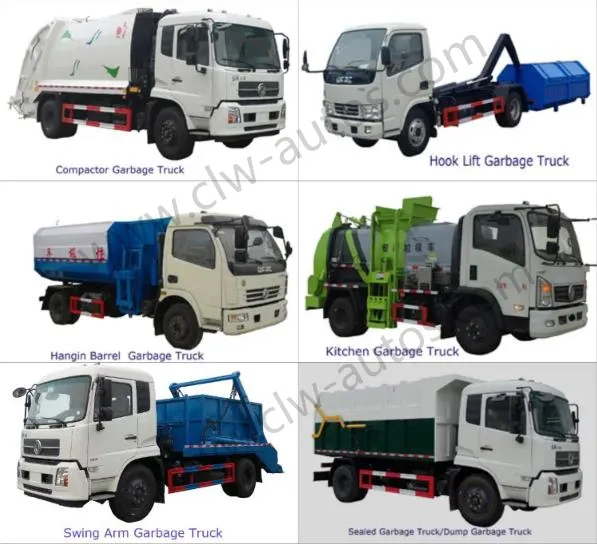

Various Kinds of Garbage Trucks

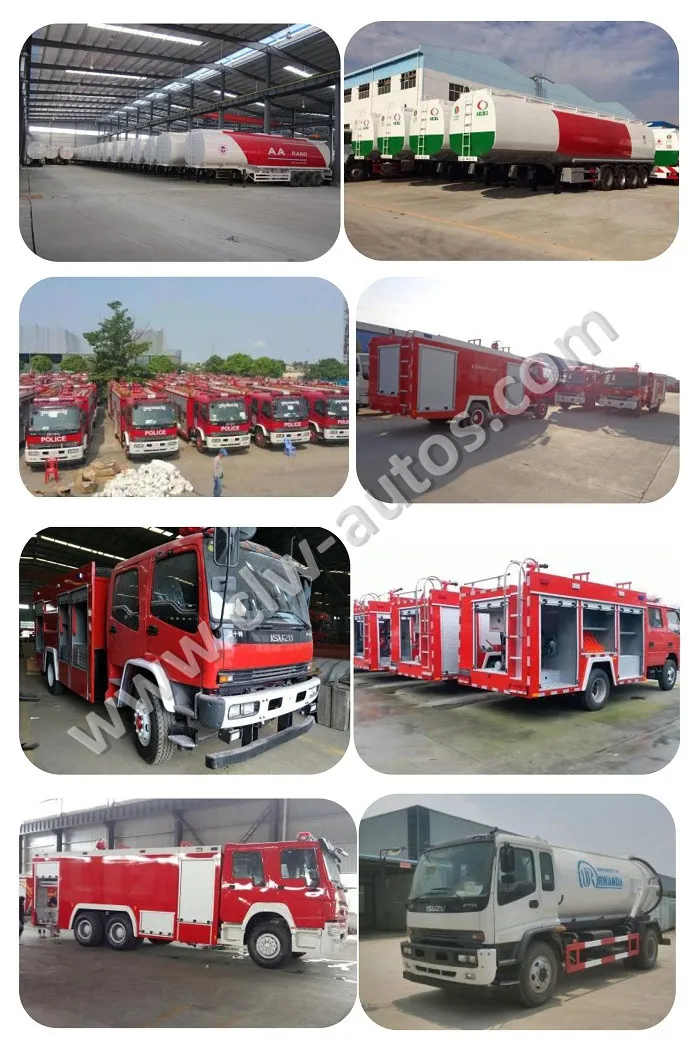

Successful Case
Customer Inspection
Overseas Exhibition and After-sales Service
