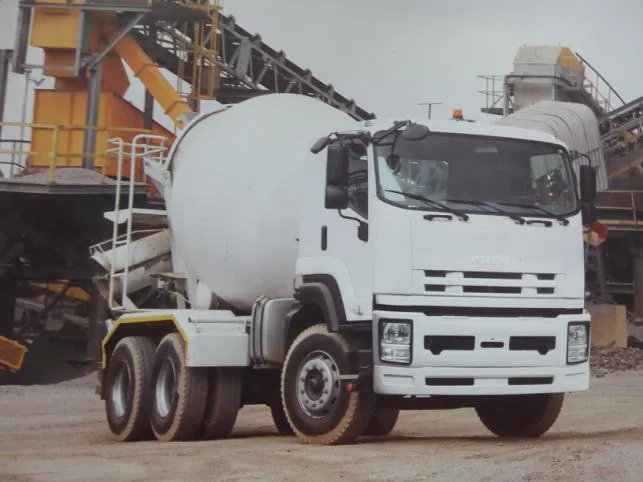

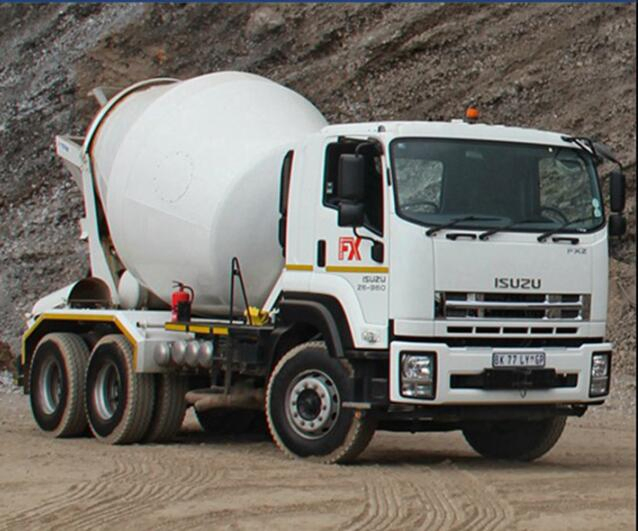

China Isuzu Truck with 8 to 12 M3 Mixer Tank
ISUZU MIXER TRUCK WITH 8-12 M3 mixer tankModel QL5250ULCZDriving type: 6*4 left hand drivingEngine Make: ISUZUDiesel 4-stroke direct injection diesel engine, Electronic controlEngine model:6UZ1-TCG40 , Euro IV emission standard 6-cylinder in-line with water cooling, turbo-charging and intercooling M......
Send Inquiry
Product Description
ISUZU MIXER TRUCK WITH 8-12 M3 mixer tank
Model QL5250ULCZ
Driving type: 6*4 left hand driving
Engine Make: ISUZU
Diesel 4-stroke direct injection diesel engine, Electronic control
Engine model:6UZ1-TCG40 , Euro IV emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 350 hp (257 Kw) at 2000 rpm
Displacement: 9.8 L
Transmission Fuller 9JS150TB, 9 forwards and 1 reverse, 1500N.m, 2600rpm
Ratio: 12.65 8.38 6.22 4.57 3.40 2.46 1.83 1.34 1 13.22 (R)
Front Axle ISUZU F075, Steering with doubleT-cross section beam, 7.5 Tons Capacity
Rear Axle ISUZU RT210, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
18 Tons Capacity, Ratio Selective:3.9, 4.1, 4.3
Wheels & Tyres Tire:11.00-20 18PR, all Nylon tyre
Driver's Cab Standard cab, with two seats, 1 bed, 2-arm windscreen wiper system with three speeds
Parameter of the Mixer Tanker Agitating Volume m³ 8
Charge speed m³/min ≥3
Discharge speed m³/min ≥2
Surplus % ≤0.5
Drum speed rpm 0~16
Drum inclination º 15º
Drive system Decelerator ZF Germany P5300
Pump EATON USA 5423-159
Hydraulic motor EATON USA 5323-138
Water supply system Water tank volume L/Form of 400/Electric water pump
Model QL5250ULCZ
Driving type: 6*4 left hand driving
Engine Make: ISUZU
Diesel 4-stroke direct injection diesel engine, Electronic control
Engine model:6UZ1-TCG40 , Euro IV emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 350 hp (257 Kw) at 2000 rpm
Displacement: 9.8 L
Transmission Fuller 9JS150TB, 9 forwards and 1 reverse, 1500N.m, 2600rpm
Ratio: 12.65 8.38 6.22 4.57 3.40 2.46 1.83 1.34 1 13.22 (R)
Front Axle ISUZU F075, Steering with doubleT-cross section beam, 7.5 Tons Capacity
Rear Axle ISUZU RT210, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
18 Tons Capacity, Ratio Selective:3.9, 4.1, 4.3
Wheels & Tyres Tire:11.00-20 18PR, all Nylon tyre
Driver's Cab Standard cab, with two seats, 1 bed, 2-arm windscreen wiper system with three speeds
Parameter of the Mixer Tanker Agitating Volume m³ 8
Charge speed m³/min ≥3
Discharge speed m³/min ≥2
Surplus % ≤0.5
Drum speed rpm 0~16
Drum inclination º 15º
Drive system Decelerator ZF Germany P5300
Pump EATON USA 5423-159
Hydraulic motor EATON USA 5323-138
Water supply system Water tank volume L/Form of 400/Electric water pump
