Cnhtc Sino Truck HOWO 336HP 4X2 Compressed Compactor Garbage Truck
Cnhtc Sino Truck HOWO 336HP 4X2 Compressed Compactor Garbage TruckMain Technical ParametersTotal weight25000kgsWhole truck dimension9800x2496x3048mmRated capacity13870kgsGarbage box dimension 7100x2326x2050mmKerb weight11000kgsGarbage box volume 16 m3 (16000L)Passengers2 peopleFillter volume2m3Appro......
Send Inquiry
Product Description

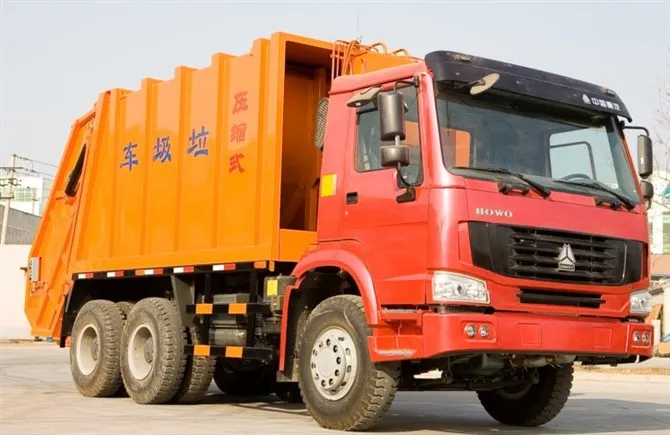

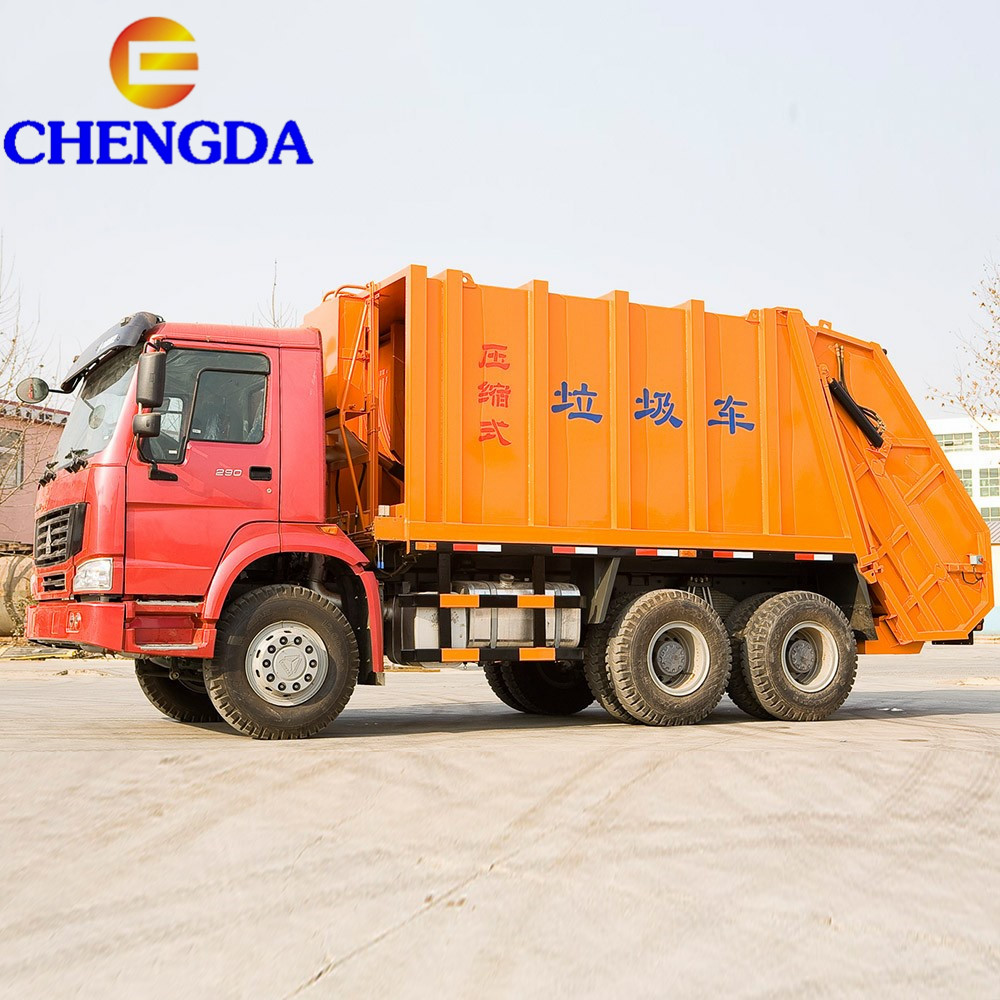

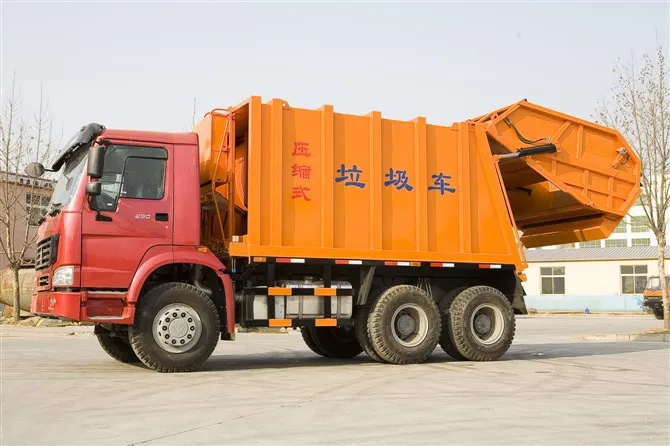

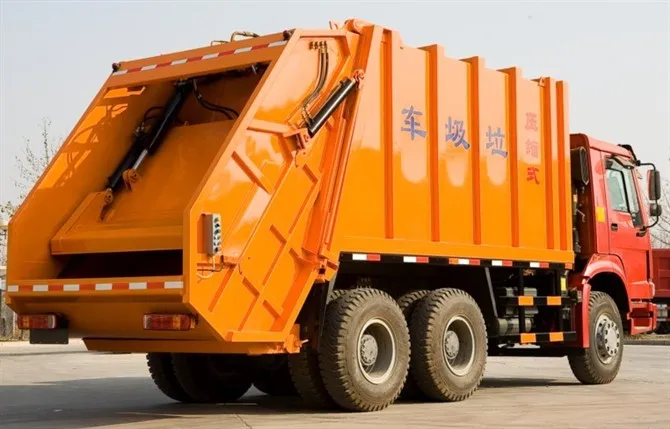

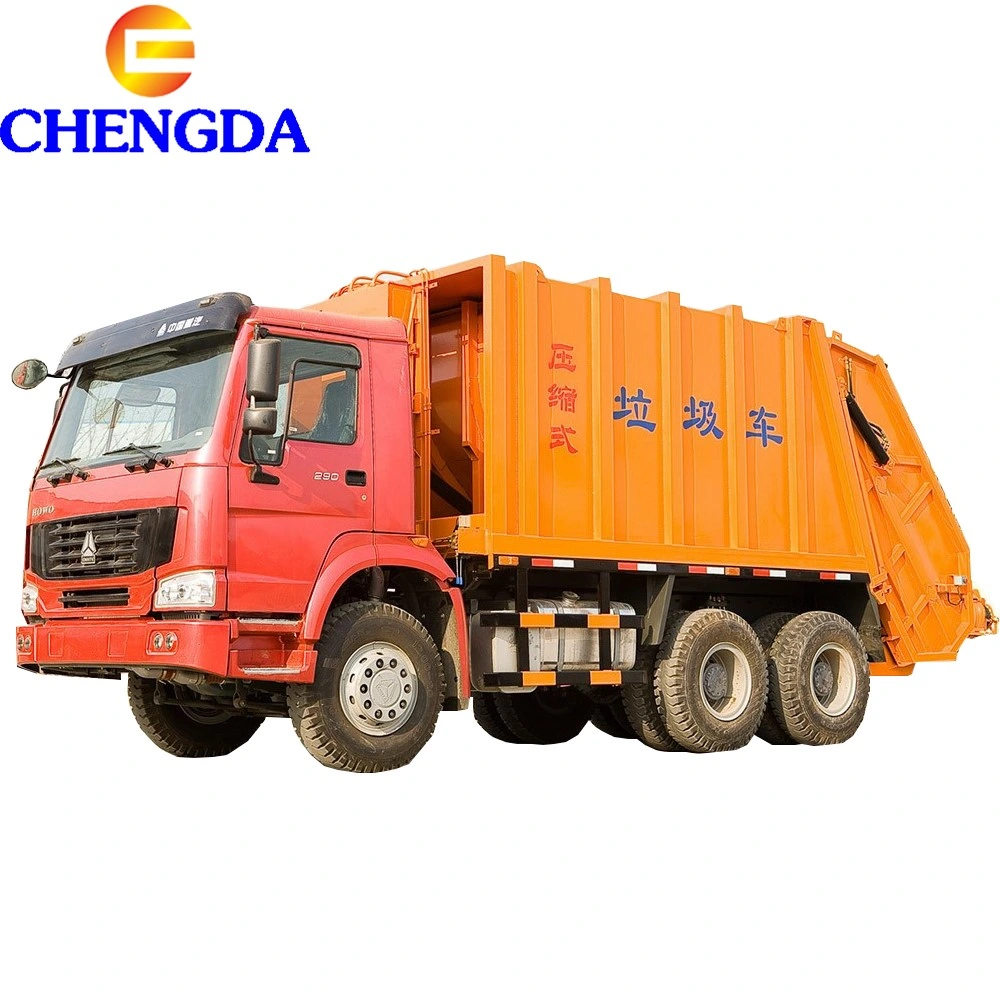

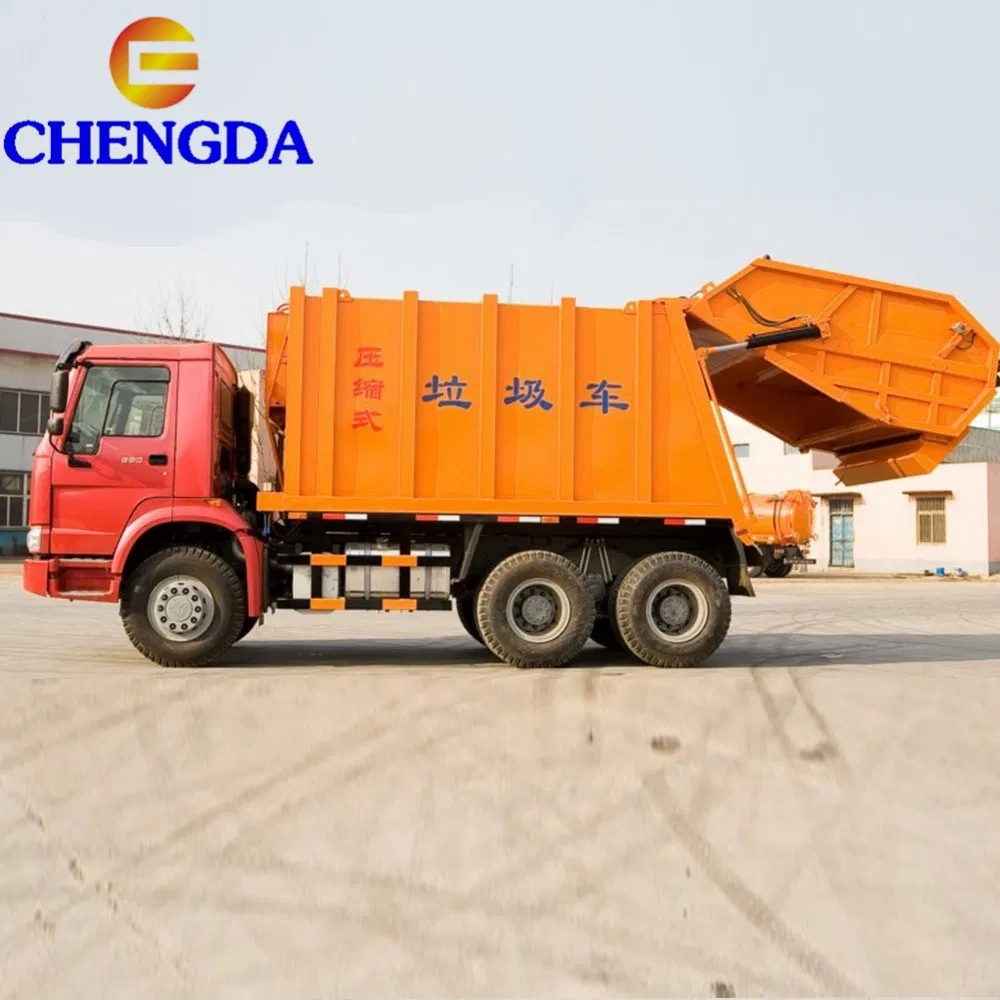

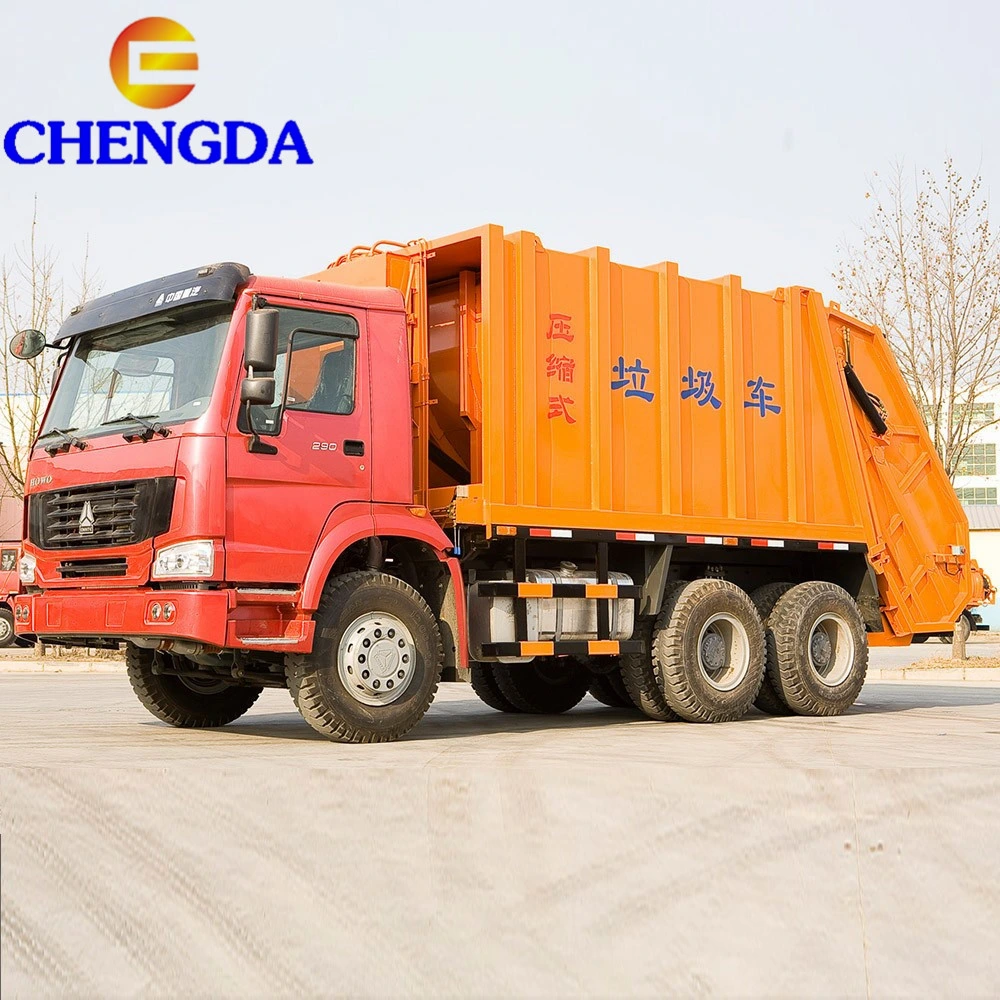

Cnhtc Sino Truck HOWO 336HP 4X2 Compressed Compactor Garbage Truck
(1)Generally introduction:
China National Heavy Duty Truck Group Co., Ltd has nearly 60 years' history since 1958, where the first heavy duty truck was produced in China. CNHTC introduced STEYR and MAN technology in 1983 and 2009 year separately, ahead of other truck suppliers at home.
The sales volume broke through 100,000 units early in 2007, becoming a listed company and one of top five truck suppliers worldwide.
(2)Products:
Brand SINOTRUK: HOWO A7, HOWO, HOVA, SWZ, STEYR, HOKA, Yellow River, etc
Series: cargo truck, dump truck, tractor truck, special truck, bus, etc
Driving type: RHD, LHD
Engine:with STEYR, MAN technology
Emission: EURO II, III, IV, V
1.Does your company is a factory or trade company?
We have a factory ourself,we are on this business for more than ten years in China.
Our factory is very famous in Shandong Province, China.
2.Whats the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a
procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and
skills are inspected to ensure they consistently achieve the required quality levels.
3. What's your MOQ?
One unit trailer or truck.
4. How do you transport the semi trailers and trucks?
We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
bulk or container.
5. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Contact:
Juliet Zhu
Tel:+86-0531-69985132
Mob86-187 6979 8698
Web: scdtrailer.en.made-in-china.com
Main Technical Parameters | ||||
Total weight | 25000kgs | Whole truck dimension | 9800x2496x3048mm | |
Rated capacity | 13870kgs | Garbage box dimension | 7100x2326x2050mm | |
Kerb weight | 11000kgs | Garbage box volume | 16 m3 (16000L) | |
Passengers | 2 people | Fillter volume | 2m3 | |
Approach/departure angle | 16/15 | Front/rear overhang | 1500/2625mm | |
Axle no. | 3 | Wheel base | 4325+1350mm | |
Pressure of Hydraulic System | 20Mpa | Cycle Time of Filling | ≤25s | |
Lifting Time of Filler | 8~10s | Time of Discharging | ≤40s | |
Max.Compression Force | >25000kgs | Front / rear sewage tank volume | 250+150L | |
Chassis Parameters | ||||
Chassis brand | Sinotruck | Tyre nos. | 10 | |
Chassis dimension | 9800x2496x1050mm | Tyre model | 11.00-20 , bias tyres | |
Front axle | HF7 (7t) | Rear axle | HW1697 (speed ratio:3.93) | |
Steering | ZF8098 hydraulic steering with power assistance (18MPa steering oil pump) | |||
Transmission | HW15710 , 10 forward and 2 reverse (manual) | |||
Fuel type | Diesel | Fuel tank | 300L | |
Engine model | Emission standard | Engine power | Max. speed | |
WD615.87 | EuroII | 290hp | 90km/h | |
Others of engine | 1. Bore x stroke : 126x130mm 2. Displacement : 9.726L 3. Rated power & revolving speed : 266hp & 2200r/min. 4. Max. Torque & revolving speed : 1100N.m & 1100-1600r/min. | |||
(1)Generally introduction:
China National Heavy Duty Truck Group Co., Ltd has nearly 60 years' history since 1958, where the first heavy duty truck was produced in China. CNHTC introduced STEYR and MAN technology in 1983 and 2009 year separately, ahead of other truck suppliers at home.
The sales volume broke through 100,000 units early in 2007, becoming a listed company and one of top five truck suppliers worldwide.
(2)Products:
Brand SINOTRUK: HOWO A7, HOWO, HOVA, SWZ, STEYR, HOKA, Yellow River, etc
Series: cargo truck, dump truck, tractor truck, special truck, bus, etc
Driving type: RHD, LHD
Engine:with STEYR, MAN technology
Emission: EURO II, III, IV, V
1.Does your company is a factory or trade company?
We have a factory ourself,we are on this business for more than ten years in China.
Our factory is very famous in Shandong Province, China.
2.Whats the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a
procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and
skills are inspected to ensure they consistently achieve the required quality levels.
3. What's your MOQ?
One unit trailer or truck.
4. How do you transport the semi trailers and trucks?
We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
bulk or container.
5. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Contact:
Juliet Zhu
Tel:+86-0531-69985132
Mob86-187 6979 8698
Web: scdtrailer.en.made-in-china.com
