Product Description

Product Name:
Customizable Sino Howo shacman Isuzu Dongfeng Hino Sewage Suction vacuum Truck

Product Description:

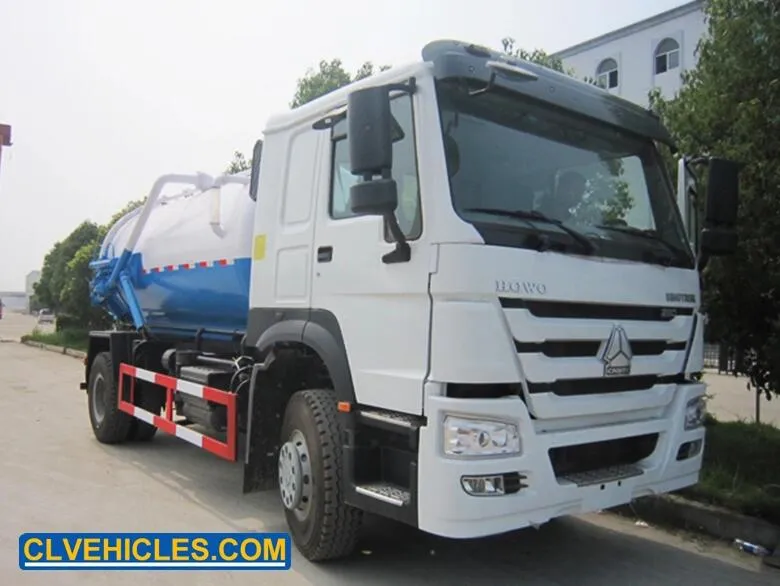

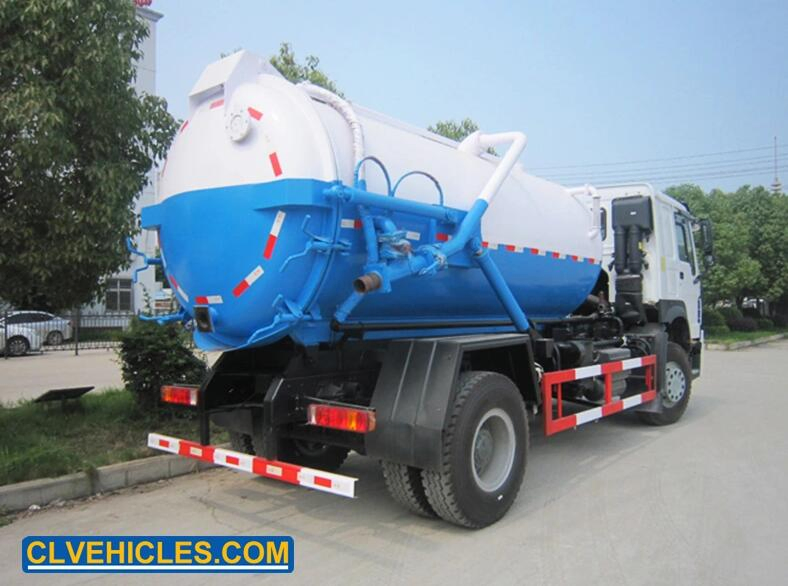

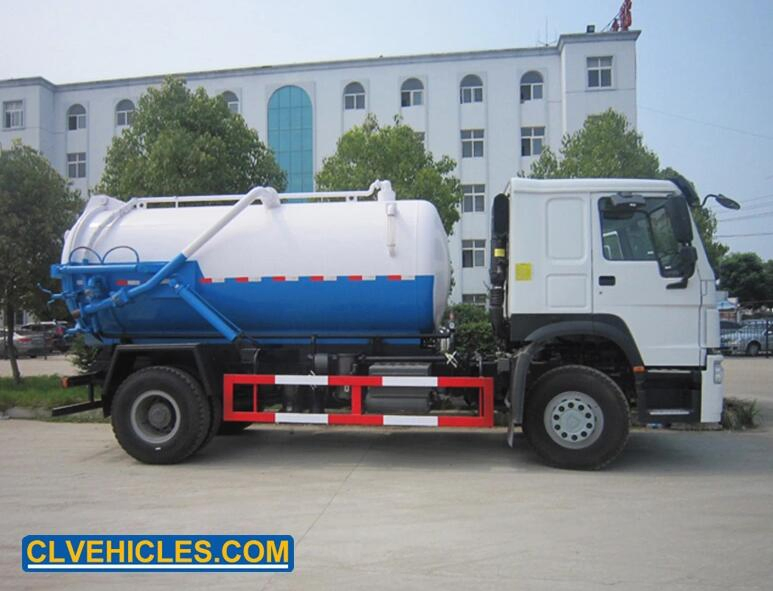

HOWO Sewage Vacuum Cesspool Suction Truck
The Vacuum truck models have been designed using the latest technology specifically for local operating conditions. Each model in the range is built to handle the toughest cleanups, including sewerage, line cleaning, industrial sumps and slurries, wet ash, excavation material, and toxic waste or other dangerous materials. Each is designed with focus on a specific application, and there is definitely a model available to meet your requirements.

Product Specification:

Truck Specification
Truck Model	CLW5081GXW02
Cab	HOWO 1880 single row

Driving Type	4X2 Left hand driving
Max Speed (km/h)	100Km/h
Overall dimension(mm)	7095×2025×2425
GVW( kg)	7995
Curb weight( kg)	4600
Wheelbase(mm)	3360
F/R track base (mm)	1605/1555
F/R overhang (mm)	1160/1865
Approach/Departure Angel	20/14(°)
Tire	7.00R16
Clutch	Hydraulic control with air booster, pushing
Steering	Hydraulic steering with power assistance
Gear box	WLY6T100
Bridge	Front axle	2T
	Rear axle	3.5T
Engine	Model	YN4100
	Fuel Type	Diesel fuel
	Type	Water cooled,turbocharged,after cooled ,mechanical-pump,exhaust brake, cold start.

	Exhaust(ml)	3.298L
	Max output power/rotate speed (hp /rpm )	110hp at 3200 rpm


	Max torque/rotate speed(N.m/rpm)	285Nm at 2200rpm

Braking system	Service Brake	Full air brake system
	Park Brake	parking spring brake acting on rear axles
	Auxiliary brake	Engine exhaust brake
Eletric system	24V

Sewage Vacuum Truck Upper-Body specification
Volume of tank ( m³)	5M3
Color	Painted in the corporation's colours with logo on both front doors as specified by the client
Material of tanker	5mm Carbon stell
Special function	Suction height	≥5 (m)
	Suction time	250(S)

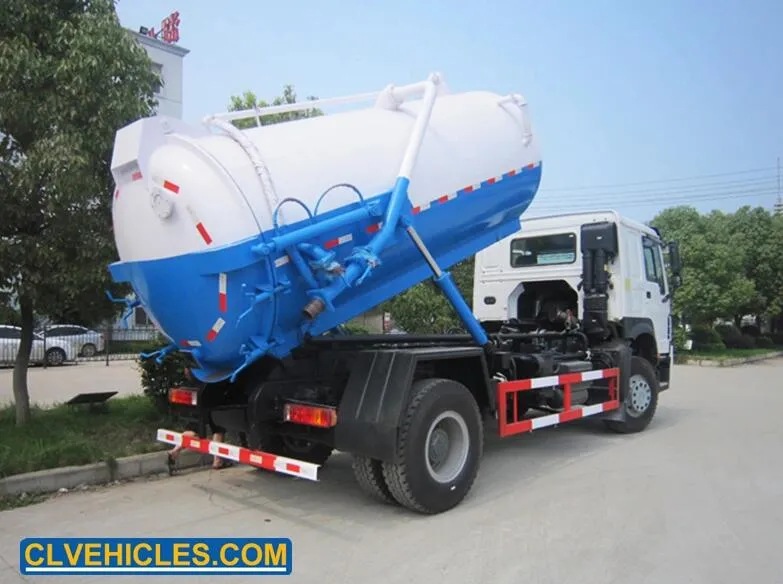

	Maximum Inclination Angle	≥45°
	maximum vacuum	≥11 MPa
	Lifting time	≤45 S
	the Cover opening Angle	≥75°
	The cover opening time	≤25 S
	Suction pipe	3m length and 100 mm in diameter
Hose Racks	Fitted on both sides of tank, to accommodate a minimum of seven hoses each

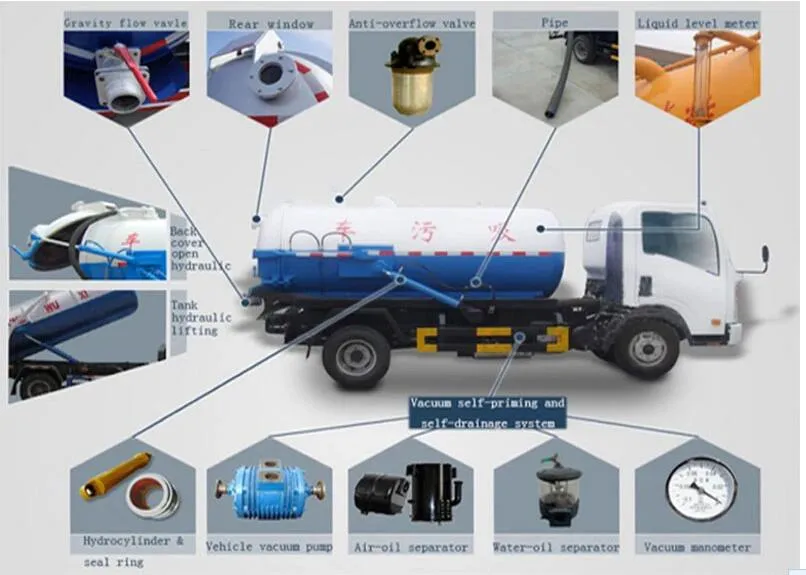

Fittings	Four-way change valve fitted to pump
	vacuum pump
	Oil pump
	Drain separator

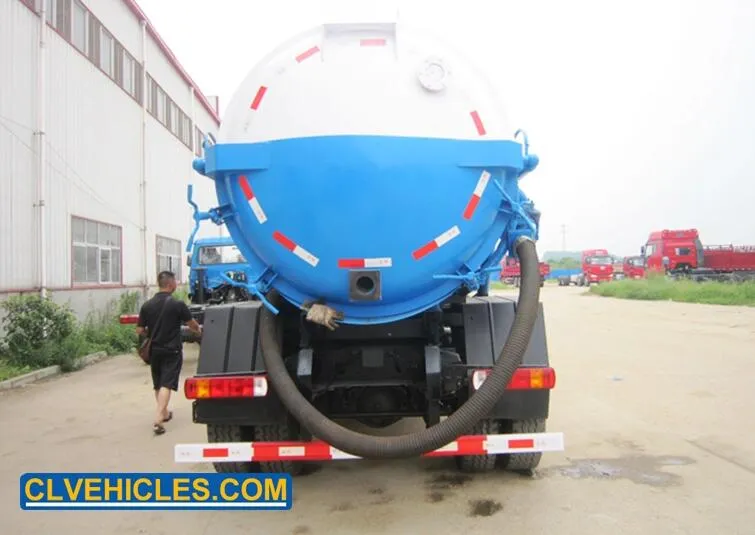

	Fully opening rear door
	Sight glasses at top and bottom of tank
	Ladder: For access to top of tank complete with cat walk on top of tank
Brief introduction of function	It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system.
