Diesel Engine 8X4 Sinotruk HOWO 16cbm 371HP Concrete Mixer Truck
Diesel Engine 8X4 HOWO 16cbm 371HP Concrete Mixer TruckProduct Features:Concrete mixer truck used to transport concrete for construction. The concrete mixer truck can be charged with dry materials and water, with the mixing occurring during transport. This type of truck is equipped with a cylindrica......
Send Inquiry
Product Description
Product Features:
Concrete mixer truck used to transport concrete for construction. The concrete mixer truck can be charged with dry materials and water, with the mixing occurring during transport. This type of truck is equipped with a cylindrical mixer drum to carry the mixed concrete. Concrete mixer truck makes appearance of the vehicle modeling unique and high quality concrete mixer trucks have compact and reasonable structure. The mixer drum will always be rotated during transport to ensure that the concrete carried does not freeze. After the concrete has been transported, the inside of the mixing drum is usually rinsed with water to prevent the hardened concrete from occupying space, and the capacity of the mixing drum is reduced. The tank material of the concrete mixer truck adopts special wear-resistant steel plate so as to fully guarantee the wear-resistance of the tank. Tank welding of the concrete mixer truck uses a special tank tooling fixture, with the use of automatic welding machine welding paint completely in accordance. The quality of the industry-leading level. Mixer tank capacity from 3m³ to 16m³.
Product Parameters:
Chassis parameters | |||||
Vehicle Model | FKH1257 | Vehicle Brand | HOWO SINOTRUCK | ||
Overall dimensions | 10150x2496x3900 mm | Curb weight | 14500kg | ||
| mixer tank volume | 12-14CBM | Loading capacity | 10370kg | ||
Chassis model | WD380 | Chassis brand | HOWO | ||
| Total mass | 25000kg | Wheel base | 4300+1400mm | ||
Front/rear wheel track | 2041, 1830/1830mm | Front/rear suspension | 1500/3205mm | ||
Approach/departure angle | 19/17° | Maximum speed | 90km/h | ||
Chassis Manufacturer | China heavy Automobile Co.,Ltd | ||||
Cab | Configuration | Single row cab,air conditioner,allowable 3 passengers,cab can be flipped | |||
Color | White,other color is optional | ||||
Engine | Model | WD380 | |||
Emission | Euro 2 3 4 5 | ||||
Displacement | 11596ml | ||||
Manufacturer | China heavy Automobile group Co. Ltd. | ||||
Tire | Size | 12.00-20,steel wire tire | |||
Number | 12+1 nos | ||||
Frame | 200mm | ||||
Brake | Air break, electronic flame out, exhaust brake | ||||
Fuel tank | 100L,steel | ||||
Drive form | 8x4 | ||||
Rated voltage | 24V,DC | ||||
Transmissions | 10 speed forward 1 reverse. | ||||
Steering device | Power assisted steering | ||||
Steering wheel | Left hand drive | ||||
Selective configuration | Air Conditioner,weichai engine 380 hp | ||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||||

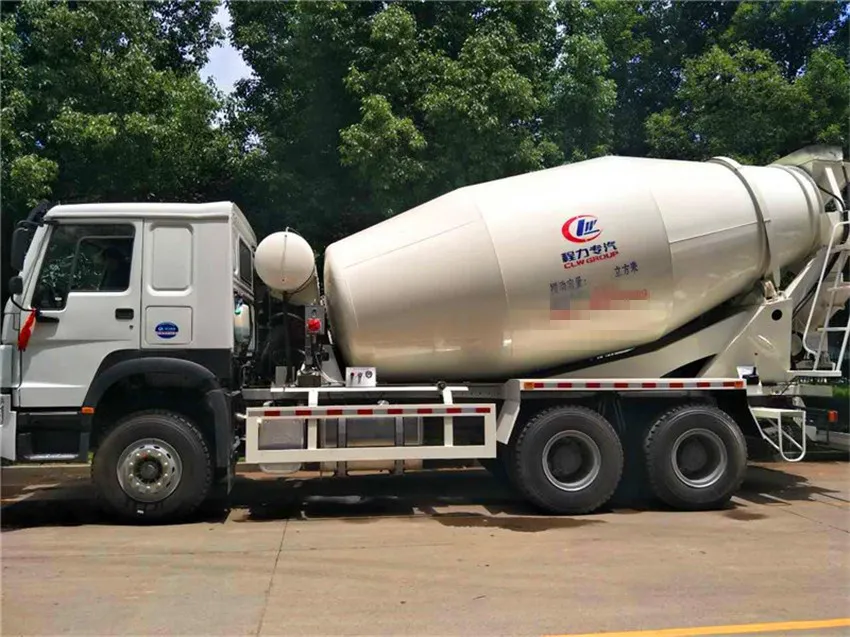

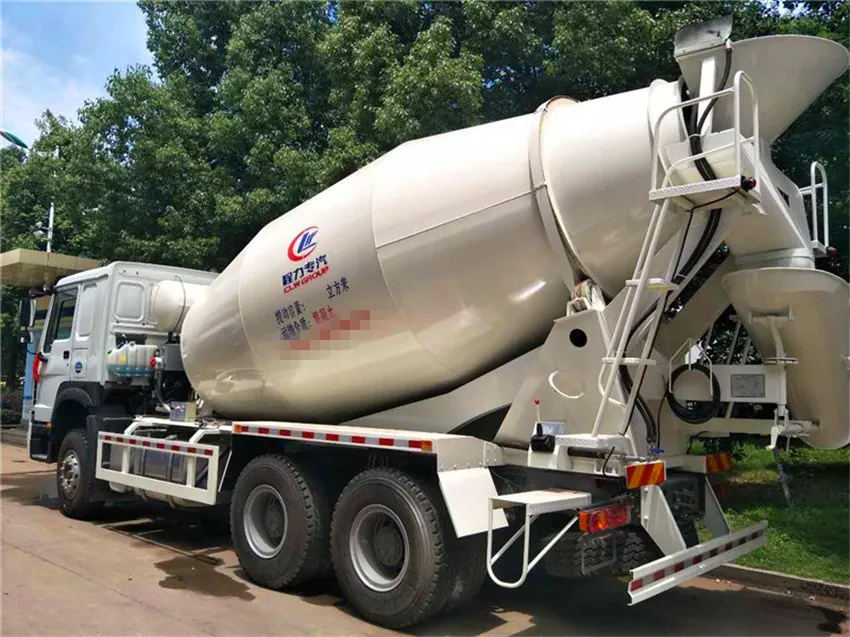

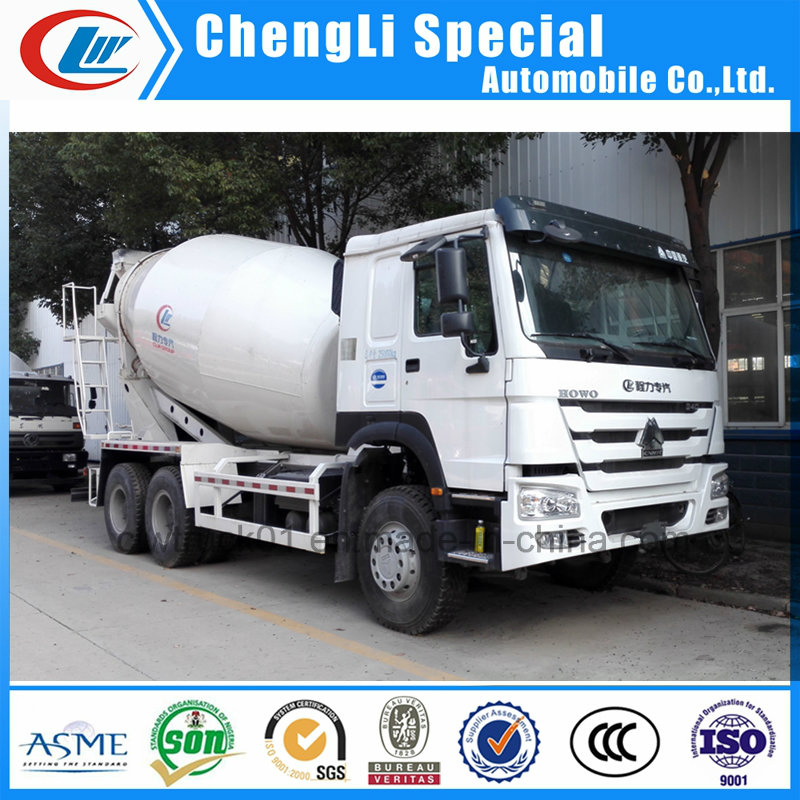

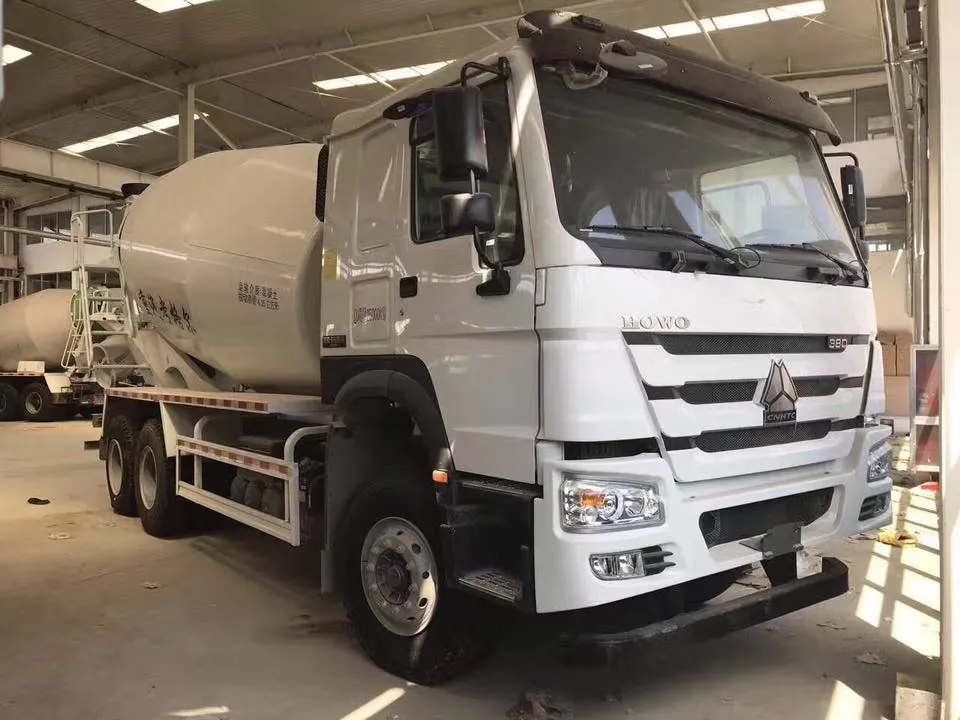

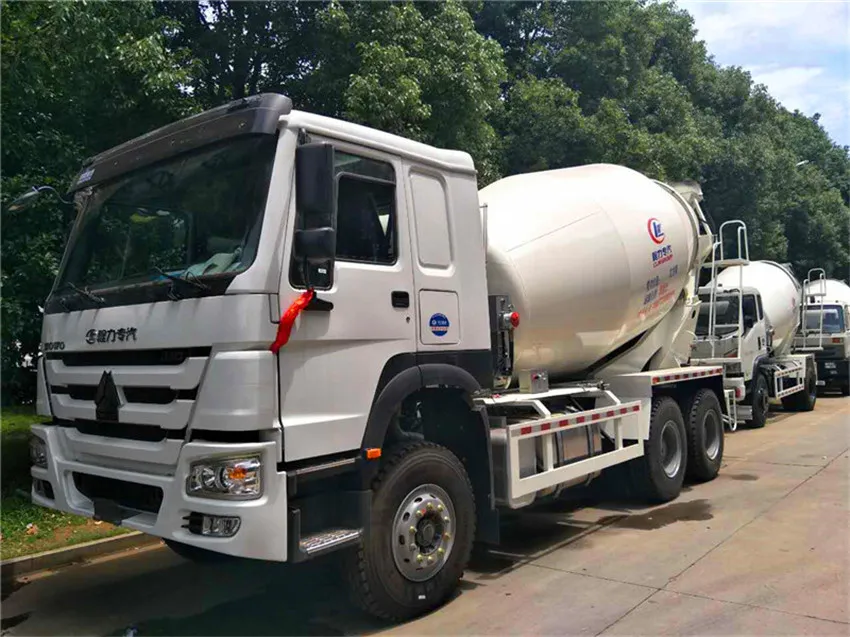

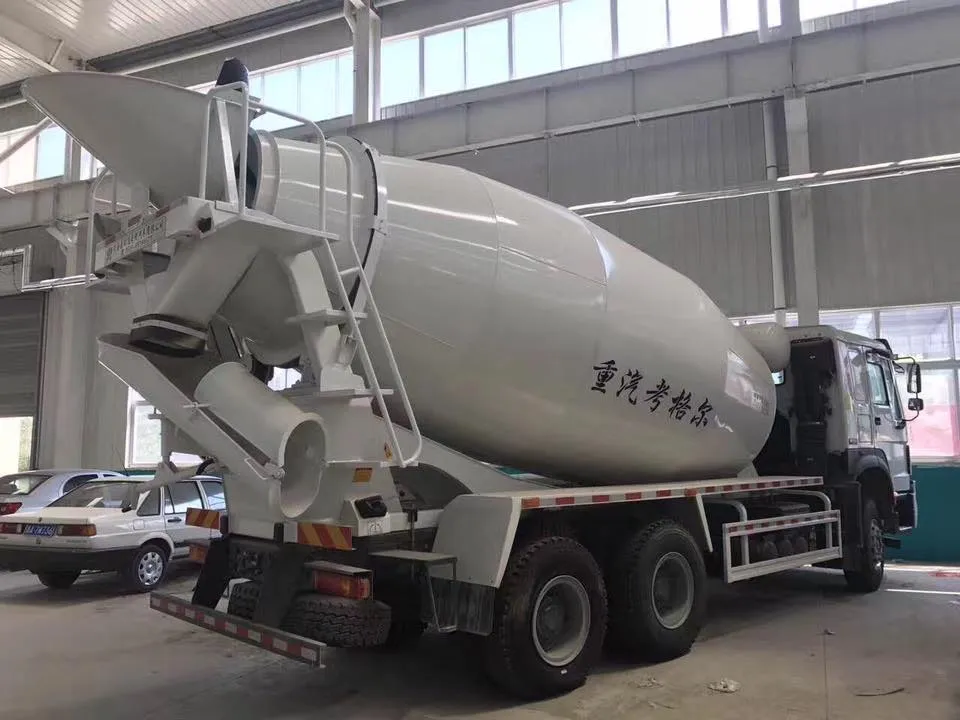

Product Pictures:
Company Information
Hubei Chengli Group is located in Chengli auto industry park, Pingyuan town, southern suburb of Suizhou, Hubei. Suizhou is known as Shennong's native land, chime's hometown and "China's Special Vehicle Capital".
It is also the manufacturer of domestic well-known special vehicles used in landscape, petrochemical industry, the municipal environmental sanitation, and pressure vessel.
The registered trademark of which is "Chengliwei", and the product code is "CLW". It's the important partner of Dongfeng and Jiefang. And mainly engaged in manufacturing all kinds of special vehicles and selling full vehicle and fittings to large-scale manufacturers.
The company is a hightech enterprise in hubei province and has passed the certification of ISO9001,ISO16949,GJB9001 and CCC authentication of automobile products.
Advantages of our products
1.Our company ChengLi Special Automobile Co.,LTD has manufactured special truck for decades.
2.Our company possesses some advanced technologies and mature craftworks.
3.The truck produced by us has high quality and low price.
4.Our trucks are equiped with high quality and efficient equipments.
5.Our trucks are completely produced according to your demands and needs, they are special, professional and unique for you.
Customers
Our Services
1.One year quality warranty for key parts such as axles, engine, transmission;
2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.

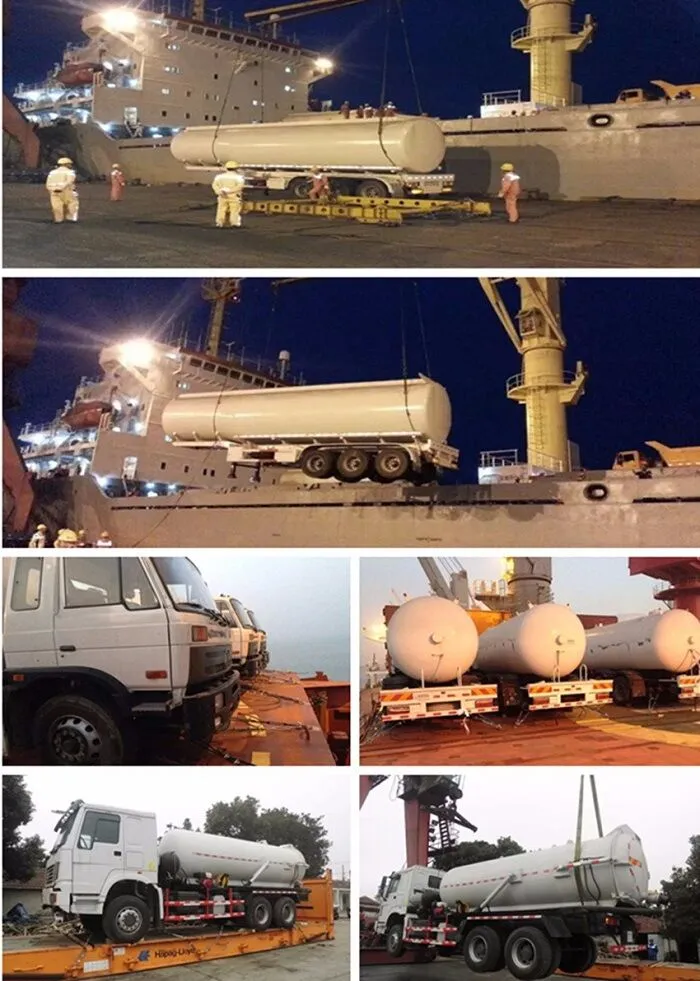

Packaging&Shipping
Delivery days :7-10days
Shipping : naked waxing coat ;small one into 20` GP or 40` GP ,big type can be carried by bulk carriers or ro-ro ship or you pick
Payment terms :30% depoisite T/T
Our company offer Transportation insurance for customer. To ensure customer's prdocts arrival at the destination new and safe.
It can be assembled and disassembled
FAQ
1.Q: Are you manufacturer or trading company?
A: We are direct manufacturer and are the well-known Special Purpose Truck manufacturer in China, our factory is located in South Suburb ChengLi Automobile Industry Park, Suizhou City, Hubei Province, it is very close to Wuhan City.
2. Q:How many is your min Order Quantity
A: One unit or one sets;
3. Q: What is your payment term?
A: 30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
4. Q: How long is the specified delivery date from the date of order?
A: Usually it is 7-30 days, specified delivery date will depend on the detailed request.
5 Q: Contact Information?
A: For any question or request, please contact with me freely according to the following information
