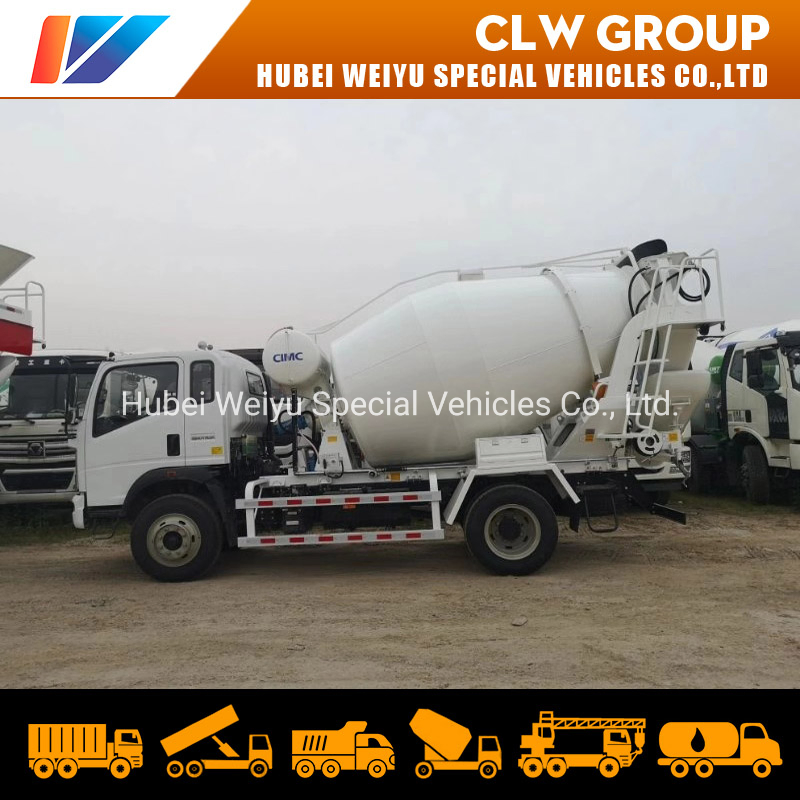

Good Price Sinotruk HOWO 7cbm 4*2 Construction Mixing Vehicles 7000liters Mobile Cement Concrete Mixer Truck
Good Price Sinotruk Howo 7cbm 4*2 Construction Mixing Vehicles 7000liters Mobile Cement Concrete Mixer TruckProduct Description1. Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacman, etc.2. High Tension Steel Q345 Tank Material in 5mm.3. International Brand Motor, Pump, Reductor & Radiator......
Send Inquiry
Product Description
Good Price Sinotruk Howo 7cbm 4*2 Construction Mixing Vehicles 7000liters Mobile Cement Concrete Mixer Truck
Product Description
1. Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacman, etc.
2. High Tension Steel Q345 Tank Material in 5mm.
3. International Brand Motor, Pump, Reductor & Radiator
4. 400Liter Water Tank with Pressure Water Filling
5. Water Filling System to Keep the cement moisture.
6. Tank and hand Washing Device.
Product Specification
Reference Photos
Main Structure Diagram
Company Introduction
Certificates
Our Overseas Exhibition
Product Description
1. Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacman, etc.
2. High Tension Steel Q345 Tank Material in 5mm.
3. International Brand Motor, Pump, Reductor & Radiator
4. 400Liter Water Tank with Pressure Water Filling
5. Water Filling System to Keep the cement moisture.
6. Tank and hand Washing Device.
Product Specification
| Chassis | Brand | Sinotruk Howo | |||||
| Gross vehicle weight | 15800 kg | ||||||
| Curb weight(kg) | 8250 kg | ||||||
| Wheelbase(mm) | 3650mm | ||||||
| Dimensions(mm) | 6940×2350×3500mm | ||||||
| Max. driving speed(km/h) | 90 km/h | ||||||
| Brake | Air brake | ||||||
| Tire | Number | 6pcs with one spare tire | |||||
| Specifications | 10.00R20 | ||||||
| Fuel tank(L) | 400 L | ||||||
| Transmission | 10 Forwards and 2 Reverse with PTO | ||||||
| Cabin | It can accommodate three people, With Air conditioner | ||||||
| Engine | Brand | Yuchai | |||||
| Horsepower(HP) | 180 HP | ||||||
| Emission standard | Euro 3 | ||||||
| Upper | |||||||
| Mixer drum | Max. Capacity | 7 cbm | |||||
| Material | Alloy steel Q345, 4mm thickness | ||||||
| Vane | Material | Alloy steel Q345, 4mm thickness | |||||
| Specification | Feeding Speed (m3/min) | ≥2.8 | |||||
| Discharging Speed (m3/min) | ≥1.2 | ||||||
| Discharging Residual rate(%) | ≤0.5 | ||||||
| Mixing Tank Rotating Speed (RPM) | 0-17 | ||||||
| Discharging range | 180° full range | ||||||
| Driving system | Option | Option 1 | Option 2 | Option 3 | |||
| Hydraulic Pump | US EATON 5423 | SAUER 75 | SUNNY 56 | ||||
| Hydraulic Motor | US EATON 5433 | SAUER | SUNNY 63 | ||||
| Reducer | Germany ZF4300 brand | Italy Bonfiglioli | China local brand | ||||
| Radiator | China local brand | ||||||
| Water supply system | Water Tank Capacity (liters) | 300 | |||||
| Water supply type | Pneumatic water supply | ||||||
| Control system | Control Way | Connecting Rod Controlling | |||||
| Structure Features |
| ||||||
| Remarks | The color is optional | ||||||

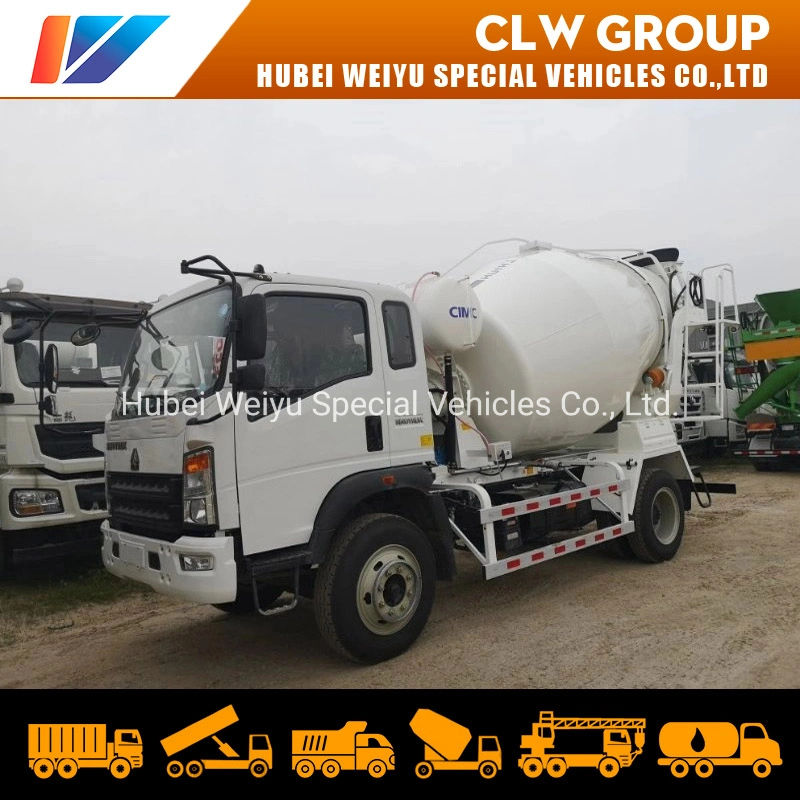

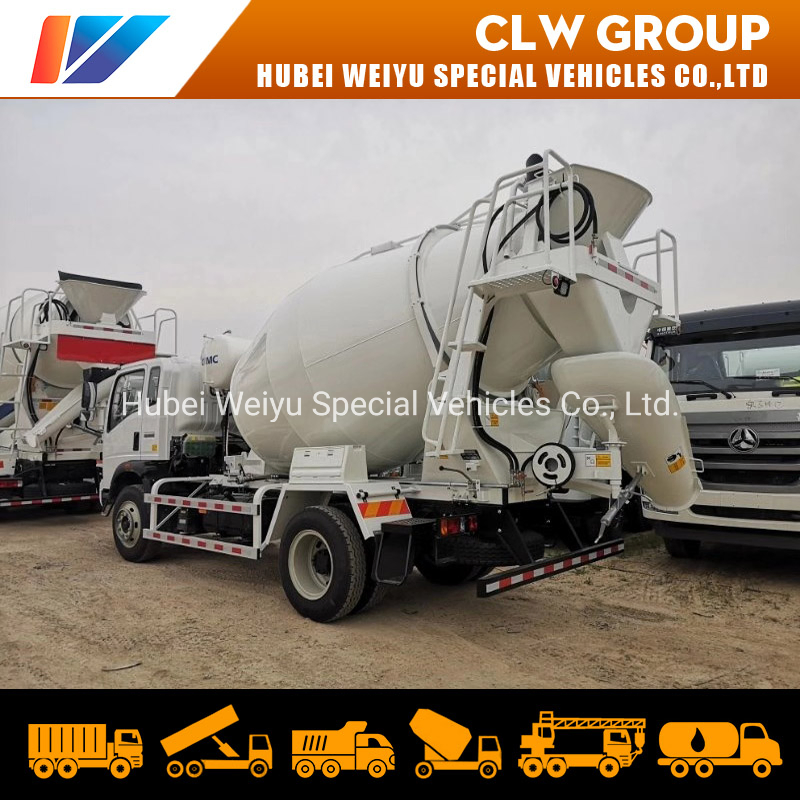

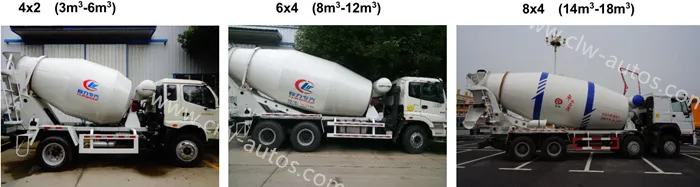

Reference Photos

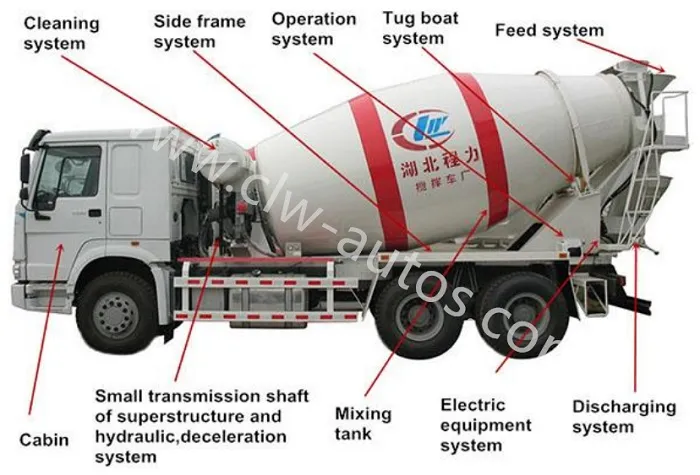

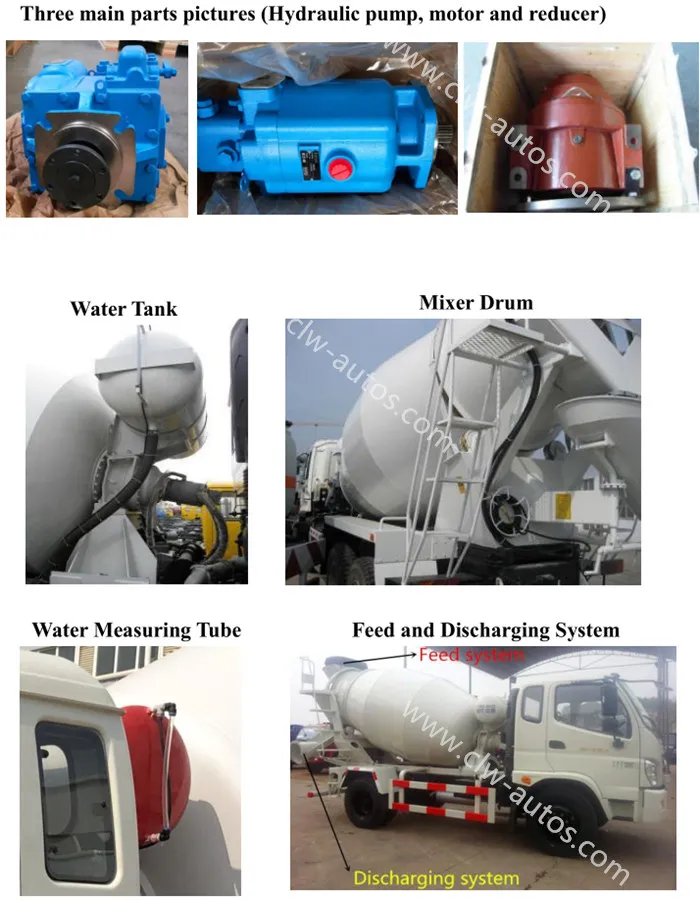

Main Structure Diagram
