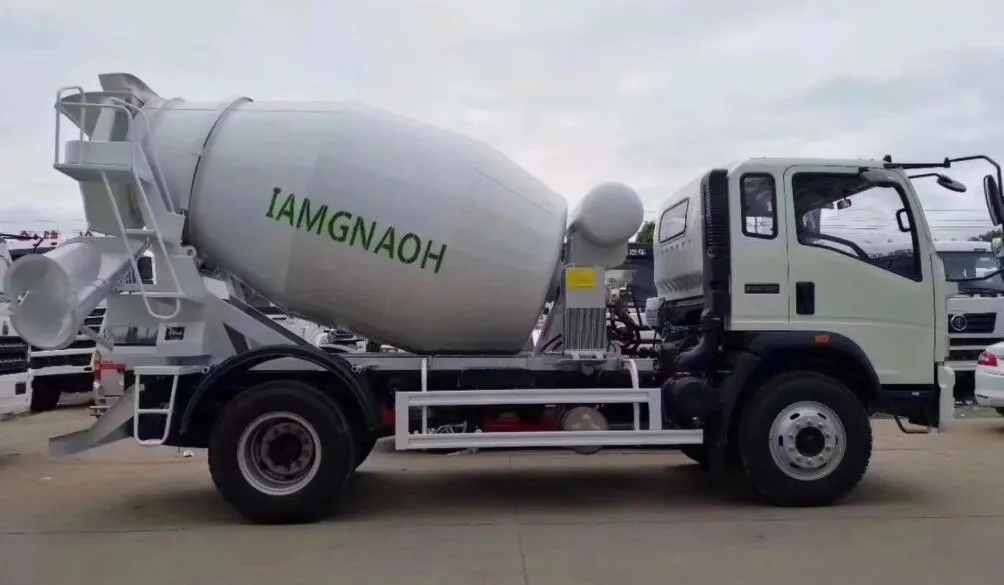

HOWO 4X2 LHD 5m3 130HP Euro-3 Concrete Mixer Truck
Product Name: HOWO 4X2 LHD 5M3 130hp Euro-3 concrete mixer truckProduct Description:Concrete mixer truck is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until de......
Send Inquiry
Product Description
Product Name: HOWO 4X2 LHD 5M3 130hp Euro-3 concrete mixer truck
Product Description:
Concrete mixer truck is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery. We can also call transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck
For the construction place which has limited height and width requirements for the vehicle, small concrete mixer trucks (2m³ to 6 m³) that are perfect for the demands.
Product Specification:
Picture:
More Details:
Please kindly contact Mary freely if any questions:
Export Director : Mary
Tel/Fax:0086 13307190554
Product Description:
Concrete mixer truck is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery. We can also call transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck
For the construction place which has limited height and width requirements for the vehicle, small concrete mixer trucks (2m³ to 6 m³) that are perfect for the demands.
Product Specification:
| Truck Specification | ||
| Truck model | CLW5130KGJB4 | |
| Cab | HOWO 2080cab one and a half row | |
| Driving Type | 4X2 Left hand driving | |
| Max Speed (km/h) | 80 | |
| Overall dimension(mm) | 7300×2500×3770 | |
| GVW( kg) | 12330 | |
| Mass in working order ( kg) | 7235 | |
| Wheelbase(mm) | 3800 | |
| F/R track base (mm) | 1810/1800 | |
| F/R overhang (mm) | 1250/2550(mm) | |
| Approach/Departure Angel | 32/13(°) | |
| Tire | 9.00R20 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Gear box | WLY653H | |
| Bridge | Front axle | 1090 |
| Rear axle | 9T | |
| Enging | Model | YC4D130-33 |
| Fuel Type | Diesel fuel | |
| Type | Turbocharged inter-cooled | |
| Exhaust(ml) | 4214 | |
| Max output power/rotate speed (hp /rpm ) | 130/2800 | |
| Max torque/rotate speed(N.m/rpm) | 420/1400-1800 | |
| Braking system | Service Brake | Compressed air brake |
| Park Brake | Spring energy | |
| Auxiliary brake | engine exhaust brake | |
| Eletric system | 24v | |
| Upper-body specification | |||
| Drum mixing volume (m3) | 6 | ||
| Input rate (m3/min) | ≥3 | Output rate (m3/min) | ≥1.5 |
| Filling rate | 65% | Residual rate | <0.4% |
| Reducer brand | Shijiazhung keyi reducer | ||
| Hydraulic pump brand | Sunny pump | ||
| Hydraulic motor brand | Sunny motor | ||
| Water supply type | Air pressure | Working pressure (MPa) | 0.25-0.3 |
More Details:
Please kindly contact Mary freely if any questions:
Export Director : Mary
Tel/Fax:0086 13307190554
