Professional Truck Mounted Concrete Mixer Factory
Professional truck mounted concrete mixer factory The concrete mixer truck is composed of a car chassis and a special device for concrete mixing and transportation. The chassis of concrete mixer trucks mostly use the second-class general chassis provided by the vehicle manufacturers. Its dedicated m......
Send Inquiry
Product Description

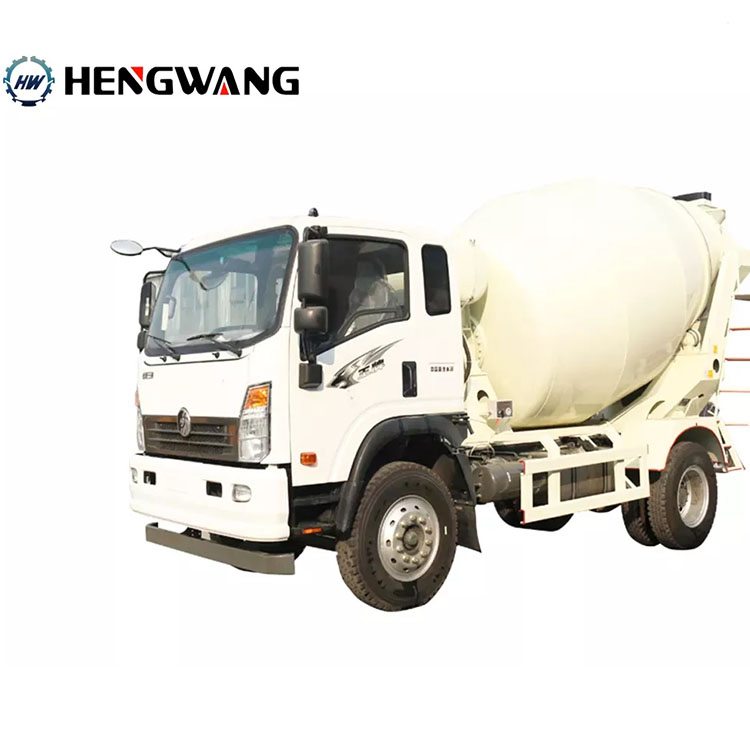

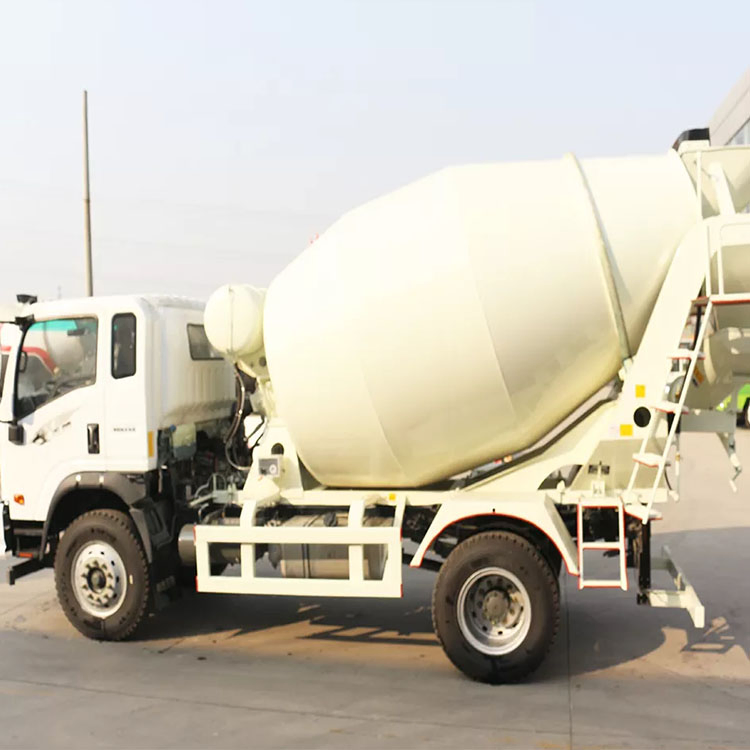

Professional truck mounted concrete mixer factory
The concrete mixer truck is composed of a car chassis and a special device for concrete mixing and transportation. The chassis of concrete mixer trucks mostly use the second-class general chassis provided by the vehicle manufacturers. Its dedicated mechanism mainly includes power take-off, front and rear supports of the mixing drum, reducer, hydraulic system, mixing drum, operating mechanism, cleaning system, etc. The working principle is that the power of the car chassis is taken out through the power take-off device, and the variable pump of the hydraulic system is driven, and the mechanical energy is converted into hydraulic energy and transmitted to the quantitative motor. The motor drives the reducer, and the reducer drives the mixing device to carry out the concrete Stir.
Name | concrete mixer truck | Model | YX8000-ZQ |
Brand | Sinotruck | Cubic | 8m3 |
Engine model | Yuchai 4108 intercooled supercharged | Oil type | Diesel oil |
Engine power | 170hp | Cab | Half row |
Drive form | 4x2 | Steering Type | Steering wheel |
Number of axes | 2 | Direction boost | Hydraulic boost |
Wheelbase | 3650 | Clutch assist | Air assist |
Service brake | Air brake | Number of leaf spring | 11 before, 10+8 after |
Parking brake | Air brake | Fuel tank volume | 130L |
Gearbox | Fast 8JS85F | Battery | 2-12V-120AH |
Gear change method | Manual | Material of tank and leaf | Q345B-4mm |
Gear | Eight gears | Head | Q345B-8mm |
Top speed | 80km/h | Hydraulic system | hydraulic system |
Rear axle specifications | 153 aggravation | Reducer | Science wing, industry, etc. |
Tire specifications | 9.00R20 | Hydraulic valve | 20 single |
Number of tires | 6 | Feeding speed | >=3m3/min |
Gradeability | 25° | Discharge speed | >=1m3/min |
Discharge height | 1600mm | Residual rate of discharge | <=0.5% |
Tank volume of tank | 12m3 | Unloading range | 180°rotating discharge |
Rated stirring volume | 8m3 | In and out operation | Post-operation |
Emission Standards | National-V standard | Rotation speed of tank | 12rpm |
Curb quality | 7400kg | Water tank volume | 300L |
Total weight | 15800kg | Hydraulic radiator | 180L temperature-controlled automatic control aluminum exchanger |
Vehicle size | 7300*2350*3650 (mm) | Rated hydraulic pressure | 20Mpa |
Optional | Air-conditioning, anti-leakage hopper, operation inside and out of material, closed hydraulic system, enlarged hopper, support mixing dry material, quantitative water system, etc. | ||
Product details , Advantages of the concrete mixer truck
Wide range of use

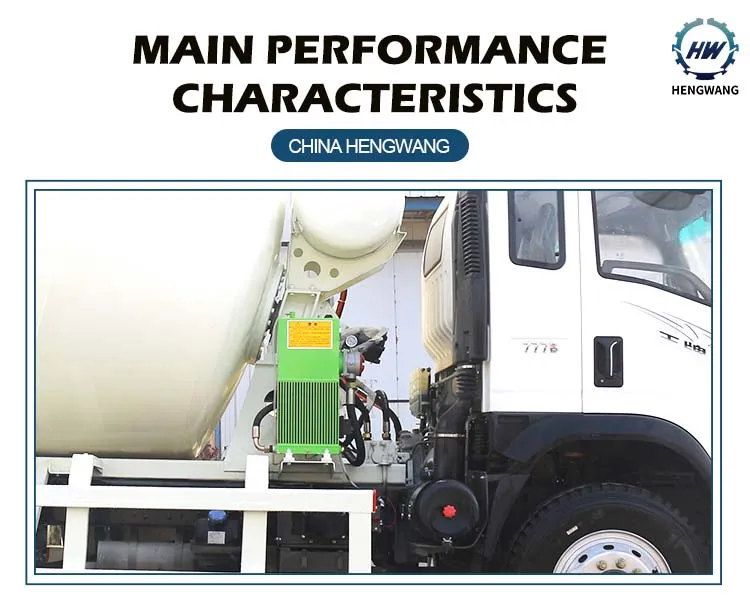

Main performance characteristics

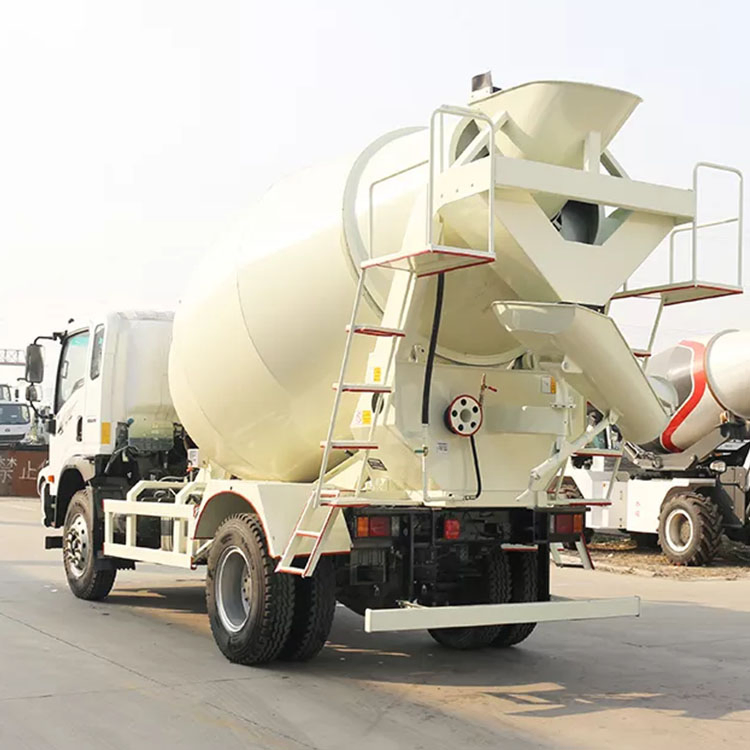

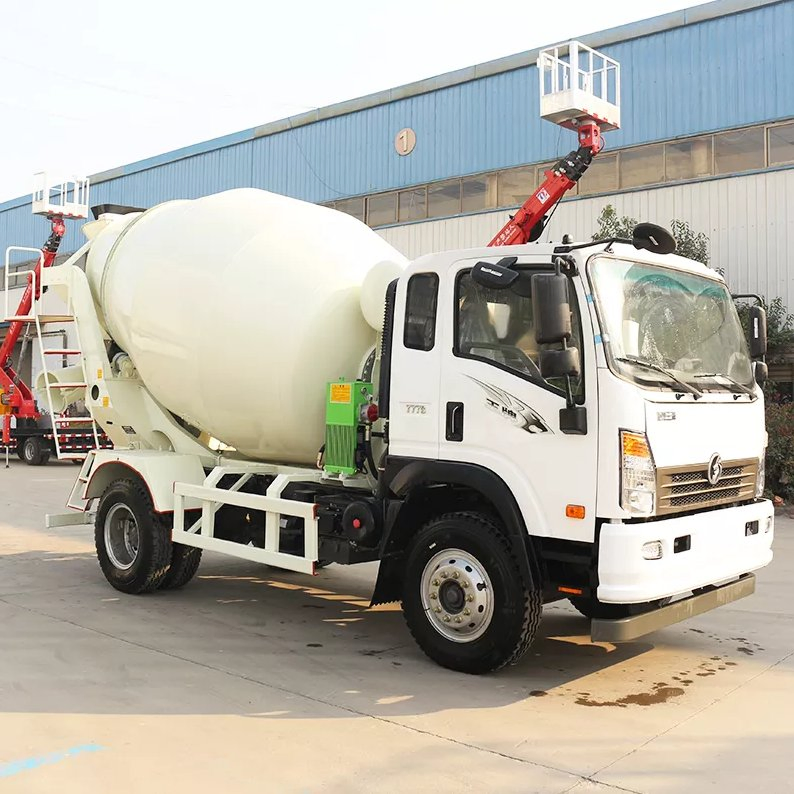

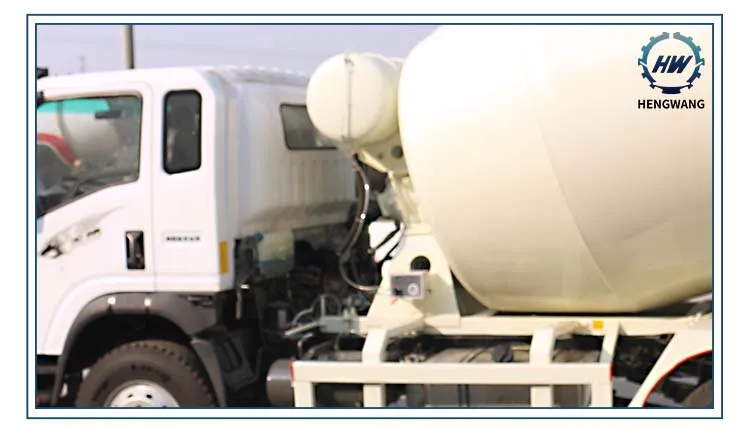

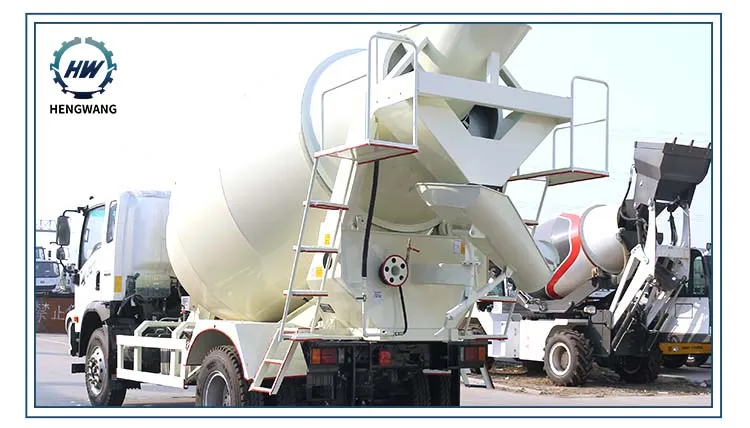

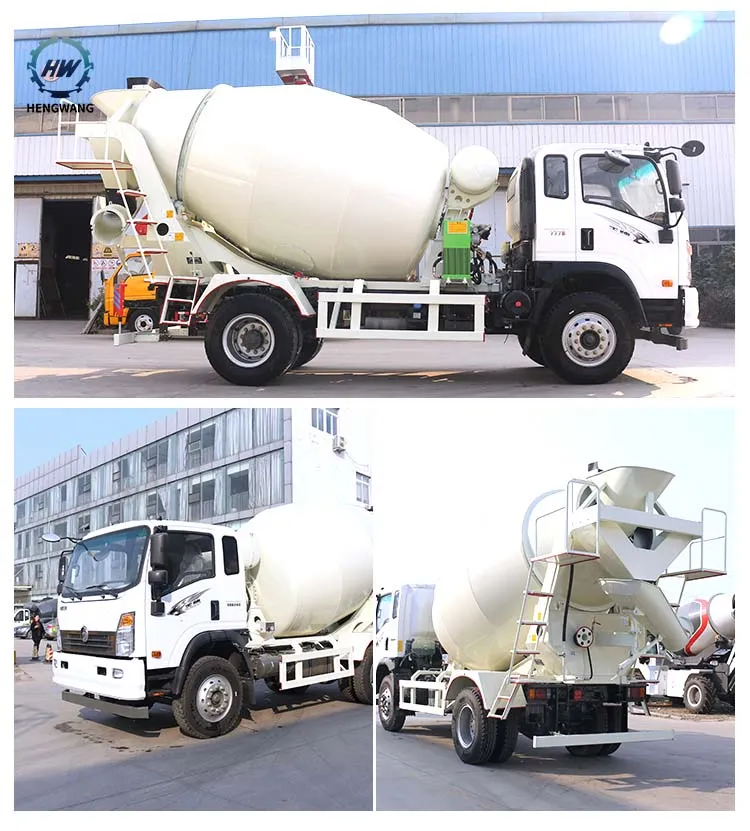

Shooting from different angles

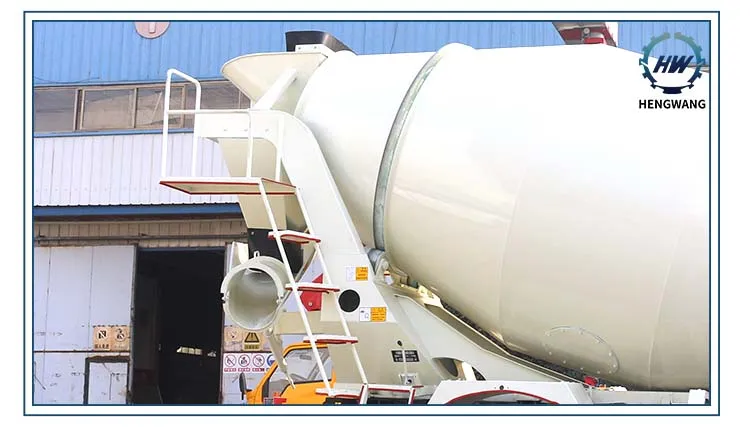

Drum

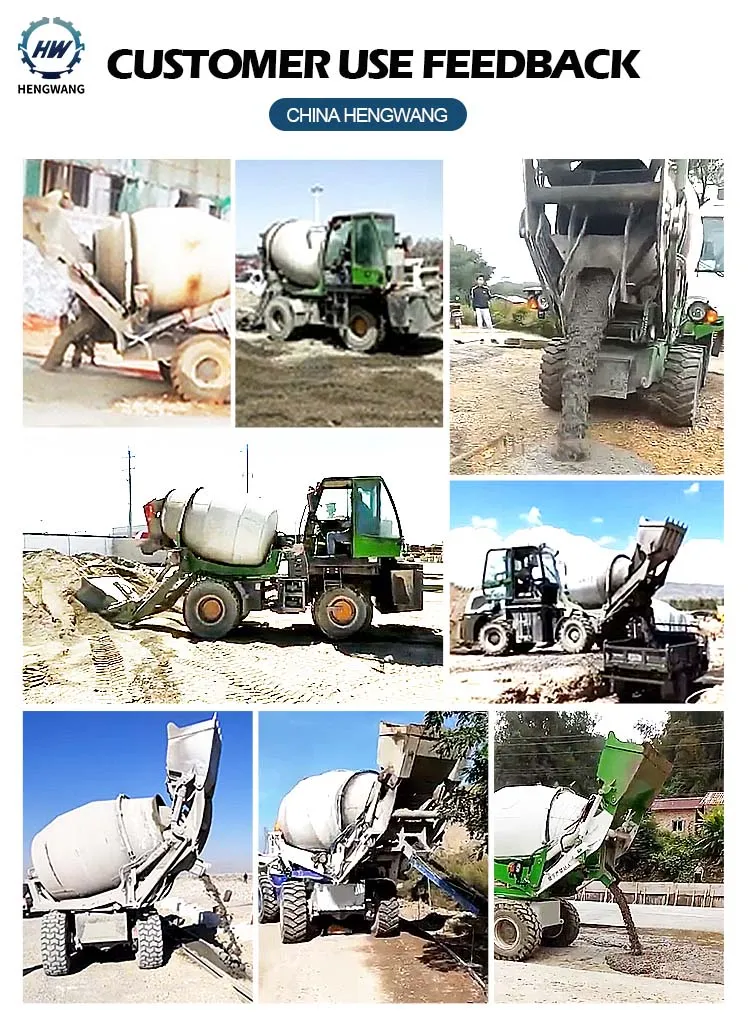

Customer use feedback
Package and shipping
Our company
