Product Description

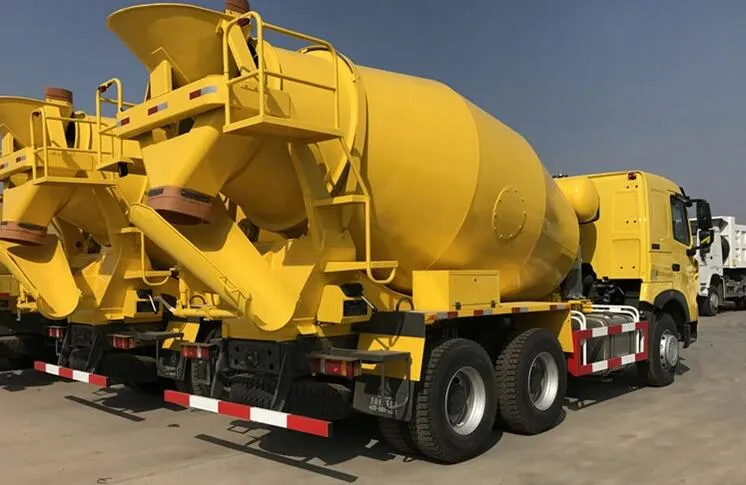

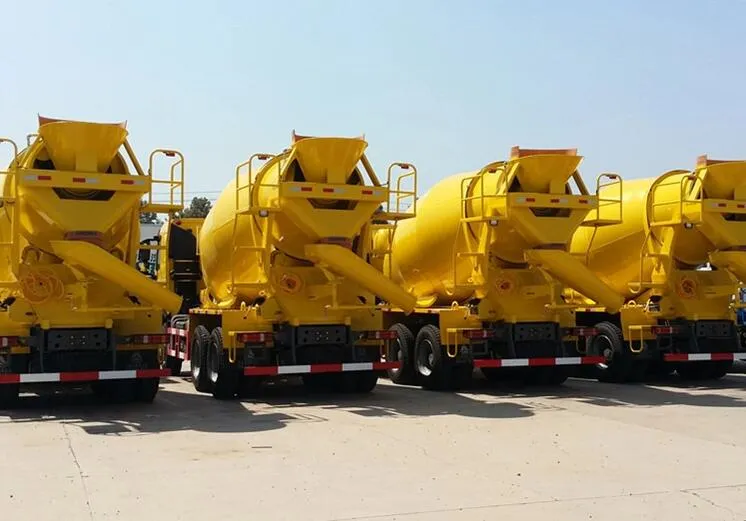

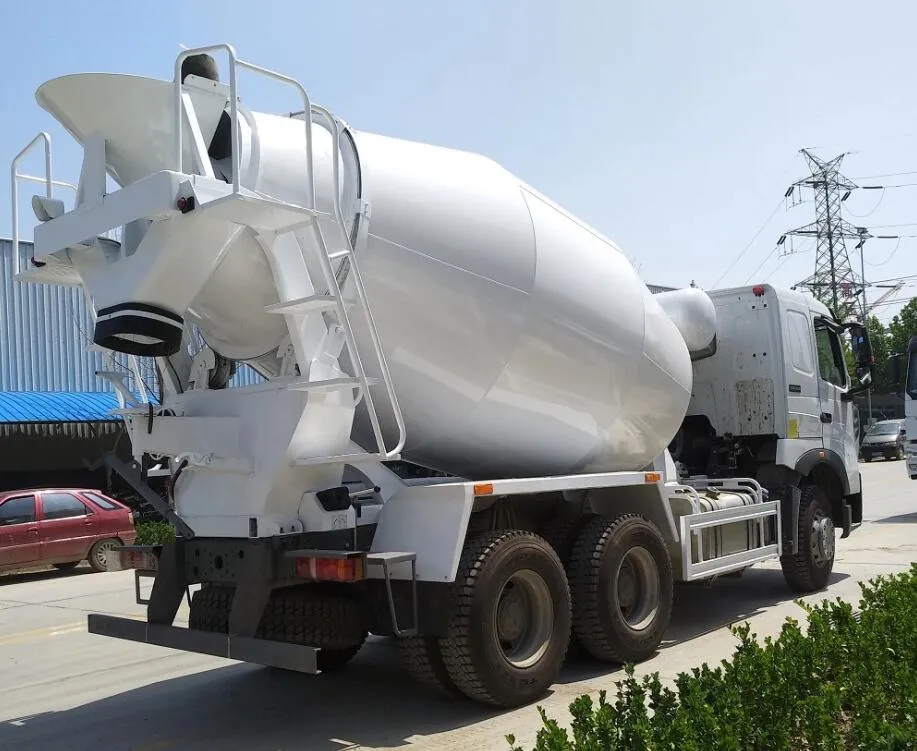

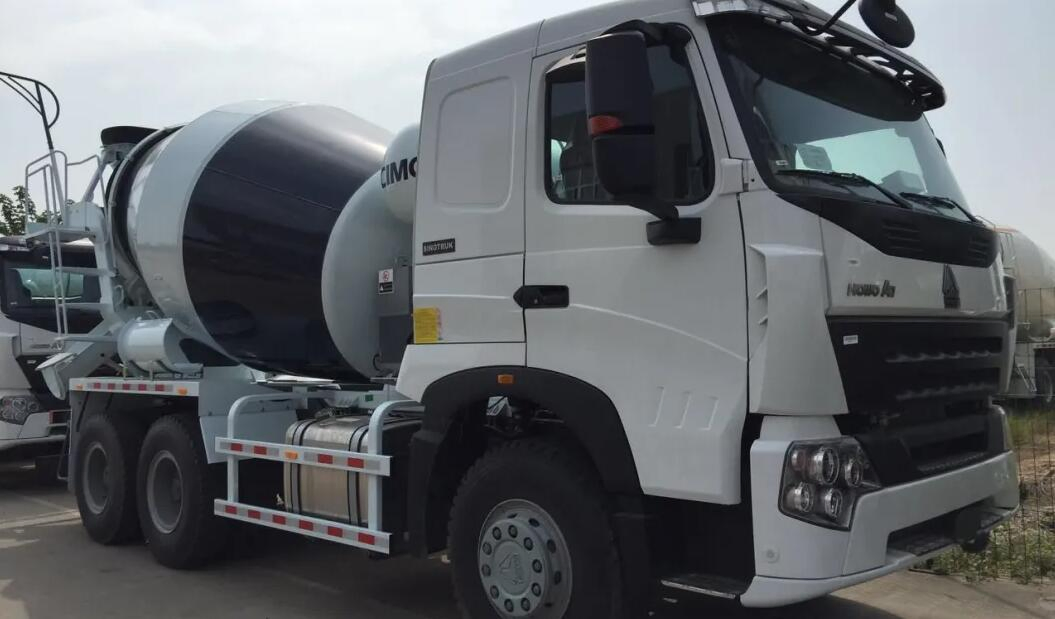

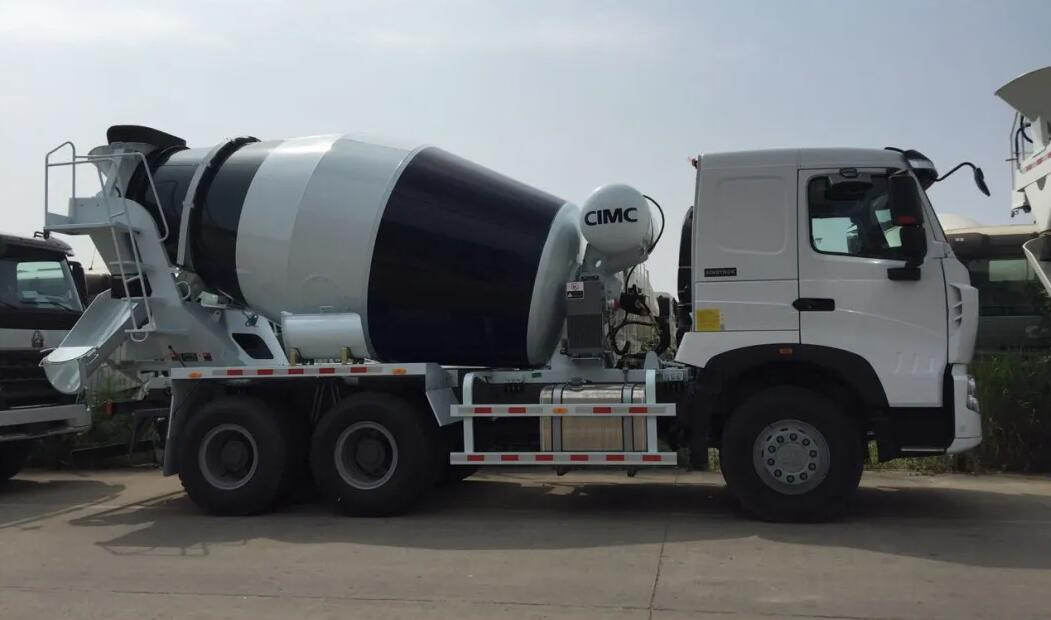

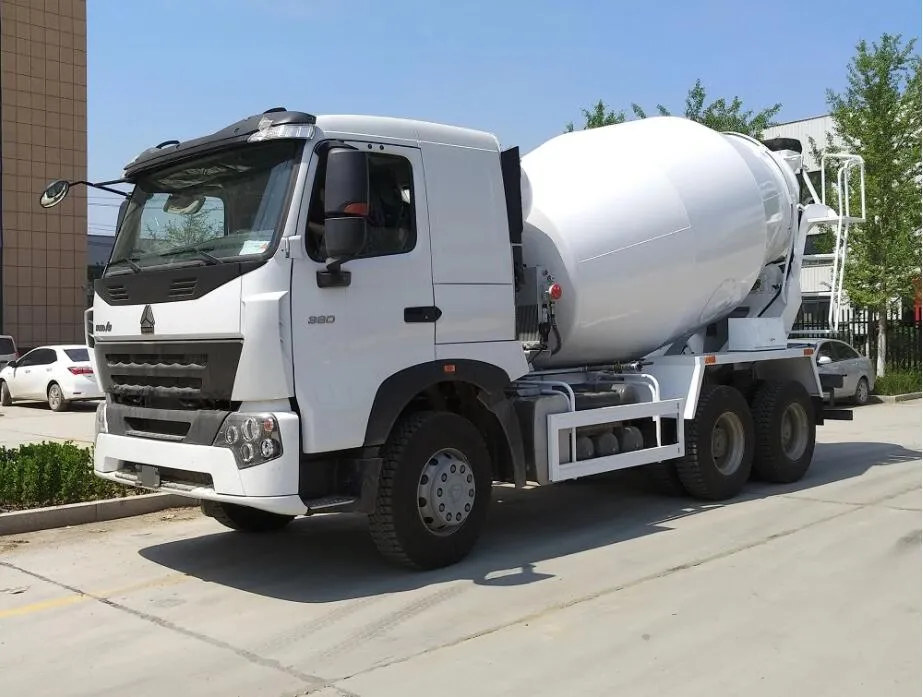

Sinotruk HOWO A7 6X4 290HP 6cbm Concrete Mixer Truck Zz1257m3247n1
Product Description
1. Purpose: For long distance or short distance transporting concrete in construction site.
2. Main parts: Hydraulic pump, hydraulic motor, reducer and radiator etc.
3. Chassis: Dongfeng, SHACMAN or SINOTRUK 6x4 chassis for optional.
| Condition | New condition/Left hand drive/6X4 | |||||
| Chassis | Brand | HOWO | ||||
| Curb weight(kg) | 25000 kg | |||||
| Wheelbase(mm) | 4320+1350 mm | |||||
| Dimensions(mm) | 9480*2496*3980 mm | |||||
| Overhang (front/rear) (mm) | 1500/2605 mm | |||||
| Approach/Departure angle(°) | 16/16° | |||||
| Axle Load(kg) | 7000/18000kg | |||||
| Max. driving speed(km/h) | 90 km/h | |||||
| Clutch | Reinforced diaphragm clutch | |||||
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |||||
| Steering Gear | Power steering, hydraulic steering with power assistance | |||||
| Tire | Number | 10pcs with one spare tire | ||||
| Specifications | 12.00R20 | |||||
| Batter | 2x12V | |||||
| Starter motor capacity | 24V | |||||
| Fuel tank(L) | 400 L | |||||
| Transmission | 10 Forwards and 1 Reverse with PTO | |||||
| Cabin | It can accommodate three people, With Air conditioner | |||||
| Engine | Power(kw)/Horsepower/(HP) | 248 kw/336 HP | ||||
| Emission standard | Euro 2 | |||||
| Upper & Equipment | ||||||
| Mixer drum | Max. Capacity | 12.0 CBM | ||||
| Material | Manganese Steel, 5mm thickness | |||||
| Specification | Feeding Speed (m3/min) | ≥2.8 | ||||
| Discharging Speed (m3/min) | ≥2 | |||||
| Discharging Residual rate(%) | ≤0.5 | |||||
| Mixing Tank Rotating Speed (RPM) | 0-17 | |||||
| Discharging range | 180° full range | |||||
| Driving system | Hydraulic Pump | US SAUER DANFOSS brand | ||||
| Hydraulic Motor | US SAUER DANFOSS brand | |||||
| Reducer | Italy PMP brand | |||||
| Radiator | China local brand KLMAKE | |||||
| Water supply system | Water Tank Capacity (liters) | 400 | ||||
| Water supply type | Pneumatic water supply | |||||
| Control system | Control Way | Connecting Rod Controlling | ||||
| Structure Features | 1. Mixer Tank and Vane use special anti-resistant material. 2. Discharging slot and feeding plate are the same anti-resistant material as the tank. 3. Humanized Operation System, Connecting Rod Controlling, easy, safe, reliable. 4. With US and Italy brand driving system. Discharging fast, no residue. | |||||
| Remarks | 1. Color is optional | |||||
