Product Description

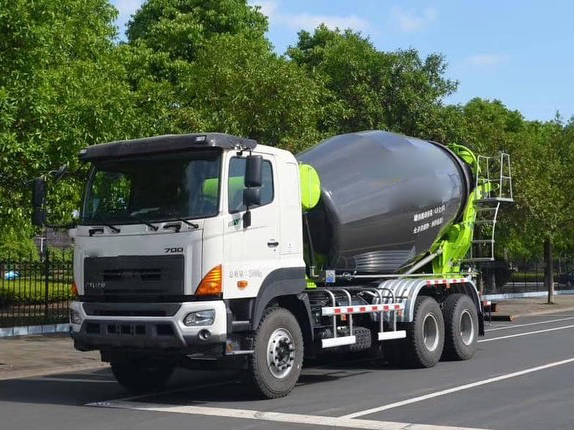

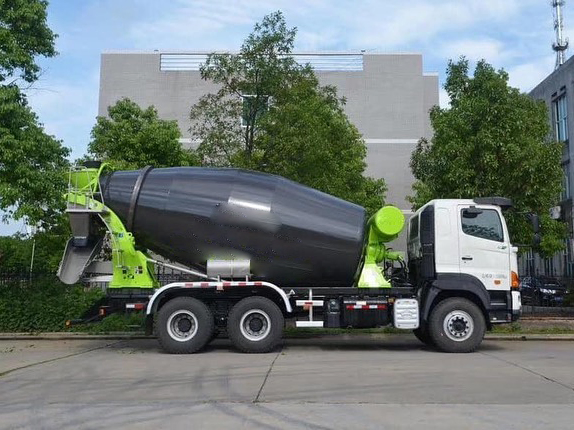

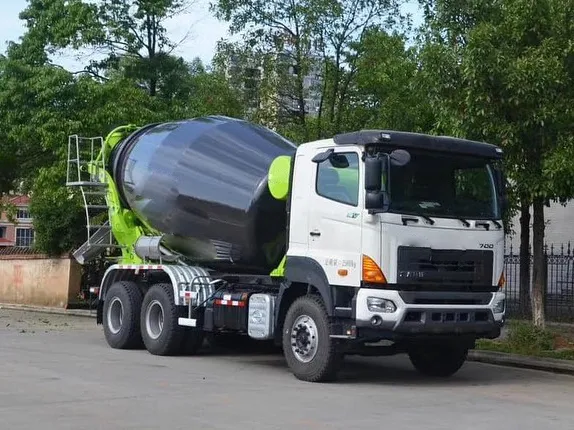

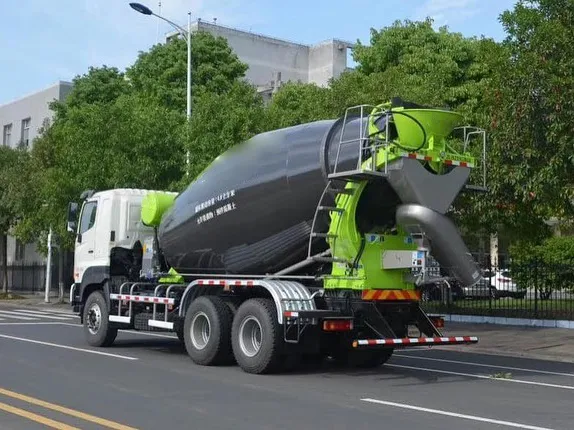

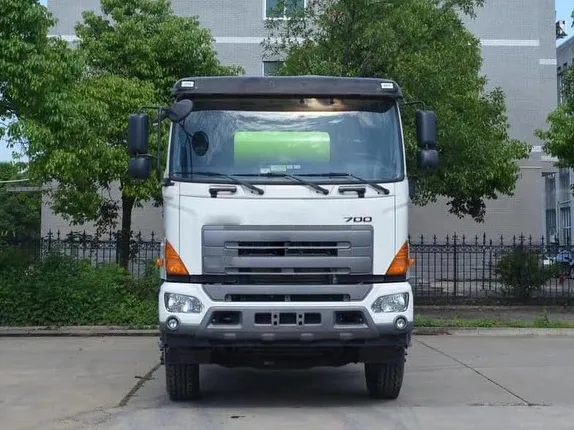

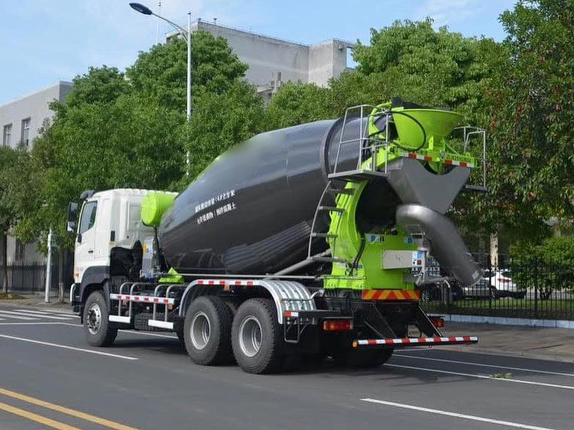

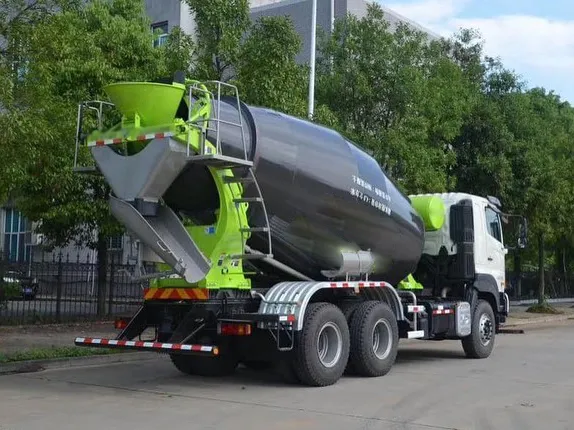

Zoomlion 9m3 Concrete Mixer Truck Machine (K9JB-R)
• Double Logarithmic Variable Pitch Helical Mixer Blade: which enables higher charing and discharging speed and even mixing, eliminates segregation of concrete and is suitable for the transportation of both dry and wet materials.
• New T-shape Blade technology. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance.• The geometric capacity of the agitator drum is very large and the filling rate is low, thus guaranteeing more mixing space. The small inclined angle and low center of gravity help reducing the possibility of turning-over of the truck.
• Closed loop hydraulic system and constant hydraulic oil temperature controller. Key hydraulic accessories including: Hydraulic plunger pump, adjuster mechanism with servo, hydraulic motor, and planetary reducer, all of which are manufactured in world-known brands with stable and reliable performances.
• Pneumatic Water Supply System: The pressure is provided by the air tank on the chassis with pressure protection devices. The pressure is provided by the air tank on the chassis with pressure protection devices. The water inlet connector fits for both normal water pipe and fire fitting.
• Multi-outlet washing design of which the cleaning requirements are met with the three fixed pipes for washing the agitator drum, charging hopper and discharging hopper respectively, and another flexible water outlet.
• Three-point operation system: One in the cab to allow control of the agitator drum, to turn forward and reverse, and to perform the "feed", "discharging", "agitate" and "stop" functions. Two at the rear with one operation handle at each side to perform "charge", "accelerate", "discharge", "agitate" and "stop", all of which are interlocked
| Model | ZOOMLION K9JB-R | ||
|---|---|---|---|
| Drum Performance Parameter | Agitator Capacity | m3 | 9 |
| Max Speed of the Drum | rpm | 12~16 | |
| Charge Speed | m3/min | ≥4 | |
| Discharge Speed | m3/min | ≥3 | |
| Remnant Ratio of Discharging | % | ≤0.7 | |
| Range of Slump | mm | 50~210 | |
| Hydraulic System | Pump | EATON 5423 or others | |
| Motor | EATON 5433 or others | ||
| Gear Box | ZF P4300 or others | ||
| Hydraulic Circuit | Closed | ||
| Water Supply | Volume of Water Tank | L | 400 |
| Water Supply Type | Air Pressure Type |
