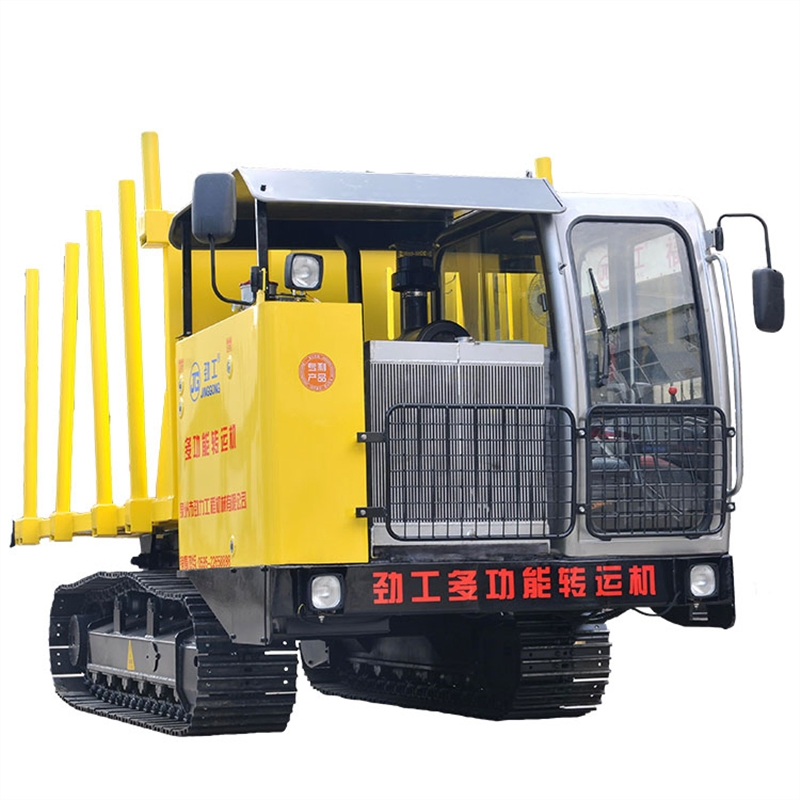

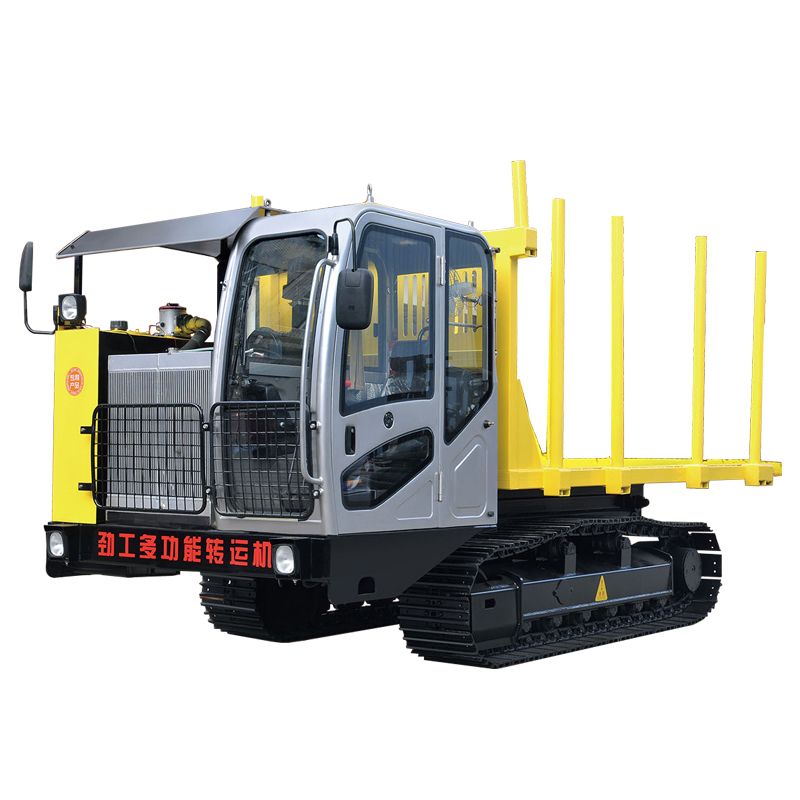

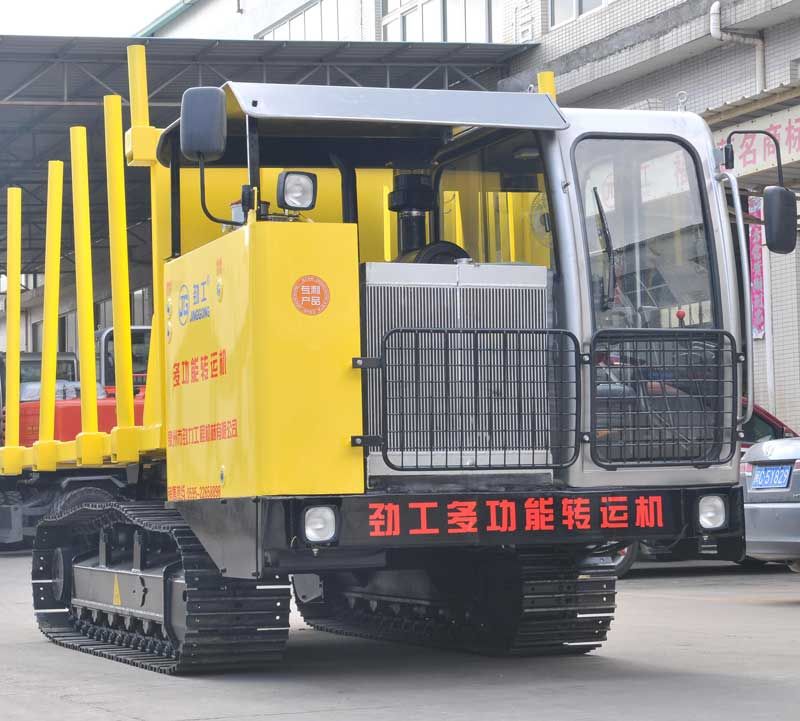

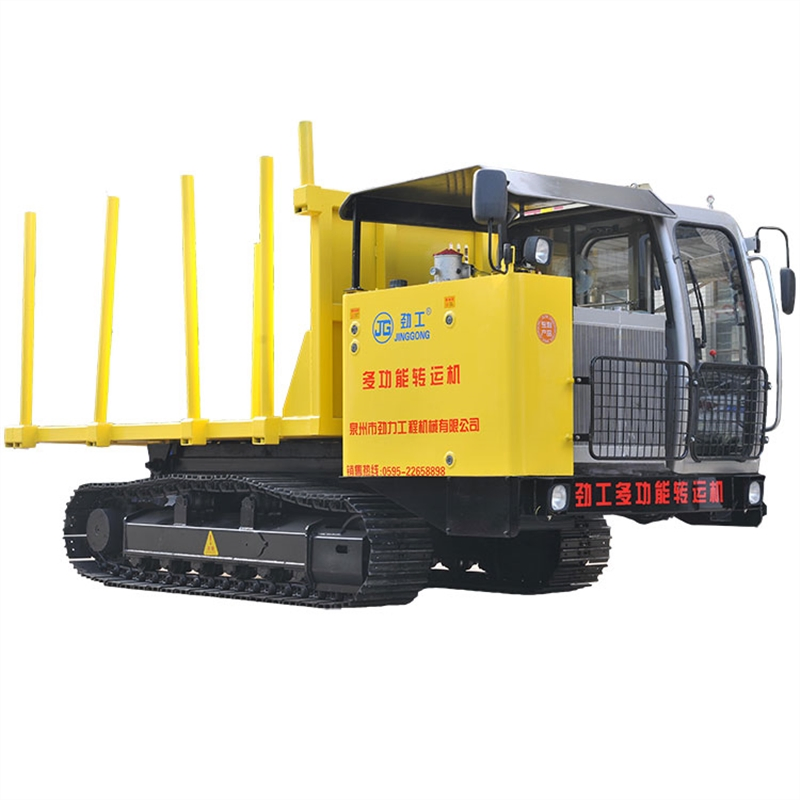

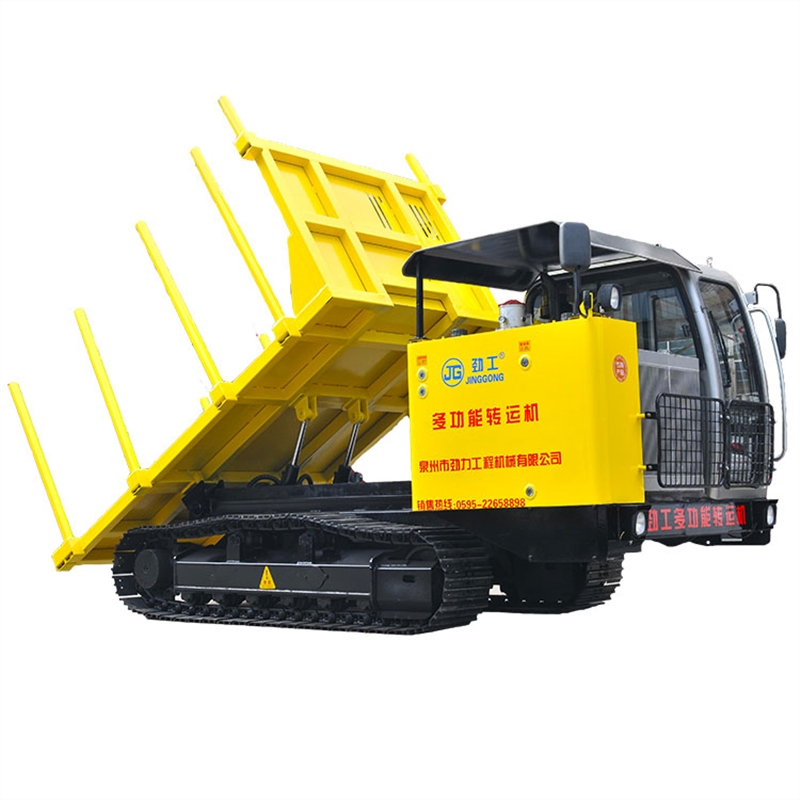

Self Loading Mini Dumper Machine Made in China
SPECIFICATIONSDIMENSION(Length*width*height)travel position4980*2000*2500mmcontainer overall length * overall width3400*1900mmcontainer height1070mmcontainer lifting height3500mmground clearance of container240mmMax. slop angle of container40°ground clearance of cab820mmwheel base2570mmTrack......
Send Inquiry
Product Description
| SPECIFICATIONS | ||||||||||
| DIMENSION | (Length*width*height)travel position | 4980*2000*2500mm | ||||||||
| container overall length * overall width | 3400*1900mm | |||||||||
| container height | 1070mm | |||||||||
| container lifting height | 3500mm | |||||||||
| ground clearance of container | 240mm | |||||||||
| Max. slop angle of container | 40° | |||||||||
| ground clearance of cab | 820mm | |||||||||
| wheel base | 2570mm | |||||||||
| Track Gauge | 1470mm | |||||||||
| crawler width | 450mm | |||||||||
| crawler length | 3270mm | |||||||||
| Min. ground clearance | 510mm | |||||||||
| TECHNICAL PARAMETERS | machine weight | ≥4000kg | ||||||||
| rated load | 10000kg | |||||||||
| engine model | Cummings | |||||||||
| rated power/rpm | 93kw/2200r | |||||||||
| hydraulic system flow | 270L/min | |||||||||
| hydraulic system operating pressure | 28Mpa | |||||||||
| travel speed | 3~5km/h | |||||||||
| Max. hauling force | 88KN | |||||||||
| Gradeability | 70%/35° | |||||||||
| Fqt Fuel Quantity | >=8L/h | |||||||||
| fuel tank capacity | 200l | |||||||||
| hydraulic oil tank capacity | 250L | |||||||||
We are a leading manufacturer and exporter of wheel excavators, crawler excavators, sugarcane harvesters, sugarcane grab loaders, multi-function excavators. We have nearly 20 years of professional experience, and our products have been exported to many countries.

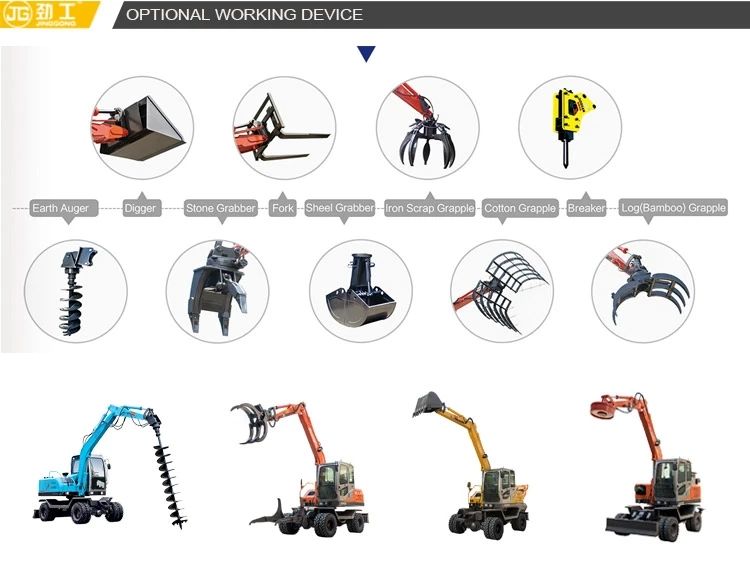

We provide more optional parts to complete more kinds of work. We provide a variety of work tools such as grabs, forks, pulverizers, etc. to meet your various application needs. In addition, a variety of fixtures are provided to optimize the performance of the machine. The auxiliary hydraulic lines are arranged on the base of the boom, making the auxiliary hydraulic circuit easier to install, thereby reducing the time, parts and costs required for installing work tools.
