China Heavy Duty Low Loader/Lowboy/Low Bed Truck Head Semi Trailer for Heavy Equipment Excavator Transport

Product Description

Heavy Duty Low Loader/Lowboy/Low Bed Truck Head Semi Trailer for Heavy Equipment Excavator Transport

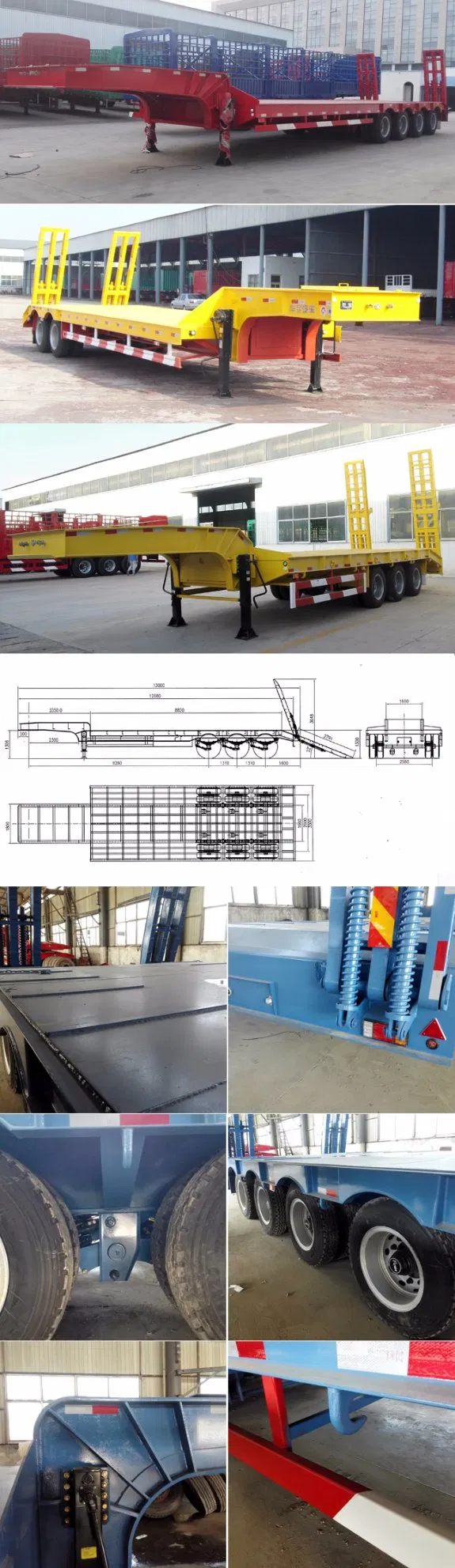

Trailer Details show:

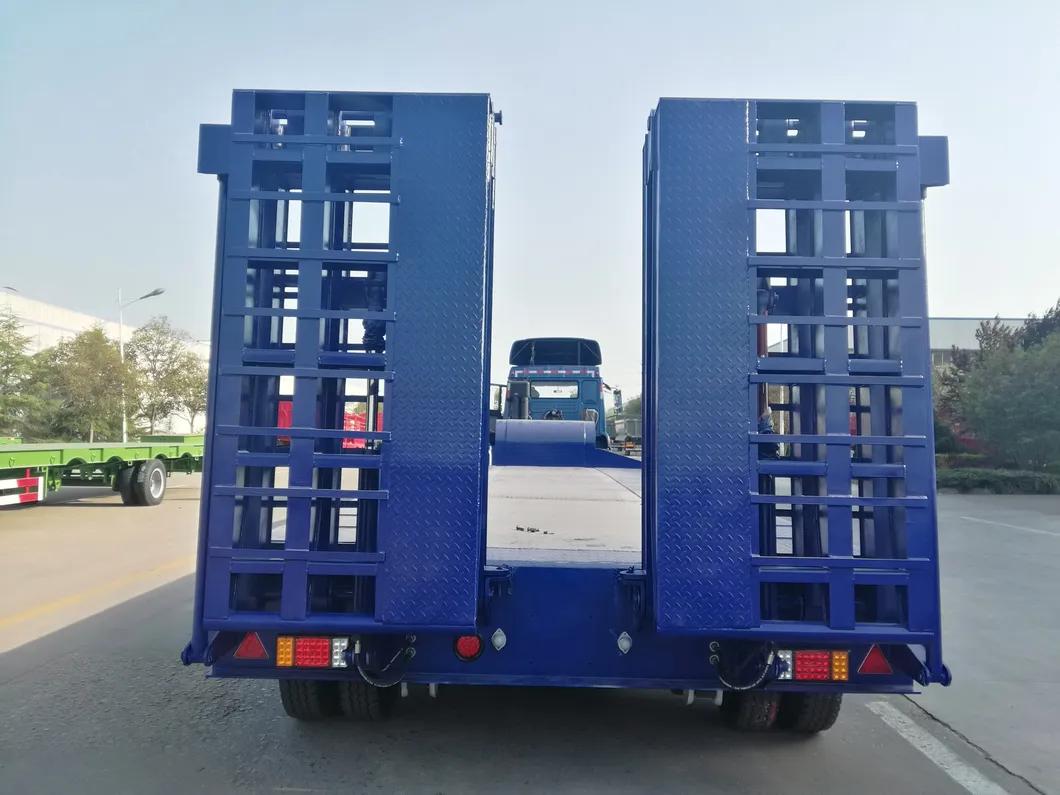

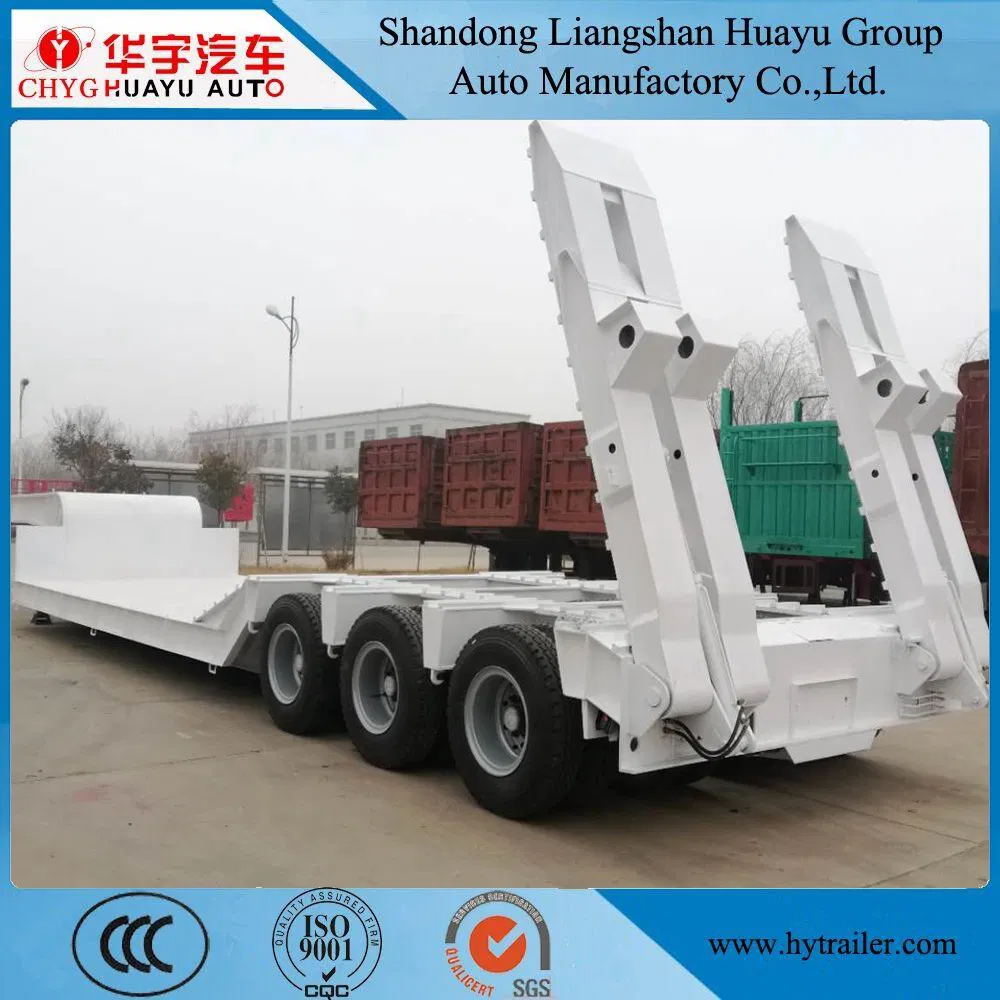

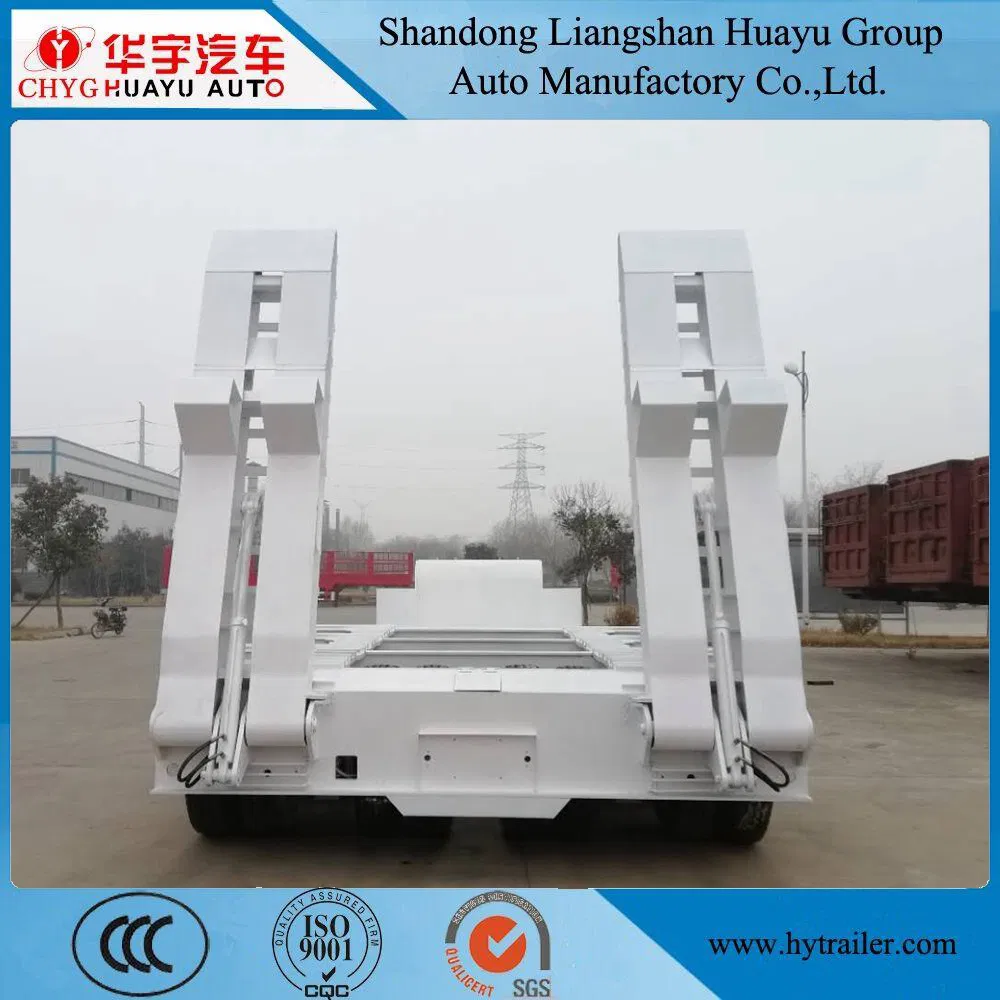

hydraulic ladder

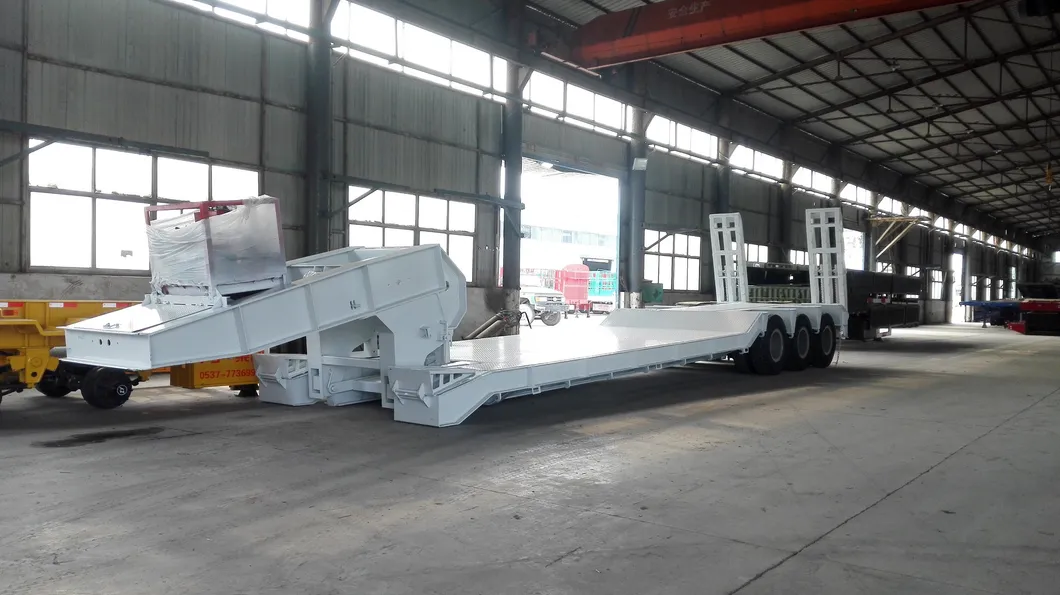

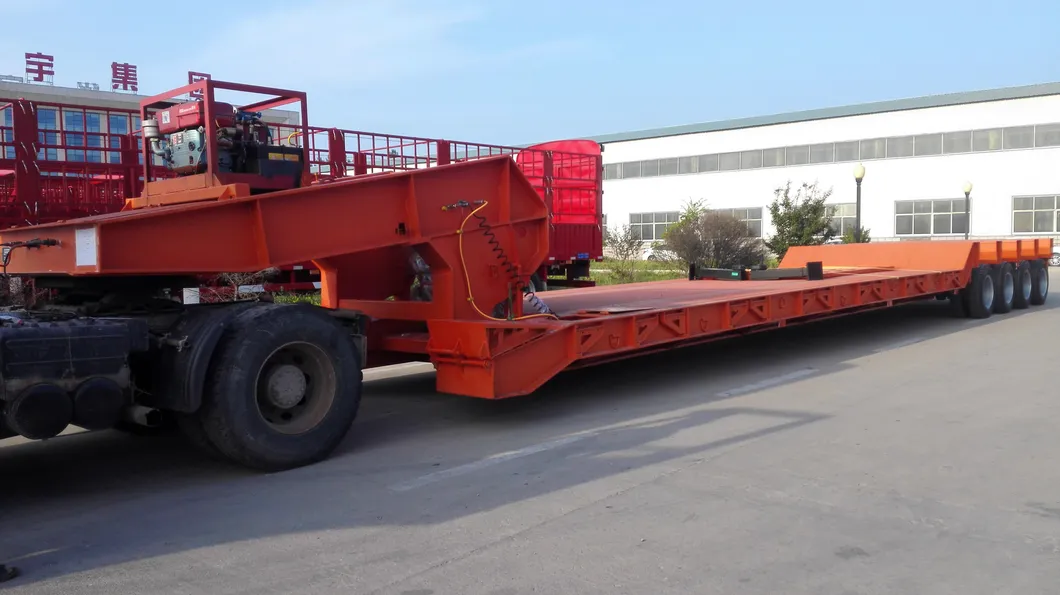

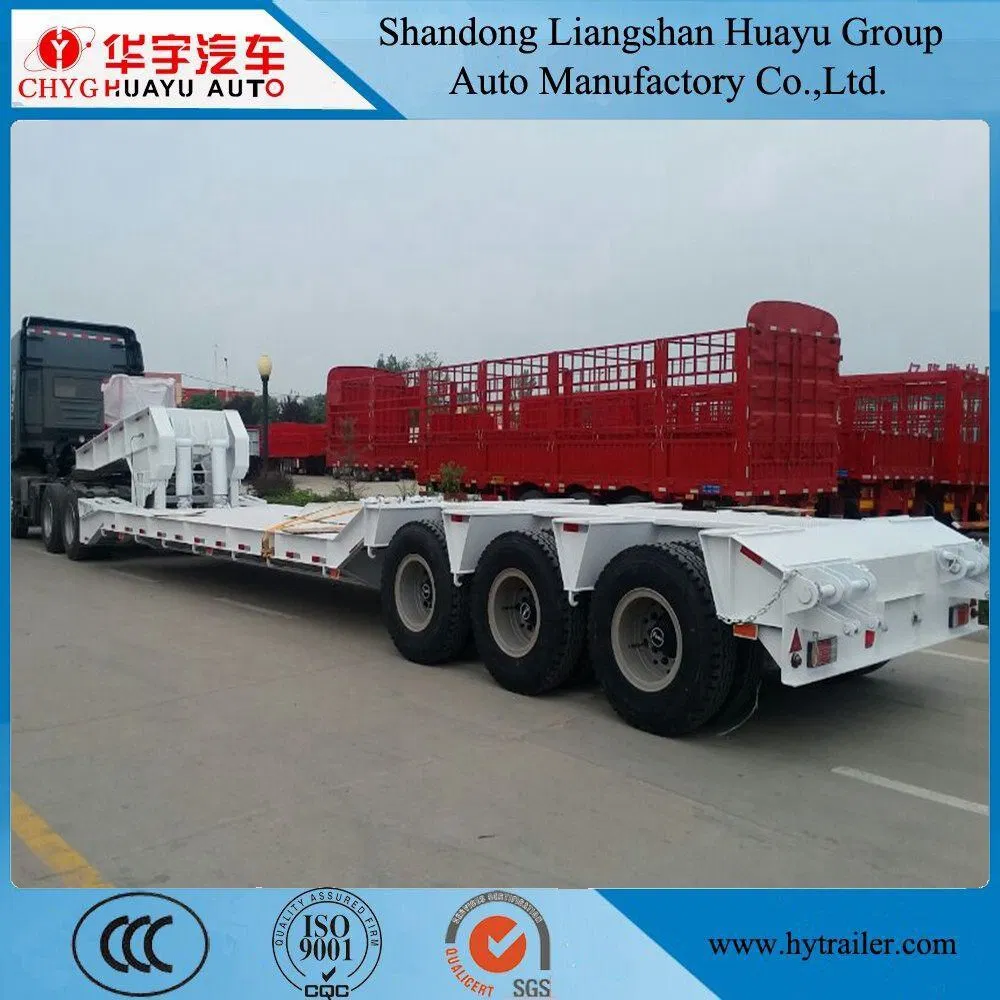

hydraulic removeable gooseneck

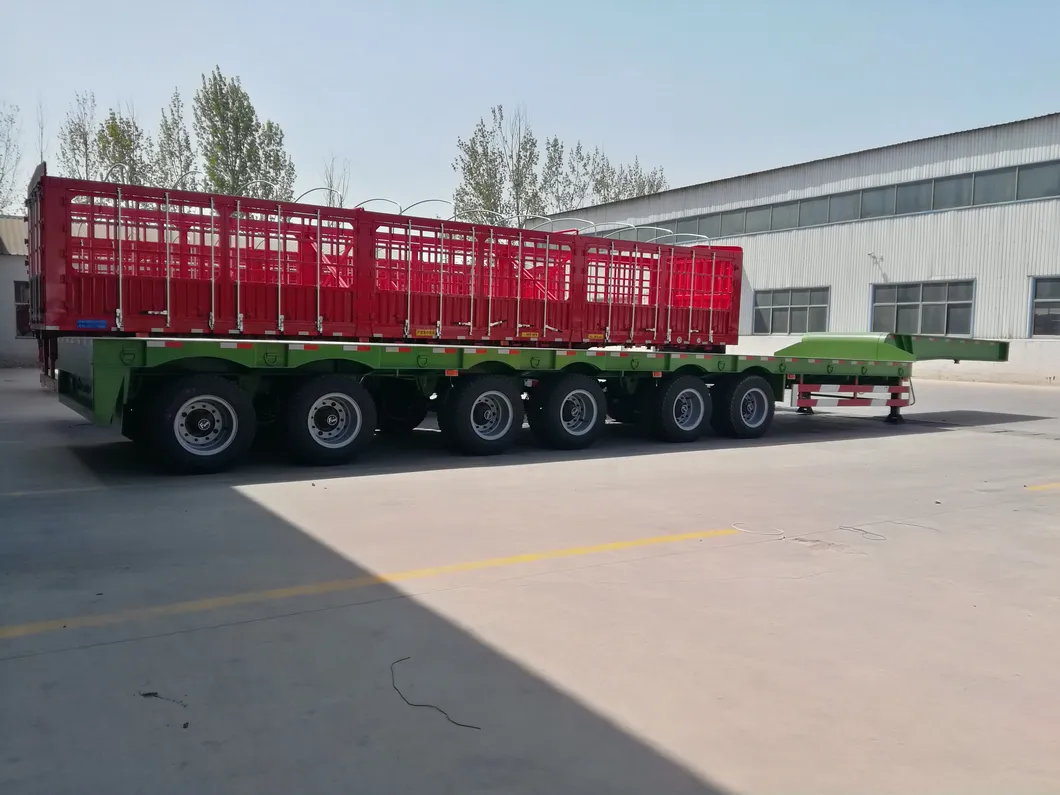

6 axle special design

Specifacition

Tare weight	12000kg
Size	13000mm3000mm2900mm
Payload	60T
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm,width200mm;Middle Flange 14mm height 500mm;bottom flange 20mm,width 200mm
Side beam	25# channel steel(Q235)
Cross member	16# channel steel(Q235)
Floor	5mm checked plate
Side wall	No
Front board	No
Axle	3 axle FUWA brand 13T
Suspension	Bogie argo suspension
Leaf spring	no
Tire	12R22.5 double star brand 12pcs
Wheel rim	9.0-22.5 jingu brand 12pcs
Kingpin	3.5" weld king pin
Landing gear	Jost brand two-speed, manual operating ,heavy duty landing gear 24T
Ladder	Mechanical ladder
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Optional
Lights	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light
Date of delivery	20 workdays after we received 30% of contract value T/T down payment.

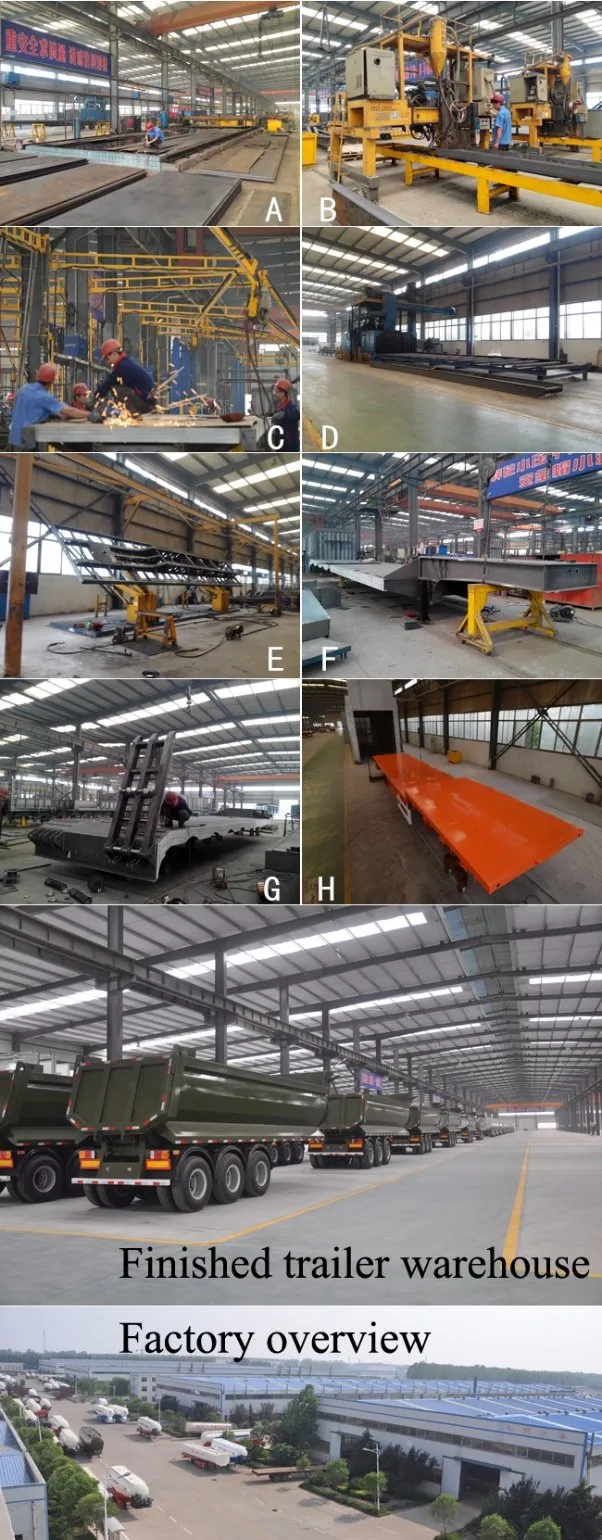

Introduction of production process
A.Steel auto cutting
B.Main beam auto submerged arc welding
C.Chassis reversal ensure every part been welding well
D.Shot blasting for rust cleaning
E,F,G.Welding by experienced worker
H.Dust-free painting line

Trailer advantages description
· More than 20 years professional design and production experience.
· Design and produce according to your requirements
· Choose Regular manufacturers purchase materials,like Q235 baoshan.
· Use Domestic first-class production equipment.Main beam is useing Submerged arc welding process.
· Famouse brand trailer parts used,like bpw/fuwa axle,triangle/double star/double coin and so on tires.
· Strict quality control system ensure that each semi trailer is qualified.

Delivery

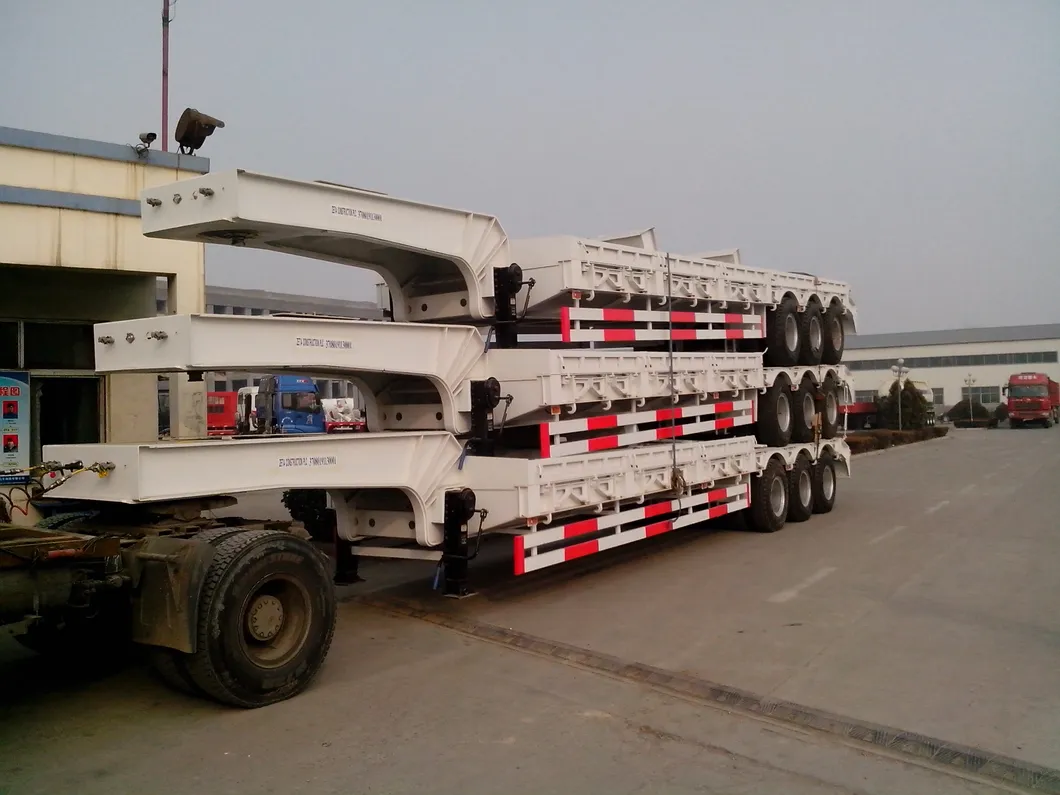

Wax spray and one stack of 3 sets to reduce shipping fee.

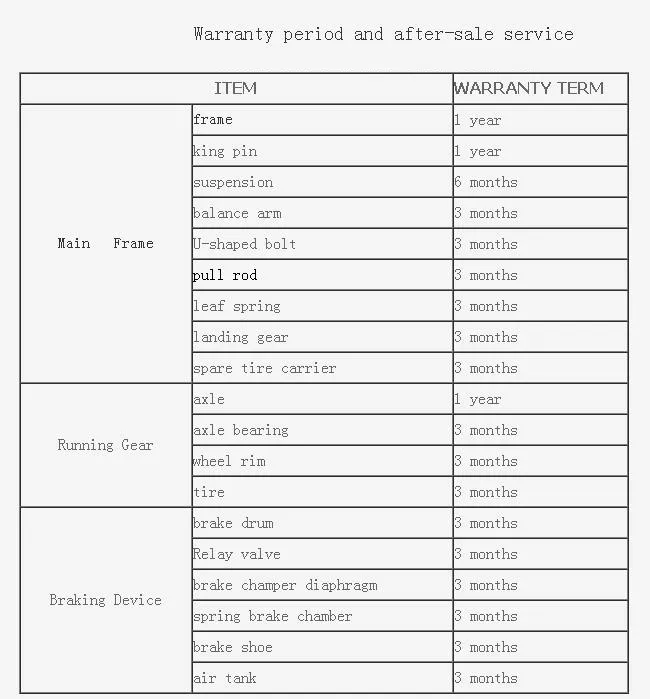

Warranty period and after sale service

FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1.30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2.40% contract value as the deposit by T/T,60% contract value made by irrevocable L / C at sight.

Welcome your inquiry and visit our factory.
