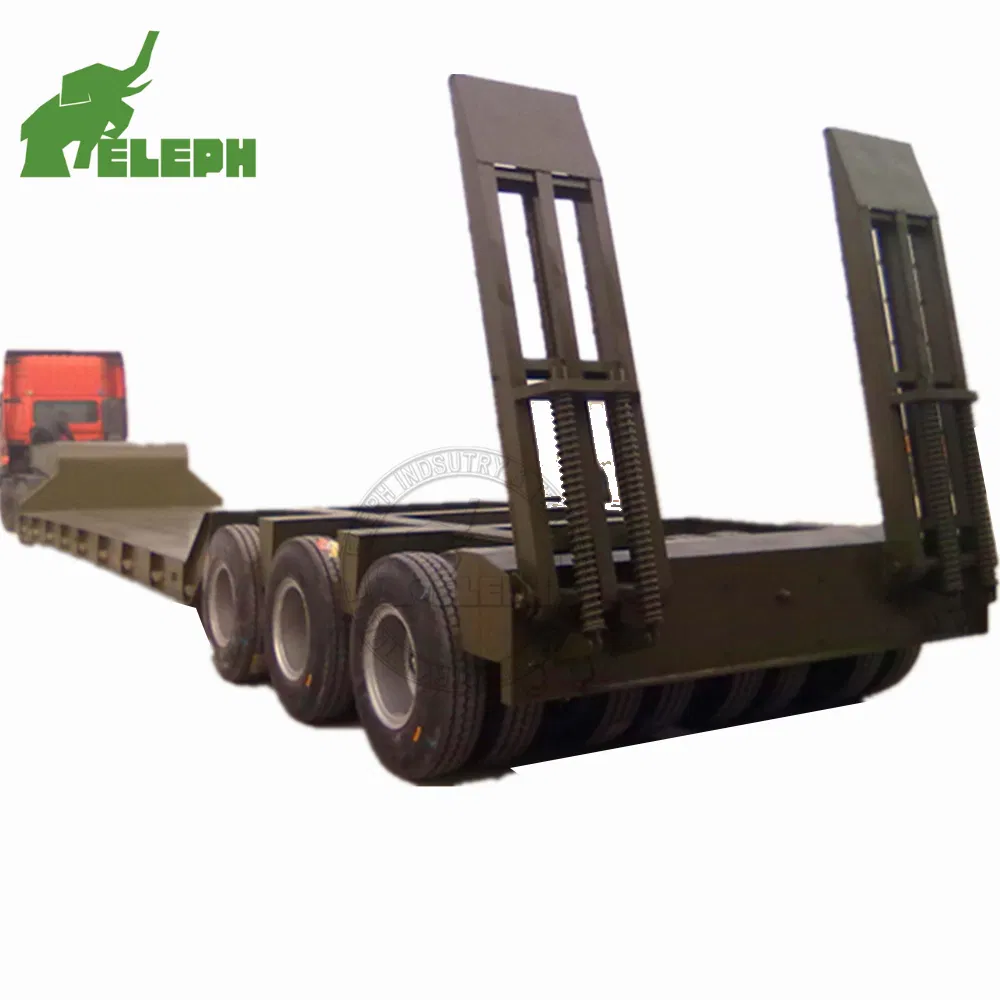

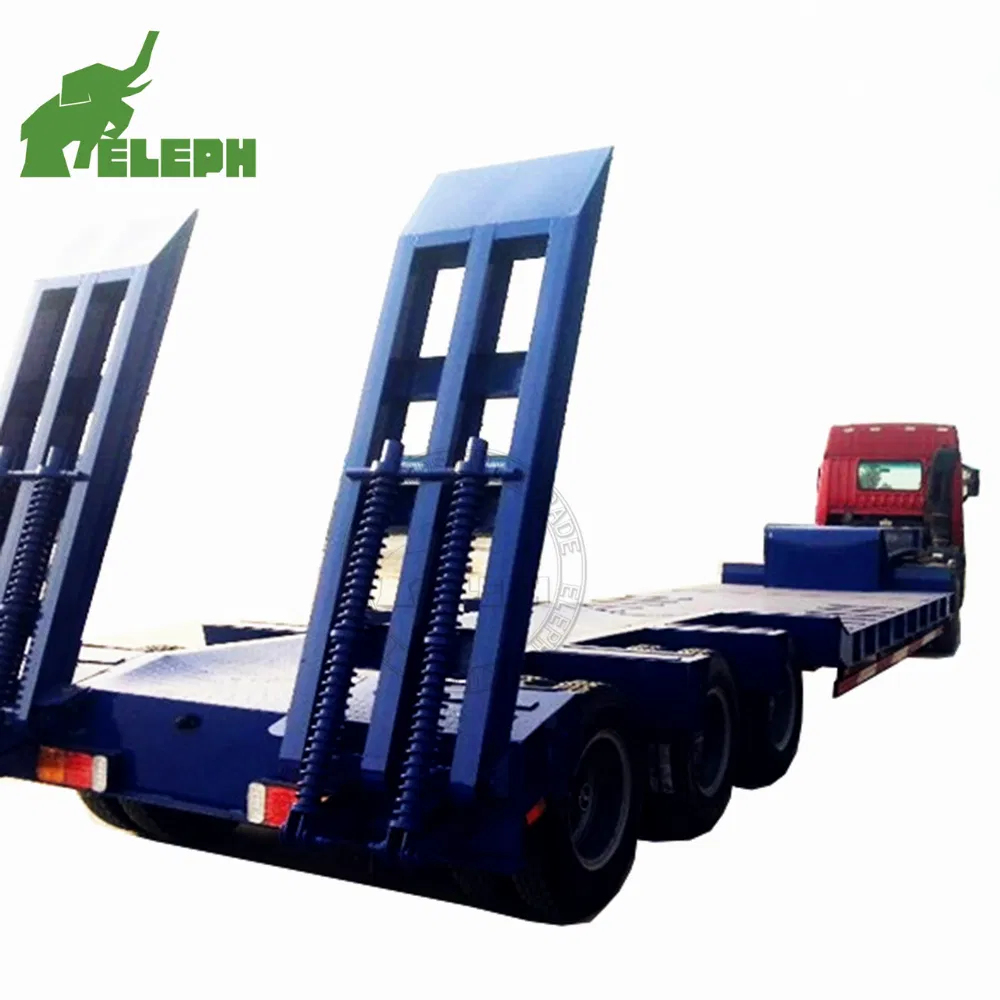

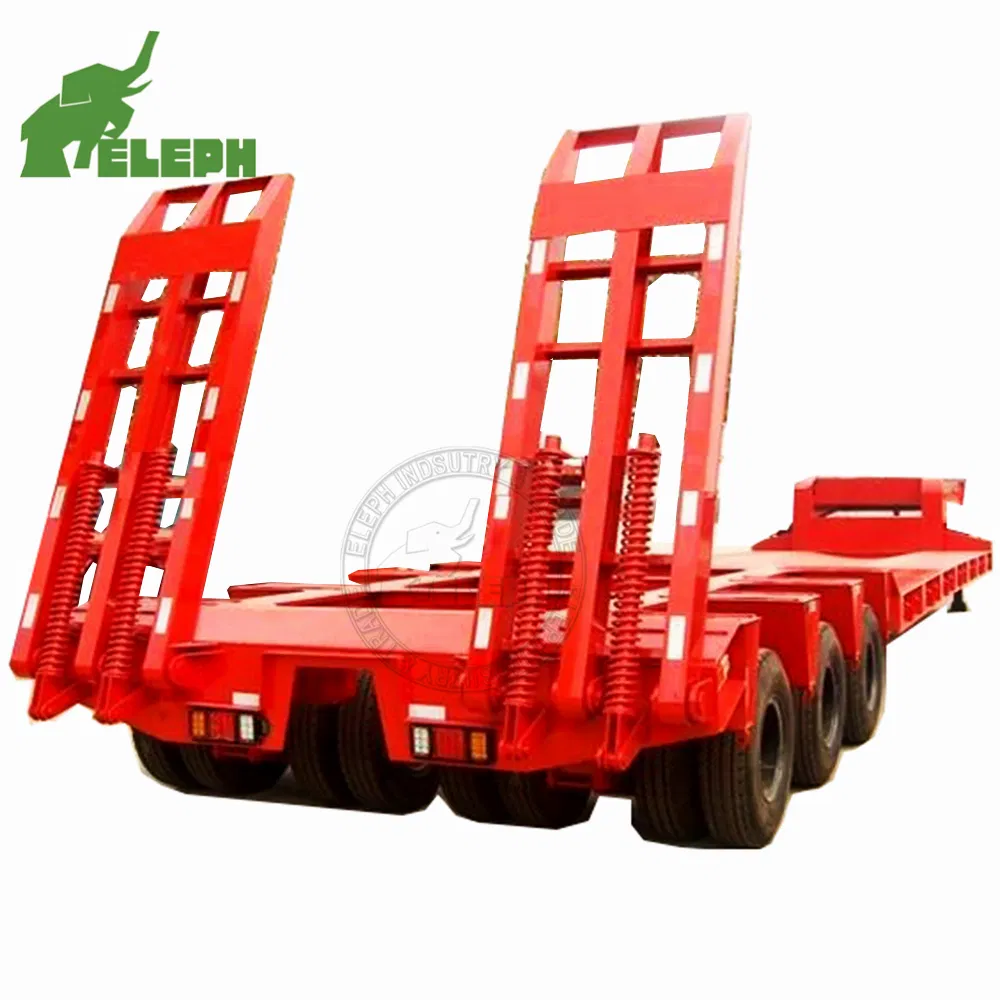

100 Tons Row-Axles Lowboy Heavy Machine/Machinery Semi Trailer with High Quality
PRODUCT DETAILSMulty Lines Axles Heavy Duty Low Bed Semi TrailerSPECIFICATIONSHeavy Duty Machinery Transport Lowbed Truck Semi Trailer ModelALP9350LBSTDimension(Optional)Axle No.Rated Load (kg)Tire No.Tire SizeDimension Made by Customer Machine Size, Standard Length is 13500mm(contact supplier for ......
Send Inquiry
Product Description

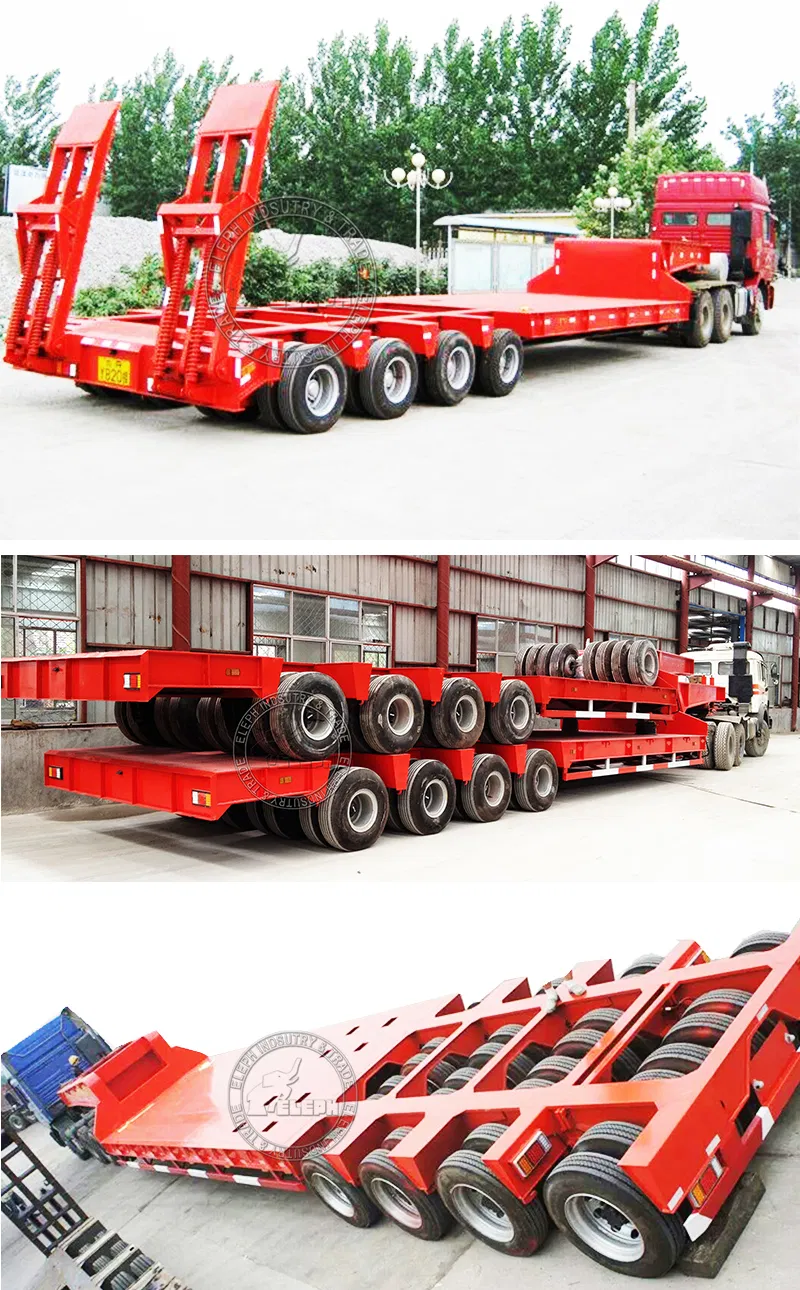

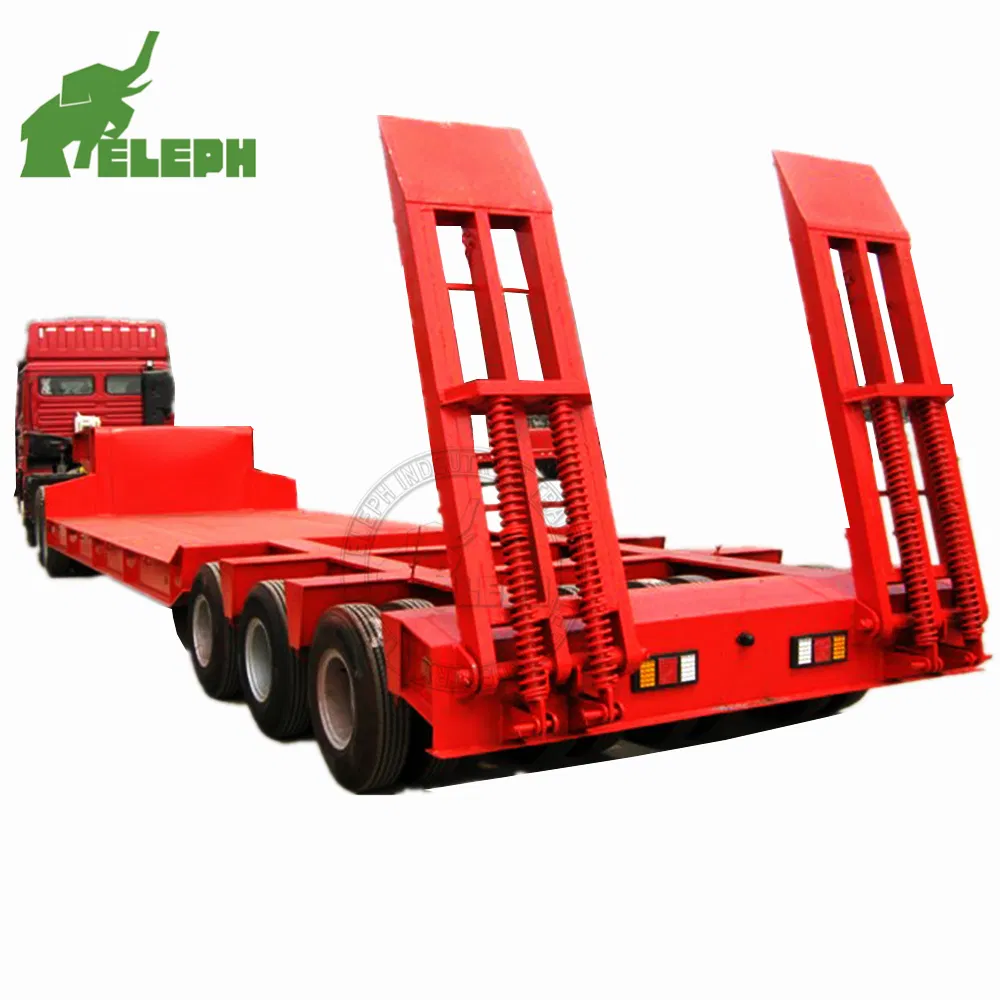

Multy Lines Axles Heavy Duty Low Bed Semi Trailer
Heavy Duty Machinery Transport Lowbed Truck Semi Trailer | |||||
Model | ALP9350LBST | ||||
Dimension(Optional) | Axle No. | Rated Load (kg) | Tire No. | Tire Size | |
Dimension Made by Customer Machine Size, Standard Length is 13500mm (contact supplier for more) | 1 | 20 | 4 |
825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) | |
2 | 40 | 8 | |||
3 | 60 | 12 | |||
4 | 80 | 16 | |||
5 | 100 | 20 | |||
Manufacture | Qingdao Eleph Industry & Trade Co., Ltd | ||||
Wheel Base (mm) | 1310 | ||||
leaf-spring Pcs | 10 | ||||
Axle | 13/16/18 T | ||||
Suspension | Heavy Duty Mechanic Suspension with Leaf Springs | ||||
Main Beam Material | Q345B manganese plates, automatic submerged arc welded | ||||
Brake System | Dual line braking system with automatic braking system/chambers | ||||
Brake Air Chamber | Double Model | ||||
Kingpin | 2' or 3.5' Interchangeable | ||||
Platform | 4-6 mm diamond steel plate | ||||
Brake System | Dual Lines Braking System With Automatic Air Chambers | ||||
Brake Air Chamber | Four double and two single chamber | ||||
Electrical System | 24V, 7core socket, lights according to European standards. | ||||
Mainbeam Size | Upper plate | 14mm | |||
Lower plate | 16mm | ||||
Mid Web | 8 mm | ||||
Height | 500-520mm | ||||
Spare tire carrier | 2 sets | ||||
Color and Logo | Depends on the buyer's requirement. | ||||
Pin Height | According to the height of the tractor saddle. | ||||
1. How To Buy From Us ? How to Pay?
- quotation-offer-contract-1st payment-production-final payment-shipment-documentation;
TT/LC/Western Union/Credit Card
2. If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
- 90% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shacman, Beiben, Volve...
- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing
3. Whats The Time For Delivery & Arrival ?
- If Standard Model We Have In Stock Can Ship It Out Within 10 Days After Payment.
- If It Belongs To Customize Series, Ordinary Cases In 15 Days Can Be Finished For Shipment.
- For Asian Countries, Ship Can Be Reached In 1-2 Weeks, If For African & Mid East & European Countries,
25 Workdays Will Be Achieved.
4. If We Can Provide Terms For Reducing Your Import Duties ?
- Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction
