2/3 Axle Hydraulic Tipping/Tipper/ Truck Trailers Rear Dump Semi Trailers
Dump/Tipping Truck TrailerProduct Information ProductDump/Tipping Truck TrailerColorAny color will be availableOutside Dimensions (L*W*H)(6000-17000)*2500*1550mmRated Load35T-60TTare Weight7000 kgWheel Base8390+1310+1310(mm)Tiresspecification11.00r20/12R22.5-18/315/385No. of tires8/12/16Spare tir......
Send Inquiry
Product Description

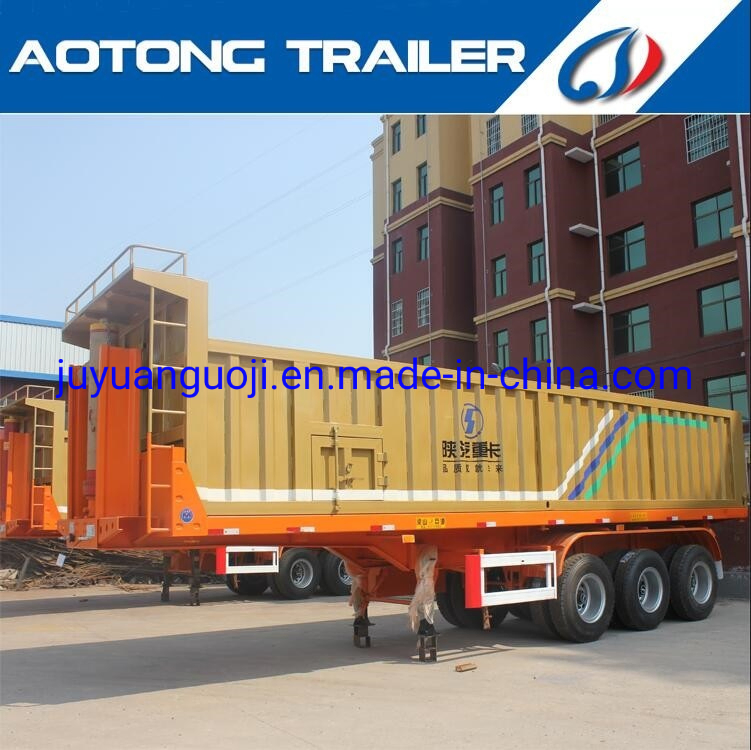

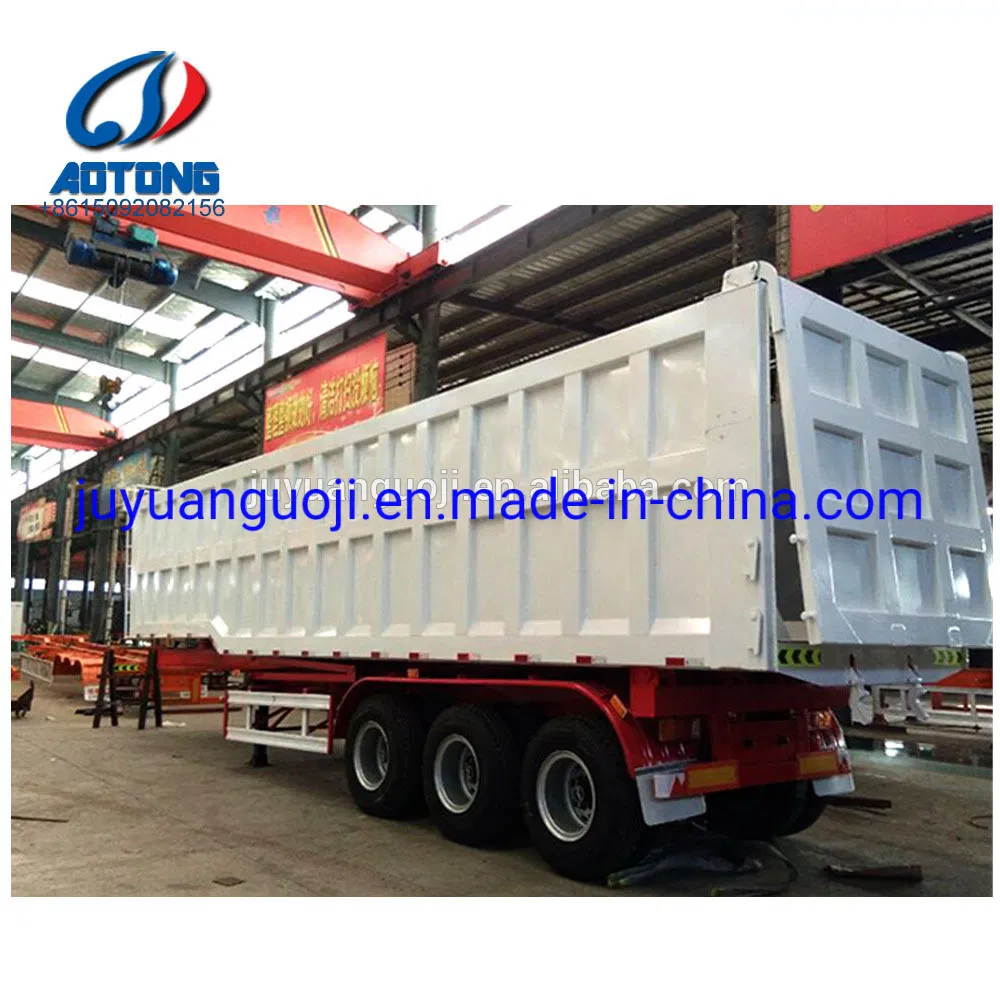

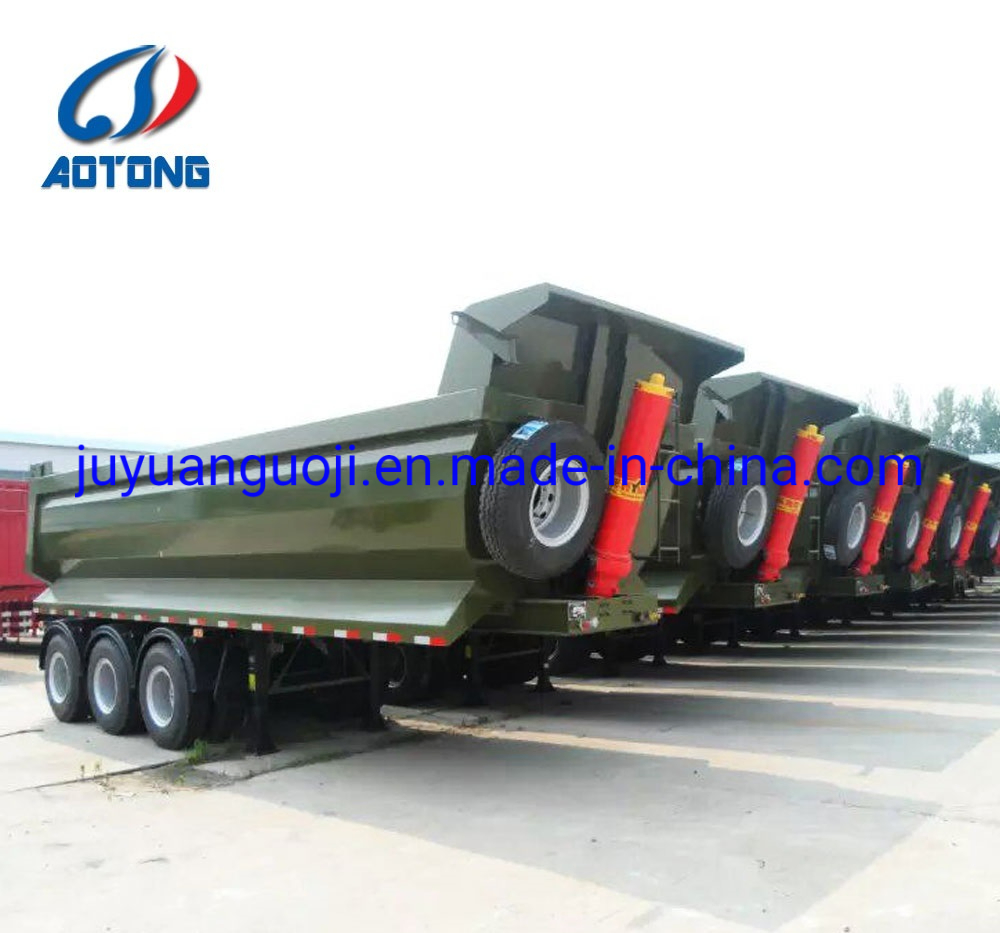

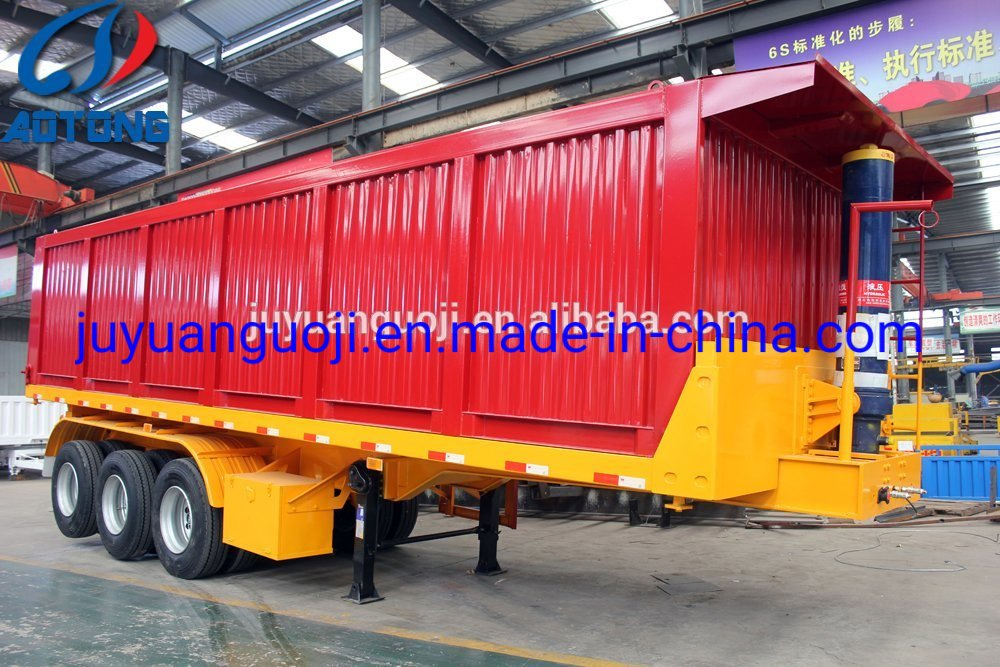

Dump/Tipping Truck Trailer
Product Information
Product | Dump/Tipping Truck Trailer | ||||
Color | Any color will be available | ||||
Outside Dimensions (L*W*H) | (6000-17000)*2500*1550mm | ||||
Rated Load | 35T-60T | ||||
Tare Weight | 7000 kg | ||||
Wheel Base | 8390+1310+1310(mm) | ||||
Tires | specification | 11.00r20/12R22.5-18/315/385 | |||
No. of tires | 8/12/16 | ||||
Spare tire carriers | 1 or 2 | ||||
Axles
| Brand | FUWA (BPW optional) | |||
No. of axles: | 2/3/4 | ||||
Axle-load | 14T/16T/20T per axle | ||||
Wheel rim | 7.50-20 rim or 8.00 | ||||
Suspension | rigid suspension,10 pcs leaf-spring | ||||
Brakes | brand | TKL brand | |||
Brake chamber | double air chamber | ||||
System | Dual line braking system /ABS | ||||
Main Beam | material | I beam ,Q345B, automatic submerged arc welded | |||
specification | Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 8mm | ||||
Cross Beam material | Q235B | ||||
Side beam | Channel steel | ||||
Plate form | Steel Sheet 3mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.3mm,4mm,5mm,6mm) | ||||
Accessory | One tooling box with a set of standard trailer tool | ||||

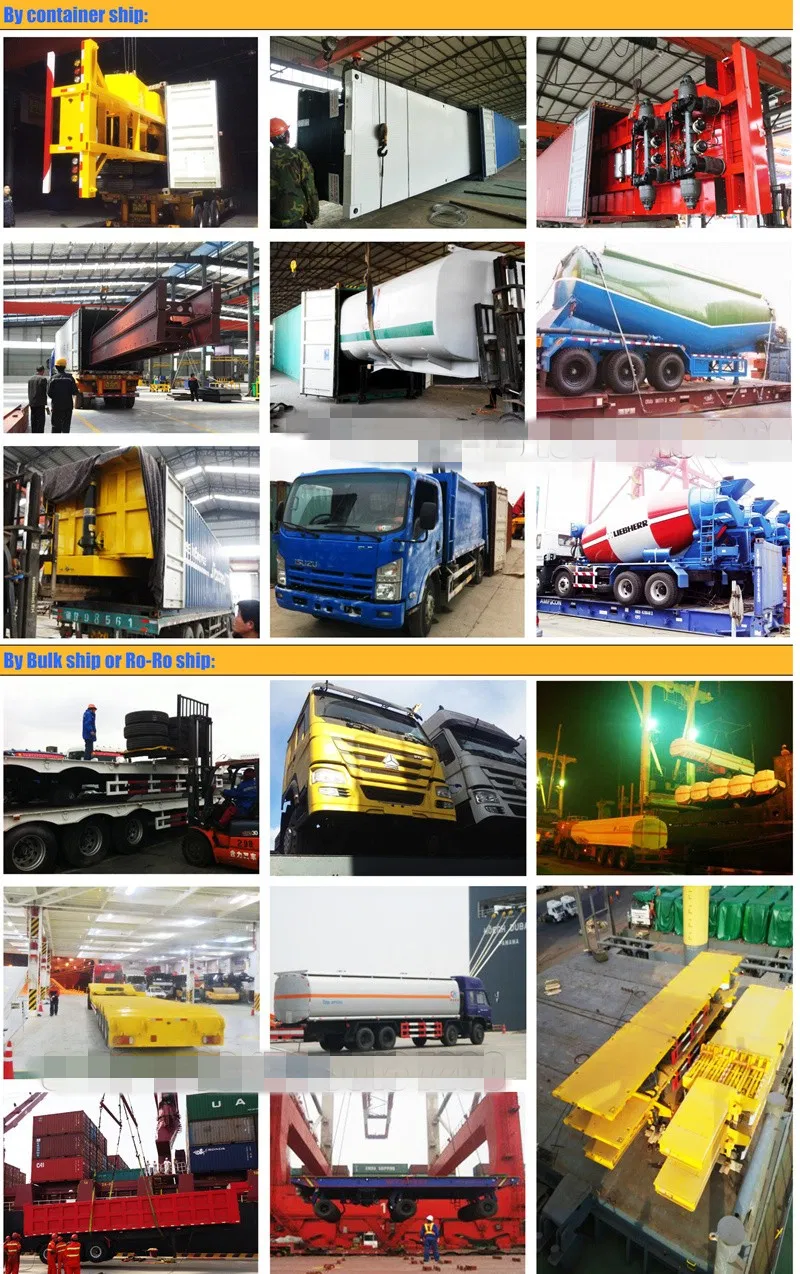

PACKAGING & SHIPPING
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
FACTORY & PRODUCTS
Qingdao Juyuan International Trading Co., Ltd. is an industry & trade company, withthe factory, Shandong JuyuanAutomobile Technology Co., Ltd.
Having been in the field of trailer manufacture since 1992, we are one of the companies which first gained Compulsory Product Certificate (CCC Certificate) from the Ministry of Technology and Information of P. R. C, and ISO9001,SGS,BV certificate.
