Product Description

35Ton 20ft 2-axle Skeletal Container Semi Trailer for sale
1. Container semi trailer, Skeletal Semi Trailer
2. Strictly Quality Control system
3.20ft Skeletal semi trailer with attractive performance
4. OEM design for different payload
5. Heavy duty Off-road design
6. Tare weight can be designed according to your requirement.
7. Dimension can be adjusted as your request.

Company Brief Introduction:
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment. LPG tank has become the most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

BEST COMPETITIVE PRICE WITH TRUSTED QUALITY

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

We sincerely welcome you to visit our factory and provide your precious suggestion for us!
Please feel free to contact us!

DIMENSIONS
Tare Weight	4800kg	Payload	35000kg
Overall Length	6800mm	Overall Width	2480mm
SPECIFICATION
Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm; Bottom Flange 16mm,width 140mm.
Axle	2
	Brand Name: BPW. FUWA.L1
Suspension	Mechanical suspension or air suspension-upon customer's choice
Leaf Spring	13-piece leaf spring, 11x100
Floor	3mmsteel sheet
Turntable	15T turntable
Drawbar eye ring	50mmone set
Wheel Rim	8.25-22.5 wheel rim ,9 pieces
Tyre	11R22.5 tire with one spare tire, 9 pieces
Twist Lock	4 nos. of ISO twist lock for 1x20ft container
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box

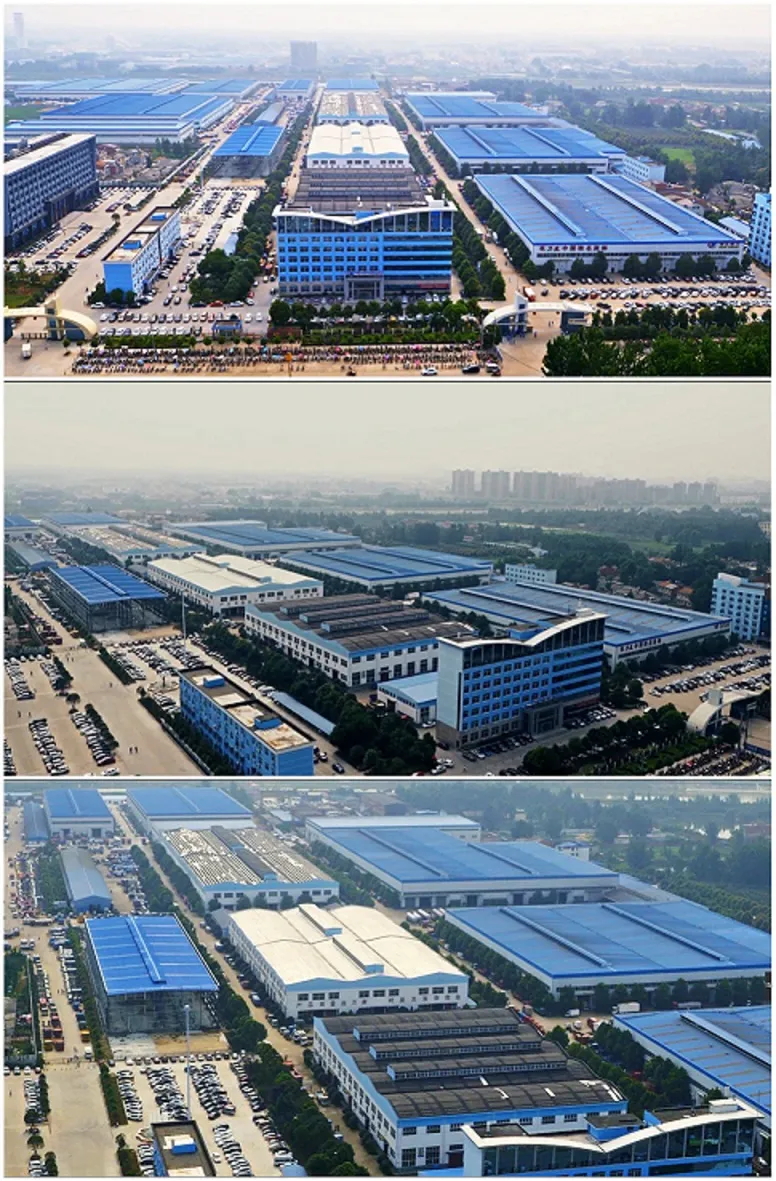

Factory:

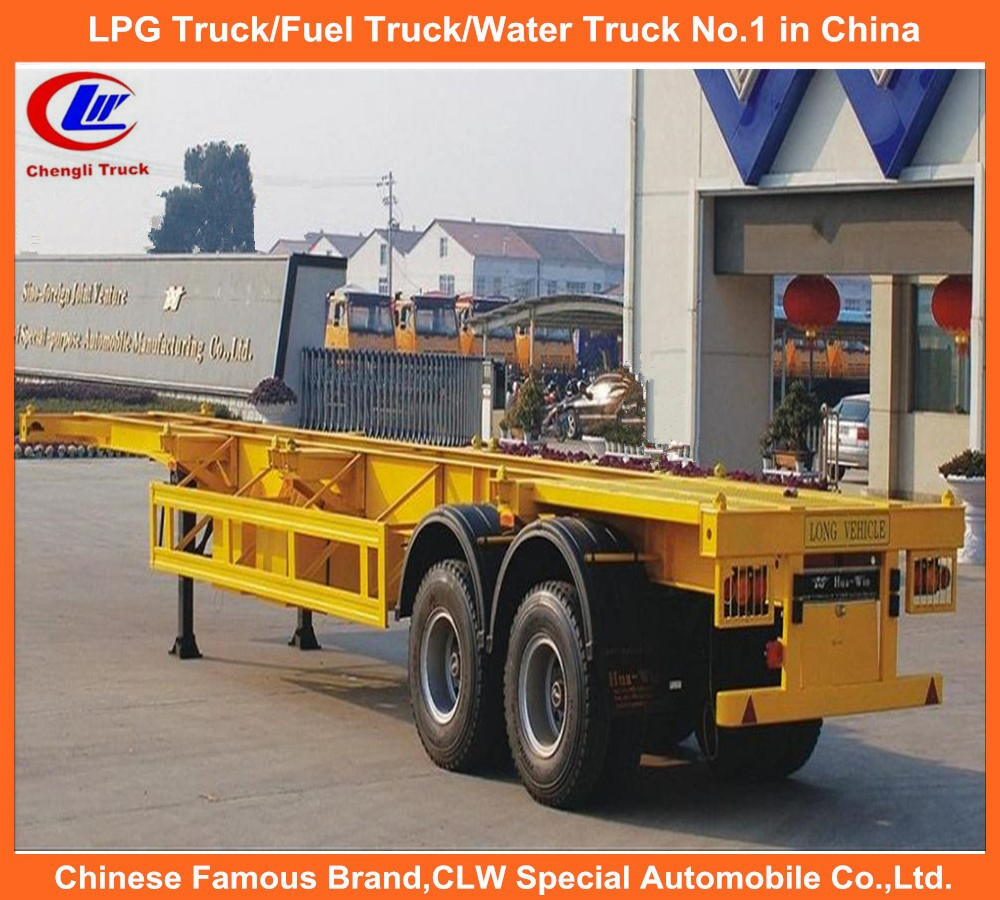

20feet Container Carrier Trailer in 2 Axles Skeletal Semi-Trailer
