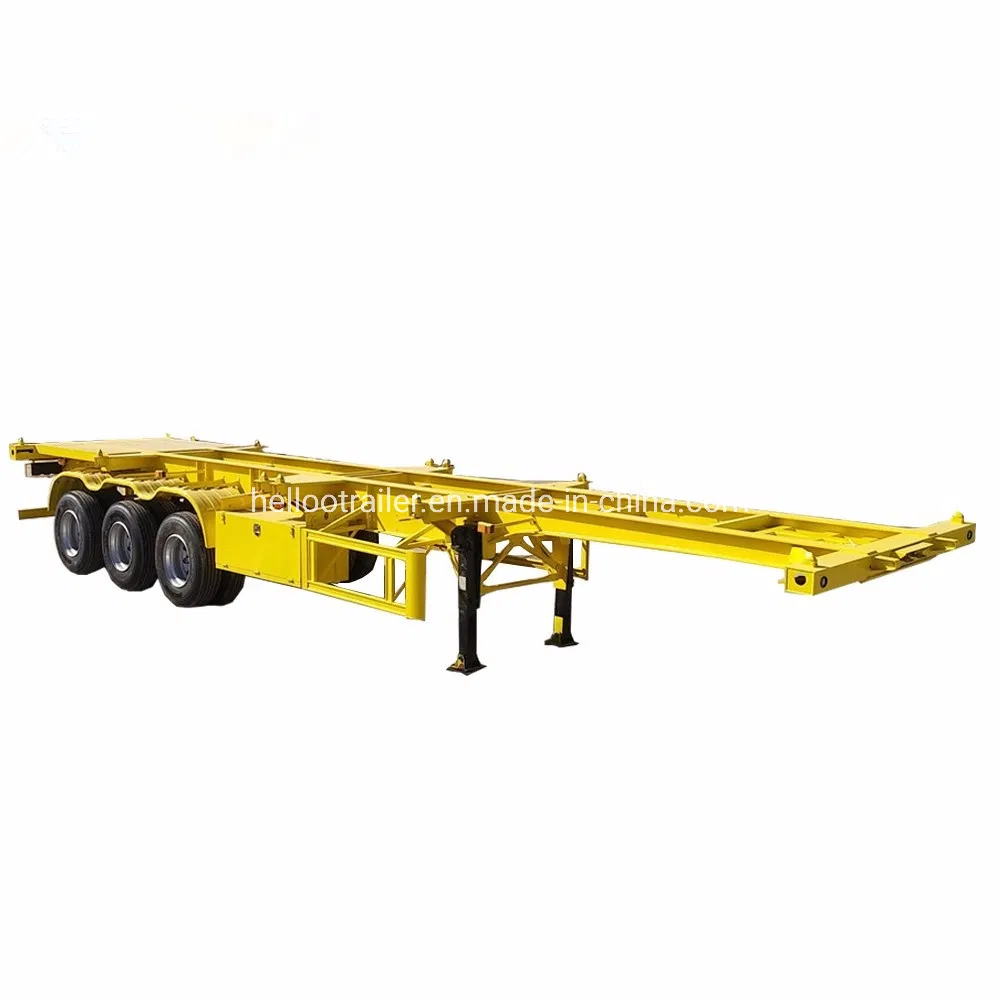

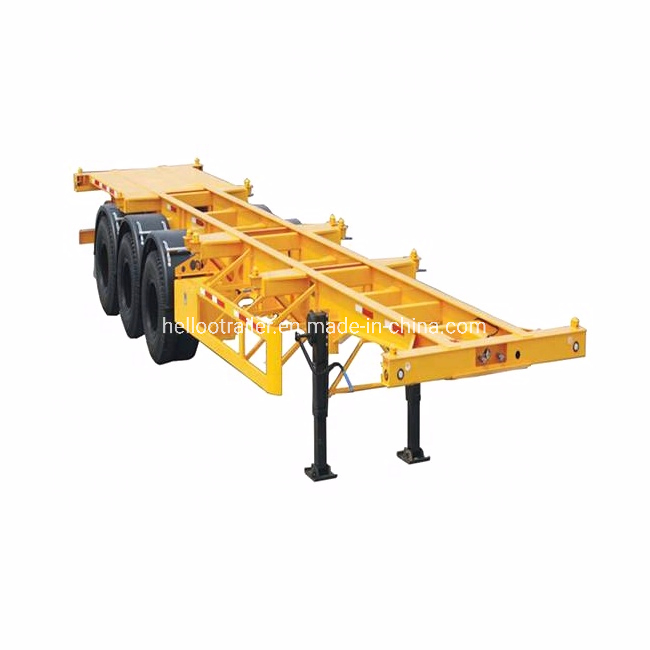

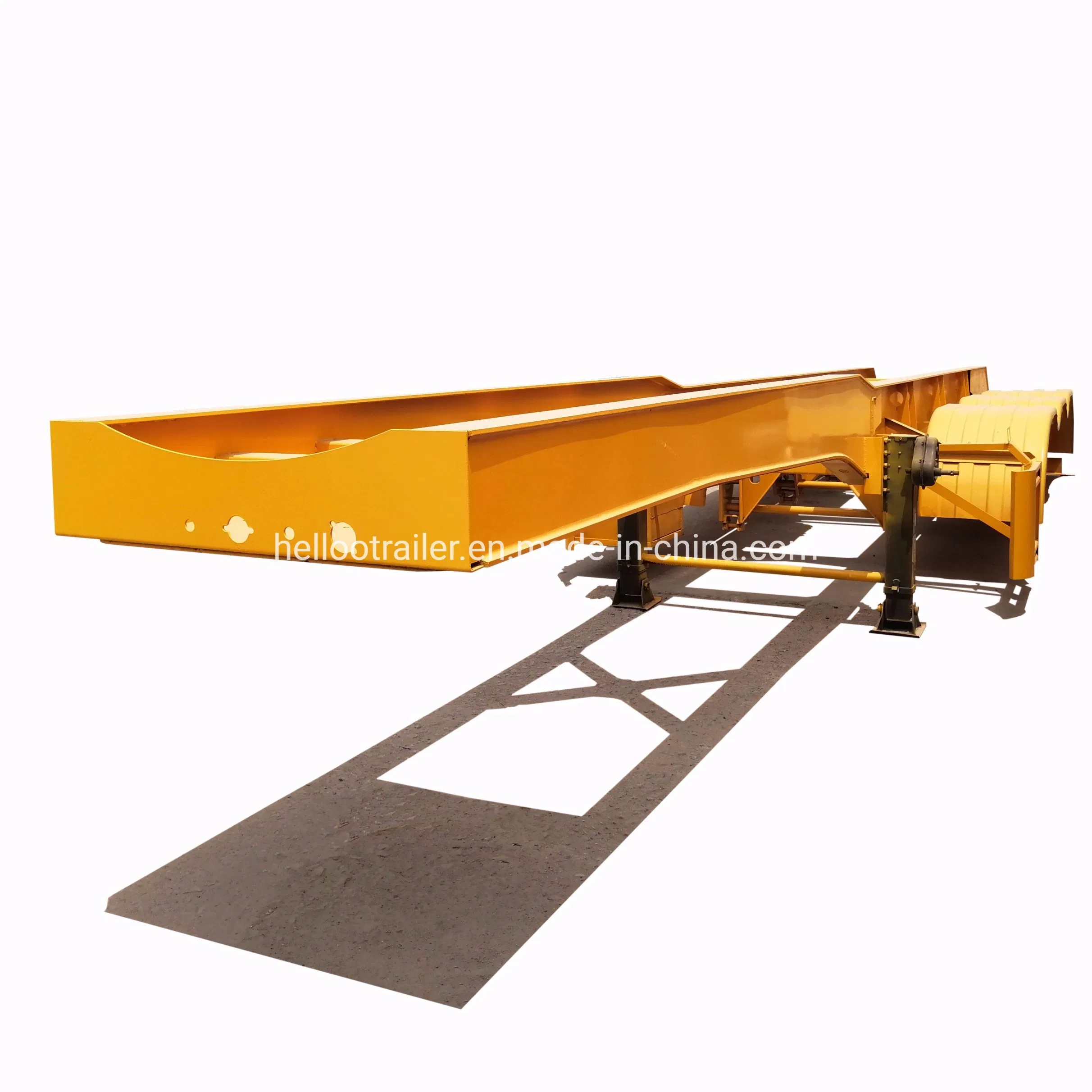

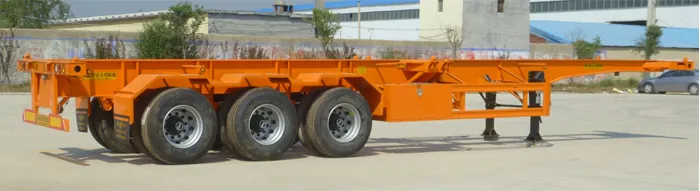

20FT 40FT 2 Axle Skeleton Container Skeletal Semi Trailer Chassis Frame
20FT 40FT 2 Axle Skeleton Container Skeletal Semi Trailer Chassis FrameProduct DescriptionSpecificationsFunction40ft container transportation Overall dimension12500x2500x1650mm or customizedContainer twist lock8 pcs Lifting type or Twist Screw Type customizedLoading weight40000kgMain beam Carbon st......
Send Inquiry
Product Description
Product Description
Specifications
| Function | 40ft container transportation |
| Overall dimension | 12500x2500x1650mm or customized |
| Container twist lock | 8 pcs Lifting type or Twist Screw Type customized |
| Loading weight | 40000kg |
| Main beam | Carbon steel Q345B.The height 500 mm, upper plate 14mm,down plate 16mm,middle plate 8mm. |
| Side beam | 16mm channel steel |
| Traction pin | 2" (50mm) or 3.5''(90mm) optional |
| Land gear | Standard 28ton |
| Axle | 13ton * 3 axle Fuwa brand |
| Spring leaf | 90mm*13mm*10pcs or 100mm*12mm*12pcs |
| suspension | Mechanical suspension / Air suspension optional |
| Rim | 9.00-22.5 12pcs |
| Tire | Tubeless tire12R22.5/ Steel radial tire11.00R20 or 315/80r22.5 |
| Tire quantity | 12 units |
| platform thickness | |
| valve | WABCO RE 6 relay valve |
| Brake Chamber | T30/30+T30 Spring brake chamber,one piece of 45L air tanks |
| Tool box | 1 unit 1m*0.5m*0.5m |
| Spare wheel carrier | 2 units |
| Marker lamp | LED type |
| Voltage | 24V |
| Receptacle | 7ways (7 wire harness) |

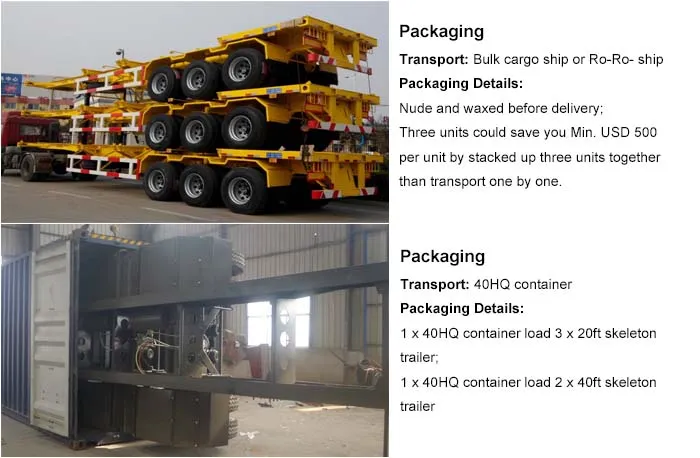

Packaging & Shipping
1.Flat rack ----bulk cement trailer
2 By container
Ship time :30 days after get the 30% deposit
Packaging: Nude or acoording to customers' demand
Our Service:
1. Quality Inspection of Helloo Truck:
Before truck delivery, we can supply inspection certificate issued by 3rd party, such as BV, Intertek, etc.
2. Spare Parts of Helloo Truck:
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
3. Warranty of Helloo Truck:
One year's free warranty for major 3 components, including Engine, Gearbox, Axles.
4. After Sales Service of Helloo Truck:
Email & Phone call tracking for each truck on timely manners, also possible engineer
maintenace in customer's Country.

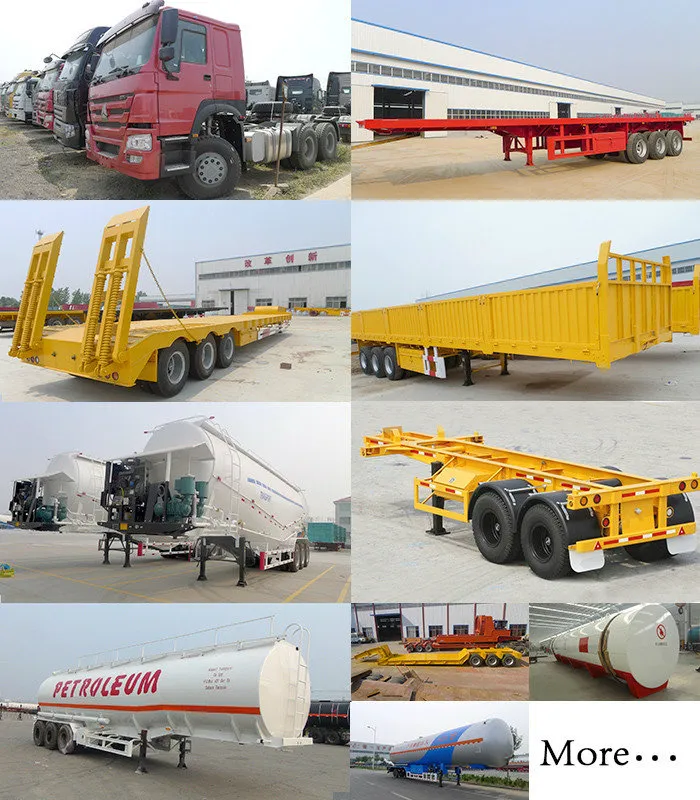

Our main products:
