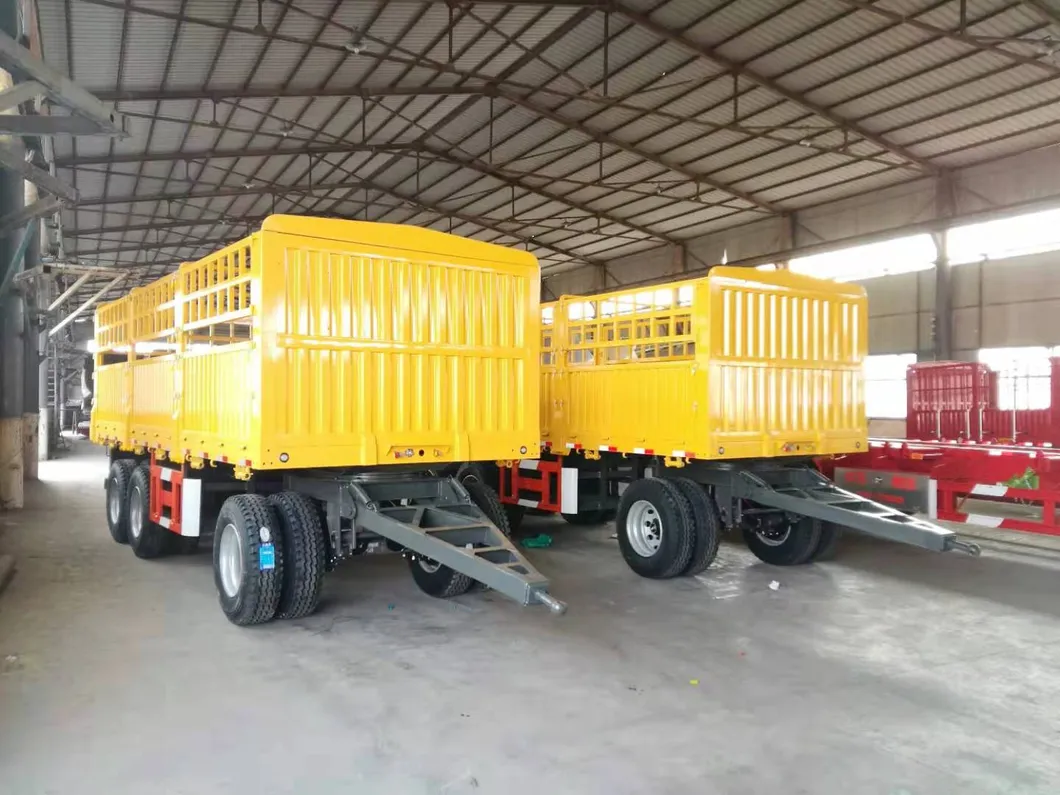

2axle/3 Axle Fence Semi Trailer Cargo Fence Full Trailer
1.product picture2.product parameter full semi trailer FunctionContainer transporting (1x40ft;2x20ft)Overall demension13800x2500x1550mmLoading capacity50tonMain beam(material :Q345)Beam height :500mmUpper plate:14mmDown plate:16mmMiddle plate:8mmSide beam16# U shaped steelTowbar length1800mm from t......
Send Inquiry
Product Description

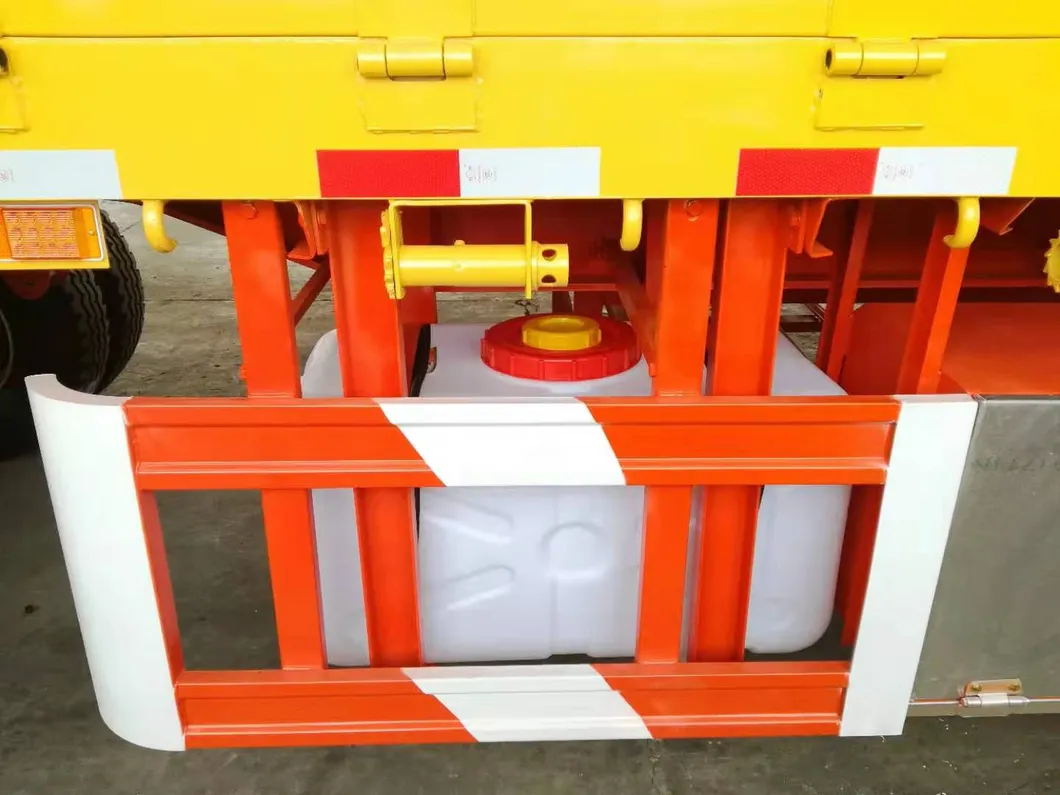

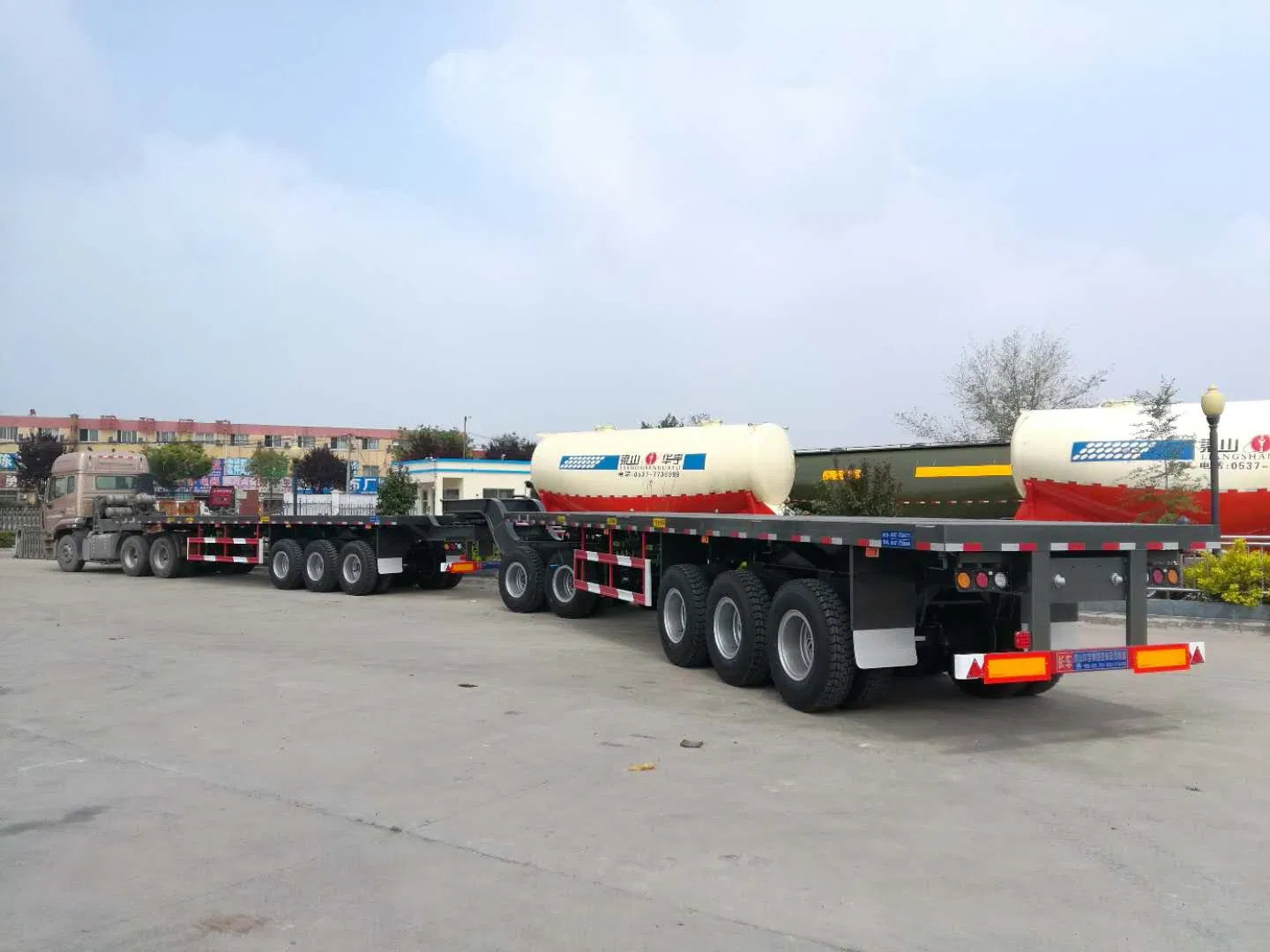

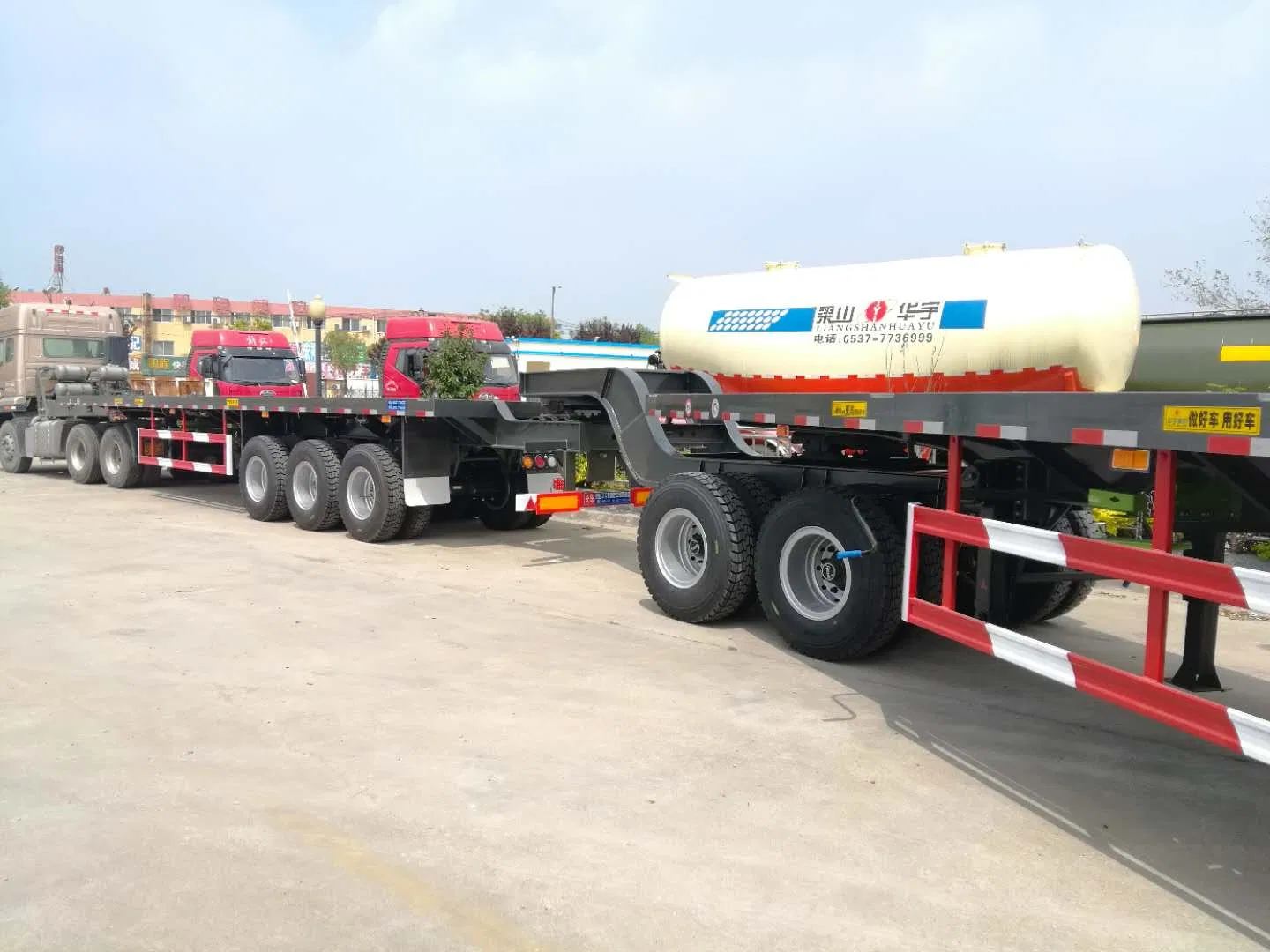

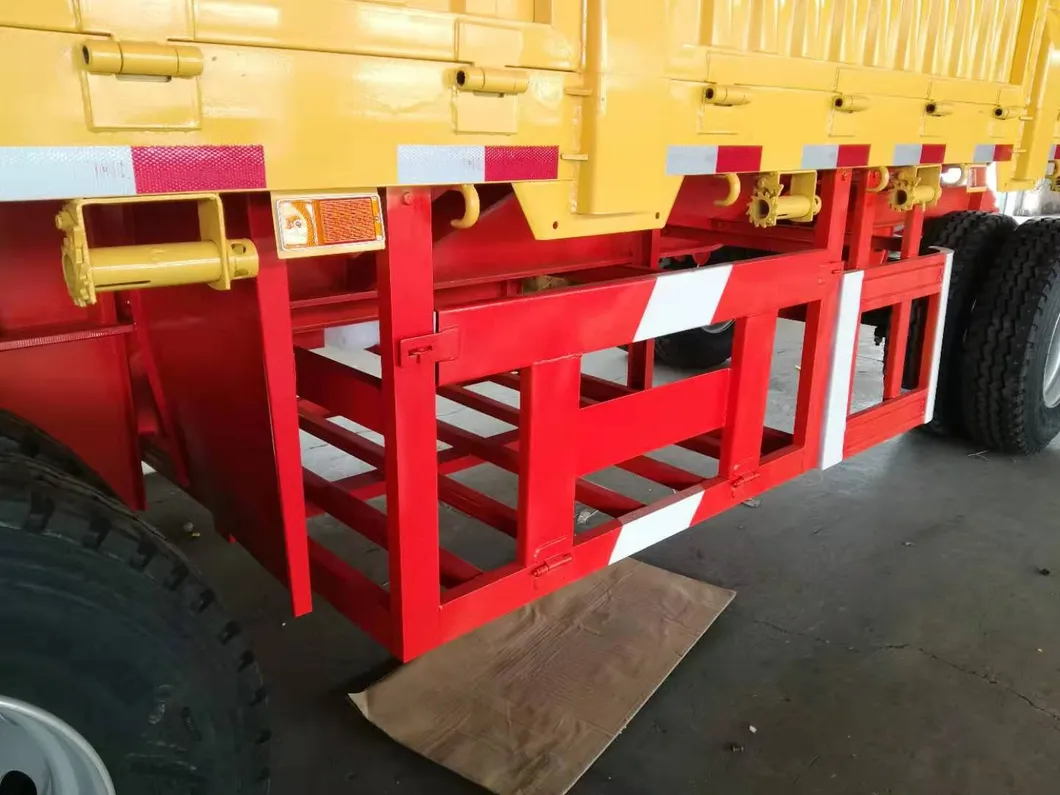

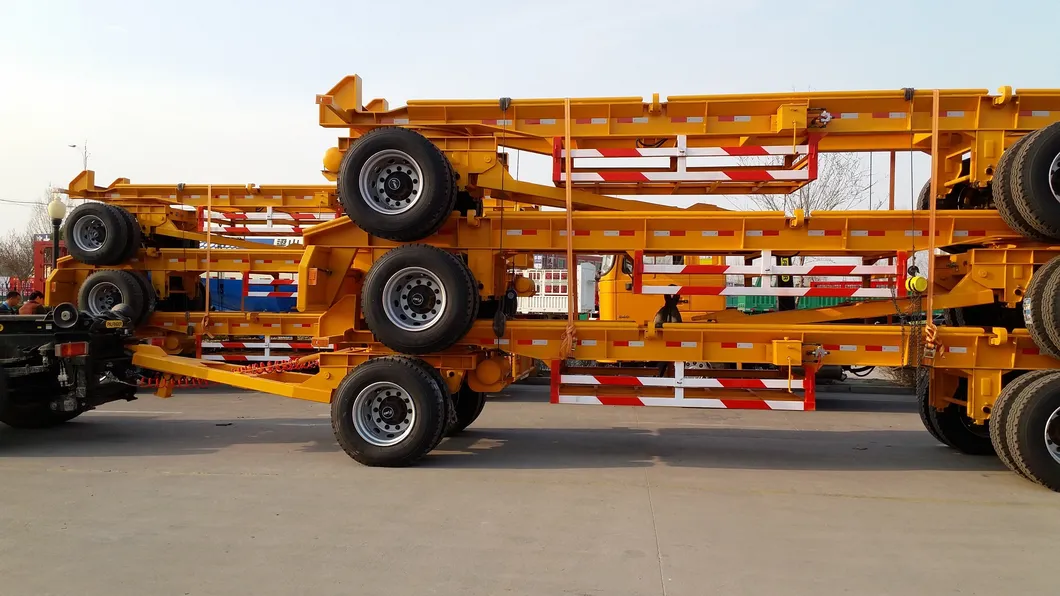

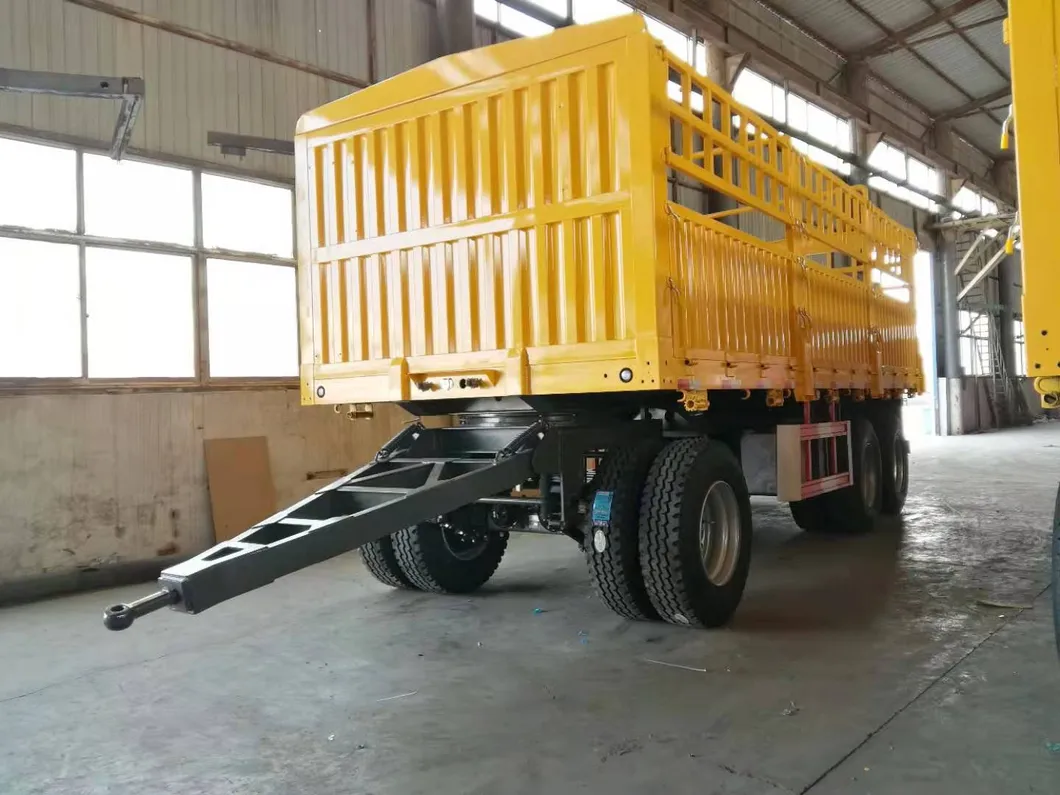

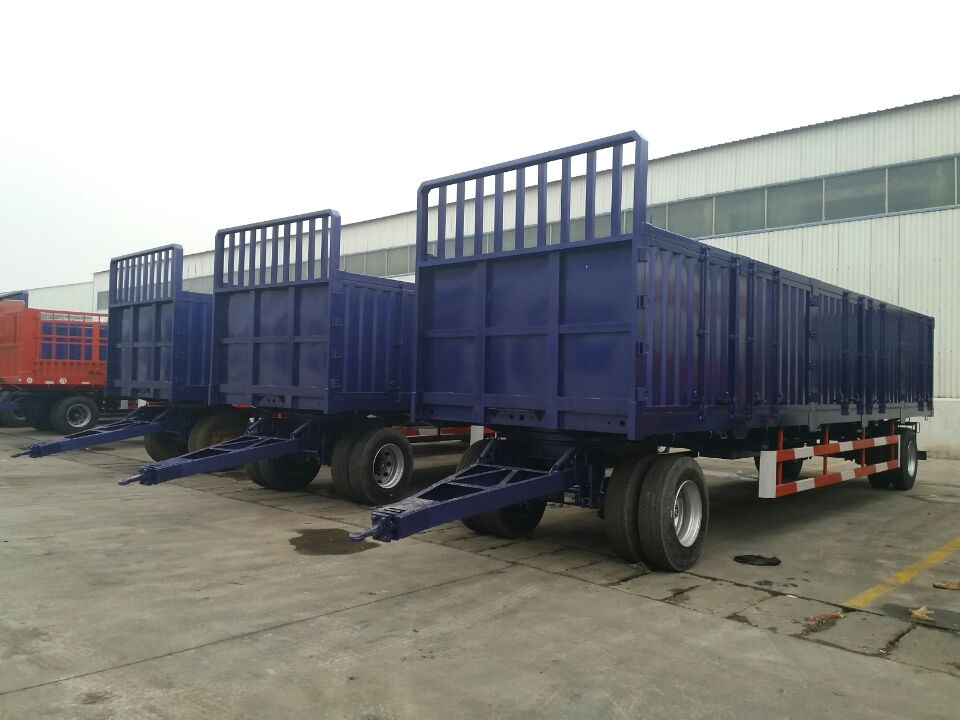

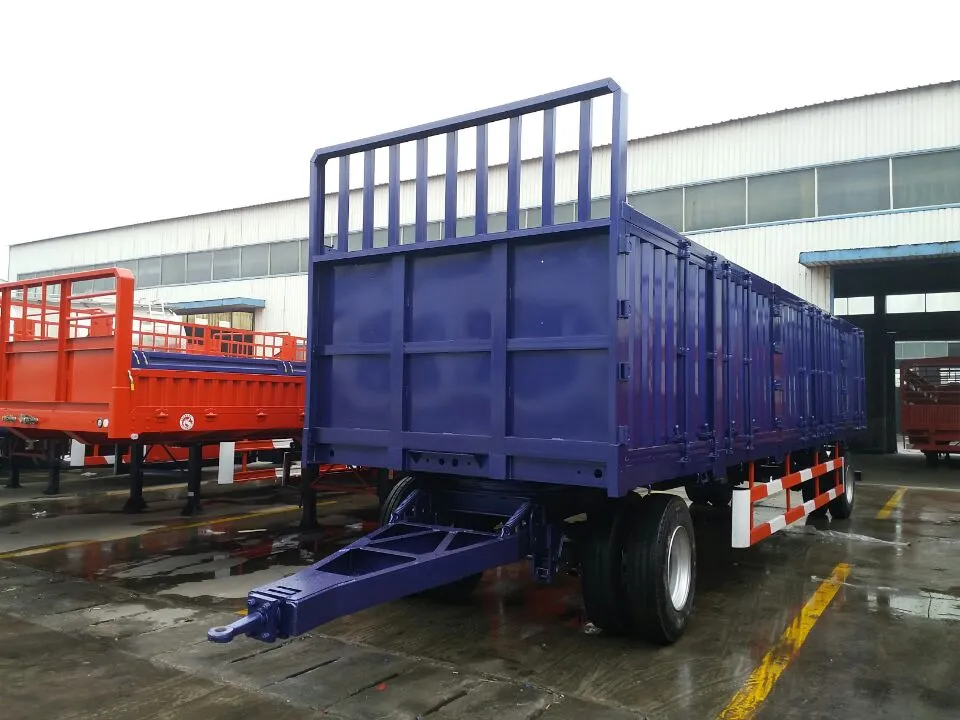

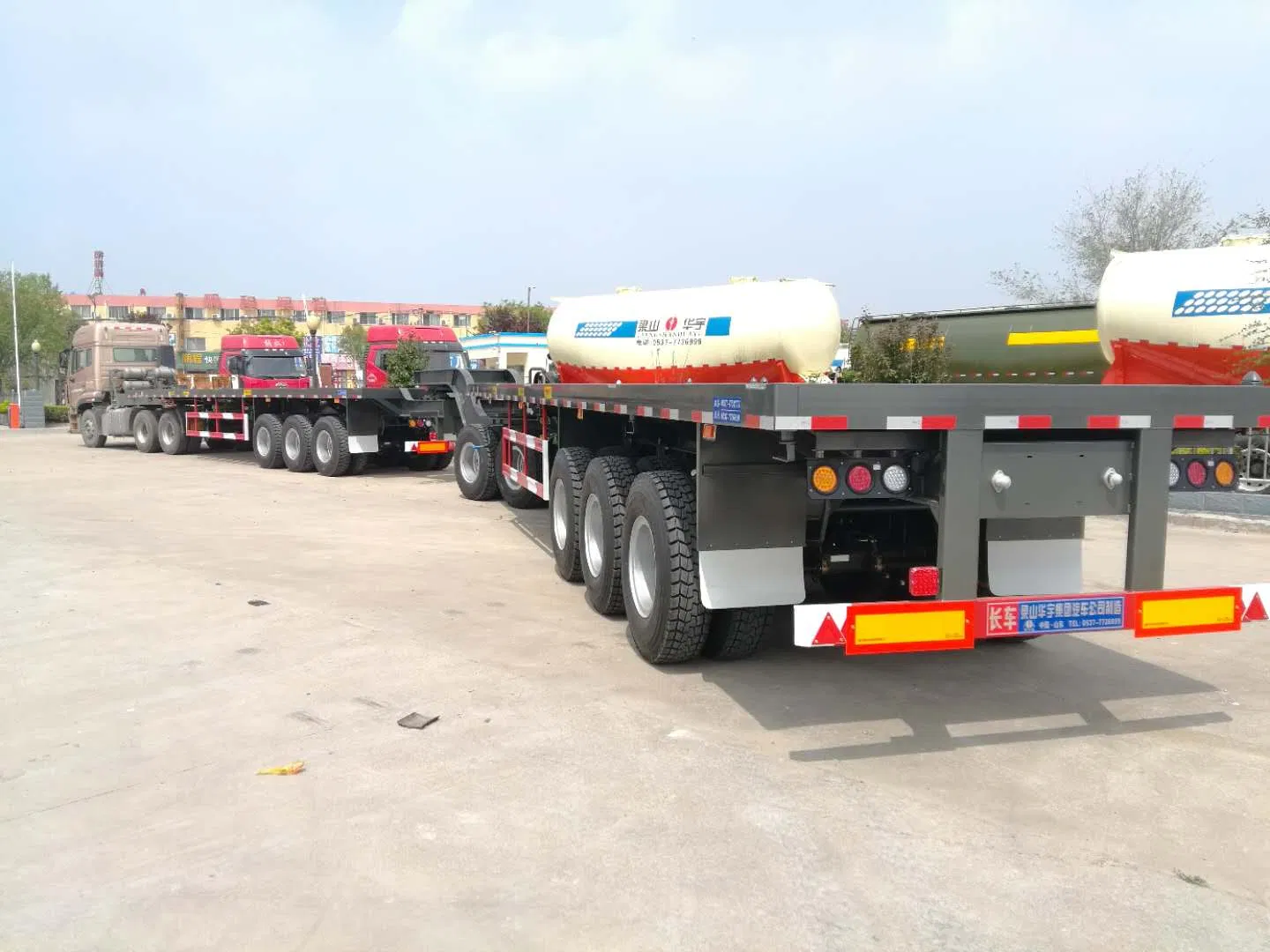

1.product picture
2.product parameter
BRIEF DESCRIPTION
the normal produce process is very important.it can be influence the quality-durable years of the product .even the customer confidence to our product.
3.NORMAL PROCEDURE
1)cutting
use the plasma cutting machine cut the steel to little parts use for suitable welding and splicing
2)welding
after steel cutting process the next step is welding .this process the main work is beam welding .the top plate-bottom plate and the
middle plate will be welding together . this process will be use submerged arc welding process.this type of welding is very
special .its exclusively used in I beam welding .after this welding process other parts of the trailer will be use different welding way
for different steel-argon arc welding-electric arc welding-manual welding-gas welding and so on
3)blasting
this process is use for the first step of surface cleanness-stress relief-derusting before paiting .
4)electrophoresis coating
this process use for more detail surface cleanness
5)epoxy zinc primer spray coating
this process is the lasting one before paiting .after this process the trailer an be paiting
6)assembly
after all the process we have mationed .the last procedure of the trailer is assembly.this process all the parts will be assemly .it including tire-wheel rim-king pin-landing gear-suspension-spring leaf -brake chamber-air wiring-electricity wiring-brake system and so on
7)packing
The last process is packing .all the trailer use different packing way as customer requirment.after packing the trailer can be on the way to the customer
4.PRODUCT DETAILS
1)if welding line should be beautiful and strong.this process will be checking by the quality inspector of factory
2)surface should be clean and looks beautiful.
3)brake system should be adjust before the product leave the factory
4)lamp should my checking before leave the factory
5)all the parts should be reinforce .especially the bolt shoule be more reinforce before the produce leave the factory
5.HISTORY OF MY GREAT WOMEN BOSS!
1)civil servant worker before the year of 1990.
2.laid-off workers after the year of 1990
3)steel business after the year of 1990
4)build semi trailer factory after the year of 2000
5)peoples congress (NPC member) in the year of 2005
6)export business after the year of 2008 and NPC member .in the meantime meet the chainman Jinping Xi
6.INTERNATIONAL MARKET
1)china market before the year of 2005.we can produce about 12000 pcs one year
2)in the year of 2008 we do the national business .untill now we can export 4000pcs semi trailer one year
3)south africa exhibation in the year 2010
4)russia truck and trailer parts exhibation in the year 2012
5.germany auto trailer parts exhibation in the year of 2015
6)america trailer parts exhibation in the year 2014
7.FAQ
1)why you will select huayu trailer ?
because we pay more attention to our customer requirment.we produce as the customer requirment completely
2)what superiority huayu trailer have ?
good quality-good after-sales service-good cost performance.we are not the best but we will do our best to service for you
3)what product huayu can supply?
big trailer company not only have superiority product .our product is diversity
4)if my product have quality problem .will you worker can come to my country solve problem?
i just want to say :if you need just one call to me !
5)how i trust you ?
very sample !come to my factory just have a look !i resposible for you air ticket charge .what you only need to do is :
dont forget you passort!
2.product parameter
| full semi trailer | |
| Function | Container transporting (1x40ft;2x20ft) |
| Overall demension | 13800x2500x1550mm |
| Loading capacity | 50ton |
Main beam (material :Q345) | Beam height :500mm Upper plate:14mm Down plate:16mm Middle plate:8mm |
| Side beam | 16# U shaped steel |
| Towbar length | 1800mm from the front of towbar to the platform of trailer |
| Turnplate | Mechanical |
| Axle | Fuwa/bpw/hj/L1/yuek 3x13ton the brand can be optional |
| Suspension type | Mechanical normal suspension |
| Leaf spring | 10/10/10 (10X90X13mm) |
| Tire | Triangle/double star/chengshan/double coin/chaoyang 12R22.5 16PR 12pcs optional |
| Wheel rim | 9.0-22.5 12pcs |
| Twist lock | 12 pcs use for 1X40ft ;2x20ft container transport |
| Plateform thickness | 3mm checkered plate |
| Brake chamber | 4 double 2 single |
| Tool box | One |
| Spare tire carrier | 2 pcs |
| Side marker lamp | LED lamp |
| Electrical system | Chinese stand 24v |
| Air line | Double air line |
| Receptacle | 7 ways(7 wires harnesses) |
| Marking | As Customer requirment |
| Accessories | Head wrech ;spare wheel crank |
BRIEF DESCRIPTION
the normal produce process is very important.it can be influence the quality-durable years of the product .even the customer confidence to our product.
3.NORMAL PROCEDURE
1)cutting
use the plasma cutting machine cut the steel to little parts use for suitable welding and splicing
2)welding
after steel cutting process the next step is welding .this process the main work is beam welding .the top plate-bottom plate and the
middle plate will be welding together . this process will be use submerged arc welding process.this type of welding is very
special .its exclusively used in I beam welding .after this welding process other parts of the trailer will be use different welding way
for different steel-argon arc welding-electric arc welding-manual welding-gas welding and so on
3)blasting
this process is use for the first step of surface cleanness-stress relief-derusting before paiting .
4)electrophoresis coating
this process use for more detail surface cleanness
5)epoxy zinc primer spray coating
this process is the lasting one before paiting .after this process the trailer an be paiting
6)assembly
after all the process we have mationed .the last procedure of the trailer is assembly.this process all the parts will be assemly .it including tire-wheel rim-king pin-landing gear-suspension-spring leaf -brake chamber-air wiring-electricity wiring-brake system and so on
7)packing
The last process is packing .all the trailer use different packing way as customer requirment.after packing the trailer can be on the way to the customer
4.PRODUCT DETAILS
1)if welding line should be beautiful and strong.this process will be checking by the quality inspector of factory
2)surface should be clean and looks beautiful.
3)brake system should be adjust before the product leave the factory
4)lamp should my checking before leave the factory
5)all the parts should be reinforce .especially the bolt shoule be more reinforce before the produce leave the factory
5.HISTORY OF MY GREAT WOMEN BOSS!
1)civil servant worker before the year of 1990.
2.laid-off workers after the year of 1990
3)steel business after the year of 1990
4)build semi trailer factory after the year of 2000
5)peoples congress (NPC member) in the year of 2005
6)export business after the year of 2008 and NPC member .in the meantime meet the chainman Jinping Xi
6.INTERNATIONAL MARKET
1)china market before the year of 2005.we can produce about 12000 pcs one year
2)in the year of 2008 we do the national business .untill now we can export 4000pcs semi trailer one year
3)south africa exhibation in the year 2010
4)russia truck and trailer parts exhibation in the year 2012
5.germany auto trailer parts exhibation in the year of 2015
6)america trailer parts exhibation in the year 2014
7.FAQ
1)why you will select huayu trailer ?
because we pay more attention to our customer requirment.we produce as the customer requirment completely
2)what superiority huayu trailer have ?
good quality-good after-sales service-good cost performance.we are not the best but we will do our best to service for you
3)what product huayu can supply?
big trailer company not only have superiority product .our product is diversity
4)if my product have quality problem .will you worker can come to my country solve problem?
i just want to say :if you need just one call to me !
5)how i trust you ?
very sample !come to my factory just have a look !i resposible for you air ticket charge .what you only need to do is :
dont forget you passort!
