3 Axle 40t Flatbed Dumper Trailer Truck Tipper Semi Trailer for Sale

Product Description

3 Axle 40T Flatbed Dumper Trailer Truck Tipper Semi Trailer for Sale

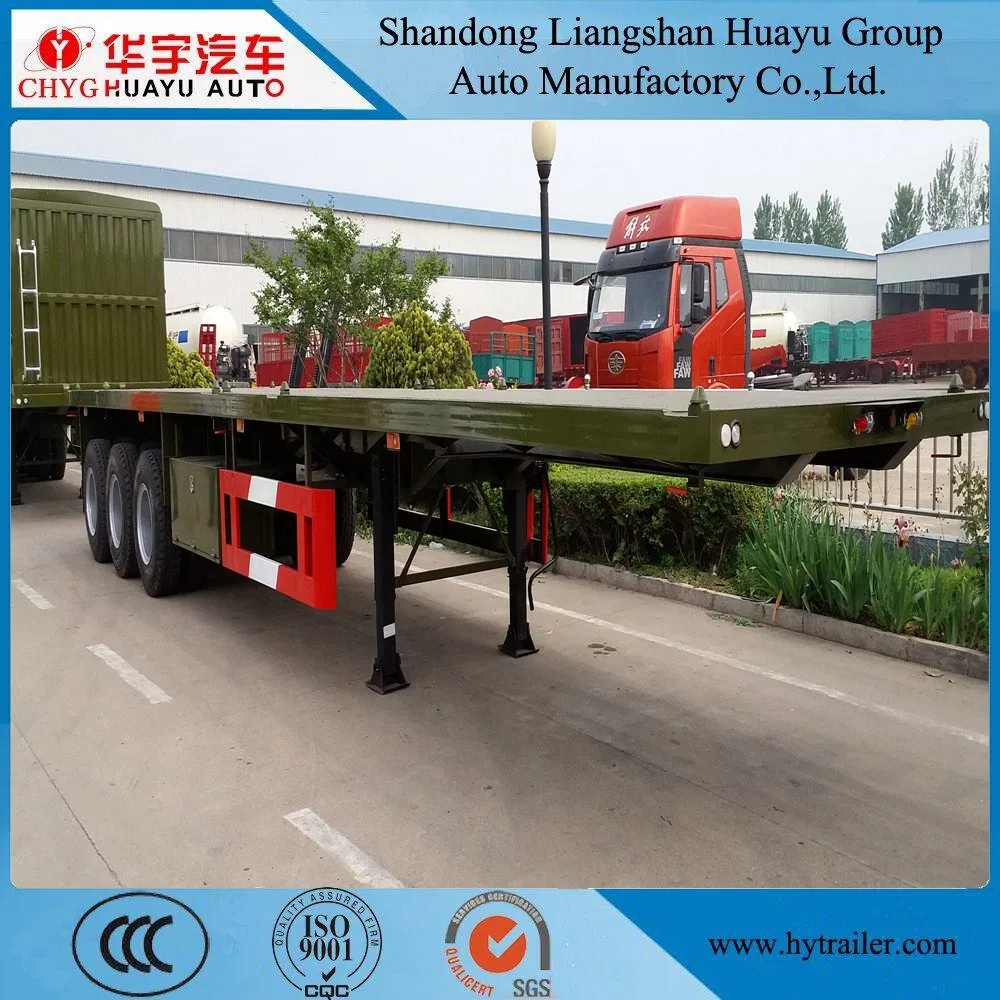

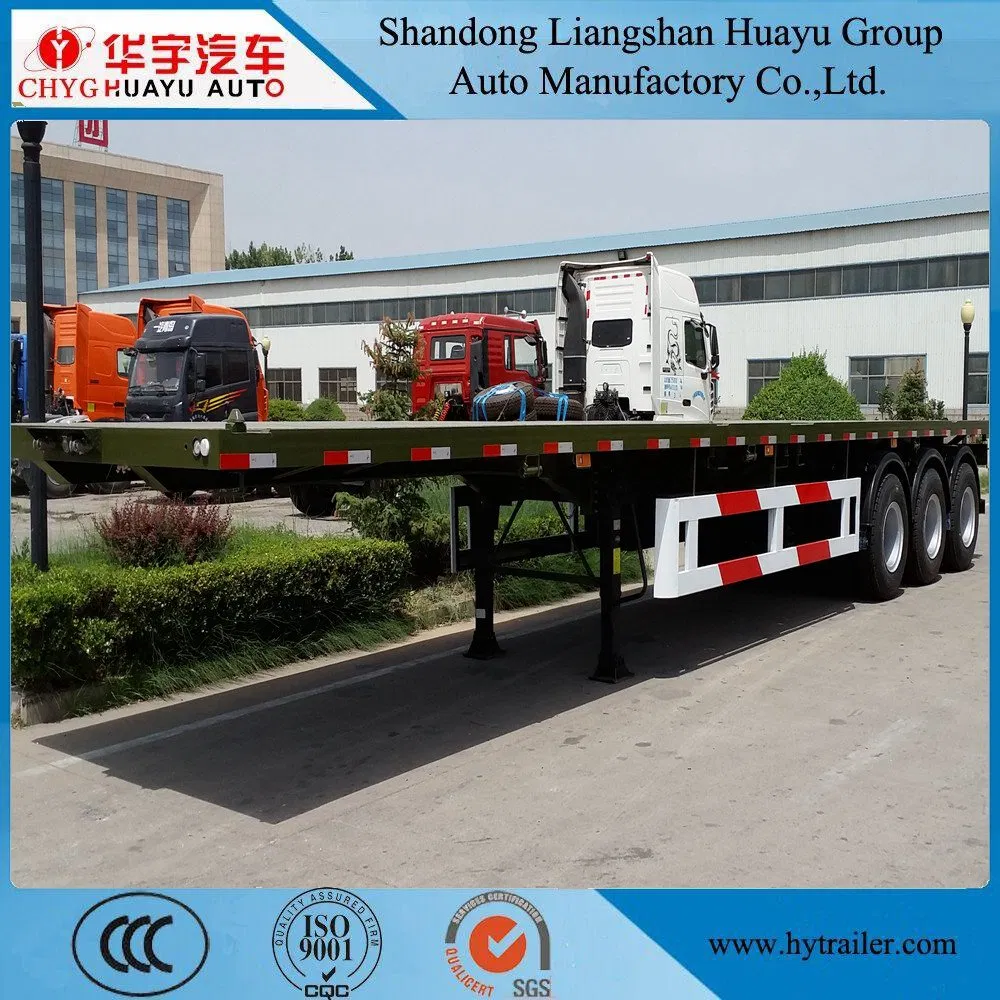

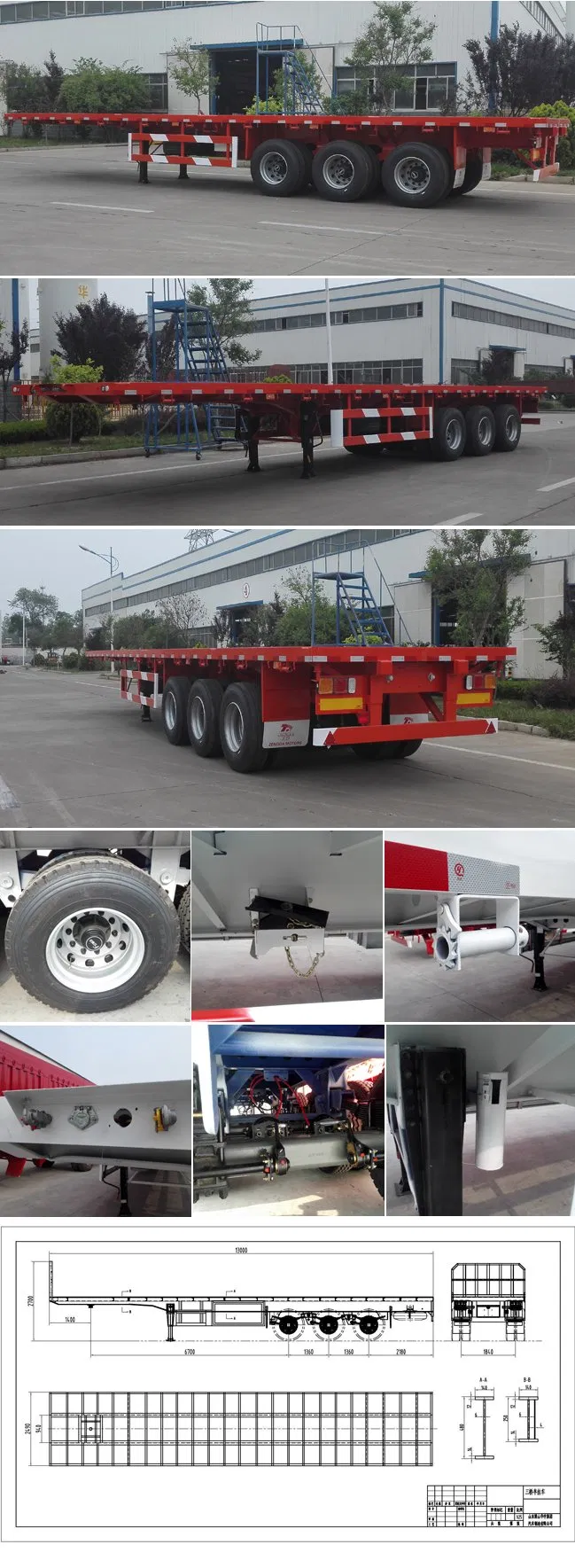

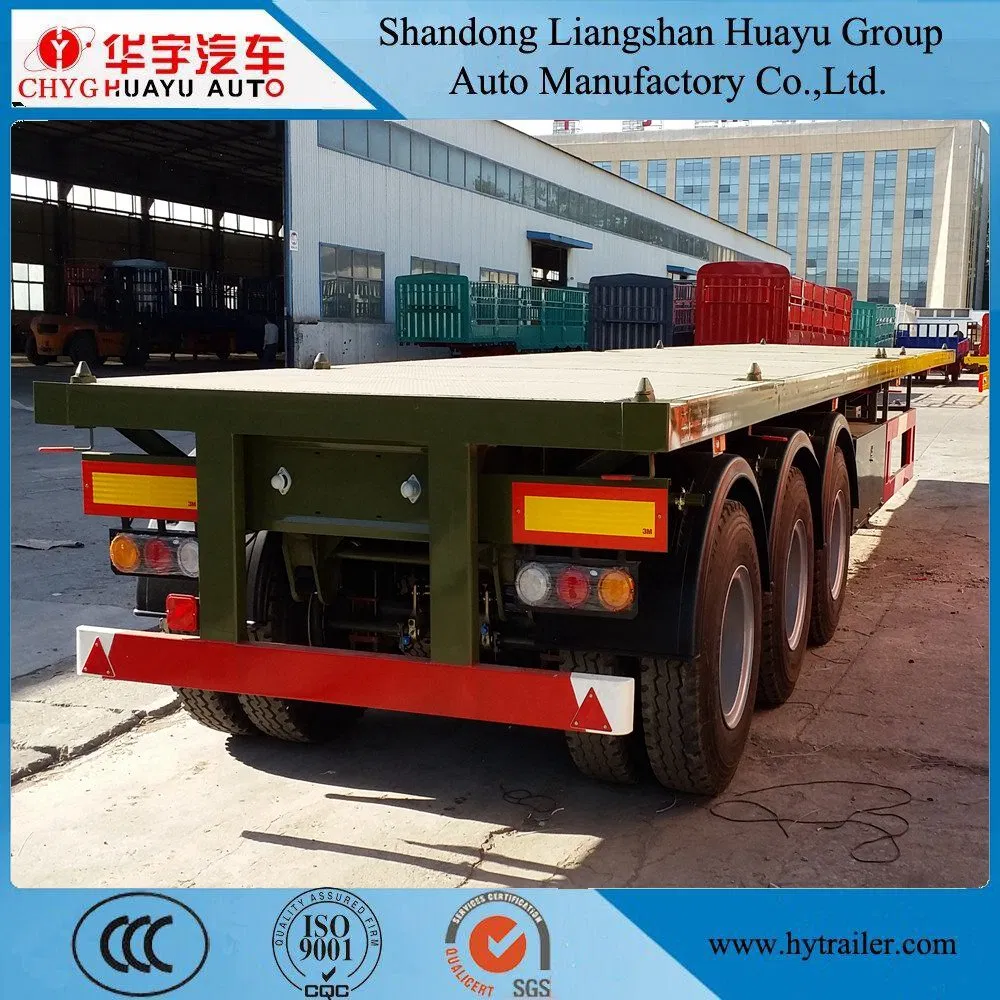

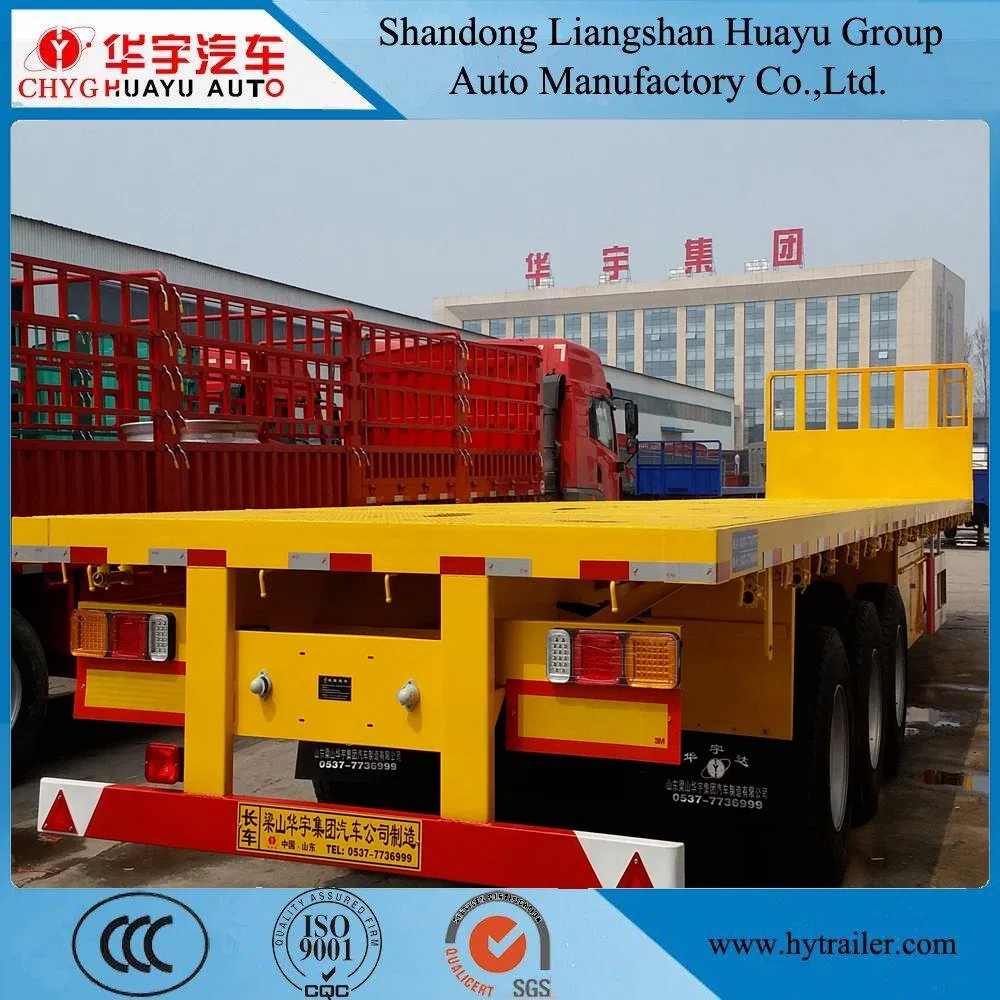

Trailer Details show:
3 Axle 40t Flatbed Dumper Trailer Truck Tipper Semi Trailer for Sale

Specifacition

Tare weight	7000kg
Size	12500mm2500mm1500mm
Payload	45T
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm
Side beam	16#/18# channel steel(Q235)
Cross member	10#/w shape channel steel(Q235)
Floor	3mm checkered plate
Side wall	No
Front board	Optional
Axle	3 axle 13T
Suspension	American type suspension
Leaf spring	10pcs13mm90mm
Tire	12R22.5 12pcs
Wheel rim	9.0-22 12pcs
Kingpin	2" bolt-in king pin
Landing gear	two-speed, manual operating ,heavy duty landing gear 28T
Twist lock	12pcs
Braking system	standard relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	No
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light
Date of delivery	20 workdays after we received 30% of contract value T/T down payment.

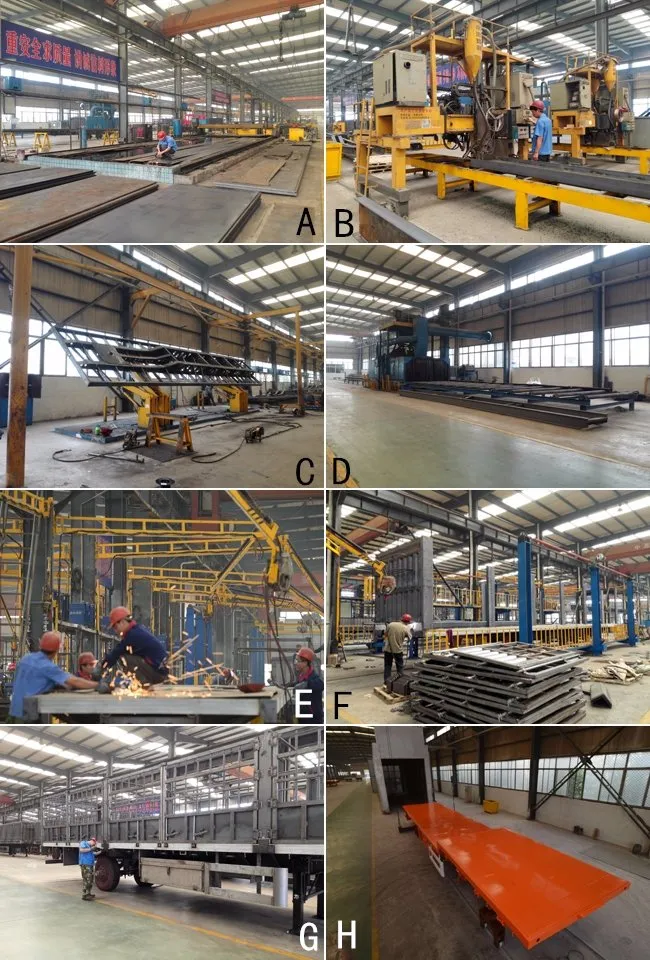

Introduction of production process
A.Steel auto cutting
B.Main beam auto submerged arc welding
C.Chassis reversal ensure every part been welding well
D.Shot blasting for rust cleaning
E.F.Welding by experienced worker
G.Final cleaning welding slag by worker
H.Dust-free painting line

Trailer advantages description
· More than 20 years professional design and production experience.
· Choose Regular manufacturers purchase materials,like Q235 baoshan.
· Use Domestic first-class production equipment.Main beam is useing Submerged arc welding process.
· Famouse brand trailer parts used,like bpw/fuwa axle,triangle/double star/double coin and so on tires.
· Strict quality control system ensure that each semi trailer is qualified.

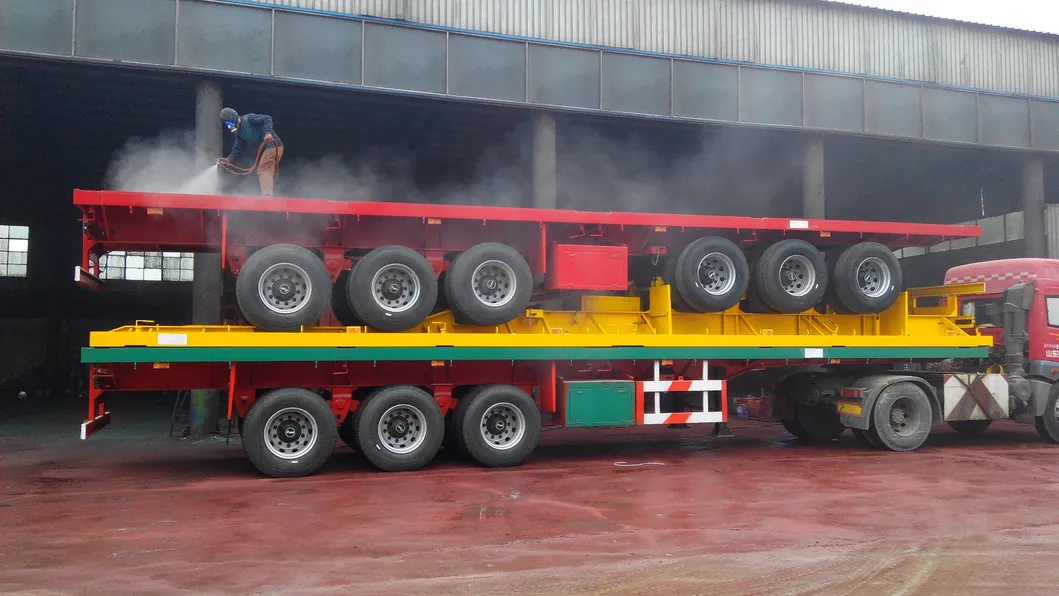

Delivery
Wax spray and one stack of 3 sets to reduce shipping fee.

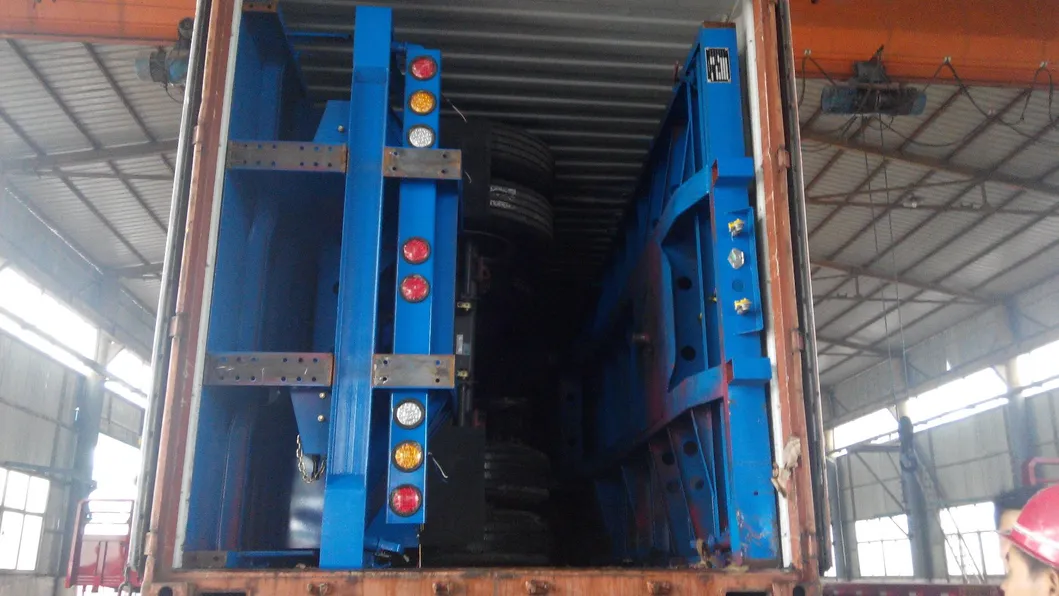

Take apart by one 40HQ to load 2 sets

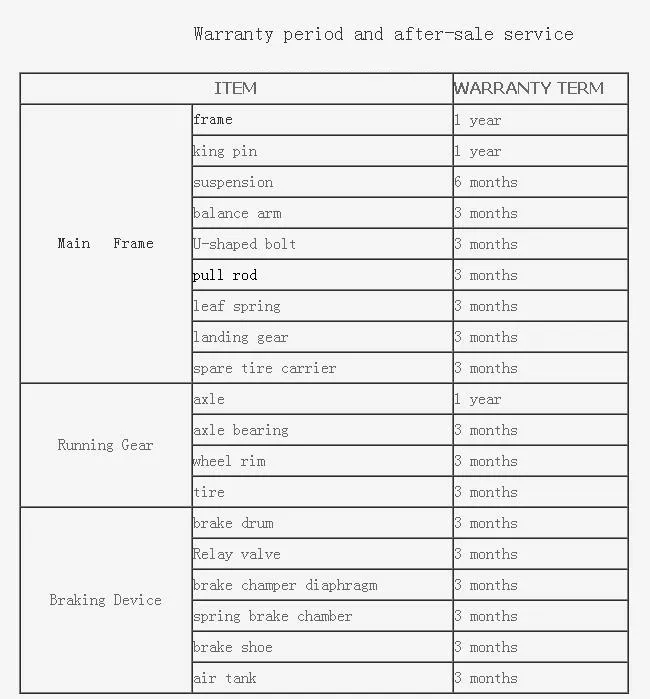

Warranty period and after sale service
3 Axle 40t Flatbed Dumper Trailer Truck Tipper Semi Trailer for Sale

FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1.30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2.40% contract value as the deposit by T/T,60% contract value made by irrevocable L / C at sight.
