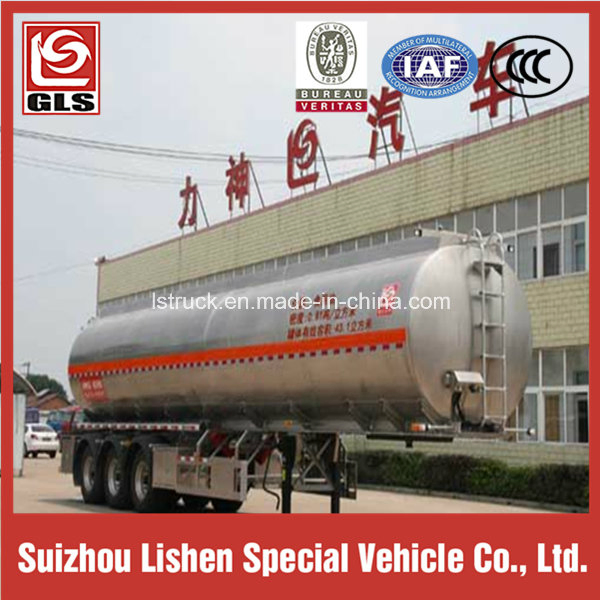

3-Axle 6 Tires 43cbm Aluminum Edible Oil Tank Semi Trailer
Tank Capacity:43000L Overall dimension:11900X2500X3800mmTank dimension:11400x2500x1950mm Product SpecificationModel NumberSLS9401GSYRated Load33300 kgTare Weight6700 kgOutside Dimensions (L x W x H)11900X2500X3800mmTank Dimension11400x2500x1950mmWheel Base6000+1320+1320mmTyre......
Send Inquiry
Product Description
Tank Capacity:43000L
Overall dimension:11900X2500X3800mm
Tank dimension:11400x2500x1950mm
Our main products:
1. Oil Tank Truck
2. Refueling Truck
3.Water Tank Truck/ Water Sprinkler Truck
4.Sewage Suction Truck
5. Sanitation Truck
6.Fuel Tank Semi Trailer
7.Oilfield Truck
8. Chemical Liquid Tank Truck
9. Cement Powder Tank truck/ Bulk cement truck
10. Flatbed Trailer
11. Container Semi Trailer
12. Self-loading Garbage Truck, Garbage Compactor Truck, Sealed Garbage Truck
Contact information
Suizhou Lishen Special Vehicle Co., Ltd.
Address: No. 348 jiefang Road, Liushutang Industry Park, Suizhou, Hubei, China
Tel:+86-0722-3818898 Fax:+86-0722-3813333
Mobile:+86-13997856000(Edison) +86-15797178385(Cindy)
Overall dimension:11900X2500X3800mm
Tank dimension:11400x2500x1950mm
| Product Specification | |
| Model Number | SLS9401GSY |
| Rated Load | 33300 kg |
| Tare Weight | 6700 kg |
| Outside Dimensions (L x W x H) | 11900X2500X3800mm |
| Tank Dimension | 11400x2500x1950mm |
| Wheel Base | 6000+1320+1320mm |
| Tyre Specifications | 425/65R22.5 |
| Tyre No. | 6 |
| Axle Brand | FUWA (BPW optional) |
| Axles No. | 3 |
| King Pin | 50#/90# |
| Landing Leg | 31ton |
| Pieces of leaf-spring | 8 |
| Suspension | Air suspension |
| Departure Angle | 18 |
| Front/Rear Overhang | 1560/1760 |
| Material of the Main Beam | Carbon steel |
| Brake System | Dual line braking system/ABS |
| Brake Air Chamber | Six double chamber |
| Electrical | 24V 7 ways(7 wire harness) |
