3-Axle 61.9 Cbm Propane Trailer LPG Tanker Trailer for Sale
61.9 cbm 60cbm Tri-Axle Propane LPG Gas Transport Tanker Semi Trailer LPG semi-trailer is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 1......
Send Inquiry
Product Description
61.9 cbm 60cbm Tri-Axle Propane LPG Gas Transport Tanker Semi Trailer
LPG semi-trailer is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
1)Designing pressure: 1.77MPa Designing temperature: -20C-50C
2)The various types LPG semi-trailer is researched and manufactured by stress analysis design and has obvious advantage of large capacity. Light weight and high efficiency.
3)We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding seam pass the examination of level one radiographic test.
4)There are domestic or imported safety accessories with high quality, its matching is complete.
5)The anticorrosion coating of LPG tanker adopt the following process, sandblast, spray painting, purging and so on
More detailed
Packing & Shipping

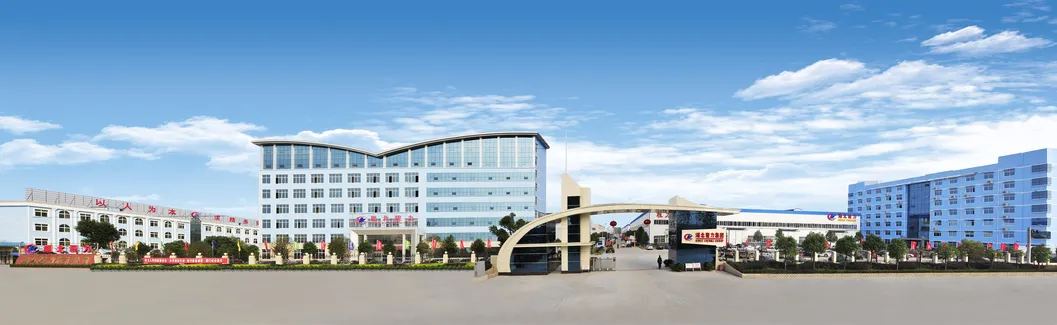

Company Information
ChengLi Special Automobile Co., Ltd., which is appointed by Ministry of Industry and Information Technology of China, We are a Professional manufacturer and exporter which is concerned with the design, development and production of more than 800 kinds of trucks.
Our company cooperates with famous chassis manufacturer, such as DONGFENG, FAW,SINOTRUK, JAC, SHACMAN, FOTON and etc.
Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place.They mainly from below country:Angola,Algeria,Kenya,Nigeria,Rwanda,Sudan,Zambia,Libya,Congo, Indonesia, Malaysia, Philippines,Vietnam,Turkey,Yemen,Syria.
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
13. Pressure Vessel
Customized Truck & Trailer Solutions to Meet Your Requirements
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Company Information Customer Visiting
Our warranty
1, one year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3, Regularly callback to know the vehicle's working status.
4, The overseas engineers are always ready to deal with unexpected needs.
Other services:
1. All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
FAQ
1. Payment terms: 30% deposit by T/T, 70% balance by T/T before shipment.
2. Delivery: 35days after deposit.
3. Delivery Method: shipped by 20GP container
Contact Us
Ms. Janie Chen
Sales Representative
Chengli Special Automobile Co., Ltd
Factory: Chengli Automobile Industry Park,Suizhou, Hubei, China
Office: Room 3102, 7th Building, No. 299 Huaihai Road, Wuhan, China
Tel&Fax: +86-27-83796298,
Mobile: +86-18771991406
Web: http://cltruck.en.made-in-china.com
we sincerely welcome you to visit our factory and provide your precious suggestion for us!
LPG semi-trailer is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
1)Designing pressure: 1.77MPa Designing temperature: -20C-50C
2)The various types LPG semi-trailer is researched and manufactured by stress analysis design and has obvious advantage of large capacity. Light weight and high efficiency.
3)We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding seam pass the examination of level one radiographic test.
4)There are domestic or imported safety accessories with high quality, its matching is complete.
5)The anticorrosion coating of LPG tanker adopt the following process, sandblast, spray painting, purging and so on
Main Dimensions | |
| Overall Dimensions | 13590X2550X4000mm(L×W×H) |
| Volume | 61.9cbm |
| Wheel Base | 7010+1310+1310mm |
| GVW. | 40000KGS |
| Curb Weight | 14000KGS |
| Tank Body | |
| Capacity | 61.9CBM |
| Shape | Ellipsoid |
| Design pressure | 1.61MPa |
| Design temperature | 50ºC |
| Filling medium | Liquefied Petroleum Gas |
| Medium density | 420~590kg/m³ |
| Tank material | Q420R |
| Corrosion allowance | 1.0mm |
| Hydraulic test pressure | 2.10MPa |
| Gas tight test pressure | 1.77MPa |
| Shell thickness | 10.mm |
| End plate thickness | 10.mm |
| Vessel sort | III |
| Service life | 10 years |
| Trailer | |
| Main Beams | Special design Q420R carbon steel I beam |
| Axle | 3 axles |
| 13 Ton BPW | |
| Axle load | 39000kg |
| Landing gear | JOST leg |
| King Pin | JOST 2" bolt-in king pin, 90# |
| Suspension | Leaf Spring Suspension Optional: BPW brand Air bag suspension |
| Tire | 12R22.5 Tubeless tire |
| Tire No. | 12 PCS +1 spare |
| ABS System | 1 set |

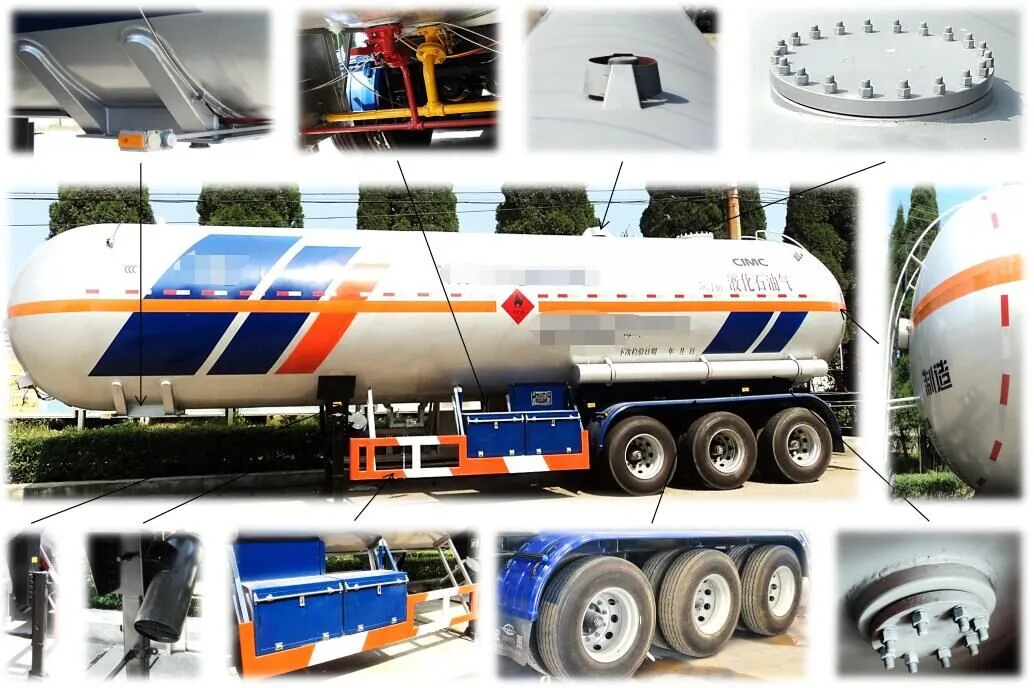

| Standard Configuration | Single fluid, double side loading and unloading, double valve box, double toolbox, relief valve, thermometer, pressure gauge, emergency shut-off valve, 13 tons BPW axle, 9 pieces tubeless tire, JOST leg, JOST king pin, fire bottles, anti-static adhesive tape, plastic fender, Anti-lock Braking System. |
