3 Axle Flat Deck with High Side Board Trailer Side Wall Semi Trailer
3 axle flat deck with high side board trailer side wall semi trailer We are the top one and professional semi-trailer supplier. We can give you better product and favorable price. TITAN Vehicle has successfully entered into over 50 countries around the world.Product Description:The sidewall cargo se......
Send Inquiry
Product Description

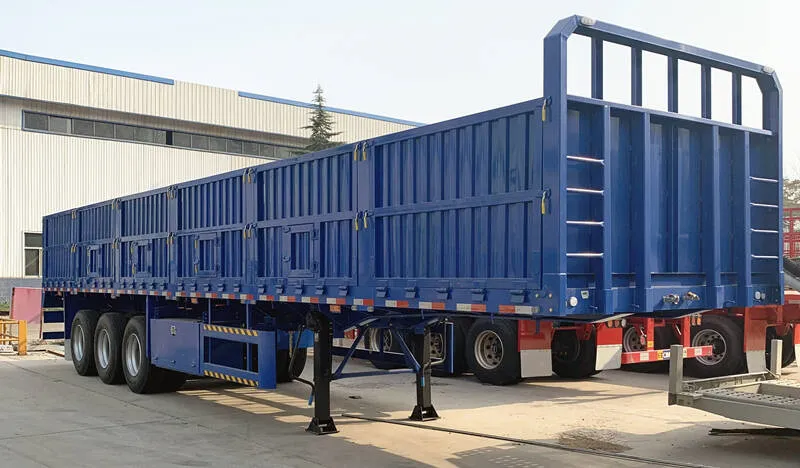

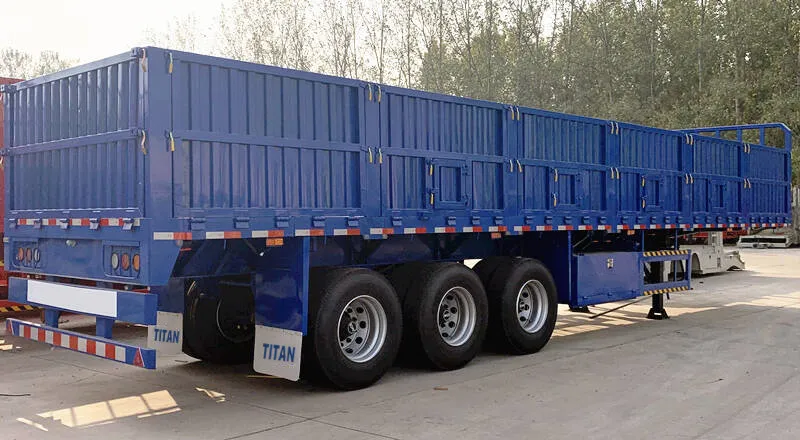

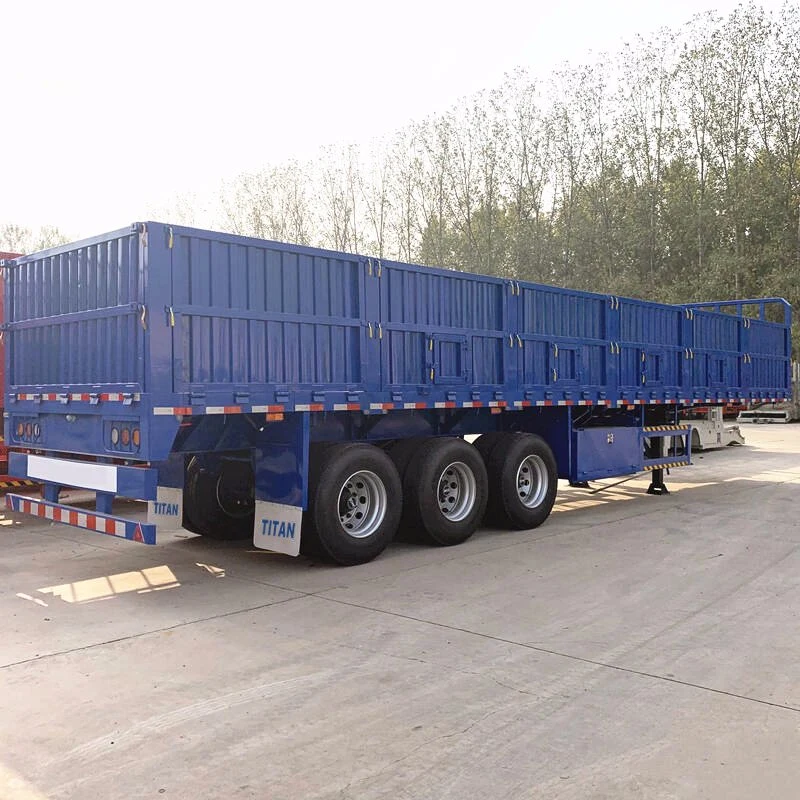

3 axle flat deck with high side board trailer side wall semi trailer
We are the top one and professional semi-trailer supplier.We can give you better product and favorable price.
TITAN Vehicle has successfully entered into over 50 countries around the world.
Product Description:
The sidewall cargo semi trailer use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry. Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo. The high side cargo trailer can be added with a container turn lock to transport the container.
What are the types of TITAN high side trailer?
2 axle sidewall trailer, 3 axle dropside trailer, 4 axle high side trailer, grain trailer and the sidewall drawbar trailer. And load capacity has 30/40/60/80/100 tons for your choice. Customizable side wall height.
We can provide all the models you need and support customization. Please leave your inquiry if you have any questions.
Advantages:
1. TITAN Vehicle adopts high strength steel material to manufacture the fence cargo trailer, it can make the trailer have a higher loading capacity and a longer service life.
2. To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand.
3. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.
4. We make the strong frame structure of welding the longitudinal beam and the integral through type cross beam, Durable mechanical widened spring suspension, make sure the stable and safety.
5. Hight Quality side wall, make sure the stable and safety of the loads

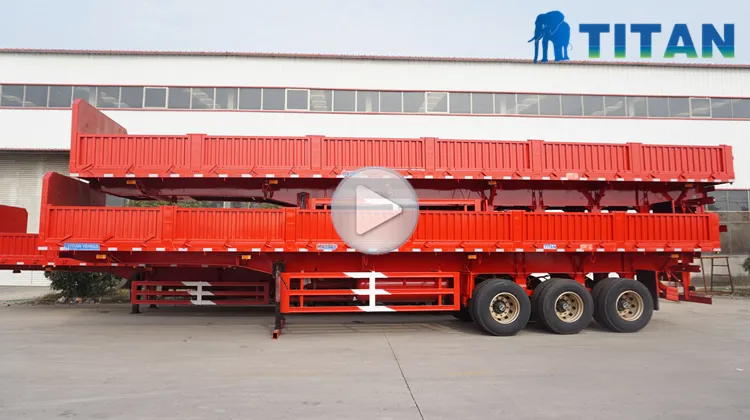

Product Video Show:
Through the video below, you can learn about different types of fence semi trailers(like 3 axle fence trailers, 4 axle stake trailer and fence full trailer)
And the process, testing, packaging and customer feedback, etc.
Check the video here: https://youtu.be/41QvanYLCNg
If you're interested in more details or other models,welcome to leave your inquiry! We will send you more videos.
Specification:

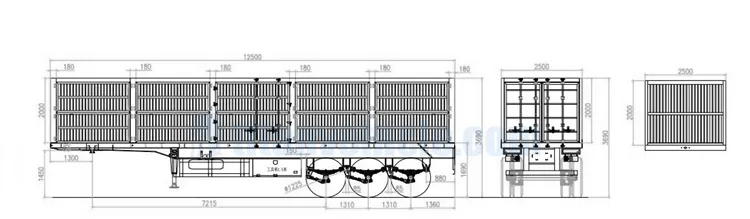

| Dimension | 12500mm*2500mm*3500mm(2000mm sidewall high) |
| Axle | 3 units |
| Tire | 12 units |
| Suspension | Mechanical suspension |
| King pin | JOST brand |
| Support leg | JOST brand |
| Bottom Platform | 3mm-thick checkered plate |
| Brake chamber | WABCO |
| Twist Locks | Optional |
| Valve | WABCO valve |
| Light | LED light (specially intended for oversea market) |
| Voltage | 24V |
| Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar.) |
| Shipping Terms | By bulk cargo carrier, RORO or 40HQ container |

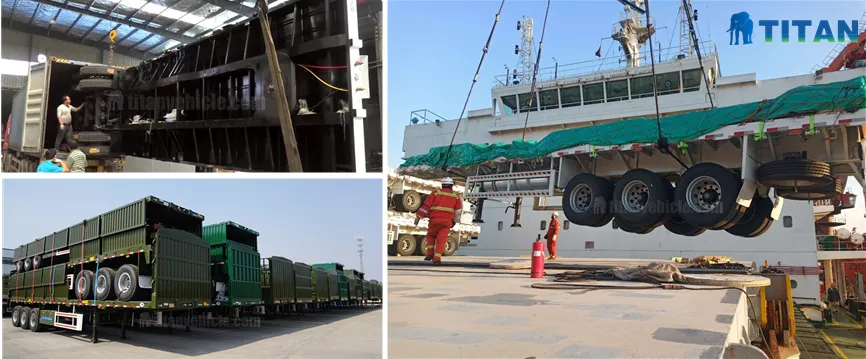

Pacakge:
Many customers use container shipment, which has low transportation cost and short transportation time. But the bad thing is that the rear of the side wall semi trailer needs to be composed.
Some customers are bulk freighter or ro-ro ships. TITAN sideboards trailer will spray wax and cover the tarpaulin when the side wall trailer use bulk freighter.
Customer Evaluation:
Welcome to the inquiry !
We will meet the acme of perfection to serve and provide more details, price, catalog, drawing, video for you!
