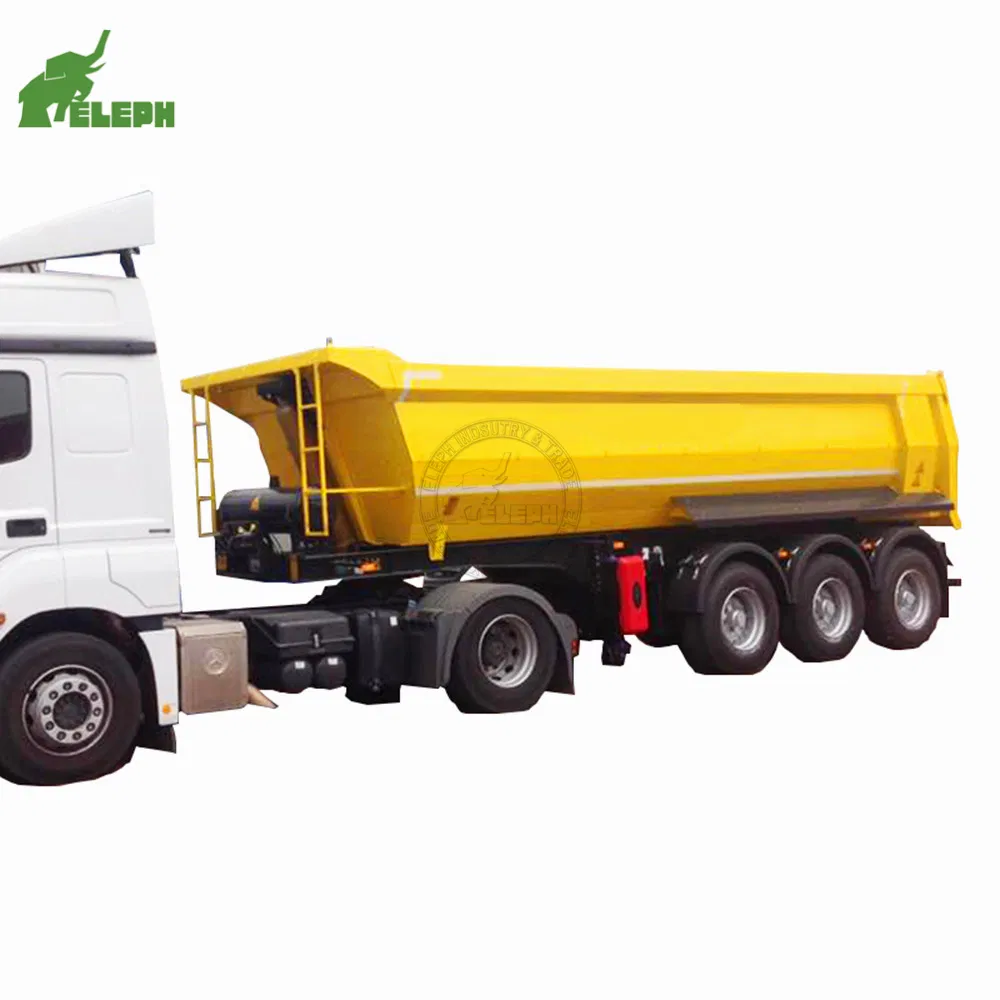

3 Axle Hydraulic Side Tipper Truck Semi Trailer Construction Transport Used Dump Trailer
PRODUCT DETAILSHigh Quality Dump Semi Truck Trailer With SuspensionDimension(Optional)Axle No.Rated Load (kg)Tire No.Tire Size By Customer Needs 2250008825R20 1000R20 1100R20 1200R20 12R22.5 33500012 45000016 ManufactureQingdao Eleph Industry & Trade Co., LtdWheel Base (mm)1310leaf-spring Pcs1......
Send Inquiry
Product Description

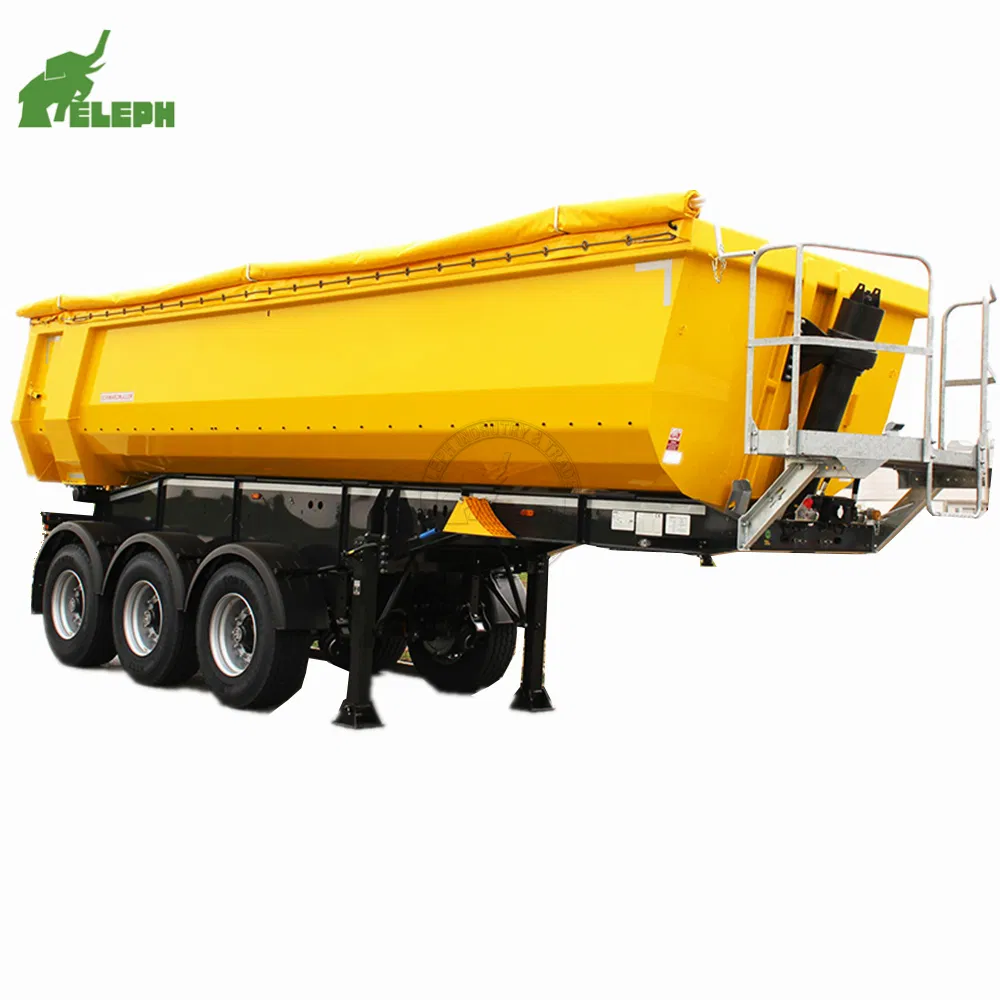

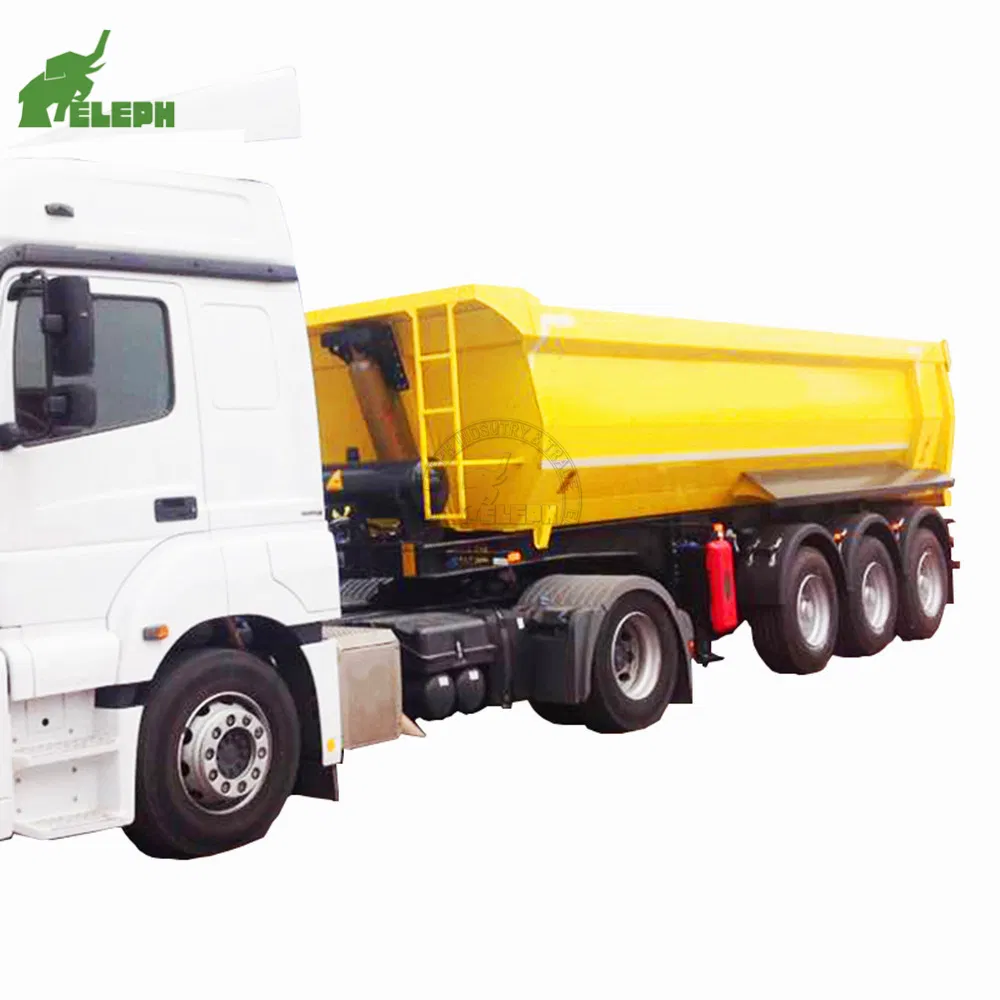

High Quality Dump Semi Truck Trailer With Suspension
Dimension(Optional) | Axle No. | Rated Load (kg) | Tire No. | Tire Size |
By Customer Needs
| 2 | 25000 | 8 | 825R20 1000R20 1100R20 1200R20 12R22.5 |
3 | 35000 | 12 |
| |
4 | 50000 | 16 |
| |
Manufacture | Qingdao Eleph Industry & Trade Co., Ltd | |||
Wheel Base (mm) | 1310 | |||
leaf-spring Pcs | 10 | |||
Axle | 13/16/18 T | |||
Suspension | Heavy Duty Mechanic Suspension with Leaf Springs | |||
Main Beam Material | Q345B manganese plates, automatic submerged arc welded | |||
Brake System | Dual line braking system with automatic braking system/chambers | |||
Brake Air Chamber | Double Model | |||
Kingpin | 2' or 3.5' Interchangeable | |||
Landing gear | 28T loading capacity with 80T static lifting capacity. | |||
Floor Thickness | 6mm | |||
Body Thickness | 5mm | |||
Brake System | Dual Lines Braking System With Automatic Air Chambers | |||
Brake Air Chamber | Four double and two single chamber | |||
Electrical System | 24V, 7core socket, lights according to European standards. | |||
Mainbeam Size
| Upper plate | 14mm | ||
Lower plate | 16mm | |||
Mid Web | 8 mm | |||
Height | 500-520mm | |||
1. How To Buy From Us ? How to Pay?
- quotation-offer-contract-1st payment-production-final payment-shipment-documentation;
TT/LC/Western Union/Credit Card
2. If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
- 90% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shacman, Beiben, Volve...
- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing
3. Whats The Time For Delivery & Arrival ?
- If Standard Model We Have In Stock Can Ship It Out Within 10 Days After Payment.
- If It Belongs To Customize Series, Ordinary Cases In 15 Days Can Be Finished For Shipment.
- For Asian Countries, Ship Can Be Reached In 1-2 Weeks, If For African & Mid East & European Countries,
25 Workdays Will Be Achieved.
4. If We Can Provide Terms For Reducing Your Import Duties ?
- Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction
