Product Description

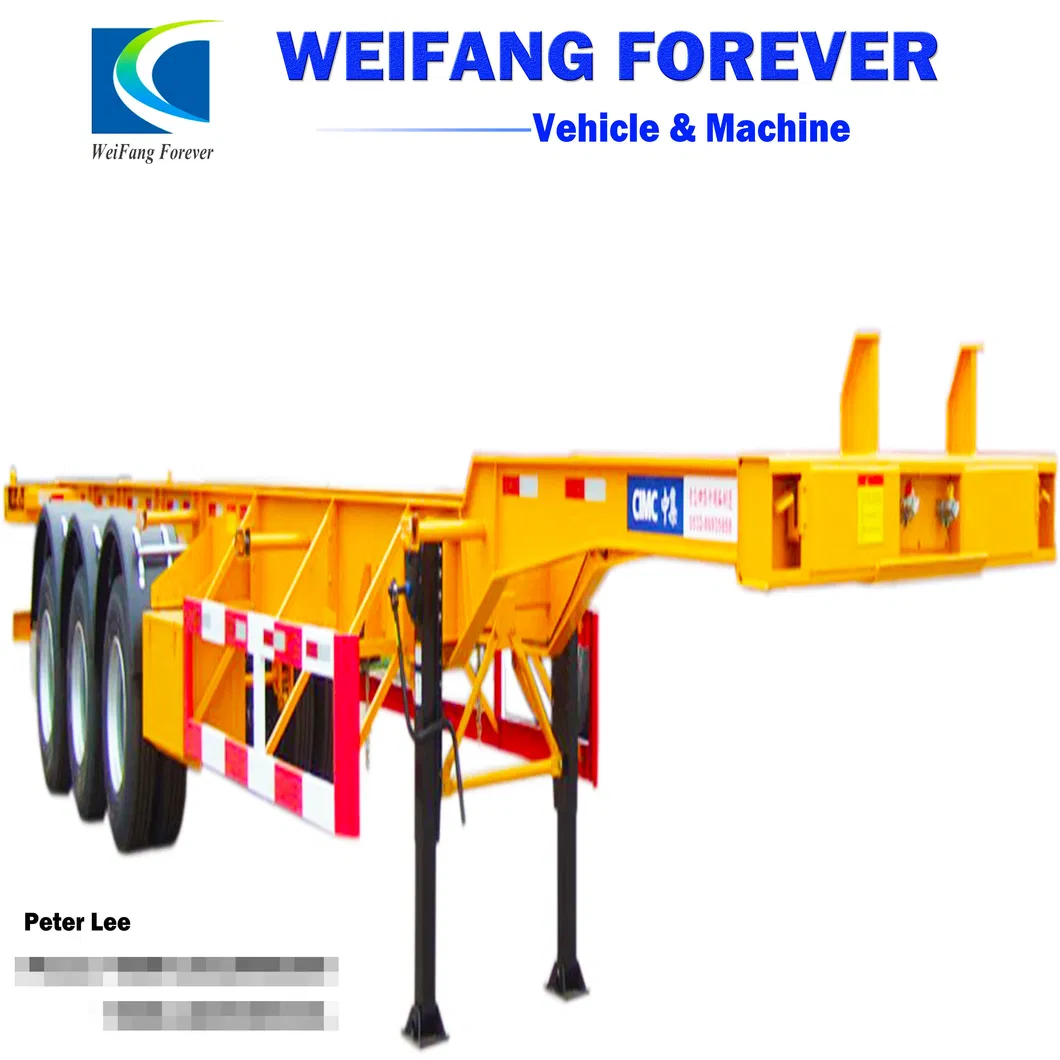

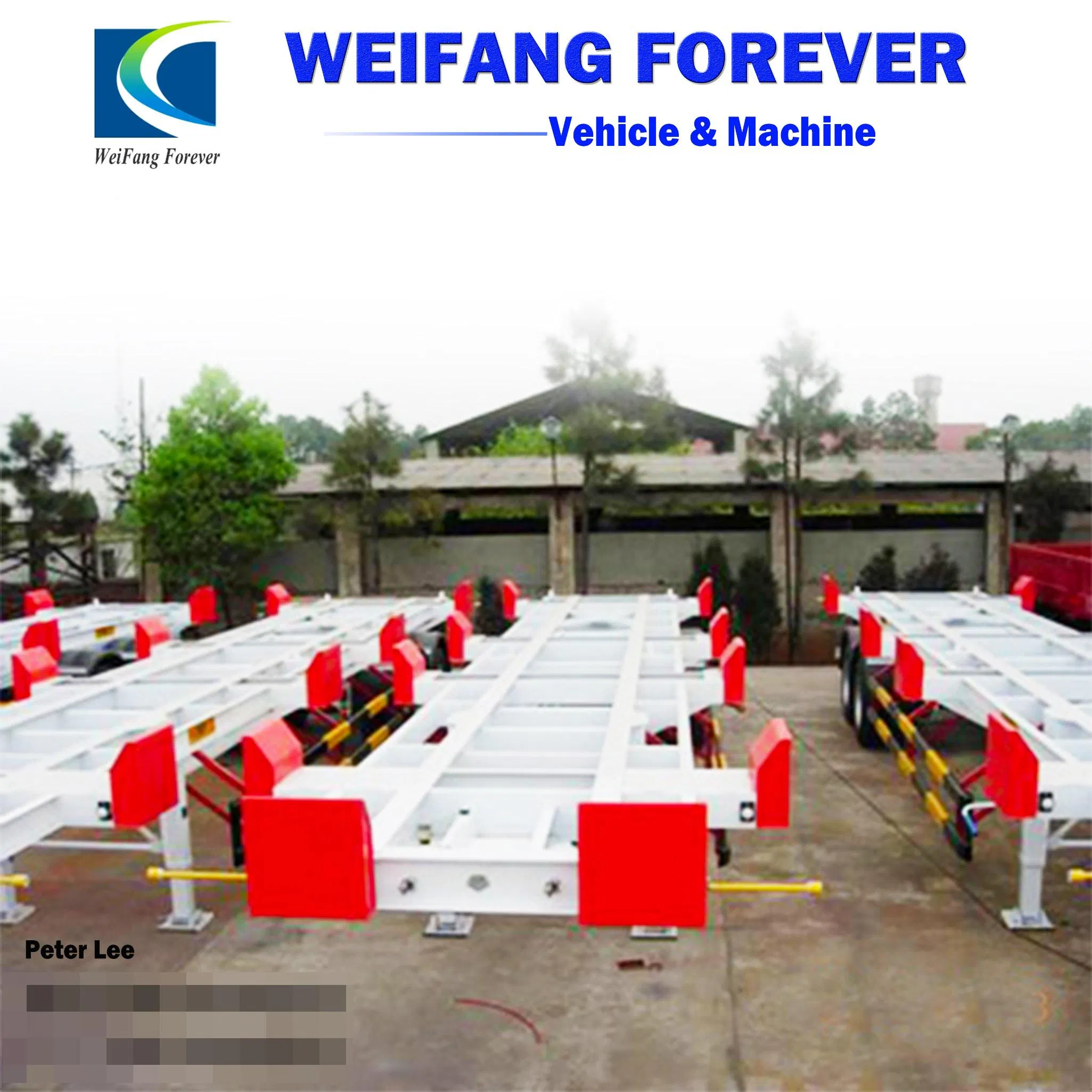

3 Axles 40FT Skeleton Semi Trailer Container Chassis Truck Trailer

MAIN PERFORMANCE

Product Specification
1	Type	Semitrailer
2	Product Name	40feet Container Flat Bed Semitrailer
3	Container Body	External Dimension		12200x2500x1600mm
		Baseplate		Corrugated Steel
		Container Lock		12 units TNT
4	Tare Weight	6200kg
5	Payload	41t
6	Running System	Axles	FUWA , BPW, HUAJIN brand,13t/16t/20t Good quality axles
		Suspension	Tri-axle 10-pcs leaf spring suspension with equalizer beam (we can choose the Air suspension depend on customer requirement)
		Tires	Linglong, Double Coin, Triangle brand 11.00R20/8.25R20/12.00R22.5, 12unit
7	Ladder	Manually operated or Hydraulic type
8	Braking System	Dual lines pneumatic brake system, WABCO Emergency Relay Valve; KORMEE ABS braking system
9	Frame	Main Beam		Q345B steel,Height 500, upper 10mm, lower 12mm. Mid web 6mm
		Cross Beam		Mild Alloy Q235
10	King Pin	Size: 50# (2'') or 90#(3.5''); Type: welded or assembled
11	Landing Gear	FUWA, JOST Brand Single side operation or double side operation, Static capacity 28Ton
12	Electrical & Paint	Electrical		Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
		Lights & Reflectors		24V, 7 lines
		Painting		zinc-rich primer and modified urethane topcoat as customers' choices.
		Accessorise		OOL BOX (BOX ONLY)---PROVIDED WITH THE TRAILER TWO SPARE WHEEL HOLDER(WINCH),BUT NO SPARE TYRES

I.The Application and the Technical Highlights:

---This series container truck semi trailers are mainly suitable for the MID/Long distance transportation of Standard 40ft or 20ft containers or ISO tank container,this series container semi trailer divides the flatbed.skeleton type etc.
---Mainly for transporting 1*40FT,2*20FT,1*20FT or 1*45FT etc. containers
--- High Quality Body and high-tensile steel for heavy loading capacity
--- TNT brand twist lock
--- BPW, FUWA or Certificated Chinese Axles
---ABS brake system
---WABCO Vehicle Control System
---JOST ,FUWA or Chinese brand parking leg and king pin
---Air and Mechanical Suspension
---Strengthen the Chassis Instructure
3 Axles 40FT Skeleton Semi Trailer Container Chassis Truck Trailer

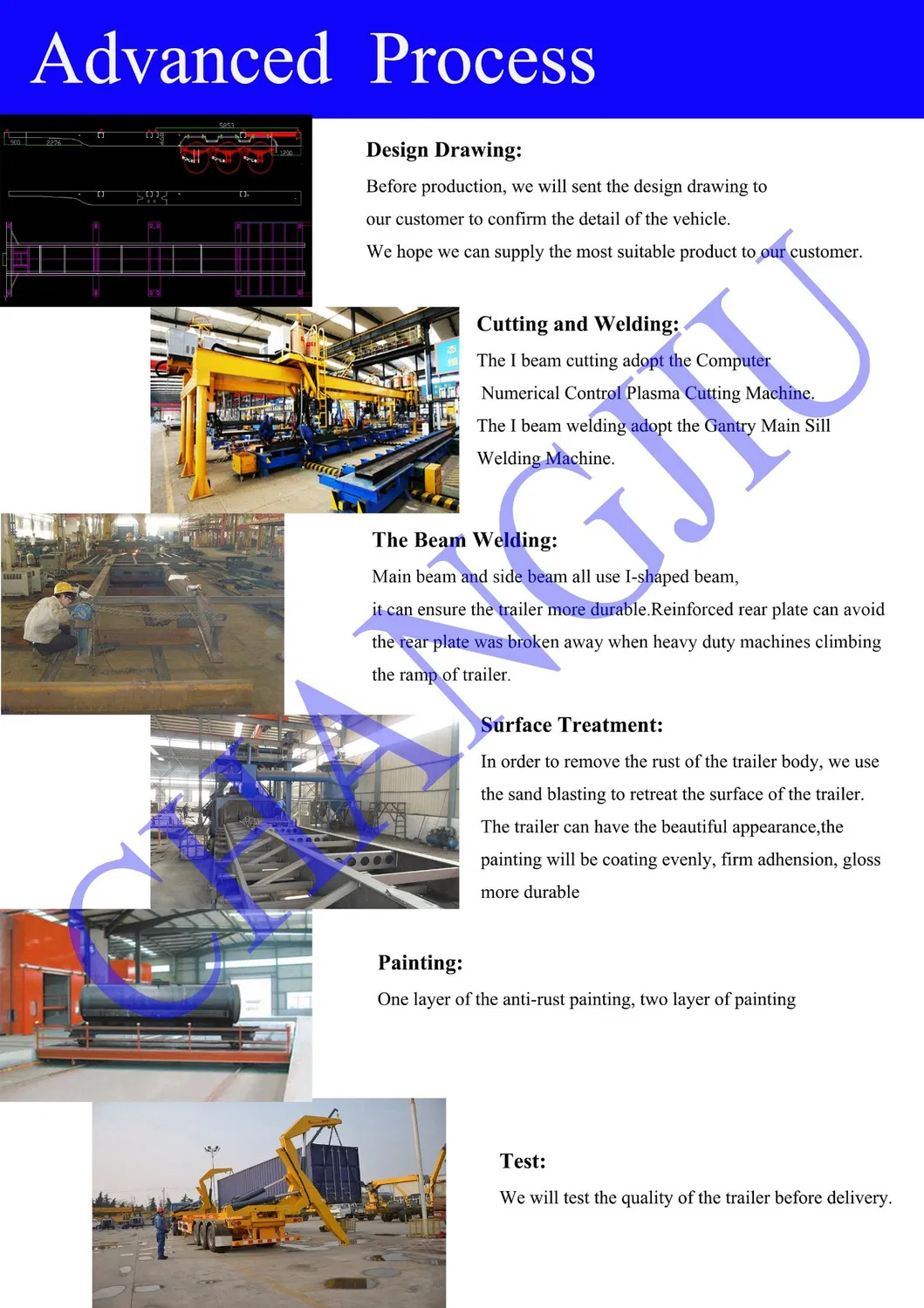

II. The Advance Process
---Design Drawing:Before production, we will sent the design drawing to our customer to confirm the detail of the vehicle. We hope we can supply the most suitable product to our customer.
---Cutting and Welding: The I beam cutting adopt the Computer Numerical Control Plasma Cutting Machine. The I beam welding adopt the Gantry Main Sill Welding Machine
---The Beam Welding: Main beam and side beam all use I-shaped beam, it can ensure the trailer more durable.Reinforced rear plate can avoid the rear plate was broken away when heavy duty machines climbing the ramp of trailer.
---Surface Treatment: In order to remove the rust of the trailer body, we use the sand blasting to retreat the surface of the trailer. The trailer can have the beautiful appearance,the painting will be coating evenly, firm adhension, gloss more durable
---Painting:One layer of the anti-rust painting, two layer of painting
---Test:We will test the quality of the trailer before delivery
3 Axles 40FT Skeleton Semi Trailer Container Chassis Truck Trailer

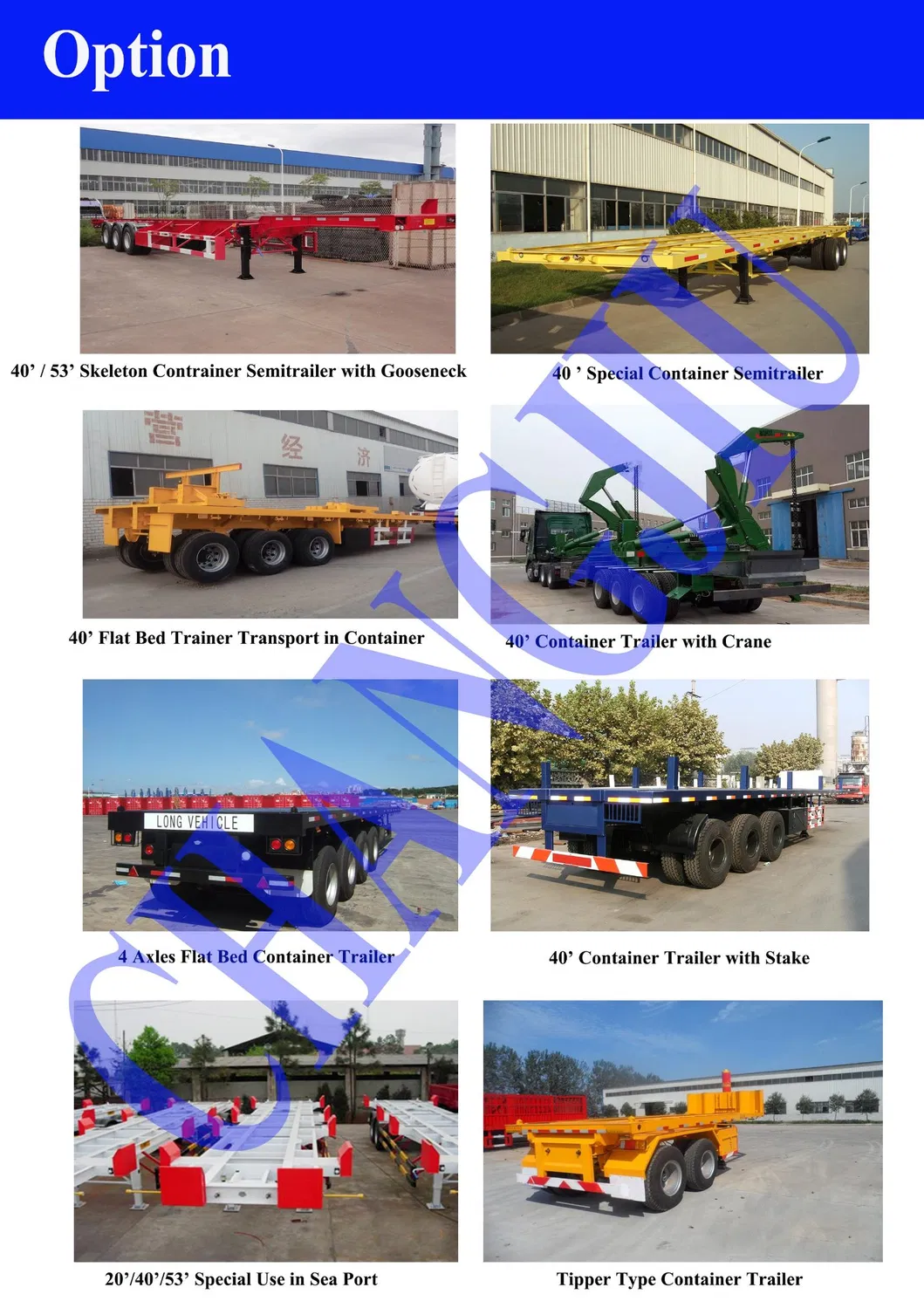

III.The Flatbed Container Truck Semitrailer optional:
1-20ft,30ft,40ft,45ft,48ft,50ft,53ft container transporting optional
2-Chassis type: Flat bed, skeleton type
3-Main beam:Main beam 500mm height,Q345 or T70 high strong steel
4-Suspension; Rigid, single point or air suspension
5-Side beam: 14mm or 16mm channel steel or bending pieces
6-Axles number: 2axles, 3 axles ,4 axles.
7-Design type; Straight beam or gooseneck type
8-Running system: FUWA axles, BPW axles, HUAJIN axles

9-Tyre: Linglong, Double Coin brand and so on, 11.00R22.5, 11.00R20, 12.00R22.5, 12.00R20
10-extendable or sliding type optional
3 Axles 40FT Skeleton Semi Trailer Container Chassis Truck Trailer

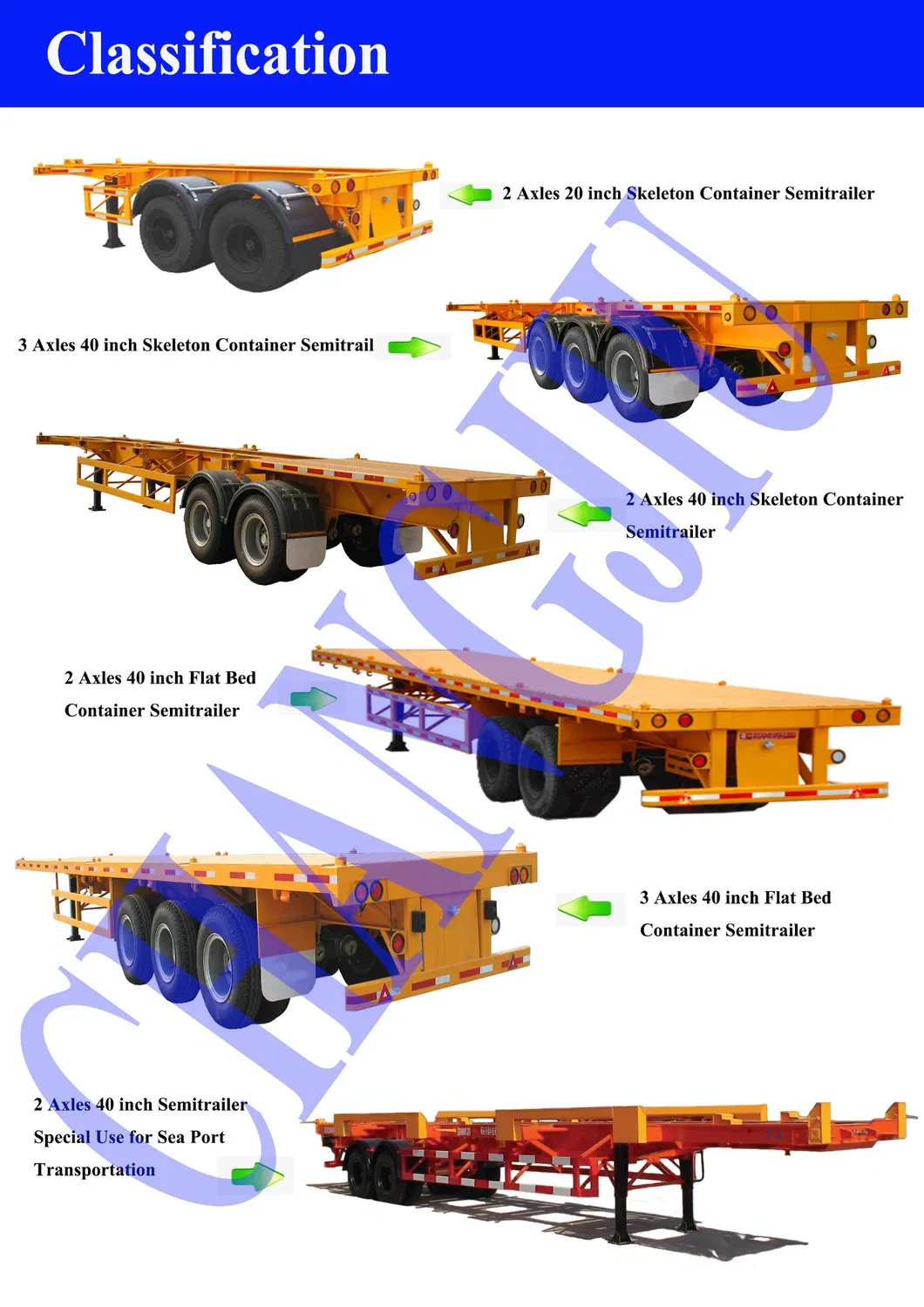

IV. The Classfication

20ft-52ft/ 20t-60t Container Semitrailer(SKELETON)
Item	Model	Axles/ Tyres		Twist Lock	Loading Capacity
20ft	CJ9100CCY	2 axles/ 8 tyres	3 axles/ 12 tyres	4 units	30T-50T
30ft	CJ9101CCY	2 axles/ 8 tyres	3 axles/ 12 tyres	4units	30T-50T
40ft	CJ9102CCY	2 axles/ 8 tyres	3 axles/ 12 tyres	4units/12 units	30T-50T
45ft	CJ9103CCY	2 axles/ 8 tyres	3 axles/ 12 tyres	4units/12 units	30-60T
48ft	CJ9104CCY	2 axles/ 8 tyres	3 axles/ 12 tyres	4units/12 units	30-60T
52ft	CJ9105CCY	2 axles/ 8 tyres	3 axles/ 12 tyres	4units/12 units	30-60T

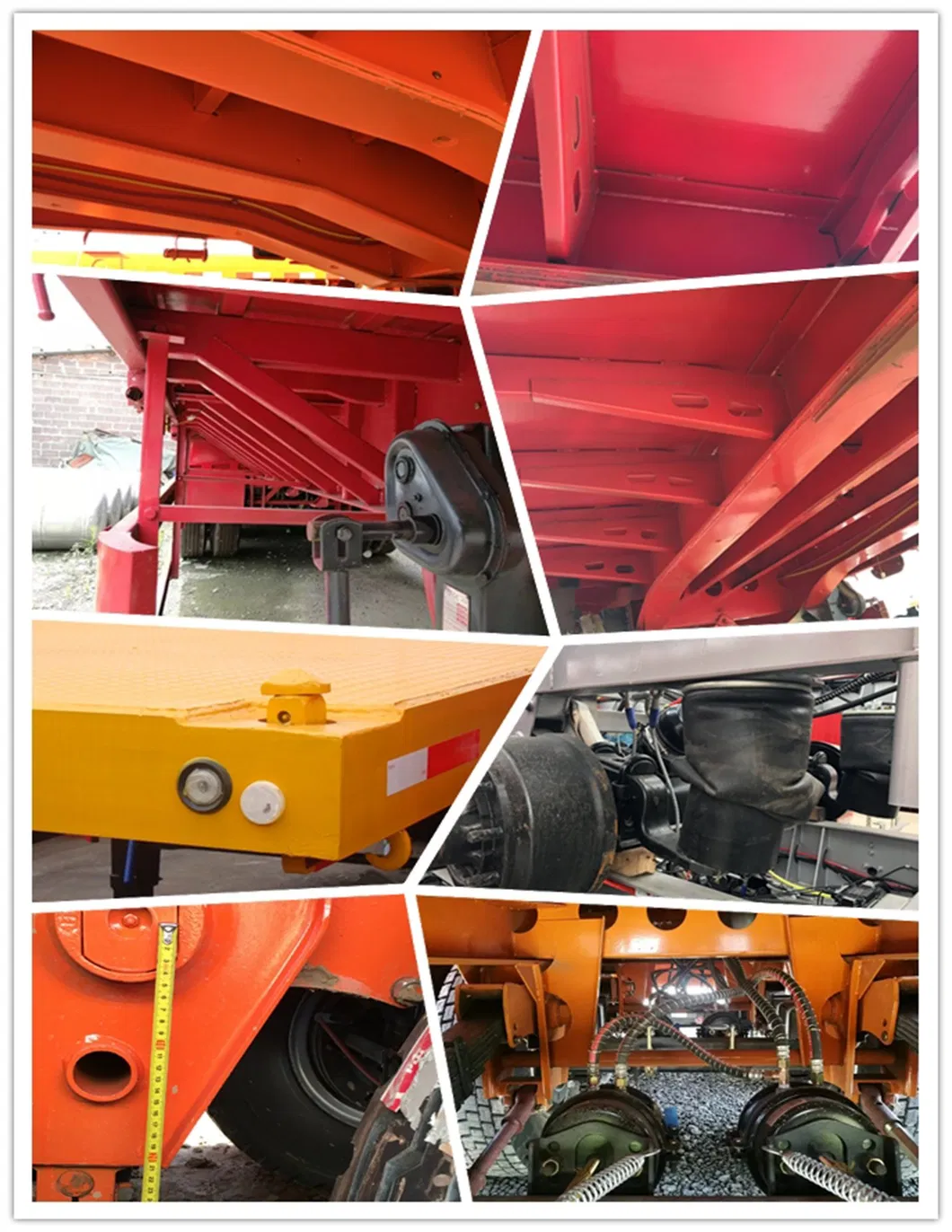

V. The Detail

VI. Guarrantee For The Parts Of The Tanker Traielr:

ITEM NAME			WARRANTY	ITEM NAME		WARRANTY
MAIN FRAME	FRAME		1 YEAR	RUNNING GEAR	AXLE	6 MONTHS
	SUSPENSION		6 MONTHS		AXLE BEARING	3 MONTHS
	KING PIN		1 YEAR		WHEEL HUB	3 MONTHS
	BALANCE ARM		3 MONTHS
ITEM NAME			WARRANTY	ITEM NAME		WARRANTY
BRAKING DEVICE		BRAKE DRUM	3 MONTHS	SUPPORT DEVICE	LANDING GEAR	6 MONTHS
		BRKE CHAMBER	3 MONTHS		SPARE WHEEL CARRIER	6 MONTHS
		AIR RESERVOIR	6 MONTHS
ITEM NAME					WARRANTY
OTHERS		LEAF SPRING			3 MONTHS
		BRAKE CHAMBER DIAPHRAGM			3 MONTHS
		EMERGENCY RELAY VALVE			3 MONTHS
		BRAKE SHOE			3 MONTHS
		RELAY VALVE			3 MONTHS

VII. DEALING PROCESS

1. You send us an inquiries on your desired trailer through our contact information.
2. We shall reply you in 12 hours after we received our inquiry.
3. We will negotiate the detail of the trailer on your requirement.
4. Confirmed on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. The Manufacturig process with updated news.
9. The Production completement.
10.Balance payment .
11.Arrange Shipment and Custom Clearance
12. A/S service for 1 year.
