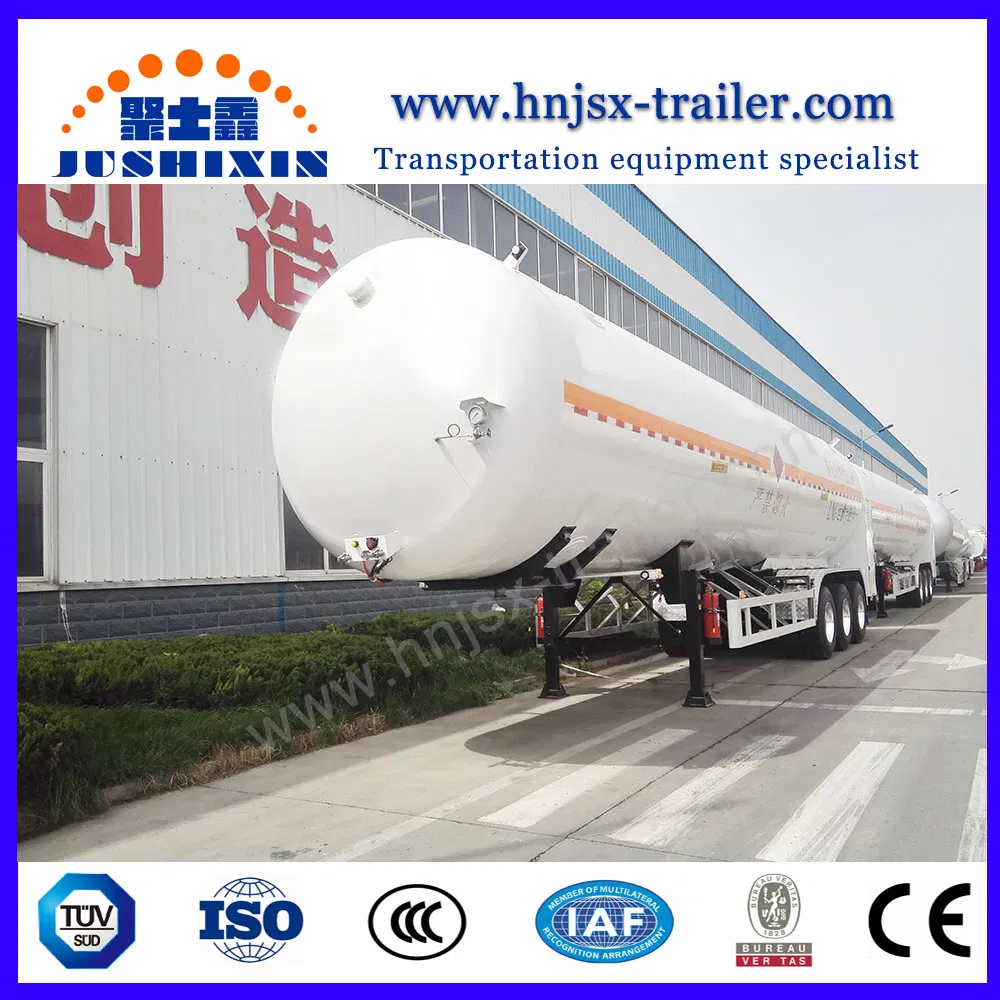

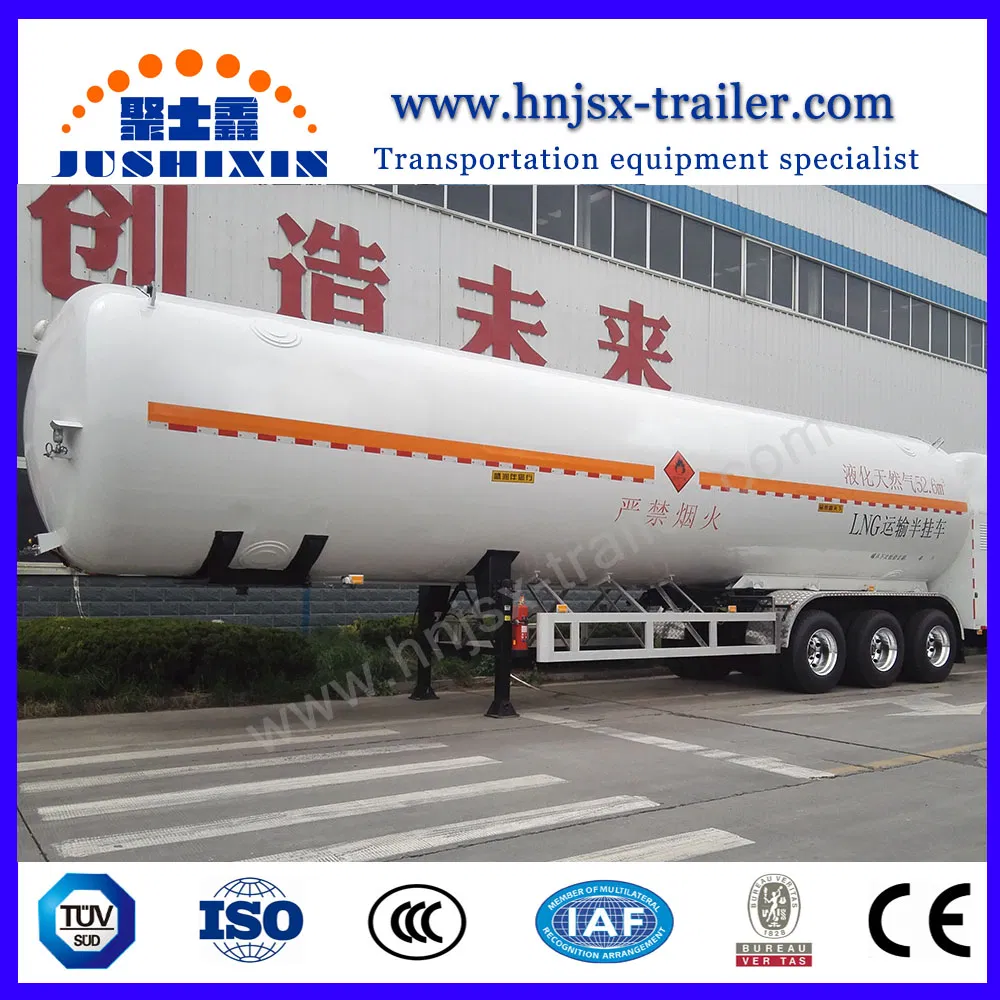

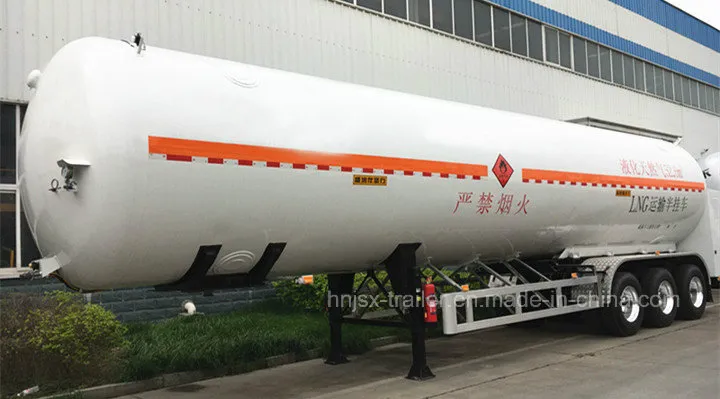

3 Axles 52.6cbm LNG Storage Transportation Tank Semi Trailers
3 Axles 52.6CBM LNG Storage Transportation Tank Semi Trailers 1.Product Function:The LNG Storage Transportation Tank Semi Trailers are used to transport liquefied natural gas (LNG) specially.Our company have been in this field several years. with the advantages of reasonable design, proven technolo......
Send Inquiry
Product Description
1.Product Function:
The LNG Storage Transportation Tank Semi Trailers are used to transport liquefied natural gas (LNG) specially.
Our company have been in this field several years. with the advantages of reasonable design, proven technology, safe and reliable.
The design, manufacturing and inspection of our products are in accordance with the national standards: GB150, GB1589,
it is equal to international standards.
2.Product Specification:
We can design different size tanks for users to correspond with local vehicles loaded weight standard.

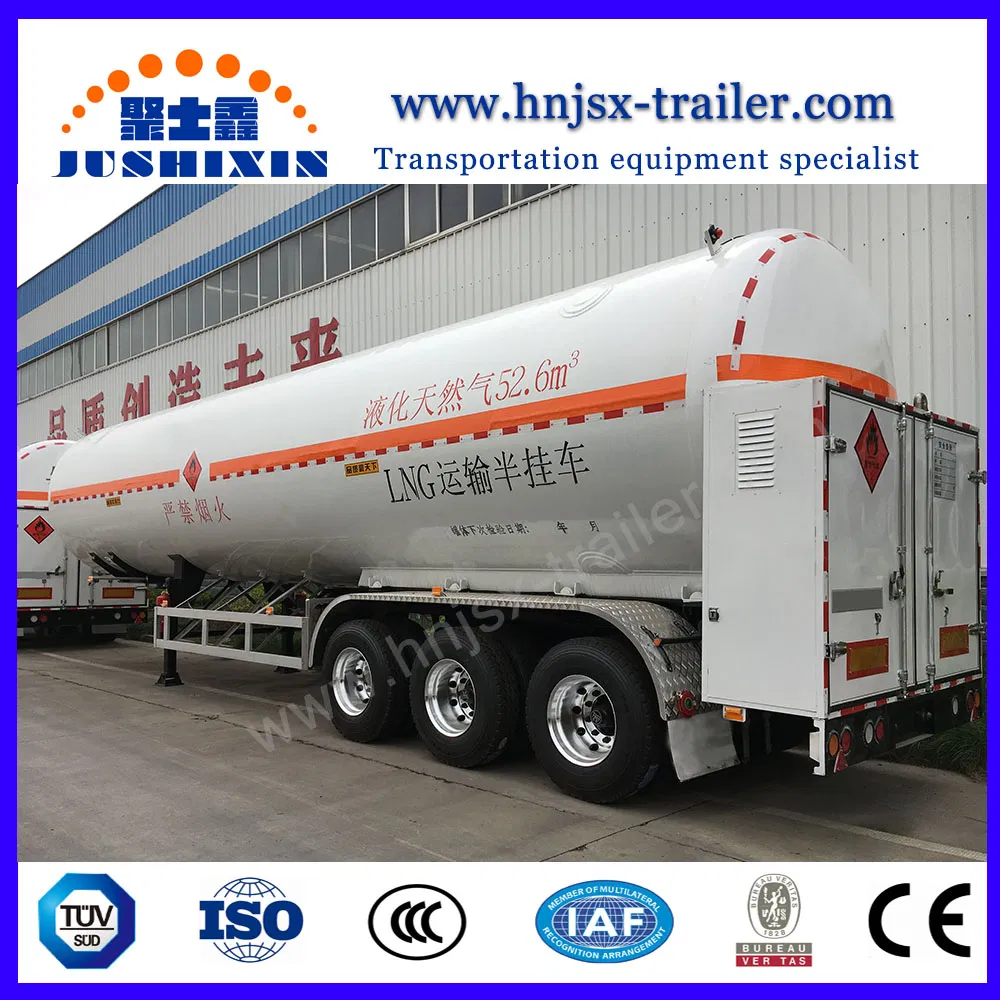

Here attached 52.6CBM(52600Liters) LNG Tanker Trailer Specification for your review.
| 52600L(52.6CBM) LNG Tank Trailer Specification | ||||
| Curb weight (Kg) | 19477 | Payload (Kg) | 20553 | |
| Total Weight (Kg) | 40000 | Dimension(mm)(L*W*H) | 1300*2500*3950mm | |
| capacity | 52600 L | Unit volume filling weight | 0.39(KG/L) | |
| Design temperature(°C) | -196 | Design pressure | 0.68Mpa | |
| Applicable shipping medium | Liquefied natural gas(LNG) | Working pressure | 0.7Mpa | |
| Inside tank material | 06Cr19Ni10 | Tank shell material | 16MnR/Q345R | |
| Adiabatic way | Vacuum \ multi-layer adiabatic | Adiabatic materials | Aluminum foil, adiabatic paper | |
| (Relief valve)opening pressure(Mpa) | 0.61 | |||
| 52600L(52.6CBM) LNG Tank Trailer Main configuration | ||||
| Items | Data | Items | Data | |
| (BPW 13T) | 3 set | Tire (12.00Triangle Vacuum) | 12 | |
| King pin | 1 set | Spare tire carrier | 1 set | |
| Steel mechanical suspension system | 1 set | Pneumatic brake system | 1 set | |
| 24V circuit system | 1 set | ABS | 1 set | |
| Loading and unloading valve | 1 set | loading and unloading hose | 1 set | |
| Content gauge (level gauge) | 1 set | Relief valve | 2 set | |
| Thermal meter | 1 set | Fire extinguisher | 2 unit | |
| Manometer | 1 set | Anti-static drag ground | 1 unit | |

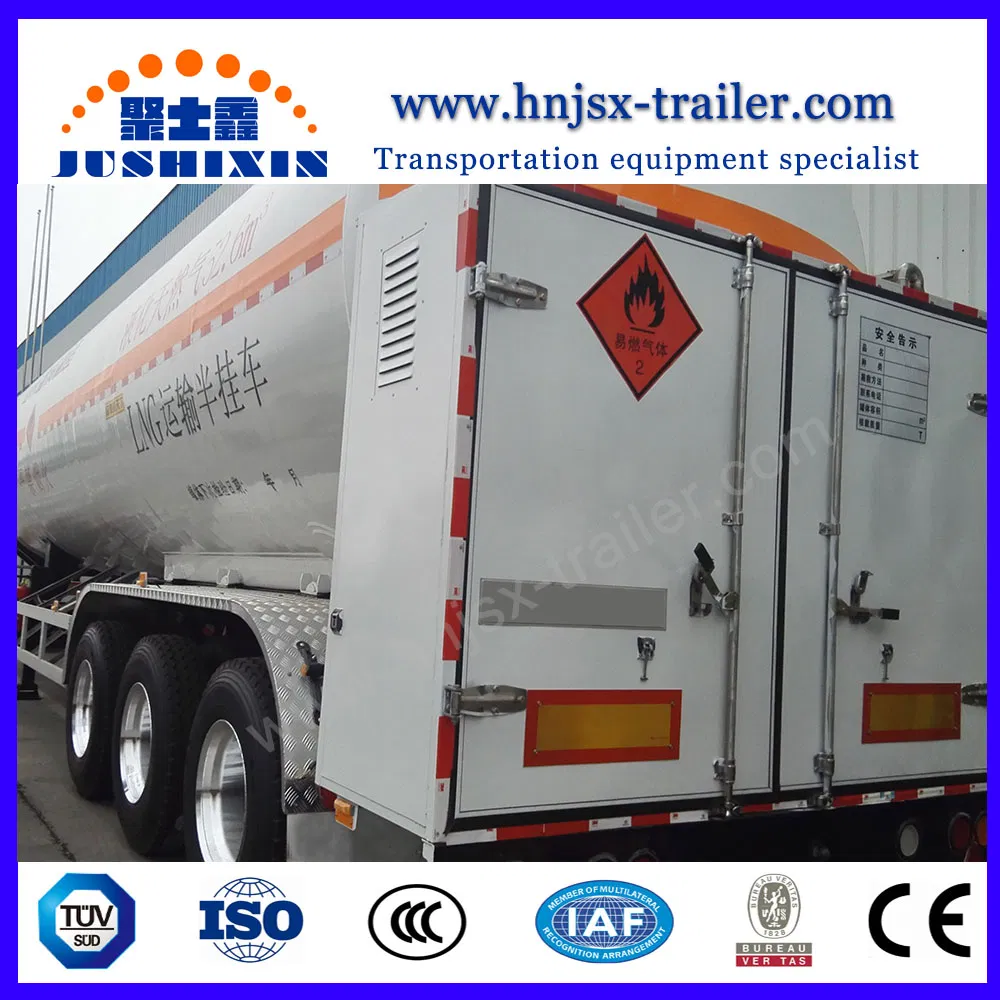

| Cabinet | 1 unit | toolbox | 1 unit | |
Axle quantity: 2 axle 3 axle 4 axle
Axle brand: FUWA / BPW and so on, 12ton, 13ton, 16ton, 18ton, 20ton.
Volume: 10 cube meters to 70 cube meters
Suspension: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
Material: Carbon steel/aluminum/stainless steel material
Medidum: LNG and low tempreture liquid gas and so on
Plate rolling machine is applied for tank body,it is much faster and easier to control quality
The tank body sheet are welding together by the auto-welding machine to ensure the quality
Monoblock tank use less welding, which make the tank more steady and beautiful
Advanced sandblast, spray painting, purging, anti-corrosion procedure
Advanced mechanical property test,make sure the lowest shrinkage & the highest dimensional stability under low temperature
Strict NDT procedure. A&B welding joint perform 100%RT. C&D welding joint perform 100%MT
Our tanker trailers are approved by CCC and ISO/TS16949 organization. I think the reports issued by 3rd party could better clarify the
quality for our products. Pls feel free to contact us if any interested in our tanker trailer.
