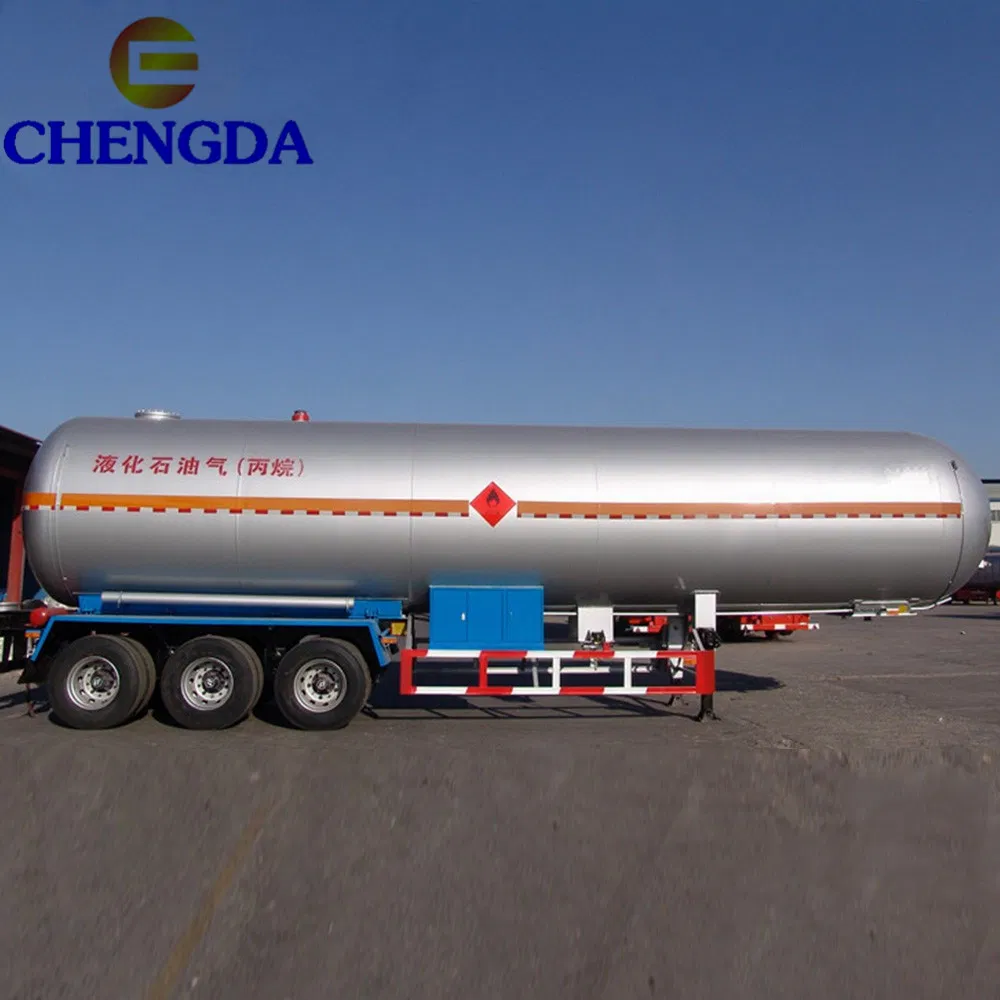

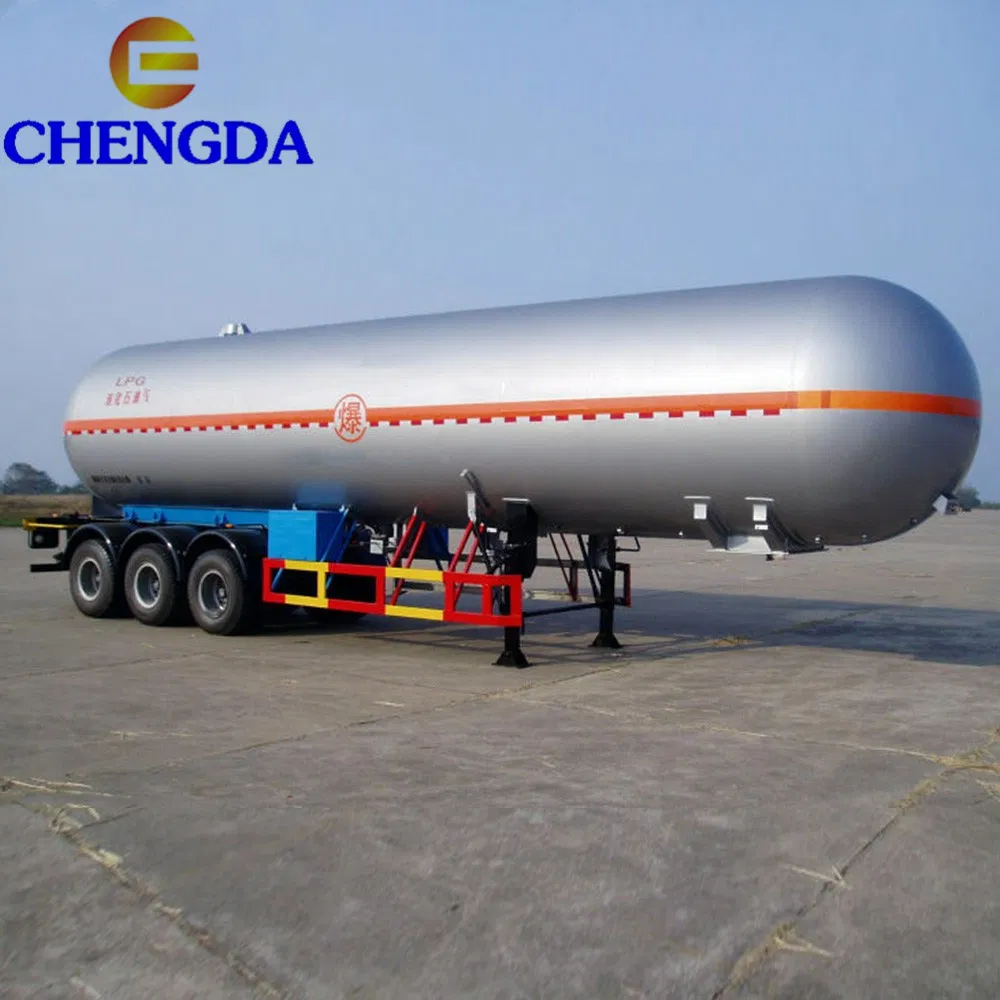

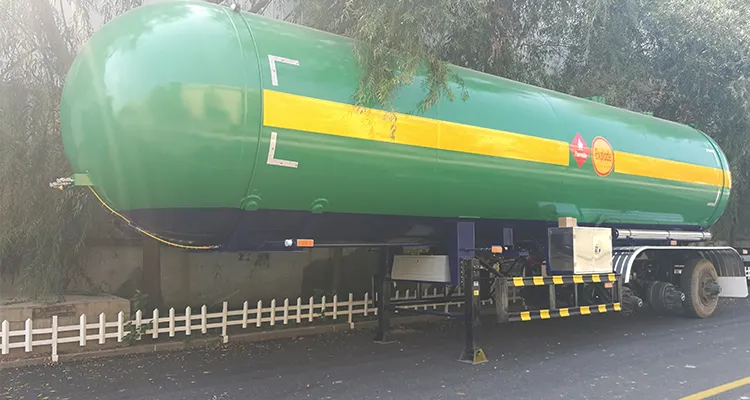

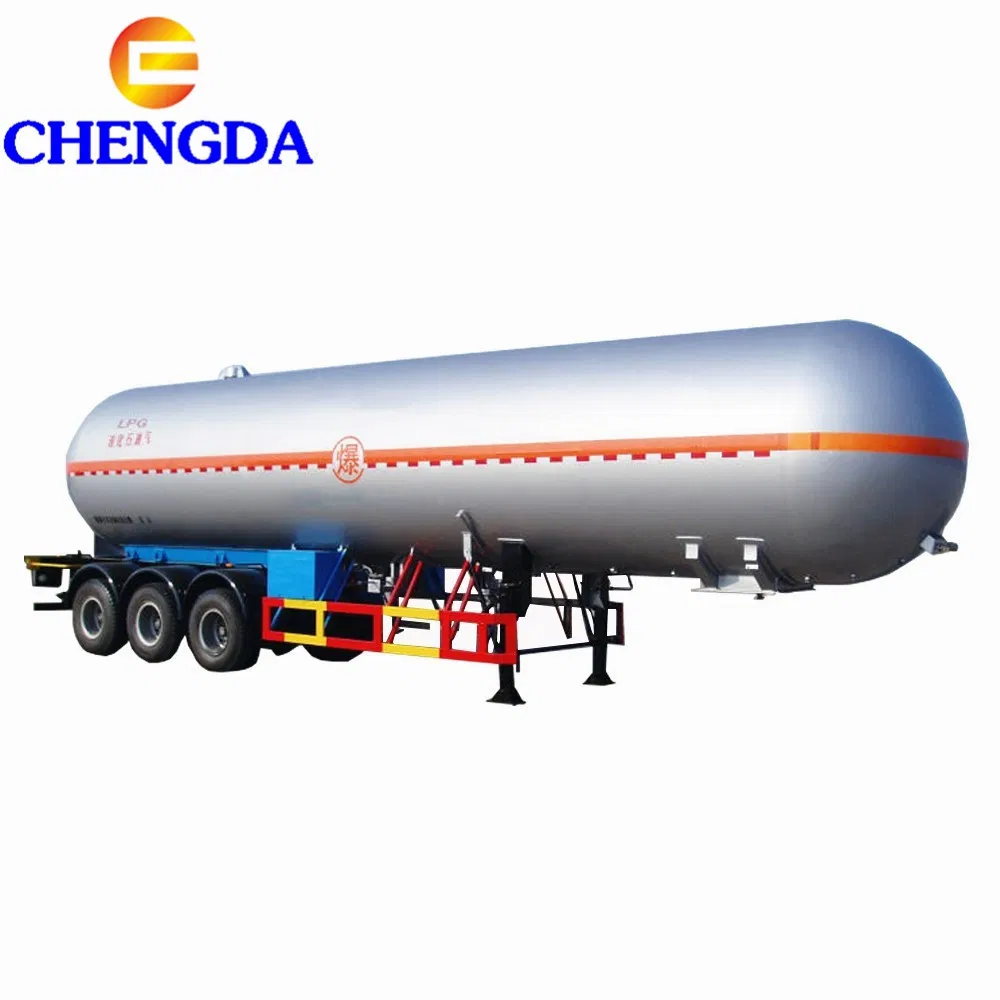

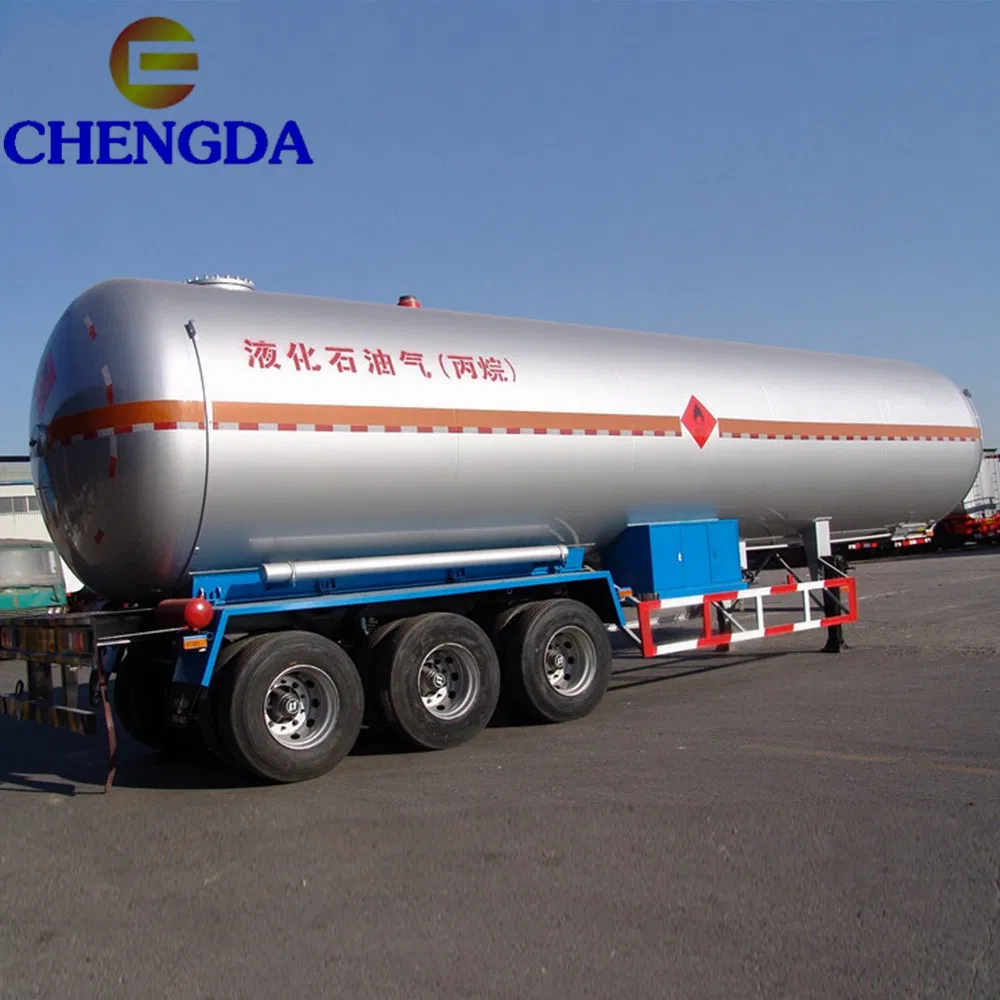

3 Axles 59cbm LPG Gas Tank Truck Semi Trailer
3 axles 59cbm lpg gas tank truck semi trailer for Philippines1Dimensions (length*width*height)12600mmx2500mmx3950mm2Estimated Tare Weight14840KG3Payload20160KG4Total Weight35000KG Shell OF Tanker1ProductsLPG,Propane LPG2Fluid ProperityFlammable3Design Temperatureto 50°C4Design Pressure1.61MP......
Send Inquiry
Product Description
3 axles 59cbm lpg gas tank truck semi trailer for Philippines
| 1 | Dimensions (length*width*height) | 12600mmx2500mmx3950mm |
| 2 | Estimated Tare Weight | 14840KG |
| 3 | Payload | 20160KG |
| 4 | Total Weight | 35000KG |
Shell OF Tanker
| 1 | Products | LPG,Propane LPG |
| 2 | Fluid Properity | Flammable |
| 3 | Design Temperature | to 50°C |
| 4 | Design Pressure | 1.61MPA |
| 5 | Corrosion allowance | 2.0mm |
| 6 | Major bearing pressure materials | Tank body:Q345,12mm GB713 |
| End plater:Q345,14mm GB713 | ||
| Main Beam:AG700(Non-bearing pressure material) | ||
| 16Mn III NB/T47008 | ||
| 7 | Compartments | ONE |
| 8 | Shape | Round(Elliptica) |
Detection
| 1 | Heat Treatment | Overall heat treatment in a furnace,600 °C to 640 °C |
| 2 | Flaw Detection | 100% Flaw Detection |
| 3 | Test pressure | 1.61MPA |
| 4 | Hydraulic Test | 2.1MPA |
| 8 | Magnaflux | Aim at welding place flaw detection can not colver |
Manhole(as customer's requirement)
| 1 | Quantity | 1,on top, DN450 |
Safety Valve (as customer's requirement)
| 1 | Quantity | ONE |
| 2 | Location | On the top of tanker |
| 3 | Size | A412F-25-22 DN 100 or as customer's requirement |
Level Guage (as customer's requirement)ZGM2.3/2.5
| 1 | Quantity | ONE |
| 2 | Location | On the bottom of tanker |
| 3 | Size | as customer's requirement |

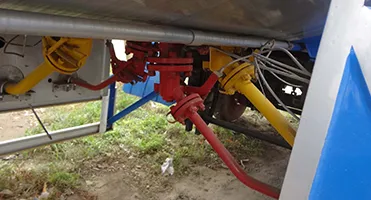

Valve and pip detail (as customer's requirement )
Running system
| 1 | Axles | 3 | 13T FUWA(GUANGDONG BRAND) |
| 2 | Suspension system | 1 | Mechanical |
| 3 | Wheel rim | 12 | 9.0*22.5 |
| 4 | Tyre | 12 | 11R22.5 TRI-ANGLE BRAND |
| 5 | Traction pin | 1 | 2"(50#)OR 3.5 "(90#) |
| 6 | Landing gear | 2 | JOST D200 SINGLE |

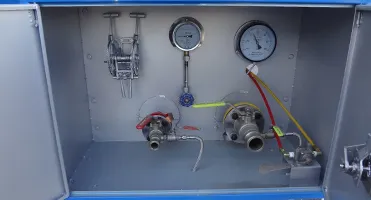

Control System
| 1 | Emergency Cut-off valve | 4 | Gas phase QGJ43F-25-8 ,Liquid phase QGJ43F-25-7 |
| 2 | Ball Valve | 4 | Gas phase Q41F-25P-9 ,Liquid phase Q41F-25P-8 |
| 3 | Operating Mode | 2 | Mechanical |
| 4 | Liquid gauge | 1 | ZGM 2.3/2.5 |
| 5 | Pressure indicating thermometers | 2 | WTQ-280 -40-80 °C Level 1.5 |
| 6 | Pressure gauge | 2 | YTN-100T 0--4MPA Level 1.6 |
Pneumatic Brake System
| 1 | Spring brake chamber | 6 |
| 2 | Air connector | 2 |
| 3 | Relay valve | 1 |
| 4 | ABS | 1 |
Electronical System
| 1 | 7-Pin Soket | 1 | 24V 7-pin socket |
| 2 | LED Lamp | 1 | All kinds of lamp |
| 3 | Cable | 1 | standared cable |
 |  |
2 Packaging & Shipping

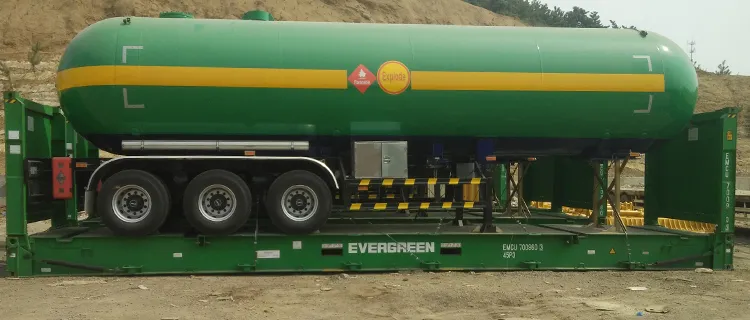

Waxed before delivery ,Packaging is naked and shipped by sea ,Delivery is related to the destination
3 Our Services
1.we can do the designs according to the your requirement and idea.
2.we can offer you the high quality & reasionalble price
3.we can offer your a good after-sell service
4.we have strong professinal design team
5. promptly delivery. small order is welcome
4 Company Information

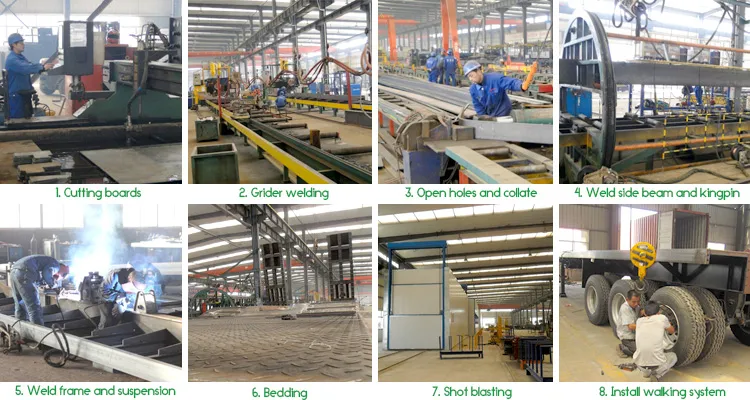

Established in 2005, our company is a professional manufacturer integrating the production, scientific research & development and sales.
We are involving in oil/fuel tanker trailer, bulk cement trailer, flat bed semi trailer,low bed semi trailer,tanker truck and concrete mixer truck, trailer, semi-trailer, tractor head, engineering machinery and trailer parts.
CHENGDA TRAILER,
PROVING YOUR SATISFIED TRAILERS AND SERVICE!
5 FAQ
1. Q: Are you a manufacturer or trading company? A: We are manufacturer.
2. Q: What about your products quality? A:"Quality is priority." We always attach great importance to quality controlling from the very beginning.
3.Q:What payment do you accept? A: T/T, L/C, Trade assurance;
4.Q:What is the MOQ of your products? A: 1 unit.
Tell us your needs and we'll let you know how we can help. Click "send" Now!
