3 Axles LPG Gas Tanker Trailer LPG Mobile Semi Trailer Propane Gas Tanker Trailer LPG Cylinder Trailer

Product Description

3 axles LPG Gas Tanker Trailer LPG Mobile Semi Trailer Propane Gas Tanker Trailer LPG Cylinder Trailer

Technical Parameter:
All specification and design can be customized !
We can provide main LPG/LNG products as below:
LPG/LNG storage tank volume from 5m3 to 200m3
LPG/LNG semi trailer from 24m3 to 60m3
LPG/LNG transportation truck from 5.5m3 to 35.5m
LPG /LNG Skid Station:20m3 to 60m3

LNG Tank Semi Trailer Function:
The LNG Tank Trailers are used to transport liquefied natural gas (LNG) specially.Our company have been in this field several years. with the advantages of reasonable design, proven technology, safe and reliable.The design, manufacturing and inspection of our products are in accordance with the national standards: GB150, GB1589, it is equal to international standards.
LNG Tank Semi Trailer Specification:
We can design different size LNG Tank trailers for users to correspond with local vehicles loaded weight standard. Here attached 52.6CBM(52600Liters) LNG Tank Trailer Specification for your review.

49.6m3 LPG tanker semi trailer Specification:
Model	JSXT9400	Transport medium	Liquefied gas (propane)
Capacity	49.6m3	Dimensions (mm)	12740×2480×380
Tank size (mm)	12372×Φ2300 straight section length 11100	Self weight (kg)	15300
Total mass (kg)	20832	Tank material	Q345R
Shape	Elliptical	Loading mass (kg)	20832
Curing quality (kg)	15300	Total mass (kg)	36132
Head thickness	12mm	Tank thickness	12mm
Traction pin	90#	Front/rear suspension (mm)	front: --;rear: 1650
Departure angle	front: --;rear: 18	suspension	Leaf spring - / 7 / 7 / 7
Axles	13ton FUWA axles	Wheelbase (mm)	6800+1310+1310
Track (mm)	1840/1840/1840	Tire specifications	12R22.5 12PR

· We accept custom design to meet the conditions of many other gas transport, transport medium include liquid ammonia, liquid sulfur dioxide, Propylene , propane, liquefied petroleum gas (lpg), dimethyl-ether, normal butane, isobutane, butene, isobutene, butadiene and ethylene oxide

· According to strict manufacturing engineering to guarantee the lowest contractibility rate and highest dimensional stability

· Strict quality testing:A and b class weld joint with 100 percent x-ray radiographic inspection grade ii qualified;C and d class weld joint with 100 percent magnaflux inspection class i qualified

· Corrosion-resistant coating on the tanker surface.Using sand-blasting treatment, spraying, blowing and other advanced technology

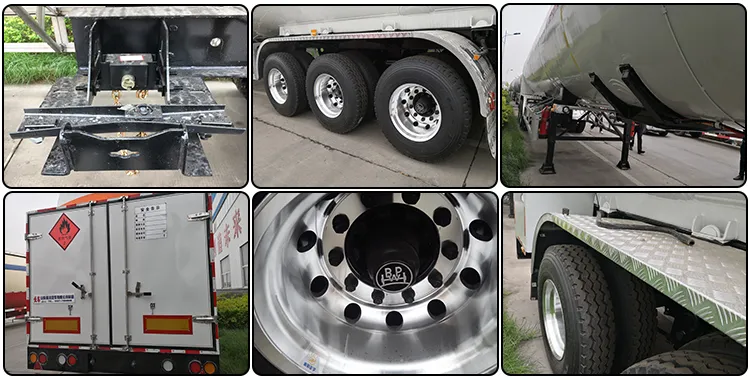

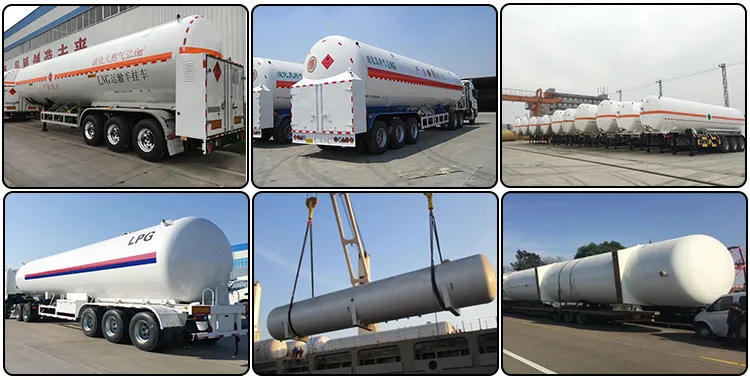

LNG Tank Semi Trailer Detailed Photos:

3 Axles LPG Gas Tanker Trailer LPG Mobile Semi Trailer Propane Gas Tanker Trailer LPG Cylinder Trailer

LNG tank semi trailer past CCC and ISO/TS16949 organization:
Our LNG tank trailers are approved by CCC and ISO/TS16949 organization. I think the reports issued by 3rd party could better clarify the quality for our LNG tank trailers. Pls feel free to contact us if any interested in our LNG tank trailer.
3 Axles LPG Gas Tanker Trailer LPG Mobile Semi Trailer Propane Gas Tanker Trailer LPG Cylinder Trailer
