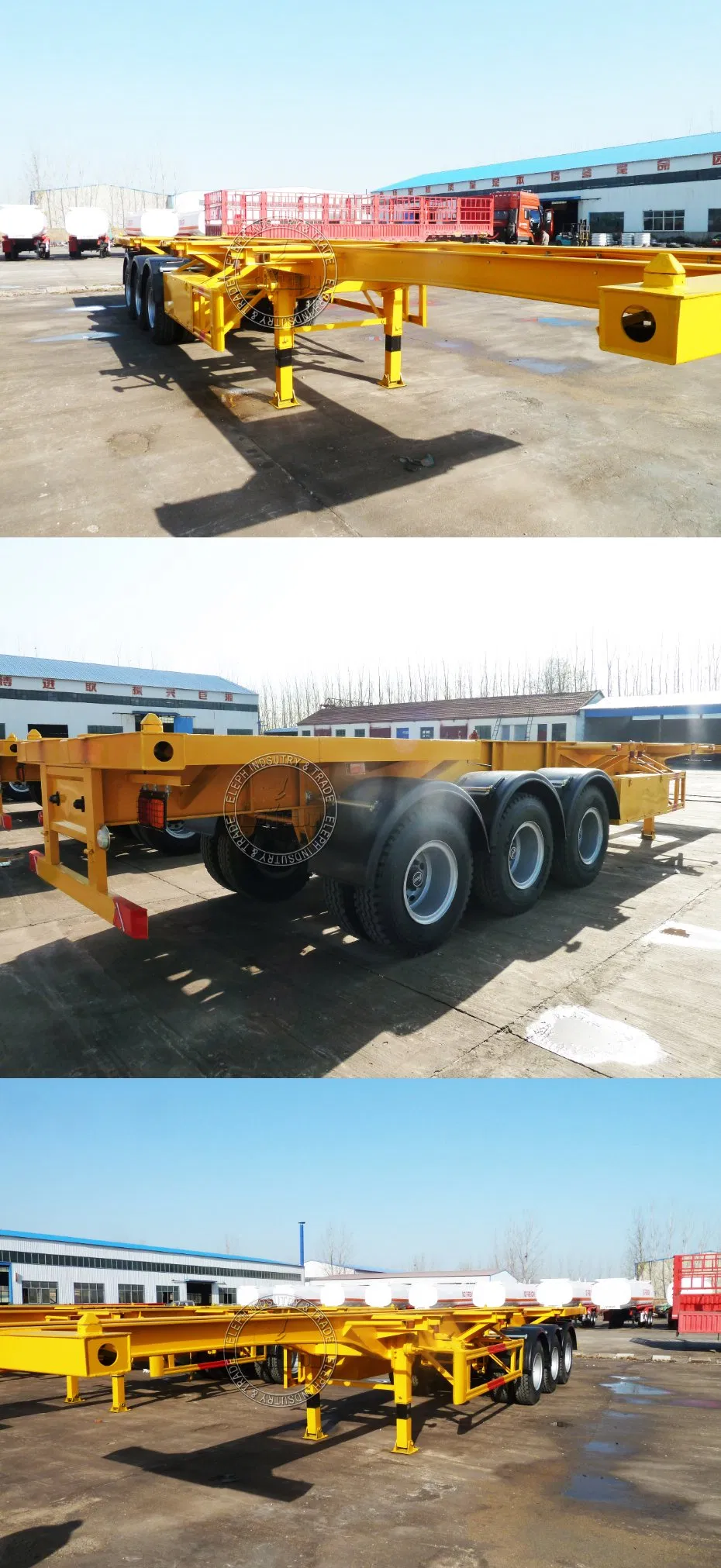

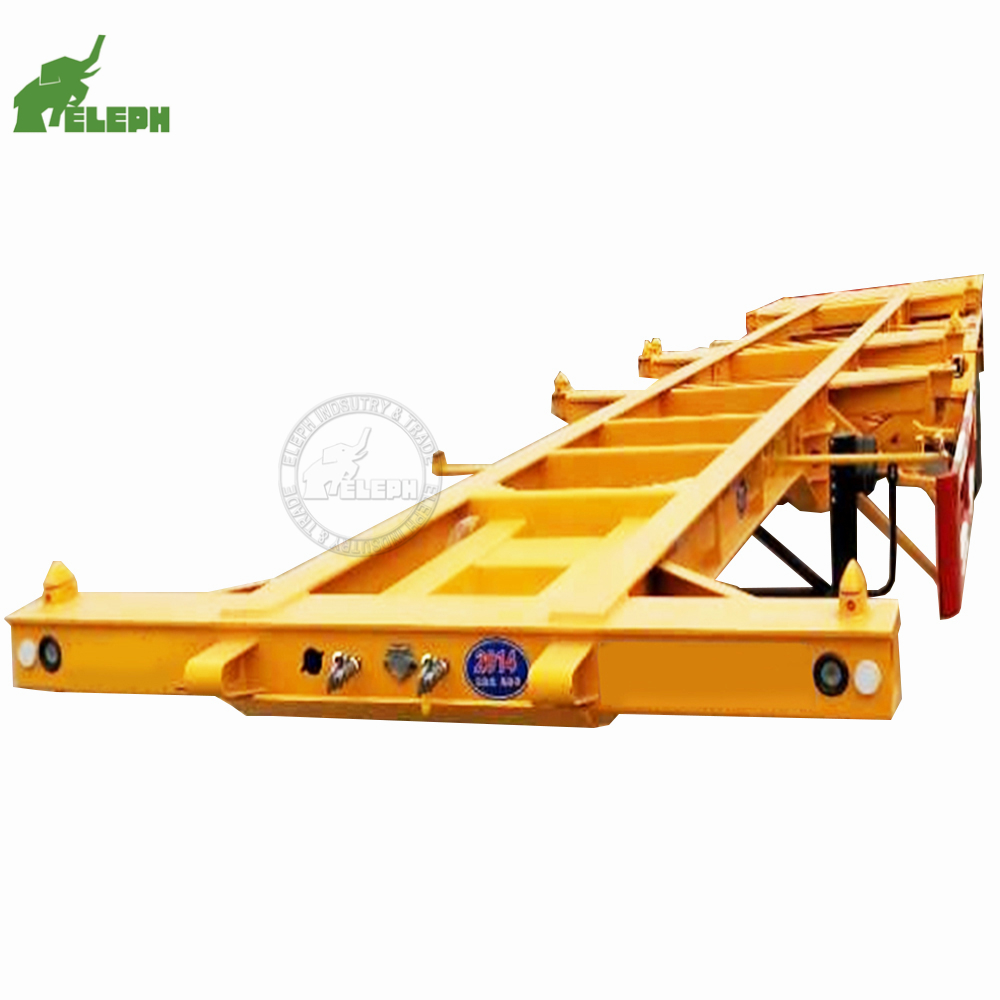

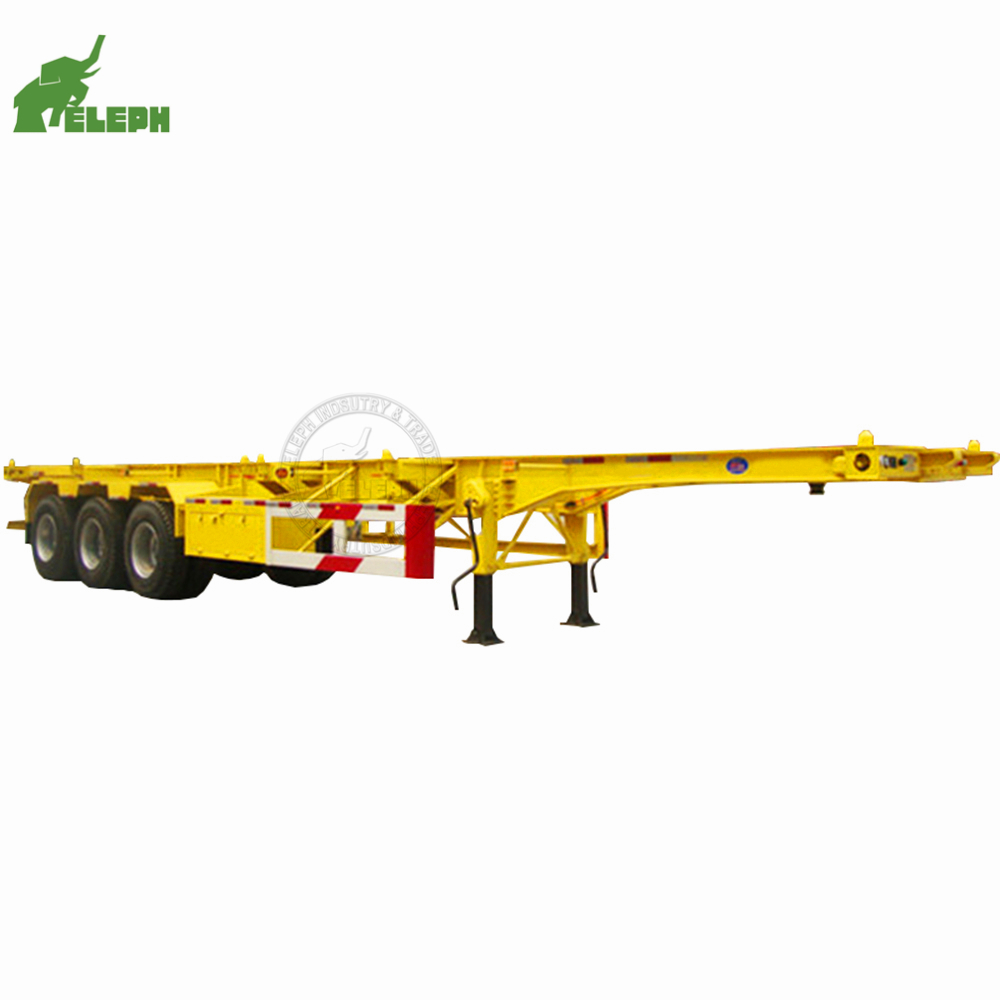

3 Axles Skeleton Frame Chassis Container Trailer for Truck
PRODUCT DETAILSContainer Transport Skeleton Truck Semi Trailer With Container LockSPECIFICATIONSModelAlp9350SkcstDimension(Optional)Axle No.Rated Load (Kg)Tire No.Tire Size20ft2400008825R20 1000R20 1100R20 1200R20 12R22.5 40ft 45ft 48ft 53ft3600001240ft 45ft 48ft 53ft47500016ManufactureQingdao Elep......
Send Inquiry
Product Description

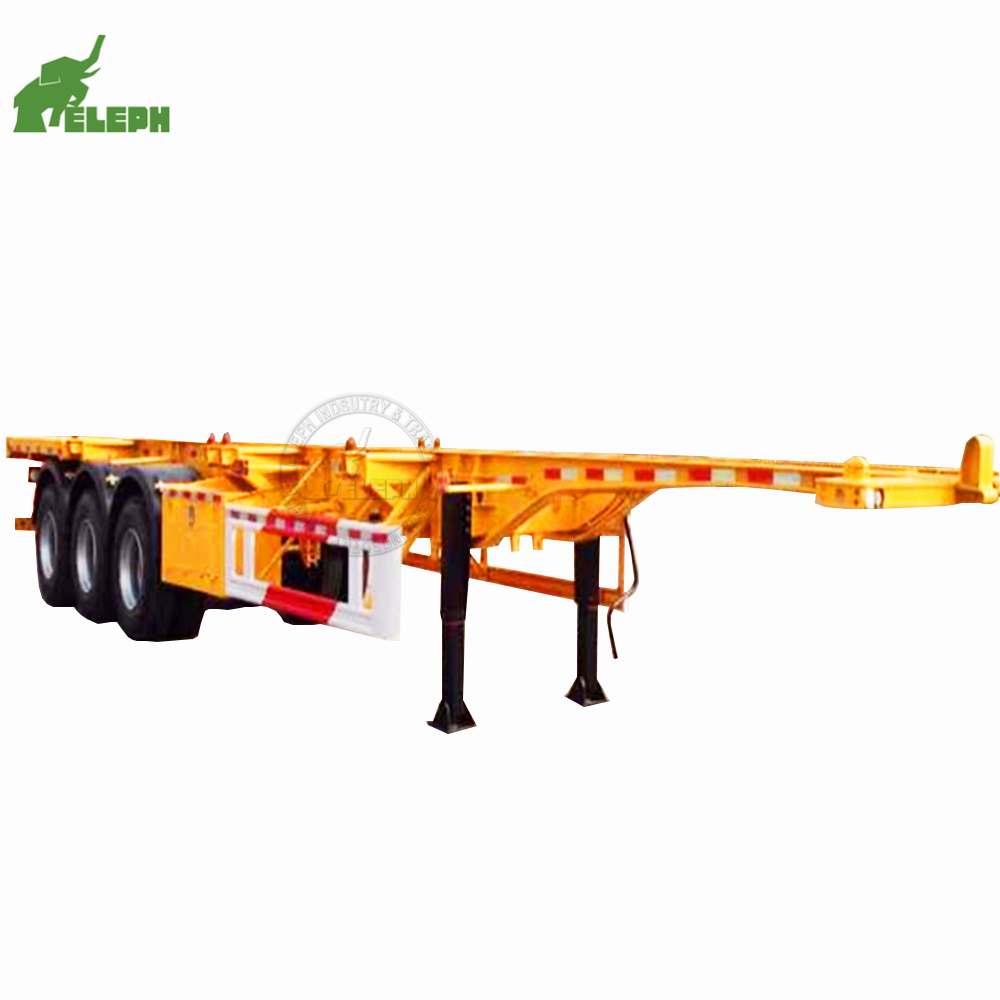

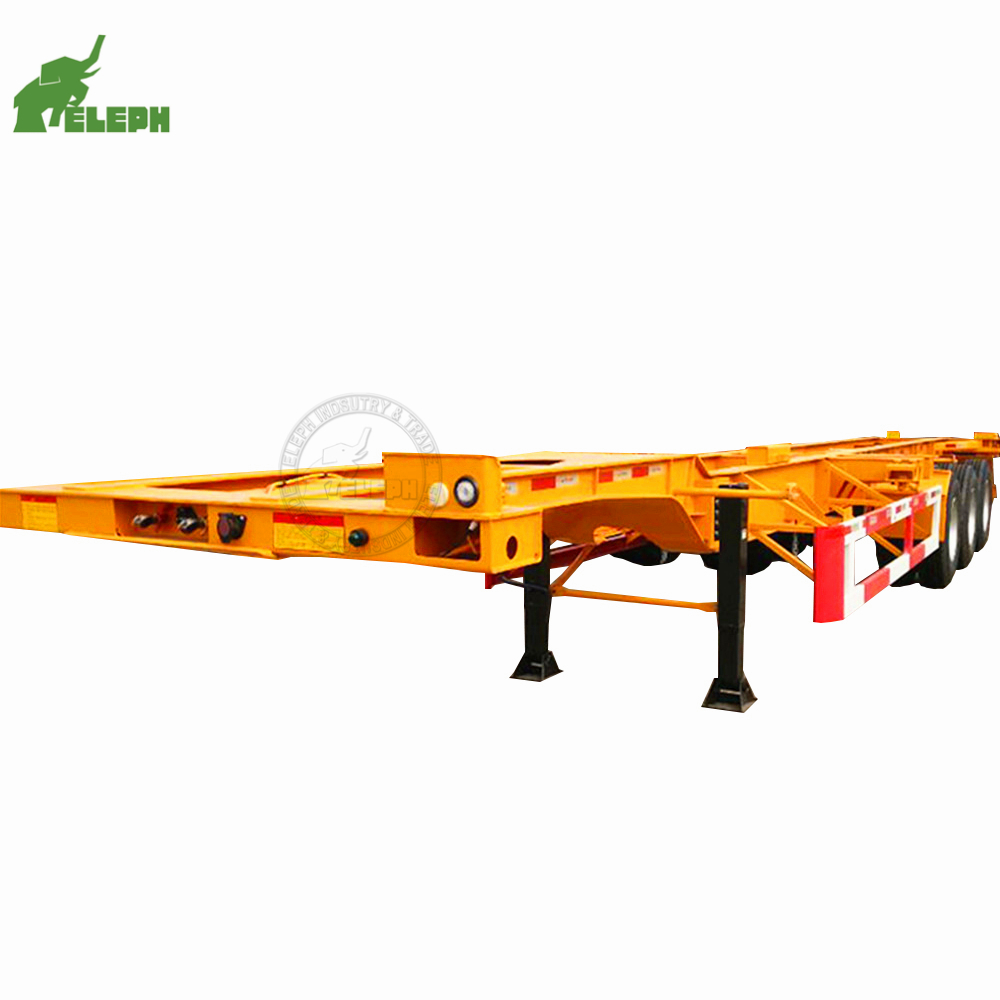

Container Transport Skeleton Truck Semi Trailer With Container Lock
Model | Alp9350Skcst | ||||
Dimension(Optional) | Axle No. | Rated Load (Kg) | Tire No. | Tire Size | |
20ft | 2 | 40000 | 8 | 825R20 1000R20 1100R20 1200R20 12R22.5
| |
40ft 45ft 48ft 53ft | 3 | 60000 | 12 | ||
40ft 45ft 48ft 53ft | 4 | 75000 | 16 | ||
Manufacture | Qingdao Eleph Industry & Trade Co., Ltd | ||||
Wheel Base (Mm) | 1310 | ||||
Leaf-Spring Pcs | 10 | ||||
Axle | 13/16/18 T | ||||

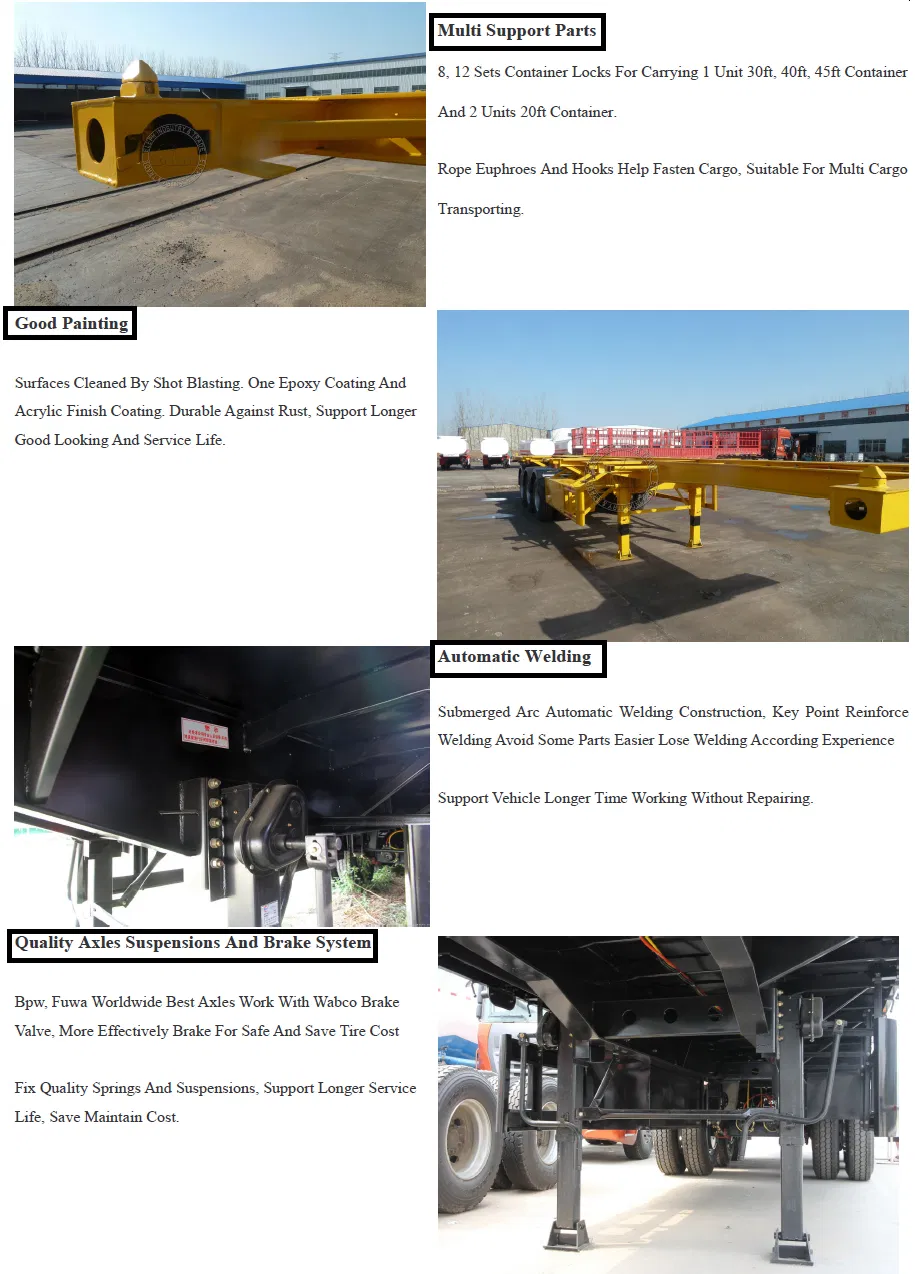

Suspension | Heavy Duty Mechanic Suspension With Leaf Springs | ||||
Main Beam Material | Q345B Manganese Plates, Automatic Submerged Arc Welded | ||||
Brake System | Dual Line Braking System With Automatic Braking System/Chambers | ||||
Brake Air Chamber | Double Model | ||||
Kingpin | 2' Or 3.5' Interchangeable | ||||
Landing Gear | 28T Loading Capacity With 80T Static Lifting Capacity. | ||||
Platform | Skeletal Chassis Loading Deck | ||||
Brake System | Dual Lines Braking System With Automatic Air Chambers | ||||
Brake Air Chamber | Four Double And Two Single Chamber | ||||
Electrical System | 24V, 7core Socket, Lights According To European Standards. | ||||
Mainbeam Size
| Upper Plate | 14mm | |||
Lower Plate | 16mm | ||||
Mid Web | 8 Mm | ||||
Height | 500-520mm | ||||
Tool Box | 1 Box Of Standard Tools | ||||
Spare Tire Carrier | 2 Sets | ||||
Color And Logo | Depends On The Buyer's Requirement. | ||||
Pin Height | According To The Height Of The Tractor Saddle. | ||||
Painting | Three Coats Painting; Any Color Will Be Available | ||||
Other Specifications | The Frame Can Be Flat Plate Style And Skeleton Style.Twist Lock Settings Installed 12 Pics, 8 Pics, And 4pcs To Satisfy The Containers With Different Sizes For Convince. | ||||
Application | For 2x20ft Or 1x40ft Containers Transport | ||||
1. How To Buy From Us ? How to Pay?
- quotation-offer-contract-1st payment-production-final payment-shipment-documentation;
TT/LC/Western Union/Credit Card
2. If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
- 90% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shacman, Beiben, Volve...
- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing
3. Whats The Time For Delivery & Arrival ?
- If Standard Model We Have In Stock Can Ship It Out Within 10 Days After Payment.
- If It Belongs To Customize Series, Ordinary Cases In 15 Days Can Be Finished For Shipment.
- For Asian Countries, Ship Can Be Reached In 1-2 Weeks, If For African & Mid East & European Countries,
25 Workdays Will Be Achieved.
4. If We Can Provide Terms For Reducing Your Import Duties ?
- Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction
