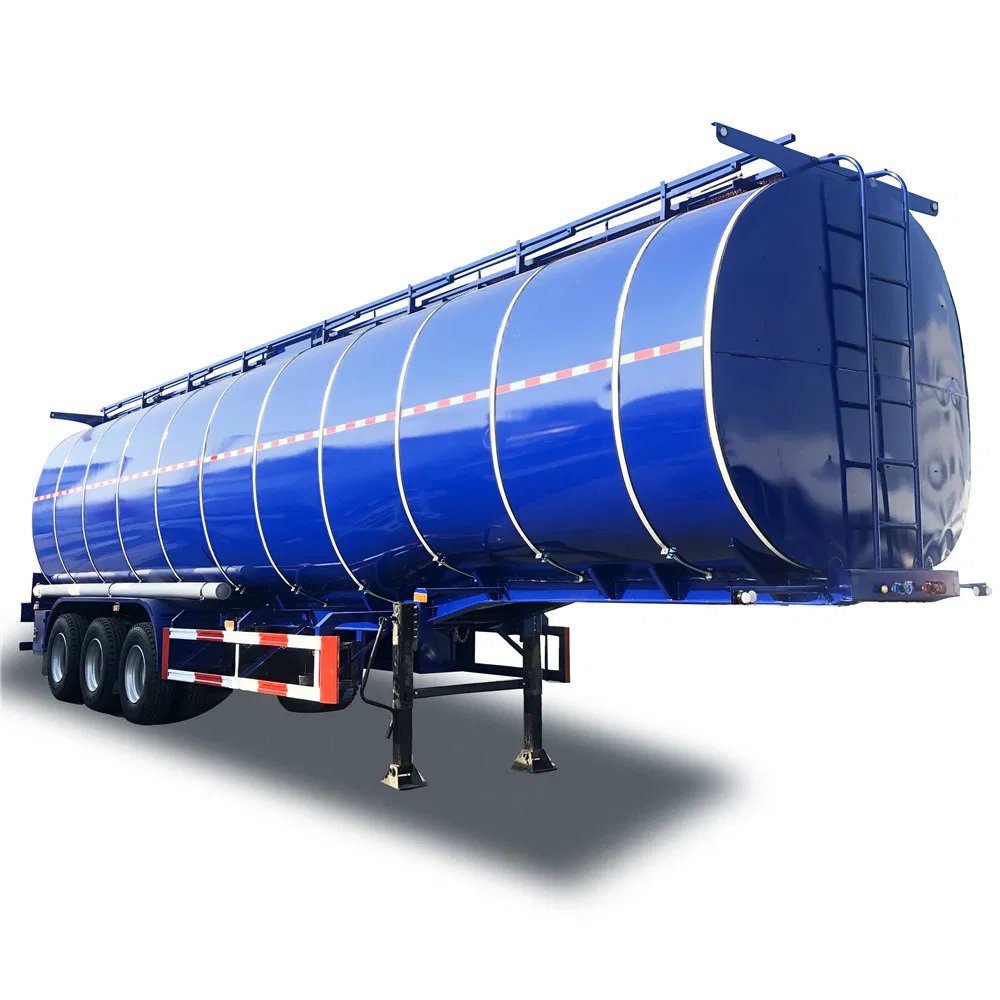

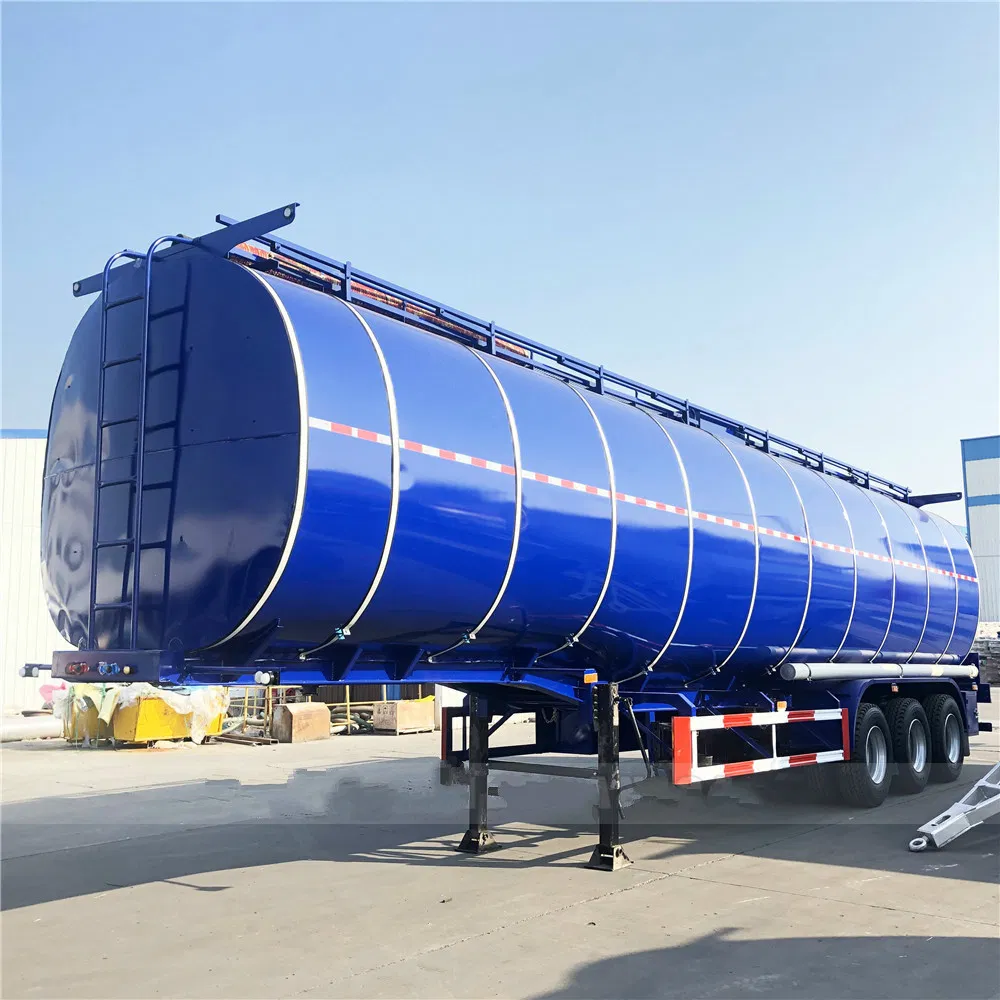

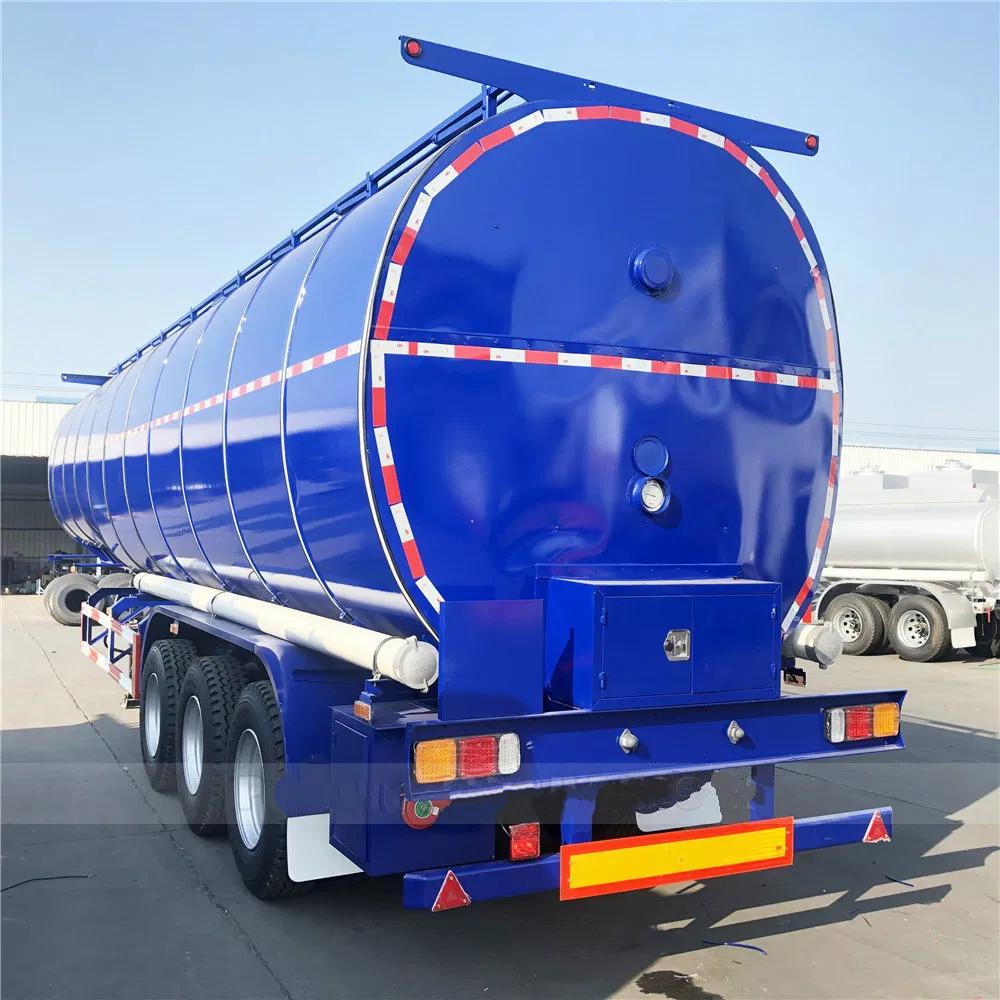

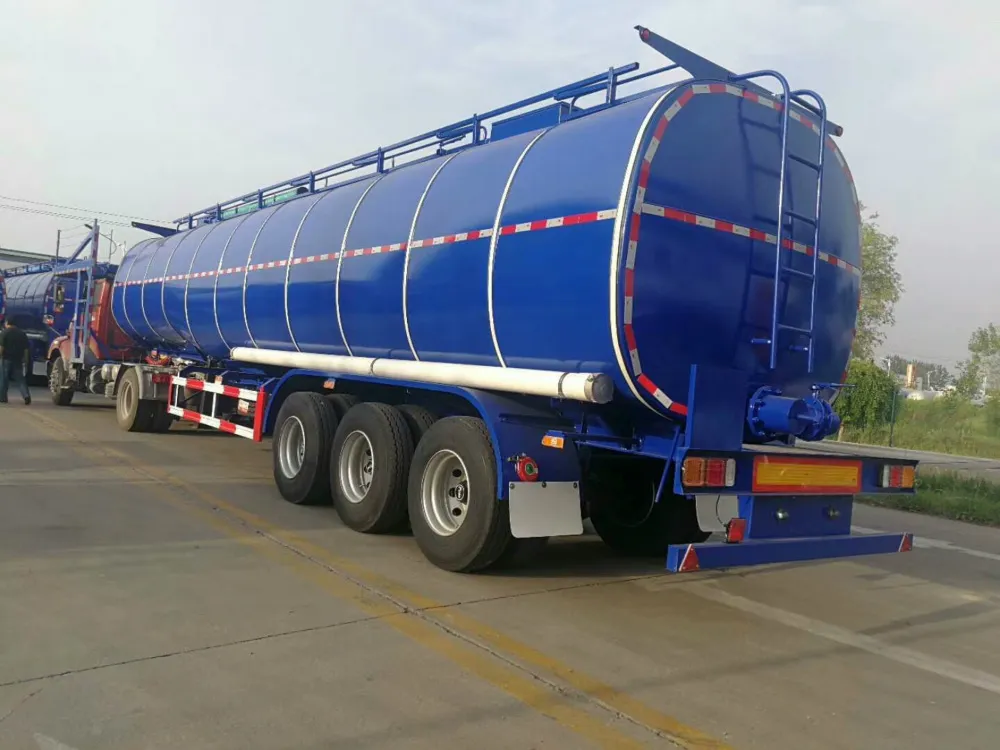

35000L 40000L Heated Hot Tar Tank Semi Trailer
Heated Hot Tar Tank Semi Trailer *Products--100% First Class!**Transportation--100% Convenience, Efficient!* *Services--24 hours After Sales Service !*I. Description of Heated Hot Tar Tank Semi Trailer It is mainly used for bitumen transport. A pump is optional to discharge the bitumen outside. ......
Send Inquiry
Product Description
Heated Hot Tar Tank Semi Trailer
*Products--100% First Class!*
*Transportation--100% Convenience, Efficient!*
*Services--24 hours After Sales Service !*
I. Description of Heated Hot Tar Tank Semi Trailer *Products--100% First Class!*
*Transportation--100% Convenience, Efficient!*
*Services--24 hours After Sales Service !*
It is mainly used for bitumen transport. A pump is optional to discharge the bitumen outside. Under the strict inspection
by goverments, it is tesed by air, water, X-ray.
II. Specs of Heated Hot Tar Tank Semi Trailer
| SPECIFICATION | |||
| 1. General | |||
| Product Name | Tri-axle 40000L Asphalt Tank Trailer | ||
| Application | Bitumen @ density 1.15kg/L | ||
| Compartment | Single Compartment | ||
| Overall Dimension | 12700x2500x3900mm | ||
| 2. Tank Body | |||
| Effective Volume | 40000+(3%~5%) | ||
| Material | Internal Tank | Shell 5mm steel Q345B ; End 6mm steel Q345B | |
| Insulation Interlayer | Inflaming 150mm thick Rock wool compressed to 100mm around the internal tank | ||
| Outer Shell | Covered with stainless steel sheeting. Fastened by stainless steel full circular clamp rings with rubber seal | ||
| Shell finish | Internal tank sandblasted to SA 2.5 and painted epoxy zinc phosphate primer (anti-corrosion), then covered by insulation fastened by clapping. Logo design as per client's requirement | ||
| Heating Pipeline | 1 set U shape heating pipe by seamless steel inside the tank body, connected to burner | ||
| Sub-beam | Standard features of a full length "T" shape sub-frame welded to tank bottom | ||
| Hydrostatic test | Pressure Testing - hydrostatic 150kpa each compartment | ||
| 3. Tank Fittings | |||
| Burner | Italian RIELLO with a special fuel tank | ||
| Manhole cover | 2-off Φ500 easy-open type manhole cover | ||
| Breather Valve (safety valve) | 2-off aluminum breather valves | ||

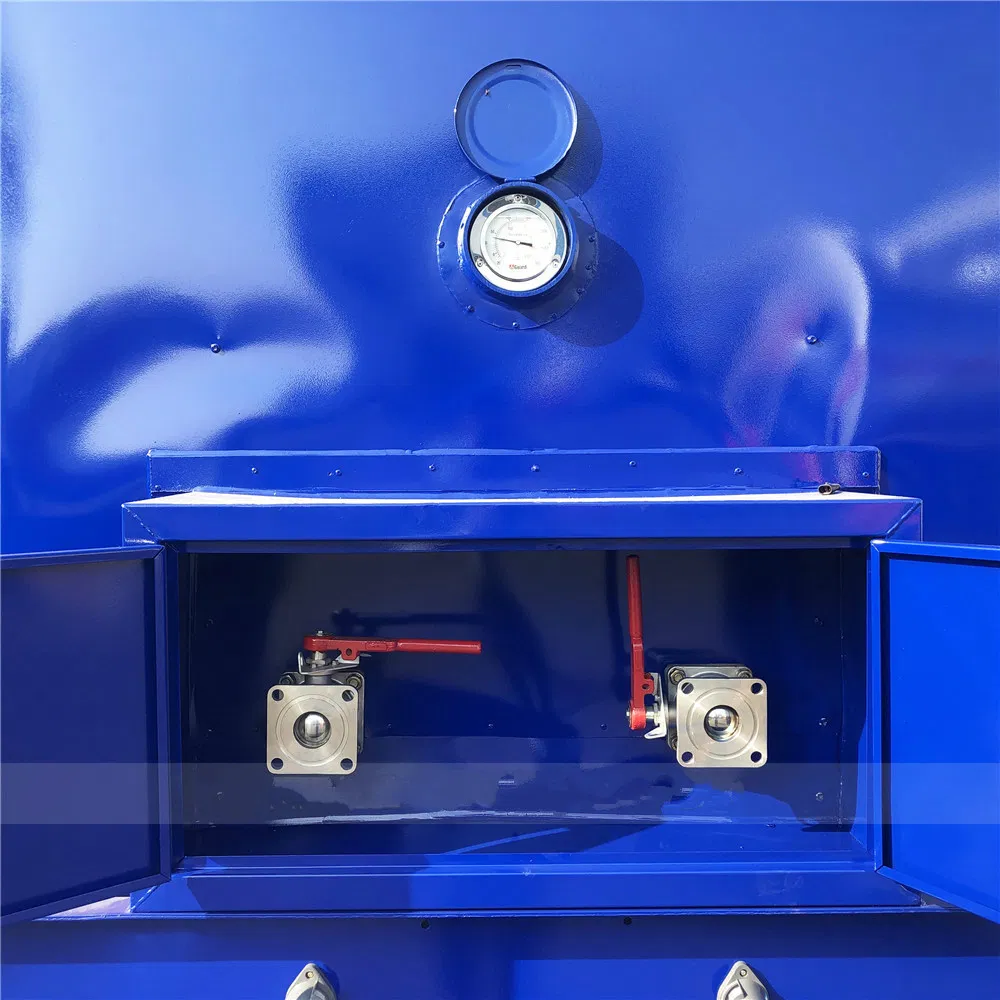

| Discharge valve | 1-off 4'' outlet with 4'' cam-in groove adaptor at rear of tank | ||
| Temperature Gauge | 2-off measurement range 0ºC~300ºC | ||
| Interlock system | 1-off, the brake is locked when master switch is pulled | ||
| Hose and hose carrier box | 1 nos (LHS) and 1 nos (RHS) hose carrier to fit 4" x 6 meter hose close type complete brackets to be installed at discharge side. Hose with coupling at one end. | ||
| 4. Running Gear | |||
| Main Beam | Submerged-arc welding "I" beam mounted to the tank body | ||
| Kingpin / plate | 12mm thick high tensile steel skid plate bolts directly to the double web reinforced under frame at front completed with bolted kingpin. c/w 3.5" kingpin | ||
| Landing gear | JOST landing leg. Lifting capacity 28 ton, static capacity 72 ton. | ||
| Axle | FUWA 3 axles * 13 tons capacity, 2 axles with WABCO ABS 4S/2M, drum brake and 10 stud track | ||
| Suspension | Mechanical Reinforced Multi Leaf Spring. Suspension frame Mild steel fabricated for heavy duty usage | ||
| Brake system | Two line air-brake systems comprising of emergency relay valve, 30/30 spring brake chamber on one axle, air reservoir and contact type couplings. With 4S/2M ABS | ||
| Tires | 13pcs 315/80R22.5 tubeless tires, TRIANGLE brand, include 1 spare | ||
| Rims | 13pcs 9.00*22.5 steel tubeless rims, include 2 spare rim | ||
| 5. Others | |||
| Walkway | Anti-skid walkway fitted with carbon steel grating | ||
| Ladder | Detachable steel fabricated with steps not more than 300mm, mounted at the front of tank. Clearance between ladder and tanker end not less than 100mm | ||
| Handrail | Aluminum manual operated collapsible handrail fixed on the top of tank, 800mm height | ||
| Tool box | 1 off lockable tool box to be position at passenger side of tanker | ||
| Side guard | Side Guard be provided made of steel material on both side of the tanker with guard clearance of 450- 550mm | ||
| Mudguard | Whole piece of 2.0 mm minimum steel plates type c/w mud flaps, suppressor and clips | ||
| Rear bumper | Steel bumper to accommodate light assembly and number plates to cover full width of the tank. Maximum ground clearance shall be 450mm-550mm and 150mm from near most of tank | ||
| Extra Fuel Carrier | 1000Liters extra fuel tank attached under tank position | ||
| Fire extinguisher holder | 2-off x8KGS dry powder fire extinguisher | ||
| Anti-Static System | 1-off earthing strip to be installed at the rear of tanker. 1-off grounding bonding reel (copper / brass clamp). | ||
| Light & Wiring | Standard front, side and rear. Comply with the road regulations and oil industry standard. 24 volt system, 7 wires ISO socket. Red/brake, white/reverse and amber/direction indicator, LED tail lamp 8pcs side marker lamp | ||
| Reflective tapes & sticker | Standard or as per customers requirements | ||
| Reverse alarm | 24V audible reverse beeper | ||
