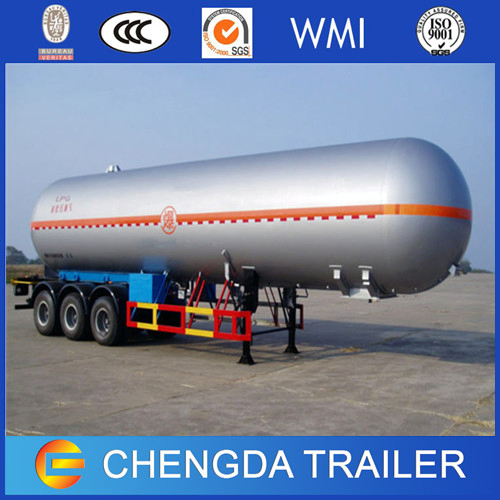

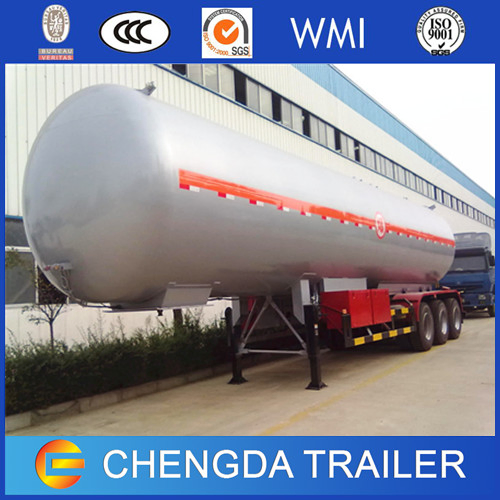

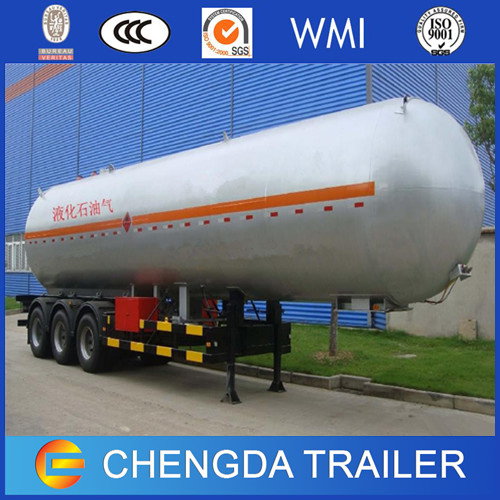

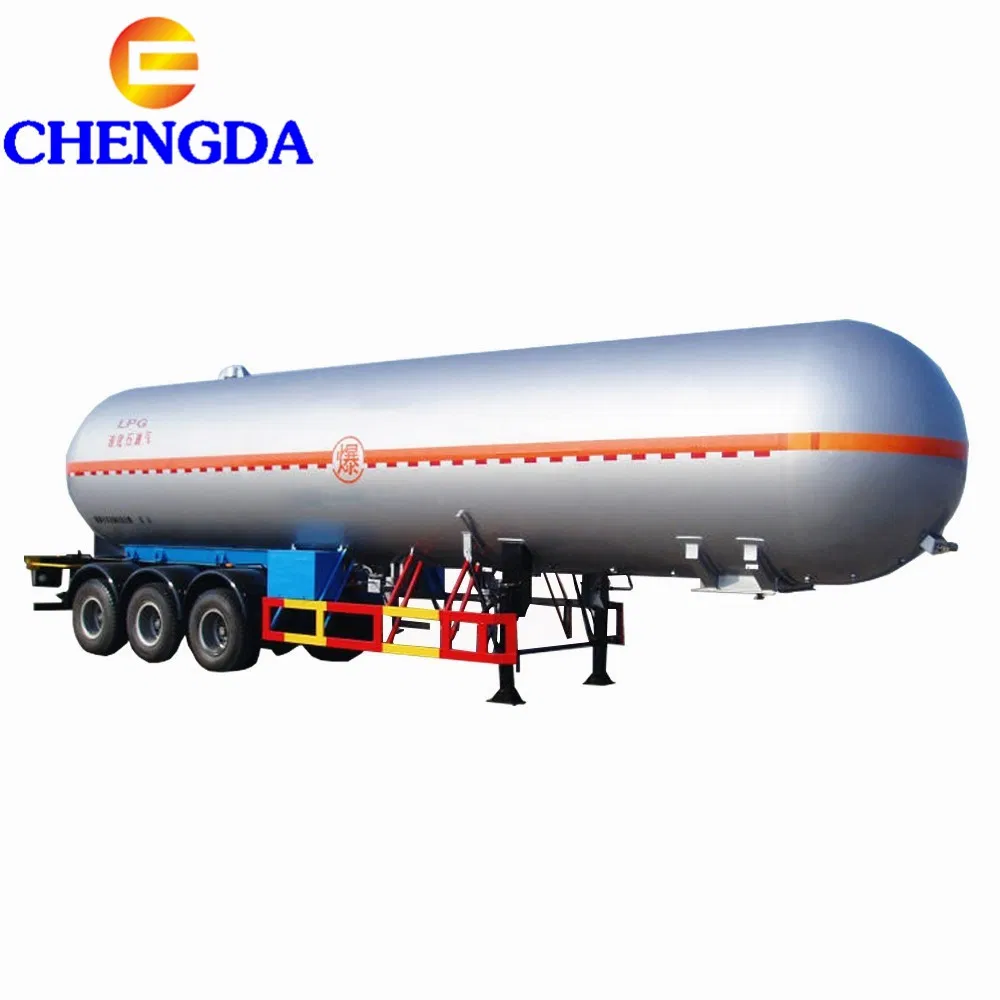

3axle 42m3 59.6m3 LPG Tanker Truck Semi Trailer

Product Description

3axle 42m3 59.6m3 LPG Tanker Truck Semi Trailer
3axle 42m3 59.6m3 LPG Tanker Truck Semi Trailer

Specification :

Standard	GB150-1998 Steel pressure vessels
	GB/T19905-2005 Liquefied gas truck
	Pressure vessel safety technology and inspection procedures
	Liquefied gas tanker safety monitoring procedures
Tanker Essential Information	Dimensions (lengthwidthheight)	13000×2500×3990(MM)
	Estimated Tare Weight	16395KG
	Payload	23604KG
	Total Weight	60000L
Shell Of Tanker	Products	LPG, Butane , Propane
	Fluidproperty	flammable
	Design temperature	to 50°c
	Design pressure	1.61MPa
	Corrosion allowance	1.0mm
	Major materials of bearing pressure	Tanker body : Q345R , 12mm
		End plate : Q345R , 14mm
		Main Beam : Q345B
	Compartments	One
	Baffle inside the tank	14-off Aluminium bolted plate , thickness is 5mm
	Shape	Cylindrical ; Ellipse head
Safety Valve	Quantity	Two
	Location	On the top of tanker ;
	Type	Only weld suitable flange
	Size	As customer's requirement
Running System	Axles	13 TON FUWA Axles
	Suspension system	Leaf spring suspension, Air suspension optional
	Tyre	Brand : Triangle,12R22.5
	Kingpin	JOST2",bolt on ,in rubbing plate
	Landing legs	JOST D200 single linkage,Gear type
Electronical System	7-Pin Socket	24V 7-pin socket
	LED Lamp	All kinds of lamp
	Cable	Stander cable
