Product Description

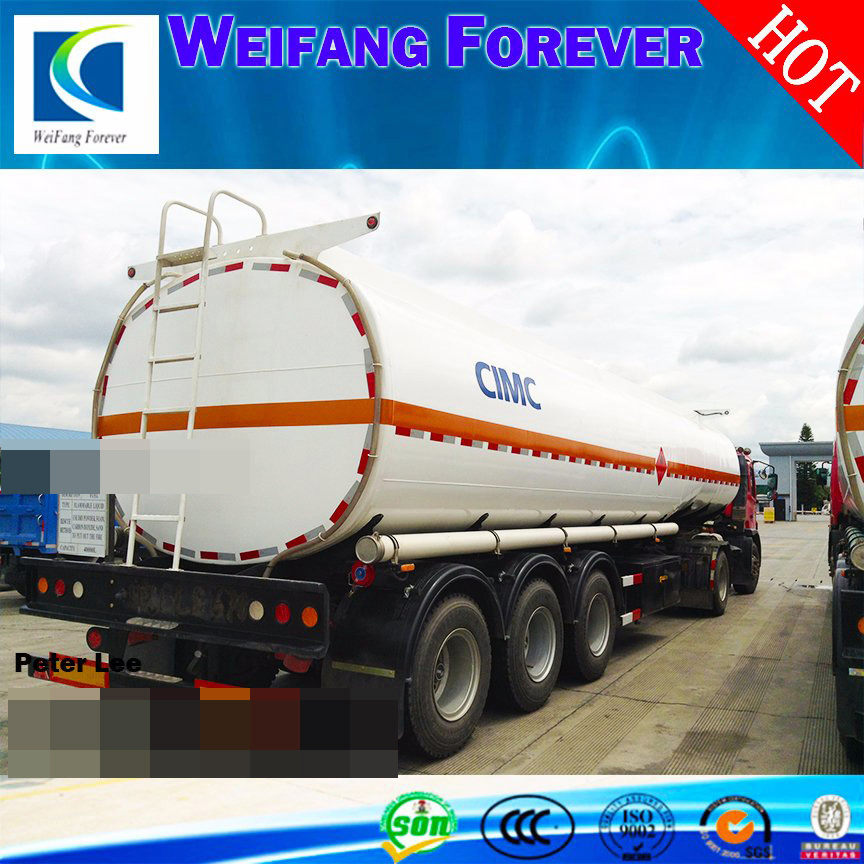

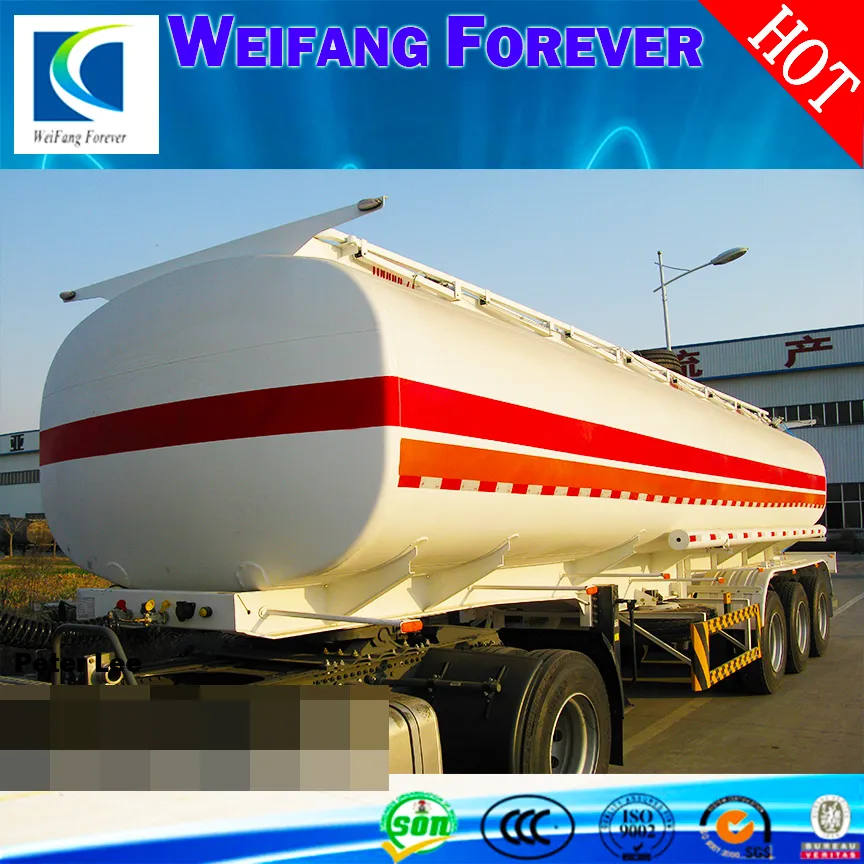

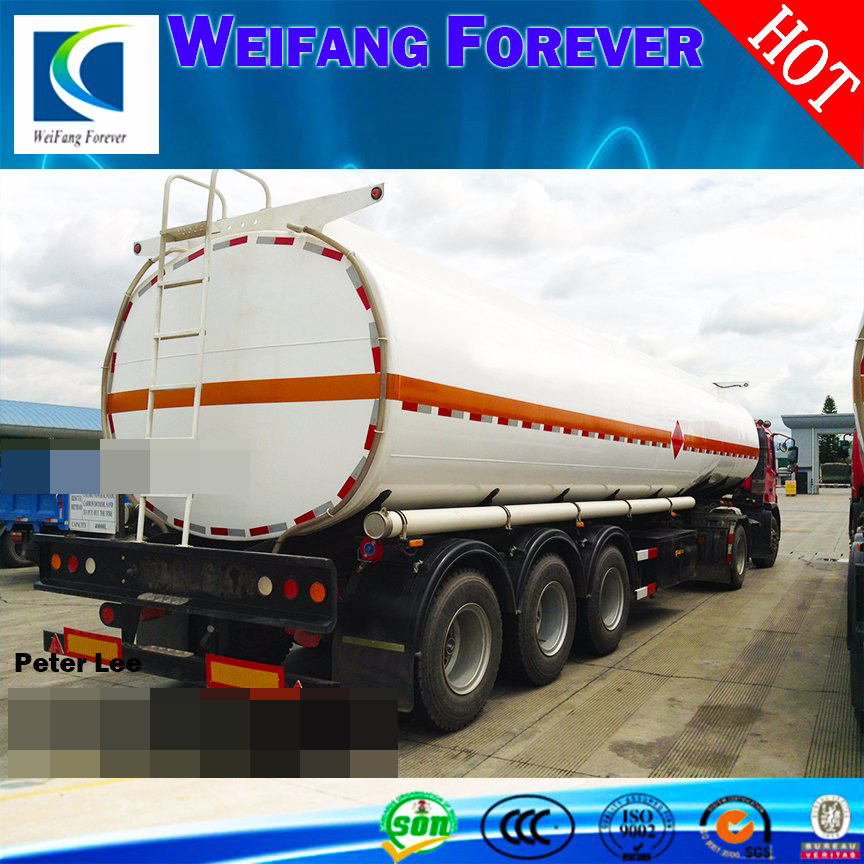

3axles 42000L Aluminium Alloy Oil Tanker

MAIN PERFORMANCE

Product Specification
1	Type	Tank Semitrailer
2	Product Name	Fuel Tank Semitrailer
3	Volume	42000L
4	Tare Weight	9000kg
5	Payload	30t
6	Tank Body	Tank Material	Thickness:6mm
		Sealing Head	Thickness:6mm
		Anti-Wave Board	Corrugated shape Thickness:4mm
		Partition Plate	Thickness:4mm
		Manhole	Aluminum manhole
		Shape of Tank	Square
		Compartments	5
		Dimension	12800x2280x3800
7	Running System	Axles	13t Good quality axles
		Suspension	Tri-axle 10-pcs leaf spring suspension with equalizer beam
		Tires	11.00R20,12unit

8	Braking System	Dual lines pneumatic brake system, KORMEE ABS braking system
9	Frame	Main Beam	Height 500, upper 8mm, lower 10mm. Mid web 6mm
10	King Pin	Size: 50# (2'') or 90#(3.5''); Type: welded or assembled
11	Landing Gear	double side operation, Static capacity 28Ton
12	Electrical & Paint	Electrical	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
		Lights & Reflectors	24V, 7 lines
		Painting	zinc-rich primer and modified urethane topcoat as customers' choices.
		Accessories	TOOL BOX (BOX ONLY)---PROVIDED WITH THE TRAILER TWO SPARE WHEEL HOLDER(WINCH),BUT NO SPARE TYRES

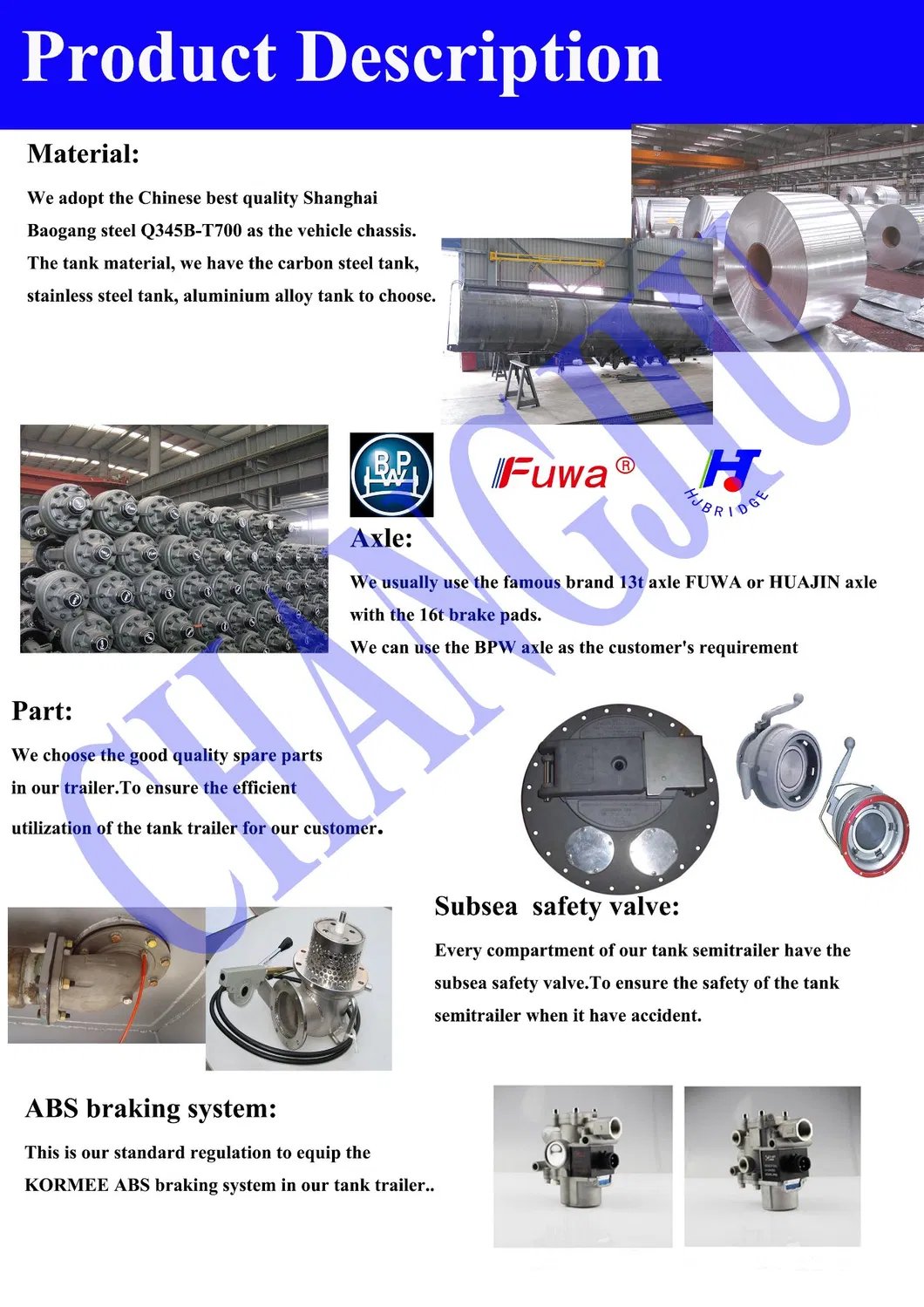

I. Product Decription
***Material:We adopt the Chinese best quality Shanghai Baogang steel Q345B-T700 as the vehicle chassis.The tank material, we have the carbon steel tank,stainless steel tank, aluminium alloy tank to choose.
***Axle: We usually use the famous brand 13t axle FUWA or HUAJIN axlewith the 16t brake pa We can use the BPW axle as the customer's requirement.
***Part:We choose the good quality spare parts in our trailer.To ensure the efficient utilization of the tank trailer for our customer.
***Subsea safety valve: Every compartment of our tank semitrailer have the subsea safety valve.To ensure the safety of the tank semitrailer when it have accident.
***ABS braking system: This is our standard regulation to equip the KORMEE ABS braking system in our tank trailer..

3axles 42000L Aluminium Alloy Oil Tanker

3axles 42000L Aluminium Alloy Oil Tanker

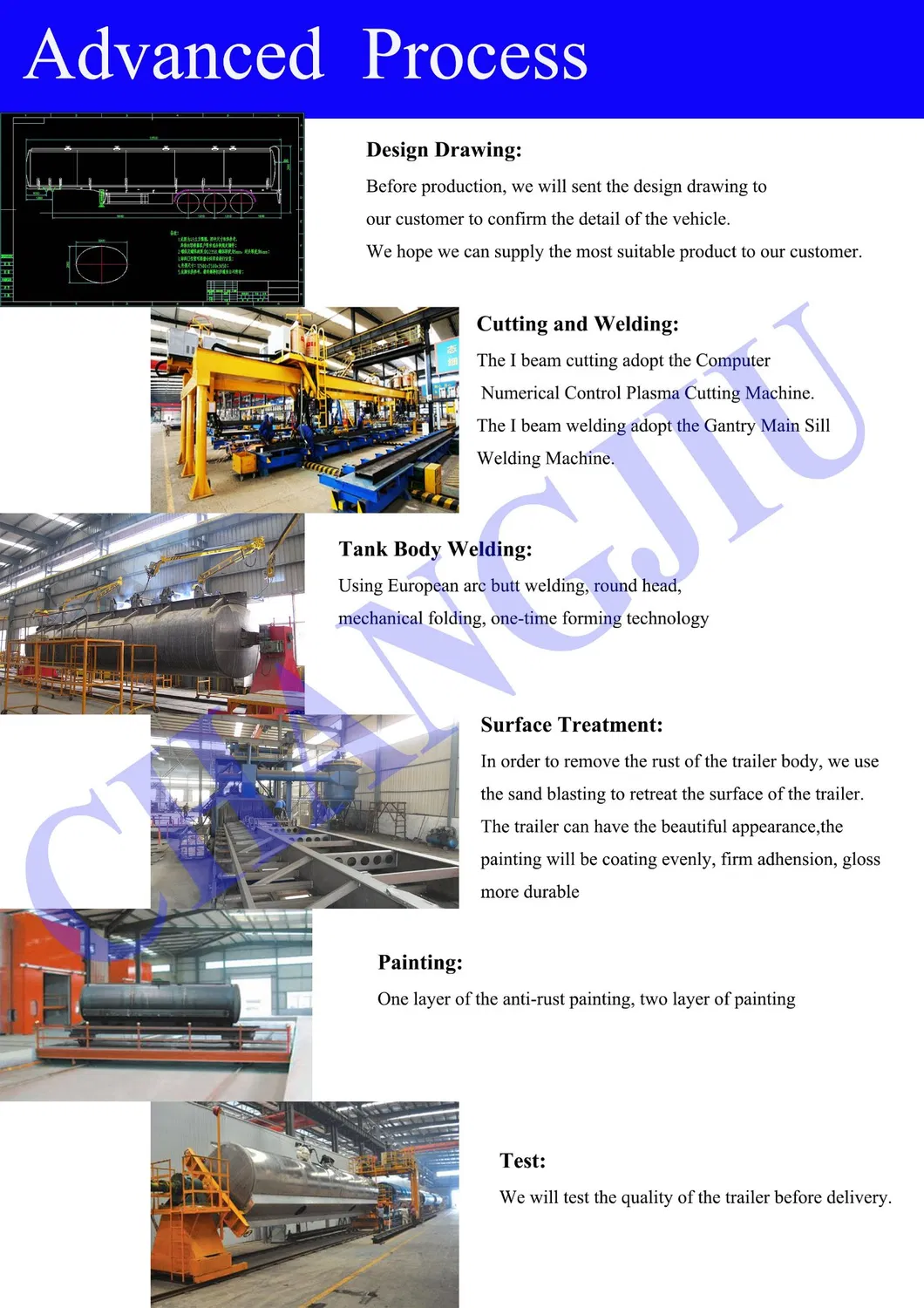

II.Advance Process:
---Design Drawing: Before production, we will sent the design drawing to our customer to confirm the detail of the vehicle. We hope we can supply the most suitable product to our customer.
---Cutting and Welding: The I beam cutting adopt the Computer Numerical Control Plasma Cutting Machine.The I beam welding adopt the Gantry Main Sill Welding Machine.
---Tank Body Welding: Using European arc butt welding, round head, mechanical folding, one-time forming technology.
---Surface Treatment: In order to remove the rust of the trailer body, we use the sand blasting to retreat the surface of the trailer.The trailer can have the beautiful appearance,the painting will be coating evenly, firm adhension, gloss more durable.
---Painting: One layer of the anti-rust painting, two layer of painting
---Test: We will test the quality of the trailer before delivery.

3axles 42000L Aluminium Alloy Oil Tanker

III. The Advantage Of Our 3 Axles Fuel Tank Semitrailer

1, Our tank is equipped with multi-channel anti-wave partitions, and can be divided into several compartments and load different liquid. And can be achieved the pump into, pump out through the table, and pump into, pump out not the table, self-flow through table, and not but table.
2. We test all of our fuel tank trailer.We use of high-pressure gas leak detection, the tank has a high strength, the center of gravity stability, vehicle safety and stability characteristics.
3. All kinds of alcohol, sulfuric acid, salted chemical tanker use imported stainless steel (thickness of 4mm-5mm) or plastic cans (polypropylene) (thickness of 12mm-22mm) manufacturing.
4. Our fuel tank is composed of a power take-off device, a drive shaft, a gear oil pump, a tank body and a pipe network system. Pipe network system consists of oil pump, three-way four-ball valve, two-way ball valve, filter, pipe composition.
5. Gear pump, centrifugal pump, heavy oil pump, stainless steel pump are available and can be installed heating pipe and insulation layer.

3axles 42000L Aluminium Alloy Oil Tanker

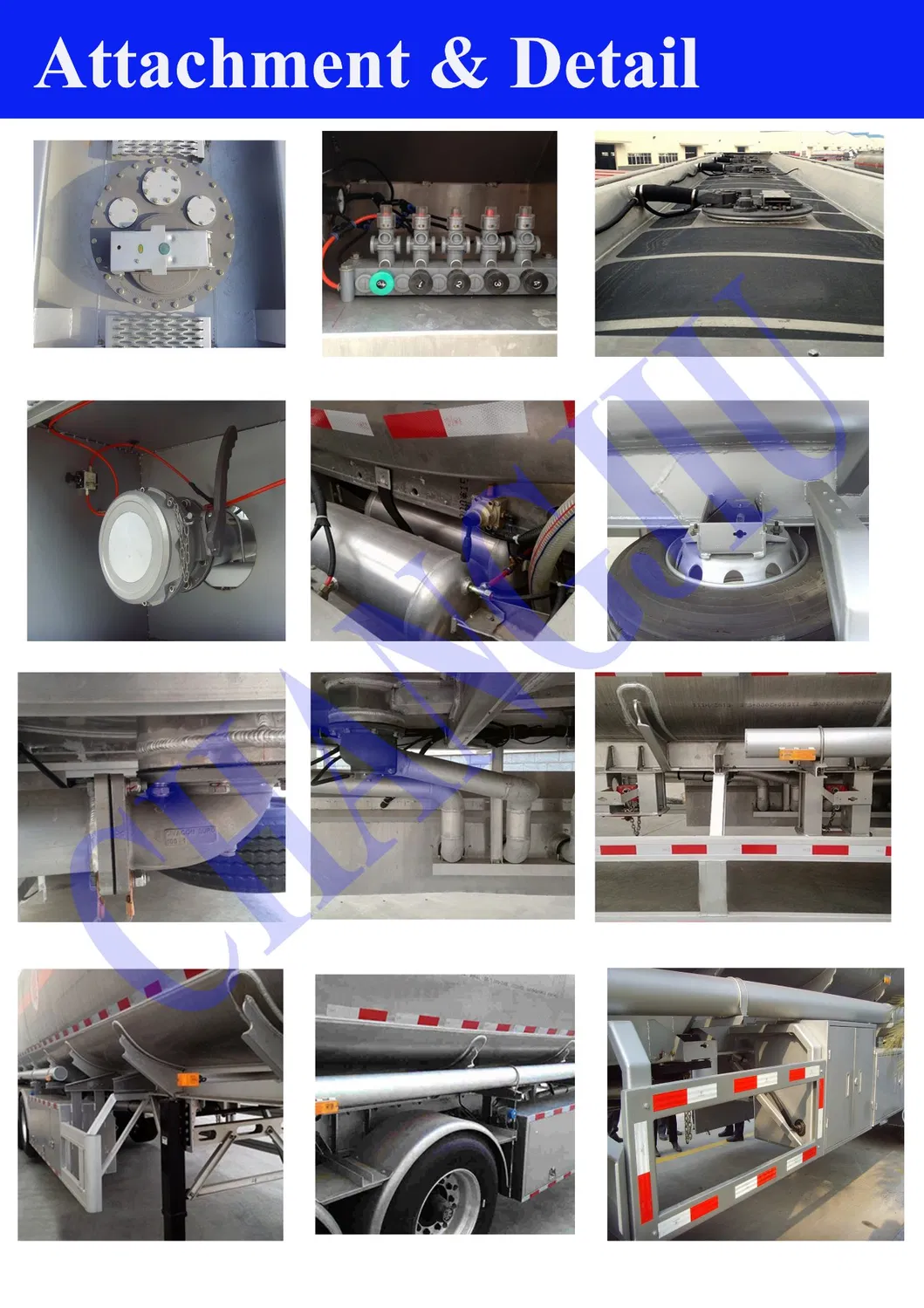

IV. The Detail of the Fuel Tank Trailer

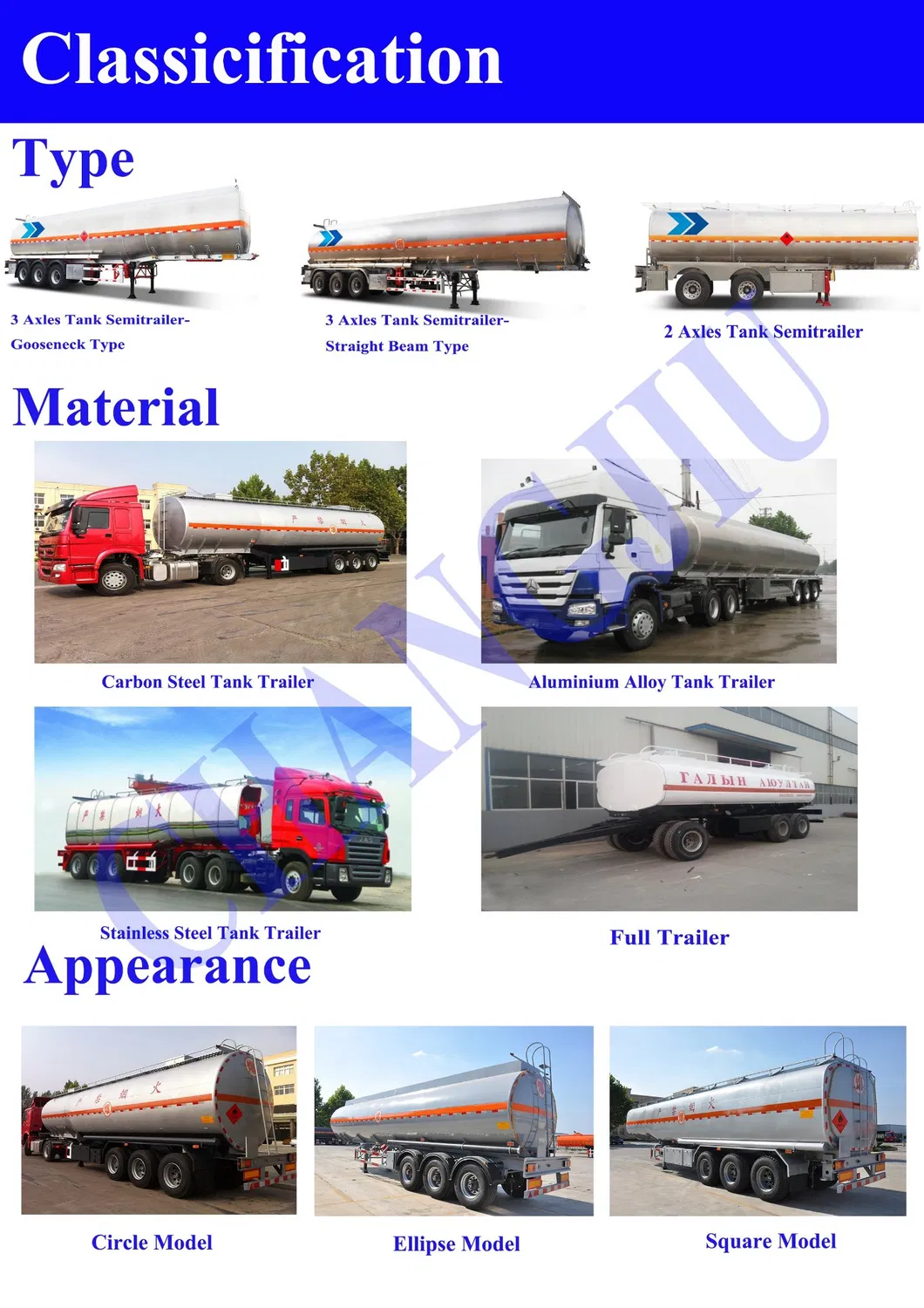

V. Classification Of The Fuel Tank Trailer

VI. Guarrantee For The Parts Of The Tanker Traielr:

ITEM NAME			WARRANTY	ITEM NAME		WARRANTY
MAIN FRAME	FRAME		1 YEAR	RUNNING GEAR	AXLE	6 MONTHS
	SUSPENSION		6 MONTHS		AXLE BEARING	3 MONTHS
	KING PIN		1 YEAR		WHEEL HUB	3 MONTHS
	BALANCE ARM		3 MONTHS
ITEM NAME			WARRANTY	ITEM NAME		WARRANTY
BRAKING DEVICE		BRAKE DRUM	3 MONTHS	SUPPORT DEVICE	LANDING GEAR	6 MONTHS
		BRKE CHAMBER	3 MONTHS		SPARE WHEEL CARRIER	6 MONTHS
		AIR RESERVOIR	6 MONTHS
ITEM NAME					WARRANTY
OTHERS		LEAF SPRING			3 MONTHS
		BRAKE CHAMBER DIAPHRAGM			3 MONTHS
		EMERGENCY RELAY VALVE			3 MONTHS
		BRAKE SHOE			3 MONTHS
		RELAY VALVE			3 MONTHS

VII. DEALING PROCESS

1. You send us an inquiries on your desired trailer through our contact information.
2. We shall reply you in 12 hours after we received our inquiry.
3. We will negotiate the detail of the trailer on your requirement.
4. Confirmed on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. The Manufacturig process with updated news.
9. The Production completement.
10.Balance payment .
11.Arrange Shipment and Custom Clearance
12. A/S service for 1 year.
