40FT Heavy Utility Cargo Truck Trailer/Trucks

Product Description

40ft heavy utility cargo truck trailer/trucks

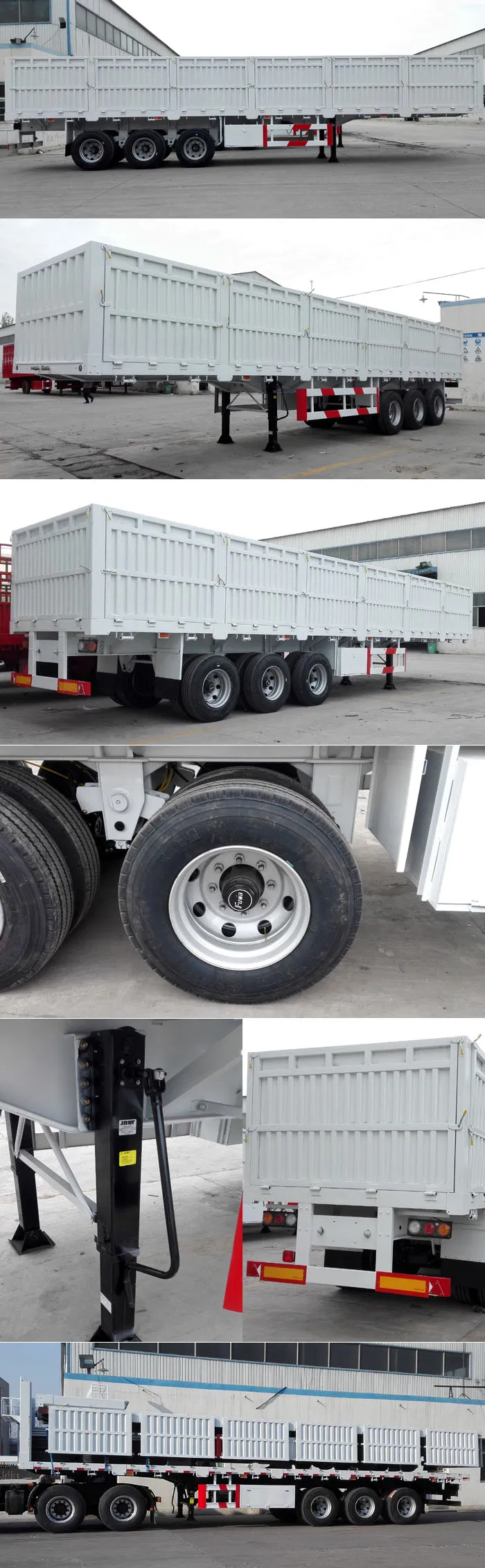

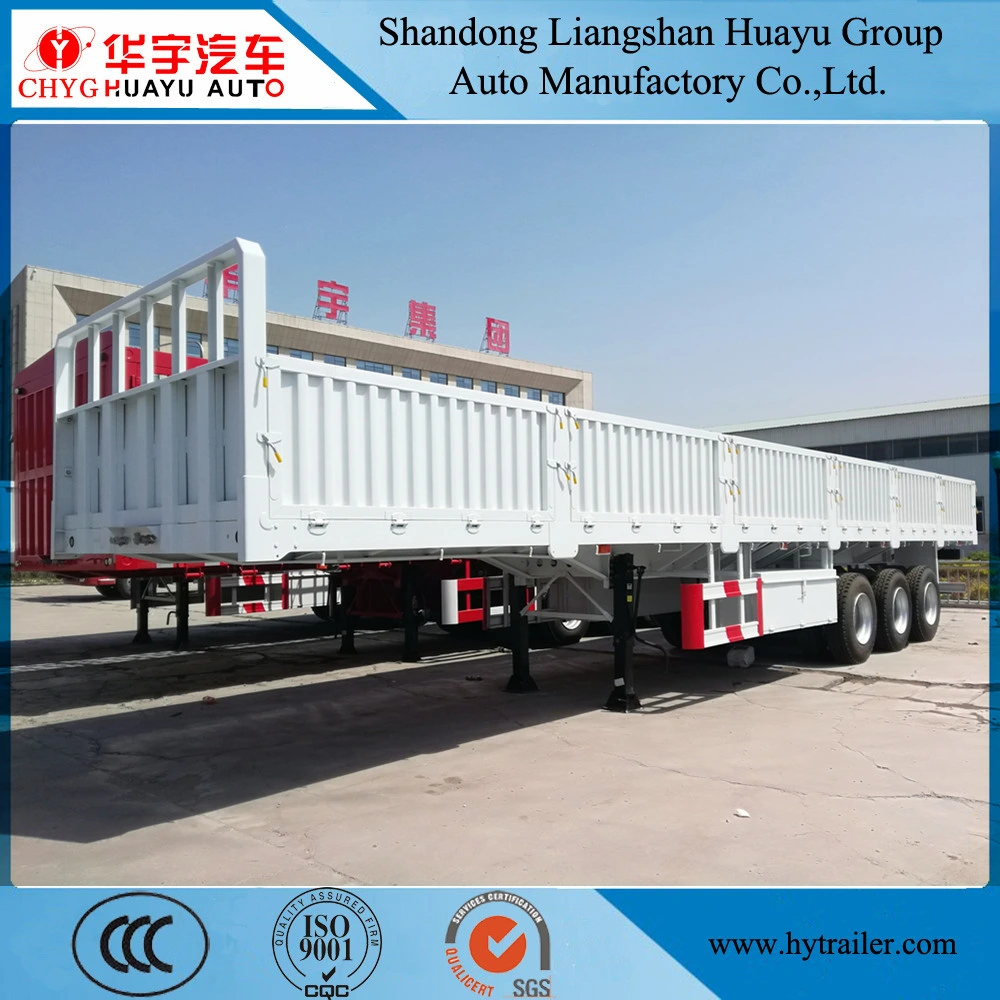

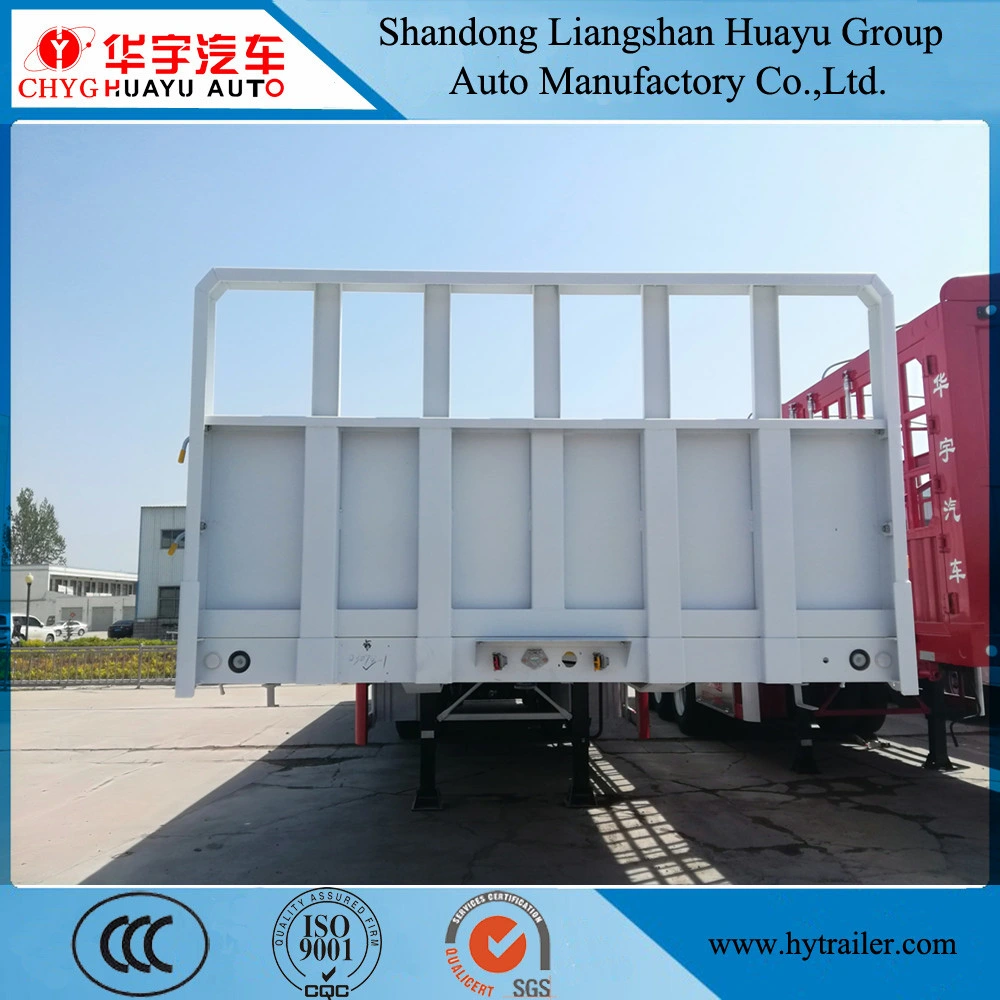

Trailer Details show:

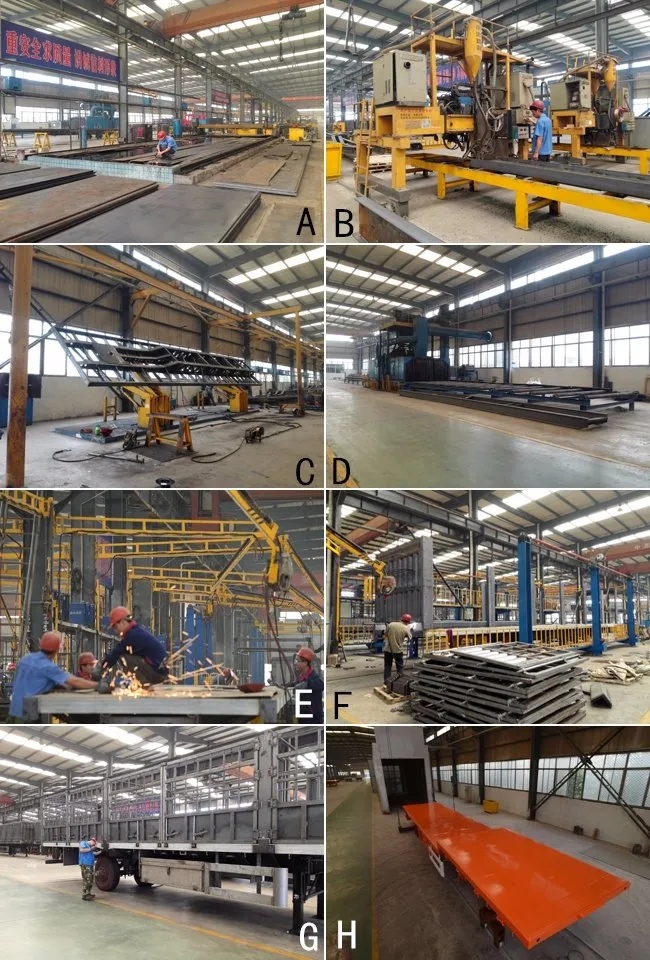

Introduction of production process
A.Steel auto cutting
B.Main beam auto submerged arc welding
C.chassis reversal
D.shot blasting for rust cleaning
E,F.Welding by experienced worker
G.Final cleaning welding slag
H.Dust-free painting

Specifacition

Tare weight	8000kg
Size	12500mm2500mm270mm
Payload	50T
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm
Side beam	16#/18# channel steel(Q235)
Cross member	10#/w shape channel steel(Q235)
Floor	3mm checkered plate
Side wall	height 600mm thickness 1.5-2.5mm
Front board	1500mm
Axle	3 axle FUWA brand 13T
Suspension	American type suspension
Leaf spring	10pcs13mm90mm
Tire	12R22.5 double star brand 12pcs
Wheel rim	9.0-22.5 jingu brand 12pcs
Kingpin	2" bolt-in king pin
Landing gear	two-speed, manual operating ,heavy duty landing gear 28T
Twist lock	12pcs
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Optional
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light
Date of delivery	20 workdays after we received 30% of contract value T/T down payment.

Trailer advantages description
· More than 20 years professional design and production experience.
· Choose Regular manufacturers purchase materials,like Q235 baoshan.
· Use Domestic first-class production equipment.Main beam is useing Submerged arc welding process.
· Famouse brand trailer parts used,like bpw/fuwa axle,triangle/double star/double coin and so on tires.
· Strict quality control system ensure that each semi trailer is qualified.

Delivery

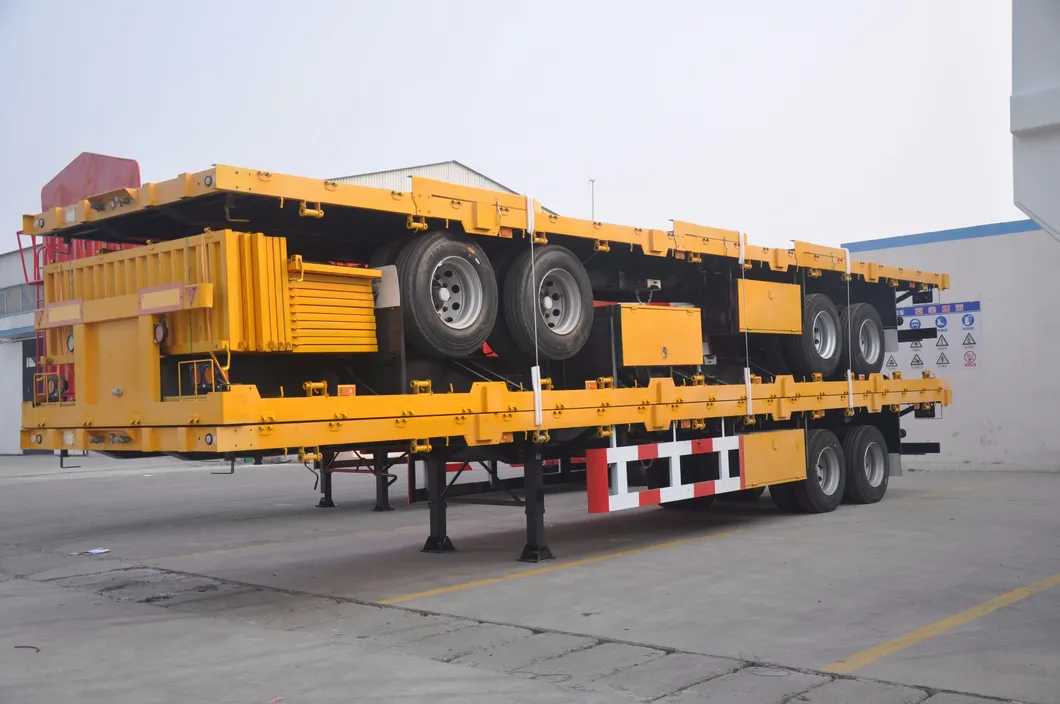

Wax spray and one stack of 3 sets to reduce shipping fee.
40FT Heavy Utility Cargo Truck Trailer/Trucks

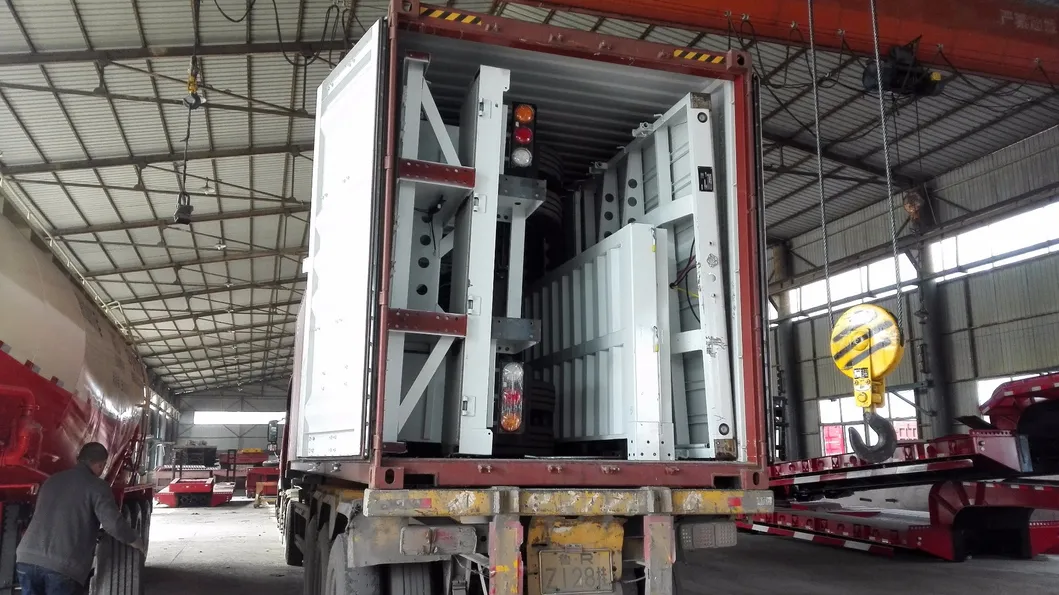

Take apart , one 40HQ to load 2 sets

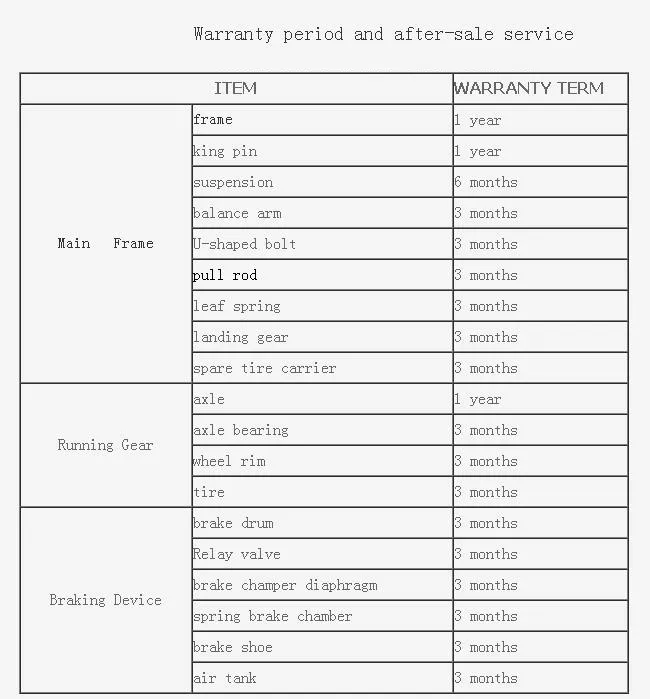

Warranty period and after sale service
40FT Heavy Utility Cargo Truck Trailer/Trucks

FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 40% contract value as the deposit by T/T,60% contract value made by irrevocable L / C at sight.
