42m3 Vertical Bulk Cement Tanker Semi Trailer
42m3 Vertical Bulk Cement Tanker Semi Trailer1.Product Description:Bulk Cement Tanker Semi Trailer is used to transport bulk cement tanker semi trailer. Mainly for the use of cement plant,cement warehouses and large construction sites, can save a lot of packaging materials and loading and unloading ......
Send Inquiry
Product Description
42m3 Vertical Bulk Cement Tanker Semi Trailer
1.Product Description:
Bulk Cement Tanker Semi Trailer is used to transport bulk cement tanker semi trailer. Mainly for the use of cement plant,
cement warehouses and large construction sites, can save a lot of packaging materials and loading and unloading work.
2.Product Advantages:

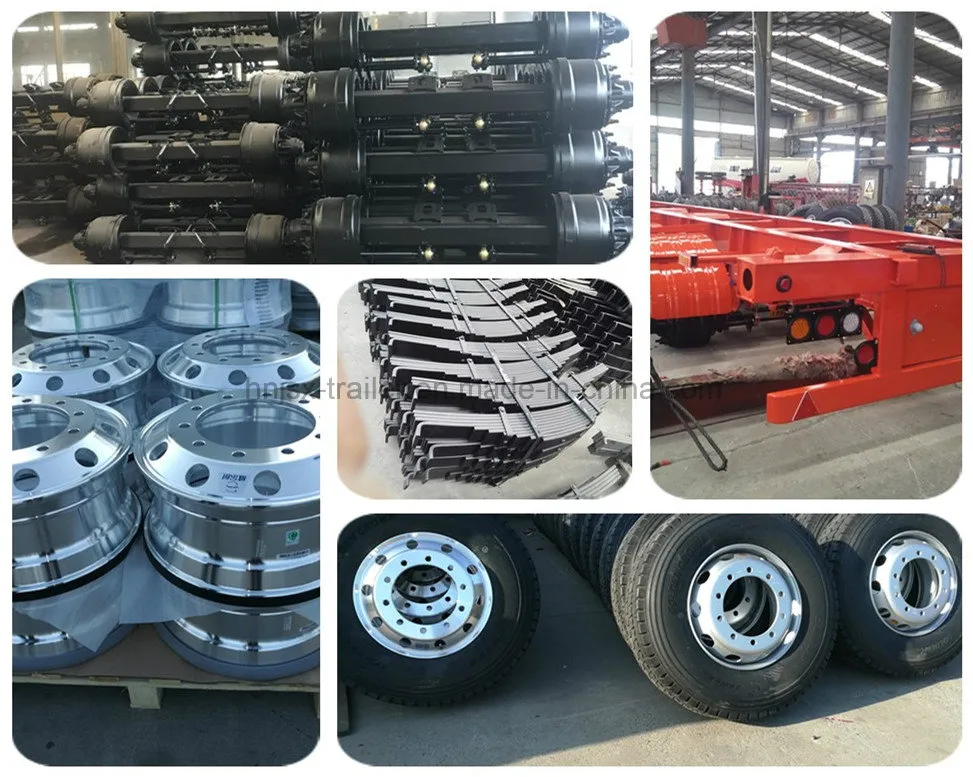

3.All Jushixin tank semi trailers adopts famous brand, such as:
Axle:
FUWA or BPW brand axle support trailer durable
Chassis:
China best Q345B-T700 support strong trailer skeleton
Tire:
Better quality tire support trailer running safety and smoothly
King Pin:
JOST detachable type support durable, fast and easy replace
Emergency Valve:
Fast response, support safety and protect tire use longer time.
4.Contact us:
1.Product Description:
Bulk Cement Tanker Semi Trailer is used to transport bulk cement tanker semi trailer. Mainly for the use of cement plant,
cement warehouses and large construction sites, can save a lot of packaging materials and loading and unloading work.
| Main Dimensions | |
| Dimension | 10700*2500*3950mm (L*W*H) (It can be adjusted according to the tractor specification) |
| Tare weight | Approx. 9,800kg |
| Frame & Structure: | |
| Main beam | Heavy duty and extra durability designed I beam;opting for high tensile steel Q345, welded by automatic submerged-Aac processes. Top flange 14mm;Middle Flange 8mm;bottom flange16mm. |
| King pin | 2'' JOST bolt-in king pin |
| Welding standard | All welding are to be done by qualified welder per applicable national standard |
| Painting | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um |
| Spray Wax | Anti-rust Wax Sprayed before Shipment |
| Tank: | |
| Tank Shape | V-type |
| Thickness of the body | 5MM |
| Thickness of the Cover | 6MM |
| Air Compressor | Bohai 12CBM |
| Power | Weichai 4102 |
| Butterfly valve | 4inch |
| Manhole | 3pcs of 500mm Diameter |
| Length for Discharge Hose | 6Meter 1pc |
| Running gear: | |
| Suspension | Mechanical suspension 60#,Leaf spring 90x16mm 10 pcs |
| Axle | Axle 3pcs*13 ton Fuwa capacity, China |
| Brake system | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks .24V |
| Emergency relay valve | WABCO relay valve |
| Tire | 12R22.5 Triangle TIRE 13pcs |
| Rim | 9.0-22.5, 13 pcs. China |
| Landing gear | JOST C200T |
| Electrical System: | |
| Voltage | 24 Volt |
| Receptacle | 7 ways(7wire harness)and quick change type |
| Front marker lamp | White |
| Side marker lamp | White & Red |
| Rear lamp | Red |
| Turn signal lamp | Amber |
| Reflector | Per customer requirement |
| Accessories: | |
| Mud guard | Assembled |
| Spare wheel carriers | 1 pc |
| Tool box | 1 piece |
| Tools for trailer | Head wrech ;spare wheel crank ; one fire extinguisher; Operation Manual |
| 1. Best Raw Material: Good performance support strong structure for longer service life |
| 2. Light Weight: High strength steel make lighter tare weight, reduce fuel consumption |
| 3. Fast Unloading: Quality engine support higher unloading rate, increase round trip rate. |
| 4. High Loading Rate: Unique design make loading rate >98%, load more for per trip |
| 5. Low Residual Rate: Reasonable angle design, unloading faster and residual rate<0.3%, increase economy for one trip. |
Axle:
FUWA or BPW brand axle support trailer durable
Chassis:
China best Q345B-T700 support strong trailer skeleton
Tire:
Better quality tire support trailer running safety and smoothly
King Pin:
JOST detachable type support durable, fast and easy replace
Emergency Valve:
Fast response, support safety and protect tire use longer time.
4.Contact us:
